Siemens 6DD1684-0GE0 SC64 Cable for S7-400 FM458-1 DP | New & Original

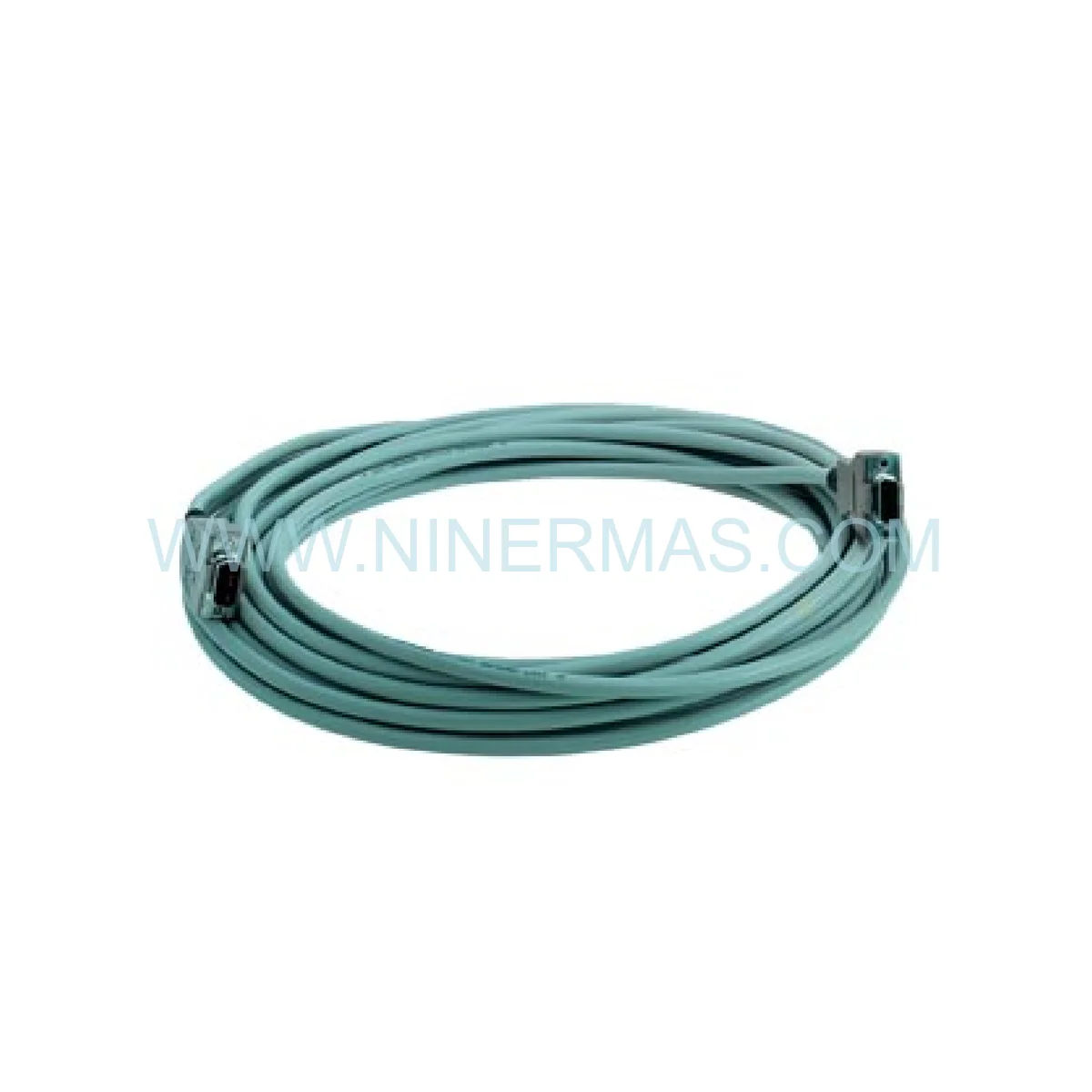

Siemens 6DD1684-0GE0 SC64 Round Cable | Reliable Automation Component for SIMATIC S7-400

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, maintaining system availability in mission-critical automation environments demands components that perform without compromise. The Siemens 6DD1684-0GE0 — a purpose-built SC64 round cable for SIMATIC S7-400 architectures — plays a decisive role in sustaining I/O module uptime by delivering deterministic, low-latency signal transmission between SBXX/SU12 interface boards and FM458-1 DP digital input modules. In high-throughput production lines where milliseconds of signal delay translate into costly process deviations, the 6DD1684-0GE0 ensures operational excellence through its precision-shielded 64-conductor design.

Deployed across chemically aggressive, thermally variable, and electromagnetically dense factory floors, the 6DD1684-0GE0 demonstrates exceptional resilience. Its EMI/RFI shielding architecture suppresses interference from variable frequency drives, servo amplifiers, and arc welding stations — environments where unshielded cabling routinely causes spurious I/O faults. Installation engineers should note that the pre-terminated connectors are keyed to prevent mis-mating, and cable routing should maintain a minimum bend radius of 5 the cable diameter to preserve conductor integrity over extended service cycles.

As production systems age and OEM support windows close, maintaining a verified stock of the 6DD1684-0GE0 as a critical spare is a cornerstone of any proactive maintenance strategy. EOL and legacy module continuity depends on sourcing original-factory components — not field-fabricated substitutes — to guarantee signal fidelity and system integration compliance across your entire S7-400 network.

Key Operational Features

Mission-Critical Signal Integrity — 64-pin shielded conductor array eliminates cross-talk and ground loops in high-density I/O environments.
Seamless Integration — Factory-terminated connectors ensure plug-and-play compatibility with SBXX/SU12 and FM458-1 DP modules; zero field crimping required.
High Availability Design — Rated 25°C to +70°C operating range supports continuous duty in both ambient and thermally stressed enclosures.
Redundancy-Ready — Compatible with S7-400H redundant CPU configurations, supporting hot-standby architectures without signal path compromise.
Process Optimization — Pre-assembled 2-meter length reduces installation labor by eliminating custom cable fabrication, accelerating system commissioning timelines.
Original Factory Packaging — Supplied in Siemens OEM packaging with full traceability documentation for quality audit compliance.

Maintenance & Performance Benchmarks

The 6DD1684-0GE0 is engineered to serve as a backbone interconnect within both small-scale standalone S7-400 racks and large-scale distributed control architectures spanning multiple I/O expansion frames. In multi-rack configurations, the cable’s shielded design maintains signal coherence across ground potential differentials that commonly arise between physically separated cabinet clusters.

Periodic maintenance inspection should include visual checks for jacket abrasion at cable entry points, connector locking tab integrity, and shield continuity verification using a standard multimeter. Mean time between failures (MTBF) for Siemens SC64 cables in controlled industrial environments exceeds 100,000 operating hours when installed per Siemens SIMATIC S7-400 system manual guidelines. For system integrators managing multi-site deployments, standardizing on the 6DD1684-0GE0 across all FM458-1 DP installations eliminates variant-related troubleshooting overhead and simplifies spare parts inventory management — a direct contributor to operational excellence.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 6DD1684-0GE0 dispatched from our inventory is supplied in original Siemens factory packaging, complete with manufacturer labels and batch traceability codes — essential for ISO-certified facilities requiring full component documentation. For time-sensitive plant shutdowns or emergency maintenance windows, same-day dispatch is available on in-stock units when orders are confirmed before the daily cut-off time.

Our global supply network is specifically structured to support EOL (End-of-Life) and legacy module continuity. As Siemens progressively phases out older S7-400 peripheral components, securing verified original stock of automation components like the 6DD1684-0GE0 becomes increasingly critical for facilities committed to long-term system integration without forced platform migrations. We maintain strategic buffer inventory to serve customers across North America, Europe, Southeast Asia, and the Middle East with worldwide express logistics — typically 3-7 business days door-to-door.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 6DD1684-0GE0 in an S7-400 rack?
A: Power down the S7-400 rack before connecting the cable. Align the keyed connector on the 6DD1684-0GE0 with the SC64 port on the SBXX/SU12 module, press firmly until the locking tab engages, then route the cable to the FM458-1 DP digital input port and repeat. Restore power and verify I/O mapping in STEP 7 or TIA Portal.

Q2: Which firmware versions of the FM458-1 DP are compatible with this cable?
A: The 6DD1684-0GE0 is a passive interconnect cable with no firmware dependency. It is mechanically and electrically compatible with all hardware revisions of the FM458-1 DP module. Firmware compatibility is governed by the FM458-1 DP module itself, not the cable.

Q3: Can this cable be used in S7-400H (high-availability) redundant configurations?
A: Yes. The 6DD1684-0GE0 is fully compatible with S7-400H redundant CPU architectures. Ensure both active and standby I/O paths use identical cable specifications to maintain symmetrical signal characteristics across the redundancy pair.

Q4: What is the warranty claim process if the cable fails within the warranty period?
A: Contact our technical support team at sale@ninermas.com with your order number, a description of the fault, and photographic evidence of the defect. We will issue a Return Merchandise Authorization (RMA) within 24 business hours and dispatch a replacement unit upon receipt of the defective item.

Q5: Is the 6DD1684-0GE0 suitable for use near high-power VFDs or servo drives?
A: Yes. The full braided EMI/RFI shield on the 6DD1684-0GE0 provides robust attenuation of radiated interference from variable frequency drives and servo amplifiers. For installations within 300mm of high-power drive cabinets, additional ferrite core suppression at the cable entry point is recommended as a supplementary measure.

Q6: Do you provide certificates of conformity or material traceability documentation?
A: Yes. Original Siemens factory documentation, including certificates of conformity and batch traceability records, is available upon request for all units sourced from our inventory. Please specify your documentation requirements at the time of order placement.
