Siemens 6DD1683-0BE0 Service-Ready Spare Part for Industrial Maintenance

Siemens 6DD1683-0BE0 Service-Ready Spare Part for Industrial Maintenance

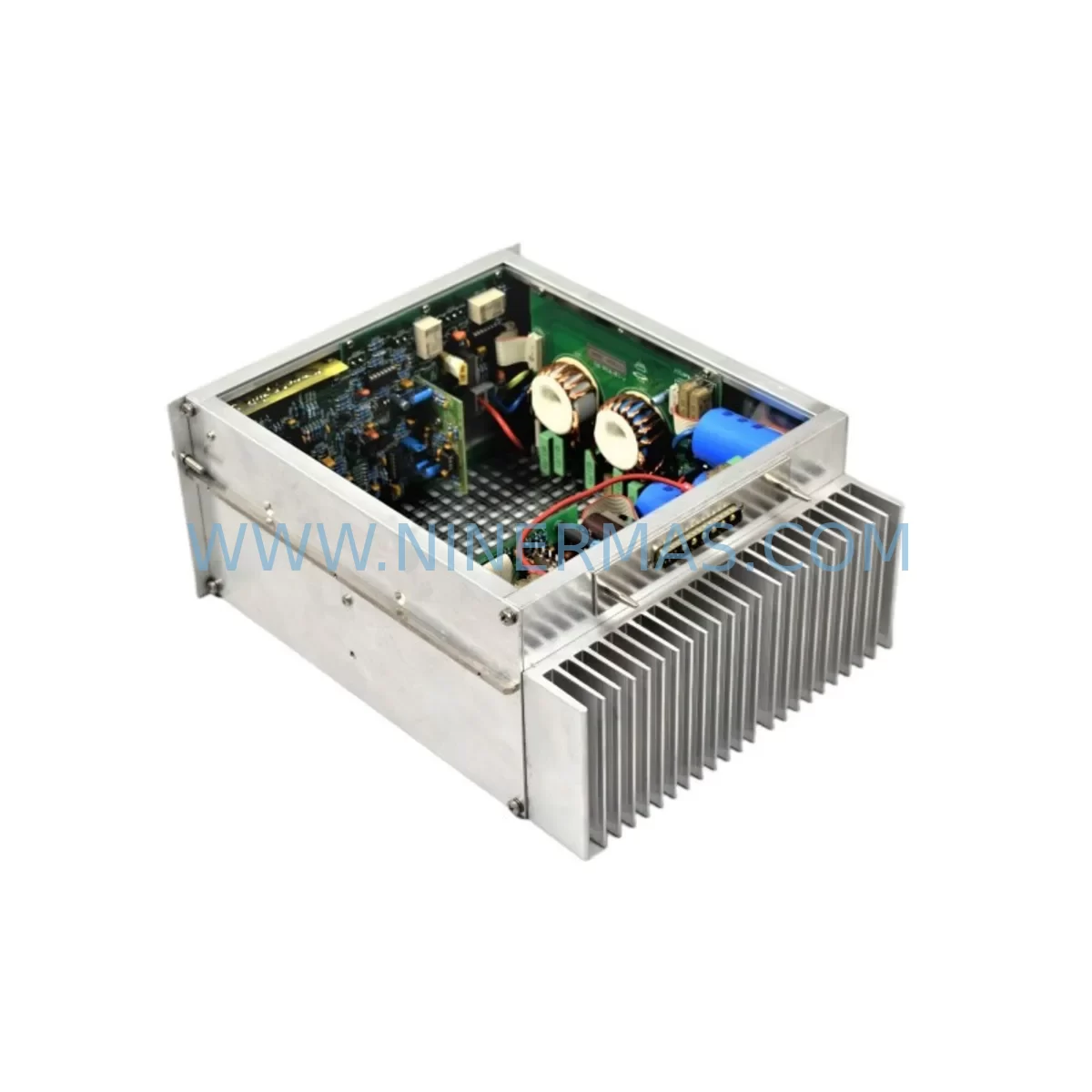

The Siemens 6DD1683-0BE0 is a ruggedized power supply module engineered for continuous operation in demanding industrial environments. Designed for integration within the SIMADYN D control platform, this module delivers stable, regulated DC power to processor boards, I/O racks, and communication interfaces across a wide range of process automation and drive control applications. For maintenance engineers managing aging SIMADYN D installations, sourcing a verified, service-ready 6DD1683-0BE0 is critical to minimizing unplanned downtime and restoring production continuity after a power supply fault.

At NINERMAS, every 6DD1683-0BE0 unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement engineers the confidence to stock this module as a long-term spare without concern for shelf-life degradation or counterfeit risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 6DD1683-0BE0 power supply module fails or shows signs of degradation — such as output voltage drift, thermal shutdown, or intermittent resets — the fault rarely exists in isolation. Experienced maintenance engineers know that a power supply event in a SIMADYN D cabinet often stresses adjacent components, and a thorough inspection of the entire electrical circuit is essential before returning the system to service.

Begin by verifying the incoming AC supply quality at the cabinet entry point. Surge events or sustained overvoltage conditions are a leading cause of premature power supply failure, and installing or replacing a properly rated surge protection device (SPD) at the panel feed is a sound preventive measure. Next, inspect the SIMADYN D backplane bus connectors for signs of arcing, oxidation, or mechanical damage — a compromised backplane can cause repeated power supply faults even after module replacement.

The processor boards that receive power from the 6DD1683-0BE0 — such as the 6DD1600-0AK0 CPU module or the 6DD1607-0AA0 memory module — should be reseated and inspected for capacitor bulging or corrosion on the PCB. If the system includes digital or analog I/O modules such as the 6DD1681-0AE0 or 6DD1682-0AD0, verify that their internal fuses are intact and that terminal block connections are torqued to specification, as loose wiring can cause ground faults that load the power supply beyond its rated capacity.

Communication modules within the SIMADYN D rack — including PROFIBUS DP interface cards or Ethernet communication boards — should also be checked for firmware integrity and connector seating after any power event. A power supply fault that causes an uncontrolled shutdown can corrupt volatile memory in communication processors, leading to configuration loss that manifests as a communication fault rather than a power fault during restart.

For sites running SIMADYN D alongside Siemens SIMATIC S7 PLCs or SIMOVERT MASTERDRIVES frequency converters, it is advisable to audit the 24 V DC distribution rail that feeds both the SIMADYN D rack and any associated relay output modules or signal isolators. Shared DC rails can propagate voltage transients across systems, and installing DIN-rail mounted signal isolators or DC/DC converters between subsystems is a best practice for long-term reliability.

HMI panels connected to the SIMADYN D system — such as Siemens OP or MP series operator panels — should be power-cycled and communication links re-established after the 6DD1683-0BE0 replacement to confirm that all process visualizations and alarm histories are intact. Finally, review the cabinet’s terminal strips and cable routing for signs of insulation degradation, particularly in high-temperature zones near the power supply bay, and replace any suspect wiring before closing the cabinet.

Stocking a minimum of one 6DD1683-0BE0 as a critical spare, alongside a spare 6DD1607-0AA0 memory module and a set of replacement fuses for the I/O rack, is a practical inventory strategy for sites where SIMADYN D systems are central to production continuity. NINERMAS maintains long-term supply of SIMADYN D components to support both emergency replacement and planned annual maintenance cycles.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Follow your site LOTO (Lockout/Tagout) procedure. Confirm zero voltage at the cabinet bus bars before opening the SIMADYN D rack.

Step 2 — Document the existing configuration: Photograph the module position, cable routing, and any DIP switch or jumper settings on the 6DD1683-0BE0 before removal. SIMADYN D power supply modules may have site-specific output voltage trim settings that must be replicated on the replacement unit.

Step 3 — Remove the faulty module: Disconnect all DC output connectors and AC input wiring. Slide the module out of the rack along the guide rails. Inspect the rack slot for debris or connector damage.

Step 4 — Prepare the replacement unit: Verify that the replacement 6DD1683-0BE0 matches the original in firmware revision and hardware variant (check the nameplate label). Replicate any output voltage trim or current limit settings from your documentation.

Step 5 — Install and reconnect: Slide the new module into the rack, seat the backplane connector firmly, and reconnect all DC output and AC input wiring. Torque terminal screws to the manufacturer’s specification.

Step 6 — Power-up and verify: Energize the cabinet in stages. Measure DC output voltage at the backplane bus before powering processor boards. Confirm that all SIMADYN D modules initialize correctly and that no fault LEDs are active. Re-establish communication with the HMI and verify process data integrity before returning the system to automatic operation.

This workflow is applicable whether you are replacing a failed unit on an emergency basis or performing a scheduled swap during a planned maintenance window. The 6DD1683-0BE0 is a direct replacement for earlier SIMADYN D power supply variants, and no software reconfiguration of the control system is typically required following a like-for-like module exchange.

Spare Parts Support FAQ

Q1: Is the 6DD1683-0BE0 still available as a new original part, or only as a refurbished unit?
The Siemens 6DD1683-0BE0 is part of the SIMADYN D product family, which has reached end-of-production. NINERMAS sources service-ready units from verified industrial surplus channels. Each unit undergoes functional testing and inspection before shipment. All units are supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q2: How do I confirm compatibility with my existing SIMADYN D rack before ordering?
Compatibility is confirmed by matching the rack model number, backplane bus type, and DC output voltage requirements of your installation against the 6DD1683-0BE0 specification. NINERMAS technical support can assist with compatibility verification if you provide your cabinet model, existing power supply part number, and system documentation. Contact sale@ninermas.com with your inquiry before placing an order if you have any uncertainty.

Q3: What is the typical lead time, and can NINERMAS support long-term supply agreements for SIMADYN D spare parts?
In-stock units ship within 1–3 business days via express courier. For sites with ongoing SIMADYN D maintenance requirements, NINERMAS offers long-term supply agreements and reserved inventory arrangements to ensure availability of critical spare parts including the 6DD1683-0BE0 and associated SIMADYN D modules. Contact our sales team to discuss a tailored spare parts support contract.

Q4: What pre-shipment testing is performed on the 6DD1683-0BE0?
Each 6DD1683-0BE0 unit is tested for correct DC output voltage regulation, input voltage range acceptance, overcurrent protection function, and thermal performance under load before shipment. Units that do not meet original Siemens performance specifications are not shipped. A test report is available upon request for quality-critical procurement processes.
