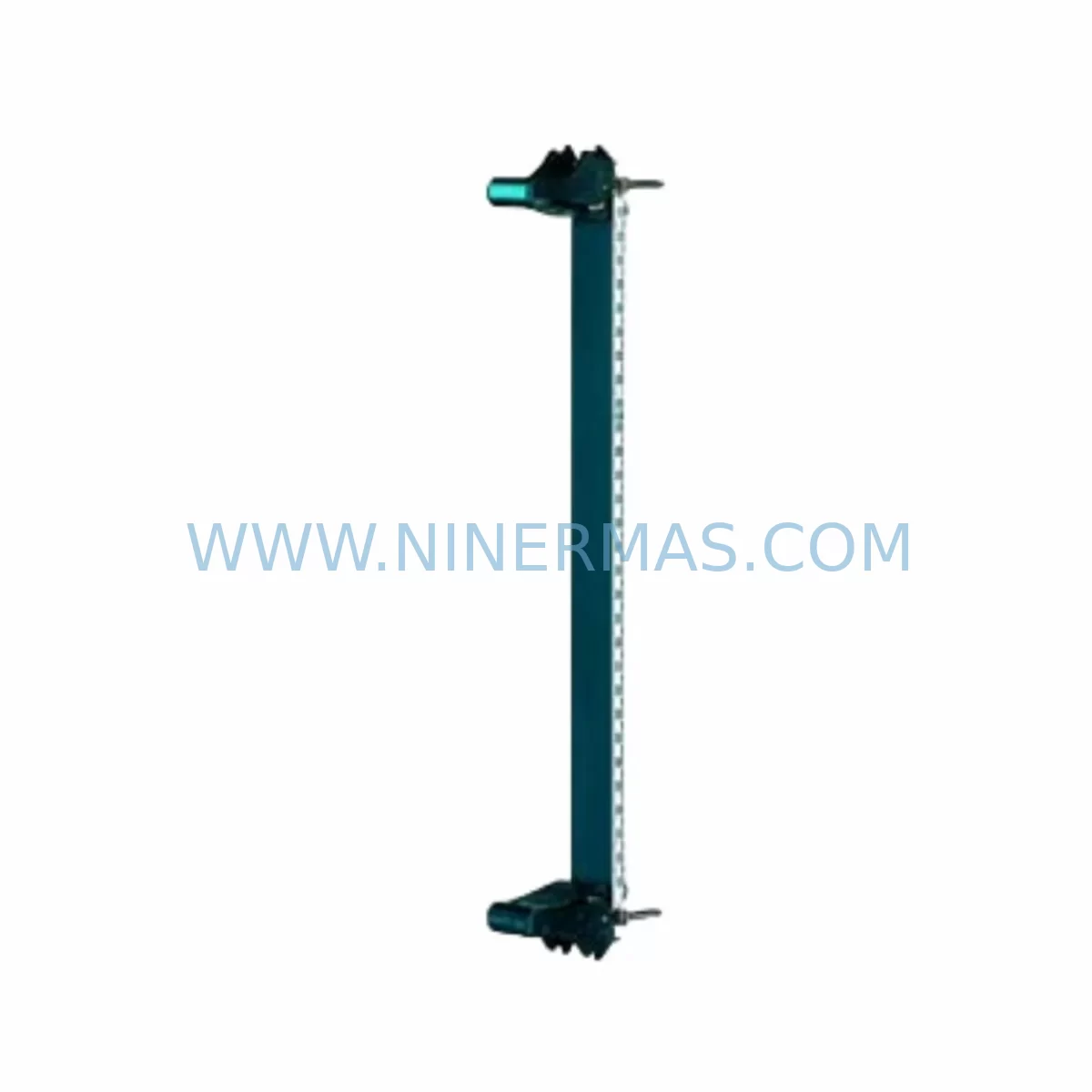

The Siemens 6DD1682-0DA1 is a slot-compatible communication and coordination module designed for the SIMATIC TDC (Technology and Drive Control) platform — one of Siemens’ most demanding high-performance automation architectures. Used extensively in steel mills, paper machines, rolling lines, drive coordination systems, and large-scale process automation, the SIMATIC TDC platform demands absolute reliability from every installed module. When the 6DD1682-0DA1 fails or reaches end-of-service life, the consequences are immediate: production halts, drive coordination is lost, and recovery time without a verified spare on hand can stretch from hours to days.

At NINERMAS, we stock the 6DD1682-0DA1 as a service-ready original spare part, pre-tested before shipment, backed by a 12-month warranty, and available for long-term supply commitment. Whether you are a maintenance engineer responding to an unplanned fault or a procurement engineer building a strategic spare parts inventory, this listing is structured to support both scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6DD1682-0DA1 in a live SIMATIC TDC system is rarely an isolated task. Experienced maintenance engineers know that a communication module fault is often a symptom of broader stress within the control cabinet — and a planned replacement window is the right moment to inspect and, where necessary, pre-stock adjacent components.

Begin with the SIMATIC TDC backplane and rack assembly. Slot contacts degrade over years of thermal cycling; if the 6DD1682-0DA1 has been in service for more than five years, inspect the rack connector for oxidation or mechanical wear. The TDC power supply module (such as the 6DD1660-0AH0 or equivalent 24 VDC rack PSU) should be checked for output voltage stability — an under-voltage condition on the backplane bus is a common root cause of intermittent communication module faults that are misdiagnosed as module failure.

On the I/O side, review the SIMATIC TDC I/O interface modules connected downstream of the coordination layer. If the 6DD1682-0DA1 handles inter-module communication or drive bus coordination, verify that the DRIVE-CLiQ or PROFIBUS DP communication cables are intact, correctly terminated, and free from EMI interference — particularly in environments with large variable frequency drives or servo amplifiers. Faulty cable shielding is a frequent contributor to communication errors that ultimately stress the coordination module.

For drive-side components, inspect the Siemens SINAMICS or MASTERDRIVES interface boards that interface with the TDC coordination layer. A degraded drive interface card can generate bus errors that appear as faults on the 6DD1682-0DA1 side. Similarly, signal isolators and surge protection modules on the I/O terminals should be verified — particularly on analog input channels feeding the TDC system from field instruments.

Relay output modules and safety relay units within the same control cabinet should be included in the inspection checklist. In many TDC-based drive systems, safety interlocks are wired through relay modules that share the same 24 VDC supply rail as the TDC rack. A failing relay coil drawing excess current can cause supply rail sag that affects module stability. Check terminal block assemblies and DIN rail-mounted fuse holders for signs of overheating or loose connections — these are often overlooked during module-focused maintenance visits.

If the system includes an HMI panel (such as a Siemens TP or MP series operator panel) communicating with the TDC CPU, verify the HMI communication configuration after module replacement, as slot reassignment can alter the logical address mapping visible to the HMI. Finally, ensure that the SIMATIC TDC CPU firmware version is compatible with the replacement 6DD1682-0DA1 hardware revision — firmware-hardware mismatches are a known source of post-replacement instability in long-running TDC installations.

Building a spare parts kit around the 6DD1682-0DA1 replacement — including a backup power supply module, a set of PROFIBUS connectors, a spare I/O interface module, and a tested relay output card — is a sound investment for any facility running SIMATIC TDC in a critical production role.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 6DD1682-0DA1, document the current slot position, firmware version displayed in STEP 7 or the TDC engineering tool, and any active fault codes. Photograph the wiring and connector orientation if any field wiring is attached to the module.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. For hot-swap capable TDC racks, confirm whether the specific slot supports live insertion before proceeding without full rack power-down. When in doubt, power down the rack to avoid backplane damage.

Step 3 — Module Removal and Inspection: Remove the faulty 6DD1682-0DA1 and inspect the slot connector on the rack for damage or contamination. Clean with appropriate contact cleaner if required before inserting the replacement unit.

Step 4 — Replacement Insertion: Insert the new 6DD1682-0DA1 into the correct slot. Ensure the module is fully seated and the front panel locking mechanism is engaged. Reconnect any field wiring or communication cables in the correct orientation.

Step 5 — Power-Up and Diagnostics: Restore power and monitor the module status LEDs. Access the TDC engineering software to confirm the module is recognized, the firmware version is compatible, and no new fault codes are present. Run a communication test to verify data exchange with adjacent modules and the CPU.

Step 6 — System Validation: Perform a controlled production test cycle before returning the system to full operation. Confirm drive coordination, I/O response, and HMI data display are all functioning correctly. Log the replacement in your maintenance management system with the new module serial number and date.

This workflow minimizes downtime, ensures system compatibility, and creates a traceable maintenance record — critical for ISO-compliant maintenance programs and future fault analysis.

Spare Parts Support FAQ

Q1: Is the 6DD1682-0DA1 supplied as an original Siemens part or a compatible replacement?
We supply original Siemens 6DD1682-0DA1 modules. Each unit is sourced from authorized channels or verified surplus stock, inspected for authenticity, and function-tested before shipment. We do not supply counterfeit or unverified compatible substitutes for safety-critical automation components.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at sale@ninermas.com with your order reference and a description of the fault. We will arrange a replacement or repair at no additional cost after fault verification.

Q3: Can you support long-term or blanket purchase orders for the 6DD1682-0DA1?
Yes. We offer scheduled delivery programs and blanket order agreements for customers who require ongoing supply of SIMATIC TDC spare parts. This is particularly valuable for facilities managing aging TDC installations where Siemens standard availability may be limited. Contact us to discuss stock reservation, lead time commitments, and pricing for multi-unit or annual supply contracts.

Q4: How do I confirm compatibility before ordering if my system uses a different hardware revision?
Provide us with your existing module’s full part number including any suffix or revision code (e.g., 6DD1682-0DA1 /E01), your TDC CPU type, and the firmware version currently running. Our technical team will confirm compatibility or identify the correct revision for your specific installation before you commit to the order.
