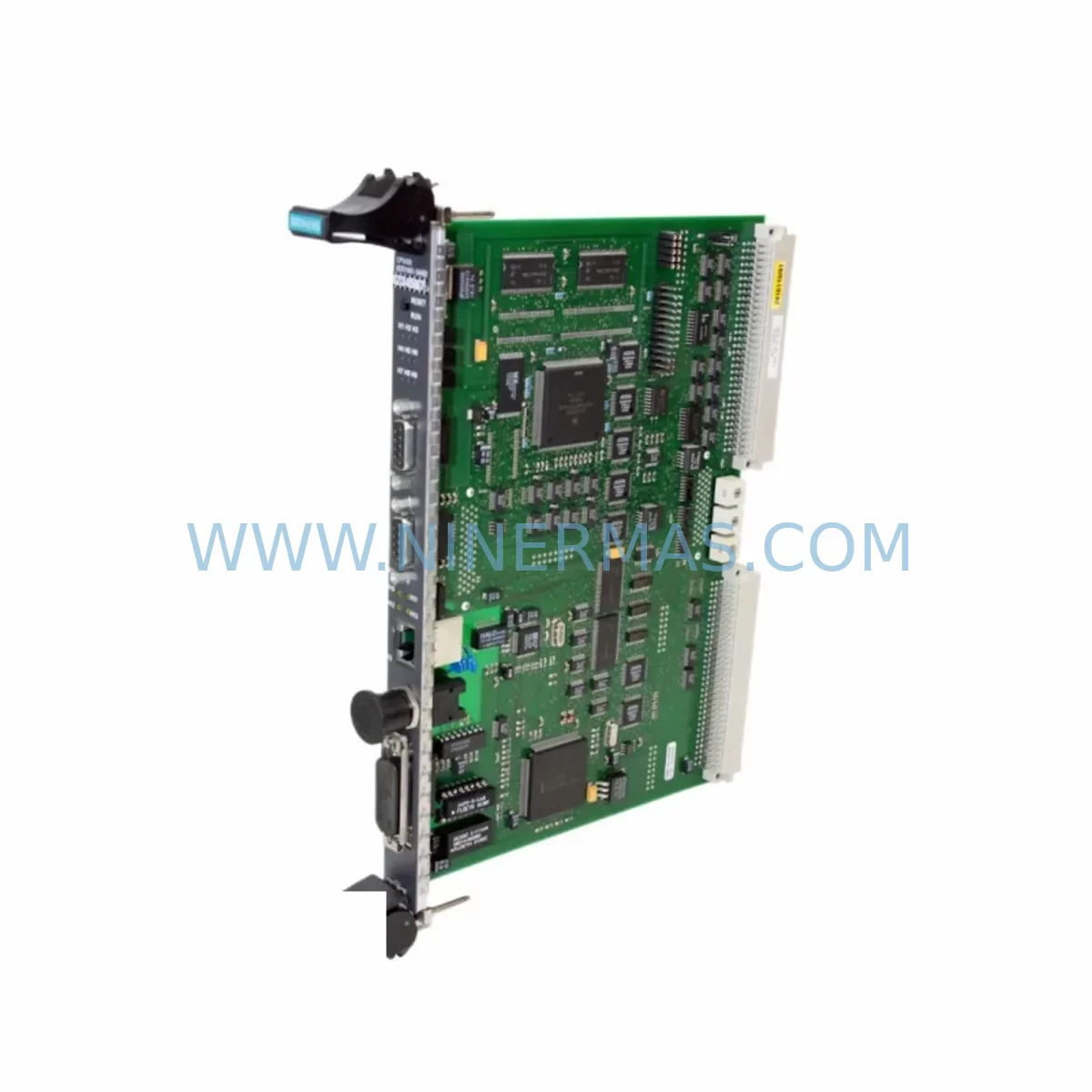

Siemens 6DD1661-0AE0 Retrofit Communication Module

Siemens 6DD1661-0AE0 Retrofit Communication Module: Legacy SIMADYN D System Compatibility & Smooth Upgrade Path

The Siemens 6DD1661-0AE0 is a ruggedized communication module originally designed for the Siemens SIMADYN D modular control platform — a system widely deployed across heavy industry, power generation, steel mills, paper mills, and large-scale drive applications throughout the 1990s and 2000s. As the SIMADYN D platform has reached end-of-life and spare parts availability has tightened globally, the 6DD1661-0AE0 has become a critical procurement target for maintenance engineers seeking to extend the operational life of existing control infrastructure without committing to a full system replacement.

At NINERMAS, we supply the 6DD1661-0AE0 as a retrofit-compatible replacement unit, fully tested prior to shipment and backed by a 12-month warranty. Our inventory supports urgent breakdown recovery as well as planned lifecycle extension programs for facilities operating legacy SIMADYN D racks.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 6DD1661-0AE0 in an active SIMADYN D installation requires careful pre-work to avoid extended downtime or configuration loss. Engineers should begin by auditing the existing rack layout — typically a CS7 or CS12 rack — and confirming the slot address assigned to the communication module in the original system configuration. The SIMADYN D architecture uses slot-based module addressing, meaning an incorrectly positioned replacement module will not be recognized by the controller without a configuration update.

Power budget verification is equally important. The SIMADYN D rack relies on a centralized 6DD1600-0AE0 or 6DD1600-0AF0 power supply module to feed all installed cards. Before inserting the replacement 6DD1661-0AE0, confirm that the existing PSU has sufficient headroom to support the communication module’s current draw, particularly in fully populated racks where 6DD1607-0AA0 I/O modules and 6DD1606-0AA0 analog input modules are already consuming significant capacity.

Terminal wiring on the communication side must be mapped against the original field wiring documentation. In SIMADYN D systems interfacing with external drives — such as Siemens SIMOREG DC Master or SIMOVERT MASTERDRIVES units — the communication link between the 6DD1661-0AE0 and the drive controller is typically established via a dedicated serial or SINEC H1 connection. Any change in module firmware version may affect the handshake parameters, so it is advisable to record the existing firmware revision before removal.

For facilities also running Siemens S5-115U or S5-135U PLCs in parallel with SIMADYN D controllers, the communication module serves as a critical bridge between the drive control layer and the supervisory PLC layer. Disruption to this link during replacement can affect interlocks and process sequencing, so a coordinated switchover plan — ideally during a scheduled maintenance window — is strongly recommended.

Where the SIMADYN D system interfaces with an operator panel such as a Siemens OP17 or OP27, the HMI screen configuration should be backed up prior to any module swap. Communication parameter changes at the module level can cause the HMI to lose its connection to the controller, requiring a re-establishment of the MPI or Profibus link. In some installations, a 6DD1607-0BA0 digital output module is used to signal status to the HMI — this signal chain should be verified post-installation.

For sites planning a longer-term migration from SIMADYN D toward a modern platform such as Siemens SIMATIC S7-400 or S7-1500, the 6DD1661-0AE0 replacement can serve as a bridge solution — maintaining production continuity while the migration project is scoped, budgeted, and scheduled. NINERMAS can support both the immediate spare part requirement and longer-term lifecycle planning discussions.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team working with legacy SIMADYN D hardware. When replacing the 6DD1661-0AE0, the following approach is recommended to protect program logic, maintain field control continuity, and reduce migration risk:

1. Pre-Replacement Backup: Before removing the existing module, use the SIMADYN D programming tool (typically STRUC G software) to export the full controller configuration, including function block assignments, communication parameters, and I/O mapping. Store this backup on a secure offline medium.

2. Slot and Address Verification: Confirm the physical slot number and the logical module address in the configuration file. Document the terminal connections on the communication port before disconnecting any wiring.

3. Controlled Shutdown Sequence: Where possible, bring the associated drive or process section to a safe stop state before removing the module. In multi-drive systems, isolate only the affected communication path to avoid cascading shutdowns across the rack.

4. Module Swap and Restart: Insert the replacement 6DD1661-0AE0 into the correct slot. Power up the rack and allow the controller to perform its self-test sequence. Monitor the diagnostic LEDs on the module and adjacent cards for fault indications.

5. Communication Link Re-establishment: Re-establish the communication link to any connected drives, PLCs, or HMI panels. Verify that all process values are being transmitted correctly and that no alarms are active on the supervisory system.

6. Functional Verification: Run a controlled test of the affected process section before returning to full production. Confirm that all interlocks, setpoints, and feedback signals are operating within expected parameters.

With proper preparation, a 6DD1661-0AE0 module swap can typically be completed within a single maintenance shift, significantly reducing the risk of extended production loss.

Retrofit Support FAQ

Q1: Is the 6DD1661-0AE0 a direct drop-in replacement for other 6DD1661 variants?
The 6DD1661-0AE0 shares the same physical form factor as other 6DD1661 sub-variants (such as 6DD1661-0AB0 and 6DD1661-0AC0), but firmware versions and communication parameter sets may differ. We recommend confirming the firmware revision of the existing module before ordering a replacement. Our technical team can assist with cross-referencing if you provide the existing module’s label information.

Q2: What pre-shipment testing is performed on the 6DD1661-0AE0?
All units supplied by NINERMAS undergo a functional power-on test and communication interface verification before dispatch. Units are inspected for physical condition, connector integrity, and component-level anomalies. A test report is available upon request for critical applications.

Q3: Can the 6DD1661-0AE0 be used in a SIMADYN D rack alongside newer Siemens modules?
The SIMADYN D rack architecture supports mixed module configurations within the same rack, provided all modules are compatible with the rack’s backplane bus revision. The 6DD1661-0AE0 is designed for standard SIMADYN D racks and should coexist with other SIMADYN D modules including I/O cards, processor modules, and power supply units without conflict.

Q4: What is the warranty coverage and what does it include?
NINERMAS provides a 12-month warranty from the date of delivery on all supplied units. The warranty covers functional failure under normal operating conditions and excludes damage caused by incorrect installation, overvoltage, or physical mishandling. In the event of a warranty claim, we will arrange replacement or repair at no additional cost to the customer. Our team is available to provide remote technical support during the installation and commissioning process.
