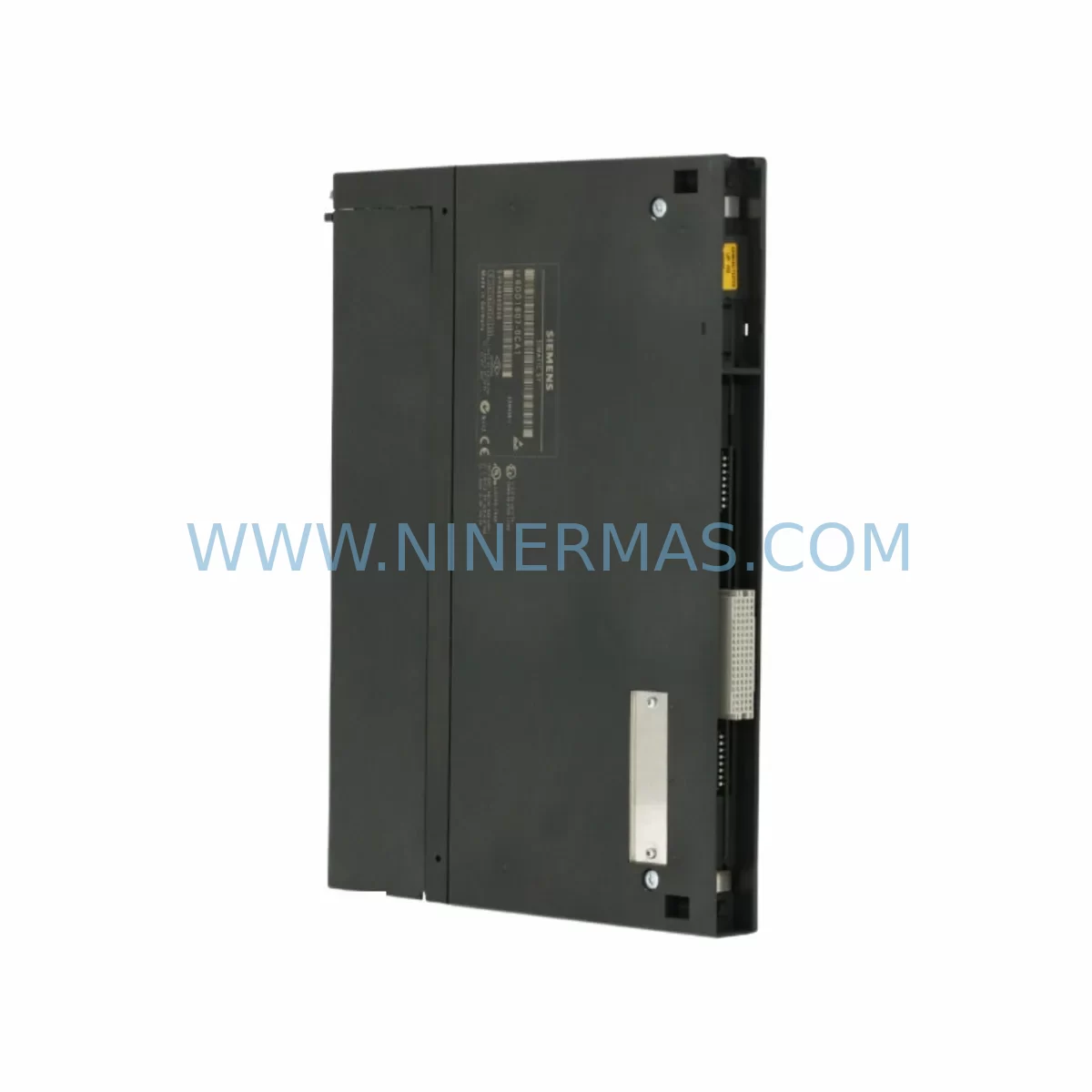

Siemens 6DD1607-0CA1 Retrofit-Compatible Expansion Module

Siemens 6DD1607-0CA1 Retrofit-Compatible Expansion Module for Legacy Systems

The Siemens 6DD1607-0CA1 is an EXM438-1 series expansion module designed for the SIMADYN D digital control platform — a system widely deployed across power generation, steel processing, paper mills, and heavy industrial drive applications. As Siemens has progressively discontinued the SIMADYN D product line, the 6DD1607-0CA1 has become a critical retrofit and replacement component for facilities that need to extend the operational life of their existing control infrastructure without committing to a full platform migration.

NINERMAS supplies the 6DD1607-0CA1 as a tested, retrofit-compatible spare with a 12-month warranty, backed by pre-shipment functional verification. Whether you are replacing a failed module in an active production line, building a strategic spare parts inventory, or executing a phased control system upgrade, this module is available for immediate dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When a 6DD1607-0CA1 expansion module fails in a SIMADYN D installation, the impact extends well beyond the module itself. The EXM438-1 typically handles I/O expansion, signal conditioning, or inter-rack communication within the control cabinet, meaning its failure can interrupt feedback loops, disable drive control signals, or cause the entire control rack to fault. Before replacement, engineers must audit the full rack configuration — including the 6DD1660-0AB0 CS275 communication module and any co-installed 6DD1607-0AA0 EXM438 base modules — to confirm that the replacement unit will be addressed correctly on the backplane bus.

Power budget verification is a mandatory first step. The SIMADYN D subrack relies on a centralised power supply module — commonly the 6DD1681-0AE0 or a functionally equivalent PSU — to distribute 24 VDC and 5 VDC across all installed modules. Adding or replacing an EXM438-1 without confirming available headroom risks tripping the PSU’s overcurrent protection, which can corrupt active program execution. Always measure rail voltages under load before and after module swap.

Terminal wiring and field signal mapping must be documented before the old module is removed. In many legacy SIMADYN D installations, field wiring is connected directly to the module’s front connector, and signal labels may have drifted from the original engineering drawings over years of plant modifications. Cross-reference the existing wiring against the original I/O list, and confirm that the replacement 6DD1607-0CA1 uses the same connector pinout — particularly for analogue input channels, where signal polarity and impedance matching affect measurement accuracy.

For facilities planning a broader control system upgrade, the 6DD1607-0CA1 replacement is often the first step in a phased migration. A common path involves stabilising the SIMADYN D rack with new spare modules while engineering teams prepare the migration to a SIMATIC S7-400H or SIMATIC S7-1500 platform. During this transition period, PROFIBUS DP gateway modules such as the 6GK7443-5DX05-0XE0 CP443-5 are frequently deployed to bridge legacy SIMADYN D communication with modern PROFIBUS or PROFINET networks, allowing HMI systems and SCADA platforms to continue operating without interruption.

I/O expansion during the transition phase often requires the addition of ET 200M distributed I/O stations with SM321 digital input and SM331 analogue input modules, which can be mapped to the new controller while the SIMADYN D rack remains in service. Signal isolators — such as those from the SITRANS series — are commonly inserted between legacy field devices and new I/O modules to protect against ground loops and voltage level mismatches that arise when mixing old and new hardware generations.

HMI migration is another parallel workstream. Existing SIMATIC OP7, OP17, or TP270 operator panels connected to the SIMADYN D system via MPI or serial links will need to be re-addressed or replaced with SIMATIC HMI Comfort Panels once the controller platform changes. Retaining the original HMI screens during the interim period requires careful management of MPI node addresses and baud rate settings, which must remain consistent across all devices on the segment.

Programming cable access is also a practical consideration. SIMADYN D configuration and diagnostics are performed using the STRUC G engineering tool, which requires a dedicated serial or ISA-bus programming interface. Ensure that a compatible programming cable and a PC running the appropriate STRUC G version are available on-site before beginning any module replacement or parameter adjustment, as online diagnostics are essential for confirming correct module recognition after installation.

Downtime Control During System Migration

Minimising production downtime during a SIMADYN D module replacement or broader system migration requires a structured, pre-planned approach. The first priority is to back up all existing program logic and parameter sets from the SIMADYN D processor module — typically a 6DD1600-0AE0 PM5 or PM6 processor — before any hardware is disturbed. STRUC G allows a full project upload, including function block diagrams, parameter assignments, and hardware configuration, which should be stored on at least two independent media before work begins.

Where the process permits, a hot-standby or redundant rack configuration should be used to transfer control to a secondary system before the primary rack is taken offline. In SIMADYN D installations without hardware redundancy, the safest approach is to schedule the replacement during a planned maintenance window, coordinate with the process control team to place the affected drive or control loop in manual mode, and confirm that all field actuators are in a safe state before de-energising the rack.

After installing the replacement 6DD1607-0CA1, the commissioning sequence should follow a defined checklist: confirm module address switch settings match the original configuration, verify backplane bus communication using STRUC G diagnostics, restore parameter sets from the backup, and perform a controlled loop test on each I/O channel before returning the system to automatic mode. This structured approach typically allows a single-module replacement to be completed within a two-to-four-hour maintenance window, significantly reducing the risk of extended unplanned downtime.

For phased migrations involving parallel operation of SIMADYN D and a new SIMATIC S7 platform, the key to continuity is maintaining consistent signal references across both systems during the cutover period. Using signal splitters and passive distribution terminals to feed the same field signals to both the old and new controllers simultaneously allows the new system to be validated in shadow mode before the final switchover, eliminating the need for a hard cutover and the associated production risk.

Retrofit Support FAQ

Q1: Is the 6DD1607-0CA1 a direct replacement for the original Siemens EXM438-1 module?
Yes. The 6DD1607-0CA1 supplied by NINERMAS is an OEM-equivalent unit that installs directly into the existing SIMADYN D subrack without mechanical or electrical modification. Confirm that the module address switches are set to match the original configuration before powering up the rack.

Q2: What pre-shipment testing is performed on each unit?
Every 6DD1607-0CA1 undergoes a functional burn-in test prior to dispatch. This includes power-on verification, backplane bus communication check, and I/O channel continuity testing. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in a migration from SIMADYN D to SIMATIC S7?
The 6DD1607-0CA1 is a SIMADYN D-native module and is not directly compatible with the SIMATIC S7 backplane. However, it is commonly used to stabilise an existing SIMADYN D installation during a phased migration, allowing engineering teams to complete the S7 platform preparation without rushing the cutover. Gateway and communication modules are required to bridge the two platforms during the transition period.

Q4: What is the lead time and do you hold stock?
NINERMAS maintains stock of the 6DD1607-0CA1 for immediate dispatch. Standard lead time for in-stock units is 3–7 business days depending on destination. For volume orders or long-term spare parts programmes, contact our team at sale@ninermas.com to discuss scheduled supply arrangements and pricing.
