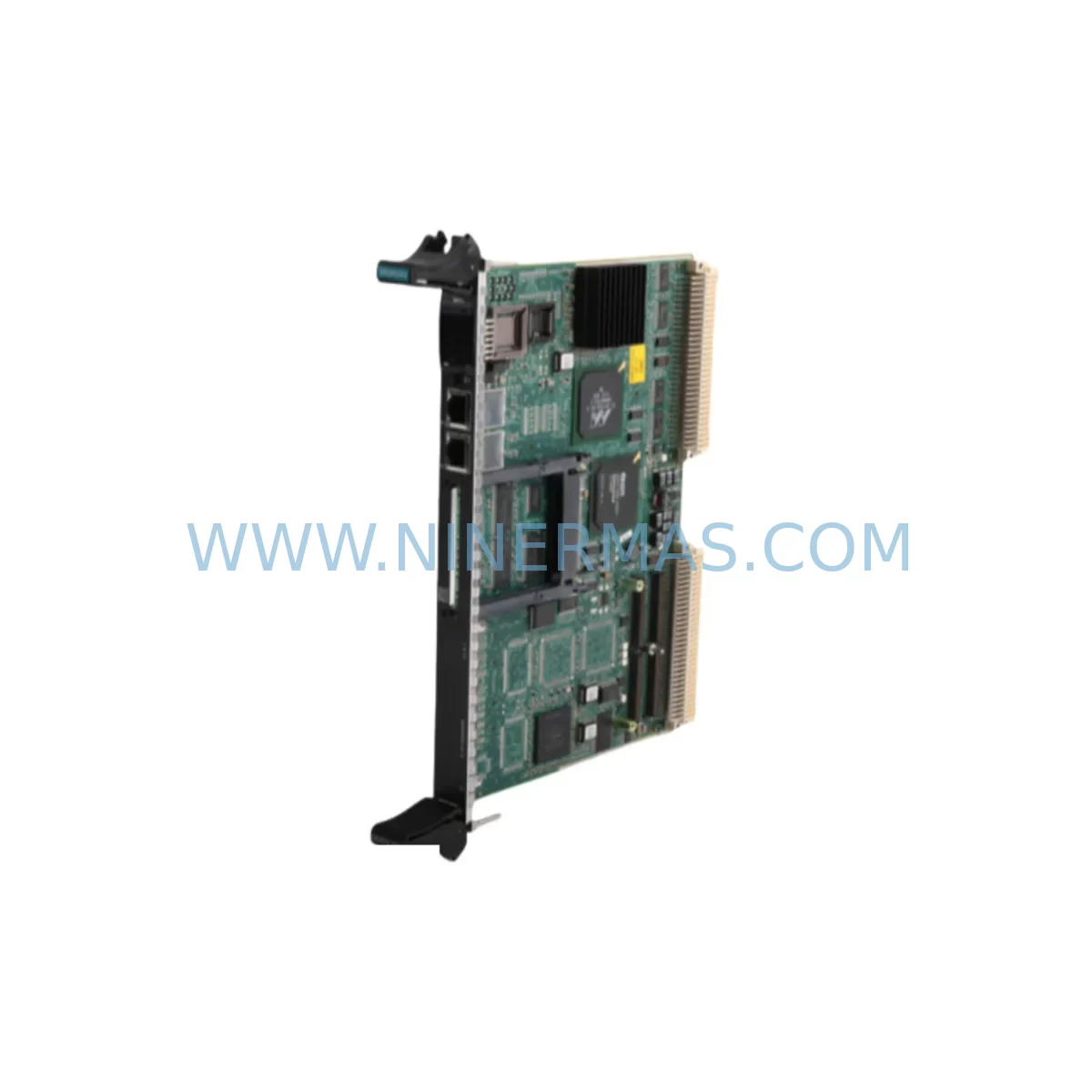

The Siemens 6DD1600-0BA2 is a high-performance processor module from the SIMADYN D series, engineered for mission-critical industrial automation environments where control interruption, signal drift, and unplanned downtime carry serious operational and safety consequences. Designed to meet the rigorous demands of continuous production facilities, critical interlock systems, and heavy-duty control cabinets, this processor module delivers deterministic real-time processing with robust resistance to electromagnetic interference, voltage fluctuation, and harsh ambient conditions including dust, moisture, high temperature, and mechanical vibration.

In industrial plants where process continuity is non-negotiable — such as petrochemical refineries, power generation stations, metallurgical smelters, and water treatment facilities — the 6DD1600-0BA2 serves as the computational backbone of the control architecture. Its ability to maintain stable cycle execution under high-EMI conditions prevents spurious trips, false actuations, and communication anomalies that could cascade into safety incidents or costly production losses. The module integrates seamlessly within the SIMADYN D rack system, coordinating with companion components such as the 6DD1601-0BA0 memory expansion module and 6DD1607-0AA0 communication interface card to form a complete, redundancy-capable control node.

When deployed alongside Siemens 6DD1660-0AH0 I/O interface modules and 6DD1682-0BD0 analog input submodules, the 6DD1600-0BA2 enables precise closed-loop regulation of drives, valves, and actuators across multi-axis or multi-loop configurations. Its deterministic scan time ensures that safety interlocks respond within defined reaction windows, a critical requirement in SIL-rated protection circuits and emergency shutdown (ESD) systems. The processor’s onboard diagnostics continuously monitor internal bus integrity, memory status, and watchdog timers, providing early fault detection before anomalies escalate to process upsets.

For control cabinet integrators managing surge protection and power quality, the 6DD1600-0BA2 is typically paired with Siemens 6EP1333-3BA00 SITOP power supply units, which provide regulated 24 VDC with built-in surge buffering and overload protection. This combination ensures that transient voltage spikes — common in heavy industrial environments with large motor starts or capacitor bank switching — do not corrupt processor memory or interrupt real-time task execution. Additional protection is achieved by incorporating Phoenix Contact TRABTECH surge protection devices at the cabinet entry point, shielding the entire control node from conducted interference.

Communication reliability is equally critical. The 6DD1600-0BA2 supports integration with Siemens PROFIBUS DP networks via dedicated communication processors, enabling high-speed, deterministic data exchange with distributed I/O stations, variable frequency drives such as the Siemens SINAMICS S120, and remote HMI panels. In architectures where network redundancy is required, the processor can be configured within a dual-ring or master-standby topology, minimizing the impact of any single communication path failure on overall system availability.

Spare parts availability and long-term supply continuity are essential considerations for facilities operating legacy SIMADYN D installations. NINERMAS maintains verified stock of the 6DD1600-0BA2 alongside related modules including the 6DD1607-0EA0 Ethernet communication card and 6DD1682-0BC0 digital I/O submodule, supporting rapid replacement without extended lead times. Every unit undergoes pre-shipment functional testing to validate processor boot integrity, memory read/write performance, and bus communication handshake — ensuring that field installation proceeds without commissioning delays.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a SIMADYN D-based control cabinet begins with ensuring that the 6DD1600-0BA2 processor operates within a well-conditioned power and signal environment. The Siemens 6EP1333-3BA00 SITOP power supply provides the stable 24 VDC rail required for reliable processor operation, with built-in output buffering that bridges short mains interruptions without triggering a processor reset — a critical feature in continuous process plants where even a momentary control interruption can initiate an emergency shutdown sequence.

Signal integrity across the SIMADYN D backplane is maintained through proper rack grounding and the use of shielded cables on all analog I/O connections. The 6DD1682-0BD0 analog input submodule, when correctly shielded and grounded, rejects common-mode noise from variable speed drives and high-current switching equipment, preventing signal drift that could cause erroneous setpoint deviations in closed-loop control. For digital I/O, the 6DD1682-0BC0 submodule provides optically isolated inputs that block ground loop currents and transient spikes from field devices such as proximity sensors, limit switches, and solenoid valves.

Communication path protection is addressed by deploying the 6DD1607-0AA0 PROFIBUS communication card with proper bus termination resistors at both ends of the segment, preventing signal reflections that cause data corruption at high baud rates. In facilities with long cable runs between control rooms and field junction boxes — common in port terminals and mining operations — the addition of Siemens PROFIBUS repeaters extends segment length while regenerating signal quality. For Ethernet-based supervisory integration, the 6DD1607-0EA0 Ethernet card enables OPC-based data exchange with SCADA systems without introducing latency into the real-time control loop.

Surge protection at the cabinet entry point, using devices such as Phoenix Contact PT 2X2-24DC-ST surge arresters on 24 VDC supply lines and Dehn BLITZDUCTOR modules on signal cables, provides the final layer of defense against conducted transients from lightning strikes or large load switching events. This layered protection strategy — from power conditioning through signal isolation to communication redundancy — ensures that the 6DD1600-0BA2 processor maintains uninterrupted execution of safety-critical control tasks across the full service life of the installation.

Critical Industrial Safety Applications

The Siemens 6DD1600-0BA2 processor module is deployed across a wide range of critical industrial sectors where control system reliability directly impacts personnel safety, environmental compliance, and asset integrity.

In petrochemical and refinery environments, the 6DD1600-0BA2 manages compressor anti-surge control, fired heater fuel gas regulation, and reactor temperature interlock loops. Its deterministic scan time ensures that safety instrumented functions respond within the required process safety time, supporting SIL 1 and SIL 2 protection layer architectures when integrated with appropriate safety logic solvers.

In power generation and grid substations, the processor controls excitation systems, turbine governor loops, and transformer cooling sequences. Its resistance to high-frequency electromagnetic interference from high-voltage switching equipment ensures that control signals remain stable during fault clearance events and capacitor bank energization.

In mining and mineral processing operations, the 6DD1600-0BA2 coordinates conveyor drive sequencing, crusher load management, and flotation cell reagent dosing. The module’s robust design tolerates the high vibration and dust loading characteristic of underground and open-pit mining environments, reducing the frequency of unplanned maintenance interventions.

In water and wastewater treatment facilities, the processor manages pump station sequencing, chemical dosing control, and filtration backwash cycles. Its long-term availability as a spare part ensures that municipal utilities can maintain operational continuity without the risk of obsolescence-driven system replacement.

In metallurgical and steel plant applications, the 6DD1600-0BA2 controls rolling mill drive coordination, furnace atmosphere regulation, and cooling water flow management — processes where millisecond-level control response is required to prevent product defects and equipment damage.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Siemens 6DD1600-0BA2?
Every 6DD1600-0BA2 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions and includes replacement support to minimize field downtime.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes a comprehensive functional test prior to shipment, including processor boot verification, memory read/write integrity check, backplane bus communication handshake, and watchdog timer validation. Test records are available upon request for quality documentation purposes.

Q3: Is the 6DD1600-0BA2 compatible with existing SIMADYN D rack installations?
Yes. The 6DD1600-0BA2 is designed for direct installation in standard SIMADYN D rack systems and is compatible with the full range of 6DD16xx series I/O, communication, and memory expansion modules. Firmware version compatibility should be verified against the existing system configuration prior to installation.

Q4: Can long-term spare parts supply be guaranteed for legacy SIMADYN D systems?
NINERMAS maintains dedicated inventory of SIMADYN D components including the 6DD1600-0BA2 and related modules to support facilities operating legacy control architectures. Our procurement network enables us to source verified units with traceability documentation, supporting planned maintenance programs and emergency replacement requirements without extended lead times.
