Siemens 6AV6647-0AD11-3AX0 Safety-Reliable HMI Panel

Siemens 6AV6647-0AD11-3AX0 Safety-Reliable HMI Panel for Critical Industrial Control Sites

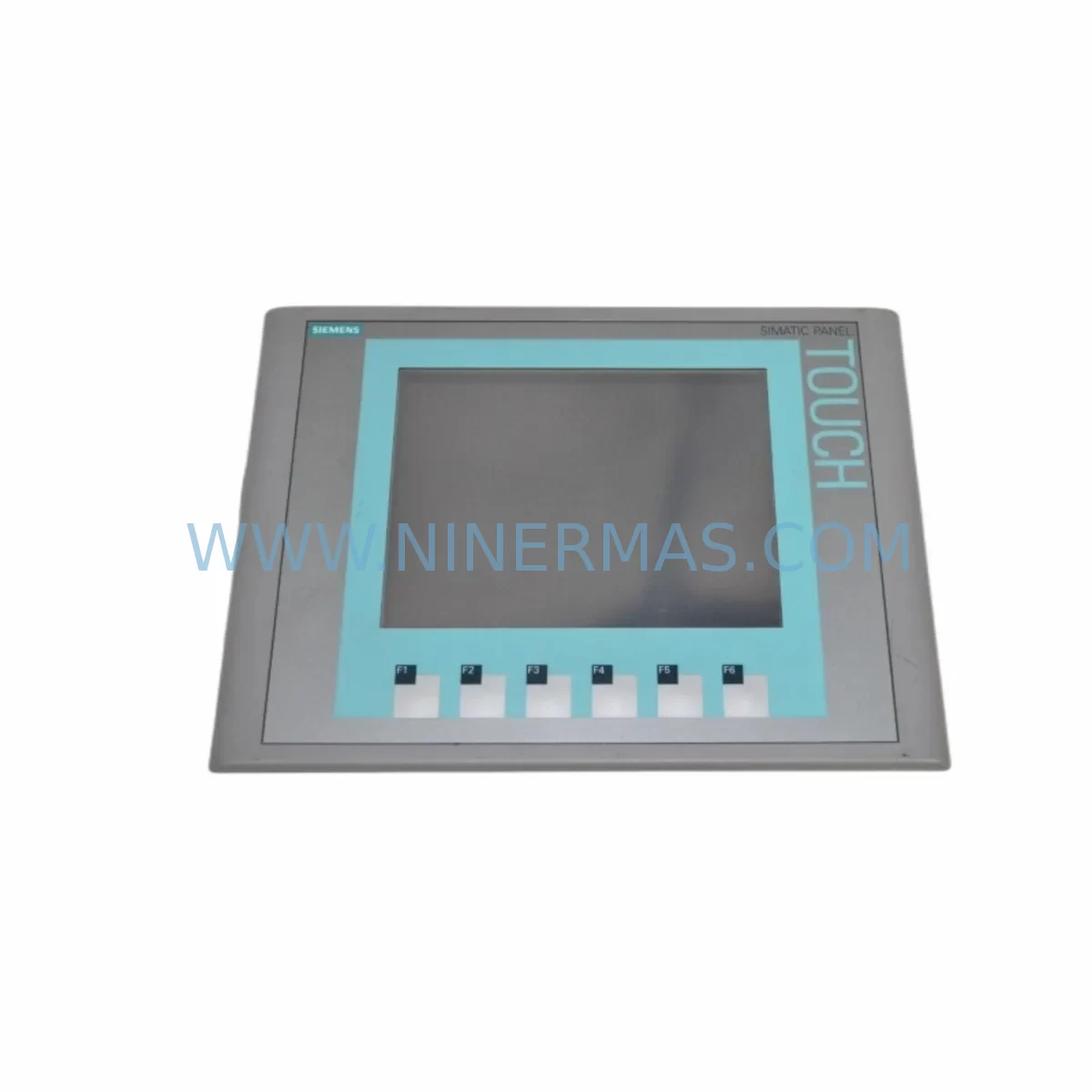

The Siemens 6AV6647-0AD11-3AX0 is a SIMATIC HMI KTP600 Basic Color PN touch panel engineered for demanding industrial environments where control reliability and operator safety are non-negotiable. With a 6-inch widescreen TFT display, PROFINET interface, and robust membrane keypad, this panel delivers stable, accurate human-machine interaction across continuous production lines, critical interlock systems, and high-load control cabinets. NINERMAS maintains verified stock of this unit with full pre-shipment testing and a 12-month warranty, ensuring your site receives a field-ready replacement without delay.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets serving petrochemical reactors, power distribution switchgear, or mining conveyor systems, a single point of HMI failure can cascade into unplanned shutdowns, safety interlock bypass, or operator error under pressure. The 6AV6647-0AD11-3AX0 addresses this risk through its hardened IP65 front seal, which blocks fine dust and moisture ingress common in cement plants and water treatment facilities, and its wide-range 24 V DC power input that tolerates voltage fluctuations without display dropout or communication loss.

Within the same SIMATIC S7-300 or S7-1200 control architecture, this KTP600 panel integrates seamlessly with the Siemens 6ES7314-6EH04-0AB0 CPU module and the 6ES7321-1BL00-0AA0 digital input module, maintaining deterministic PROFINET cycle times even when the cabinet also hosts Siemens 6EP1333-3BA00 SITOP power supply units under heavy load. For cabinets with dense I/O wiring, pairing this HMI with the Siemens 6ES7390-1AE80-0AA0 DIN rail and 6ES7492-1AL00-0AA0 front connector ensures mechanical stability and reduces the risk of loose terminations causing signal drift or spurious alarms.

In high electromagnetic interference environments — such as variable frequency drive (VFD) rooms or arc furnace control rooms — the panel’s EMC-certified shielding, combined with a properly grounded Siemens 6XV1830-0EH10 PROFIBUS cable and ferrite-filtered 24 V DC feed from a Siemens 6EP1436-3BA00 SITOP modular PSU, significantly reduces the probability of communication frame errors, watchdog resets, or screen freezes that could mask a process alarm. For safety-critical interlock loops, operators can configure the KTP600’s function keys as dedicated acknowledgment inputs, reducing the risk of accidental process commands during alarm states.

Where surge protection is required at field panel entry points — particularly in outdoor substations or coastal facilities with lightning exposure — installing a Siemens 6ES7972-0BB52-0XA0 PROFIBUS surge arrester upstream of the HMI’s RS-485 port prevents transient-induced port damage that would otherwise require emergency panel replacement. Maintaining a spare 6AV6647-0AD11-3AX0 in the site’s critical spare parts inventory, alongside a pre-configured project file on a Siemens 6AV6671-5AE11-0AX0 USB memory card, enables sub-30-minute HMI restoration without re-engineering, directly supporting your site’s MTTR targets.

Critical Industrial Safety Applications

The 6AV6647-0AD11-3AX0 is deployed across a broad spectrum of safety-critical industrial sites. In petrochemical and refinery environments, it serves as the local operator interface for emergency shutdown (ESD) panel status visualization, allowing field technicians to confirm valve positions and interlock states without relying on the DCS workstation. Its IP65 front seal and wide operating temperature range make it suitable for outdoor skid-mounted control panels exposed to humidity and hydrocarbon vapors.

In electric power generation and substation applications, the KTP600 panel monitors transformer protection relay status, breaker control sequences, and busbar voltage trends in real time. Its PROFINET connectivity allows integration into the plant’s SCADA backbone via a Siemens SCALANCE X208 managed switch, maintaining network redundancy and minimizing single-point communication failure risk.

For mining and mineral processing operations, the panel withstands the vibration and dust loading of crusher control rooms and conveyor drive stations. Operators use the touch interface to adjust belt speed setpoints, monitor motor thermal overload status, and acknowledge safety relay trips — all from a single, ruggedized local panel that remains operational even when the central SCADA system is temporarily offline.

In water and wastewater treatment facilities, the 6AV6647-0AD11-3AX0 provides local control of pump station sequencing, chemical dosing interlocks, and level alarm acknowledgment. Its non-condensing humidity tolerance and sealed front face prevent corrosion from chlorine-laden air, extending service life in wet well environments. Port and maritime applications benefit from the panel’s compact form factor and vibration resistance, making it suitable for crane control cabinets and shipboard automation panels where space is constrained and mechanical shock is a constant factor.
