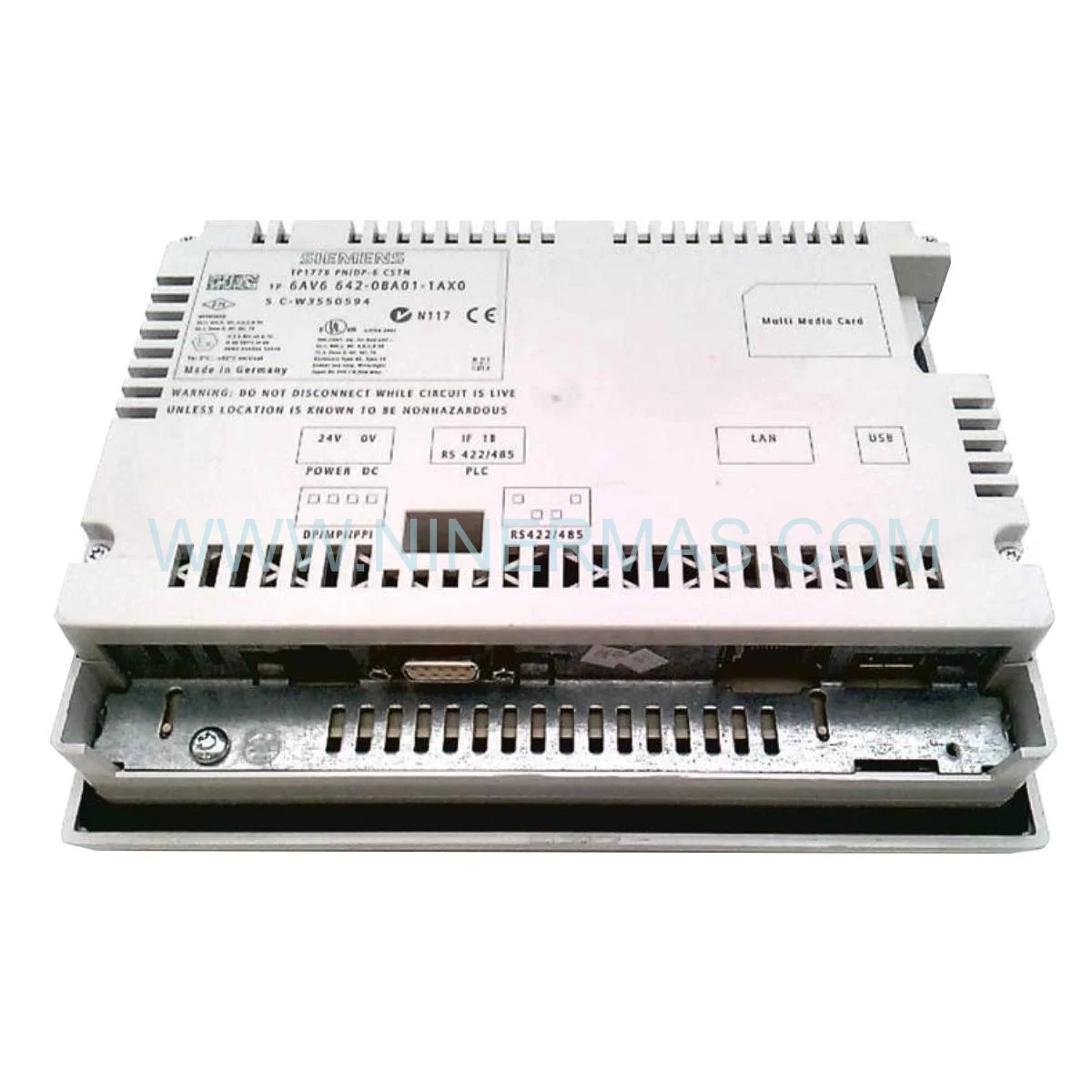

SIEMENS 6AV6642-0BA01-1AX0 SIMATIC TP177B PN/DP Touch Panel

The SIEMENS 6AV6642-0BA01-1AX0 represents a professional-grade human-machine interface solution engineered for demanding industrial automation environments. This SIMATIC TP177B touch panel combines robust construction with intuitive operation, delivering reliable visualization and control capabilities for manufacturing, process control, and machine automation applications.

Technical Specifications

• Display: 5.7-inch STN color display with 256 colors
• Resolution: 320 — 240 pixels (QVGA)
• Interface: PROFINET and PROFIBUS DP connectivity
• Touch Technology: Analog resistive touchscreen for precise input
• USB Port: Integrated USB interface for configuration and data transfer
• Memory: 4 MB configuration memory, 512 KB recipe memory
• Operating Temperature: 0°C to +50°C
• Protection Rating: IP65 front panel (when properly mounted)
• Power Supply: 24V DC

Application Scenarios

This touch panel excels in diverse industrial settings where reliable operator interaction is critical. In packaging machinery, it provides real-time production monitoring and recipe management. Manufacturing assembly lines benefit from its quick parameter adjustment capabilities and alarm visualization. Process industries utilize its dual-network capability to integrate seamlessly with existing PROFIBUS infrastructure while preparing for PROFINET migration. The compact footprint makes it ideal for space-constrained control cabinets and machine-mounted applications.

Solution Advantages

The TP177B delivers exceptional value through its dual-protocol support, enabling flexible network integration without additional hardware. Its proven reliability in harsh industrial environments reduces maintenance costs and downtime. The USB interface simplifies project updates and backup procedures, while the 256-color display ensures clear visibility of process states and alarms. Energy-efficient operation and long-term component availability protect your automation investment.

Frequently Asked Questions

Q: Can this panel communicate with S7-300/400 PLCs?
A: Yes, the 6AV6642-0BA01-1AX0 supports both PROFINET and PROFIBUS DP protocols, ensuring full compatibility with SIMATIC S7-300, S7-400, and newer S7-1200/1500 controllers.

Q: What software is required for programming?
A: Configuration is performed using SIMATIC WinCC flexible software, which provides comprehensive tools for screen design, tag management, and alarm configuration.

Q: Is the touchscreen suitable for gloved operation?
A: The analog resistive touchscreen technology allows operation with most industrial gloves, though thin work gloves provide optimal responsiveness.

Q: What mounting options are available?
A: The panel supports standard panel cutout mounting with included mounting brackets and achieves IP65 front protection when properly installed with the supplied gasket.

Warranty & Support

Every SIEMENS 6AV6642-0BA01-1AX0 touch panel includes a comprehensive 12-month warranty covering manufacturing defects and component failures. Our technical support team provides expert assistance for configuration, troubleshooting, and integration guidance throughout your project lifecycle.
