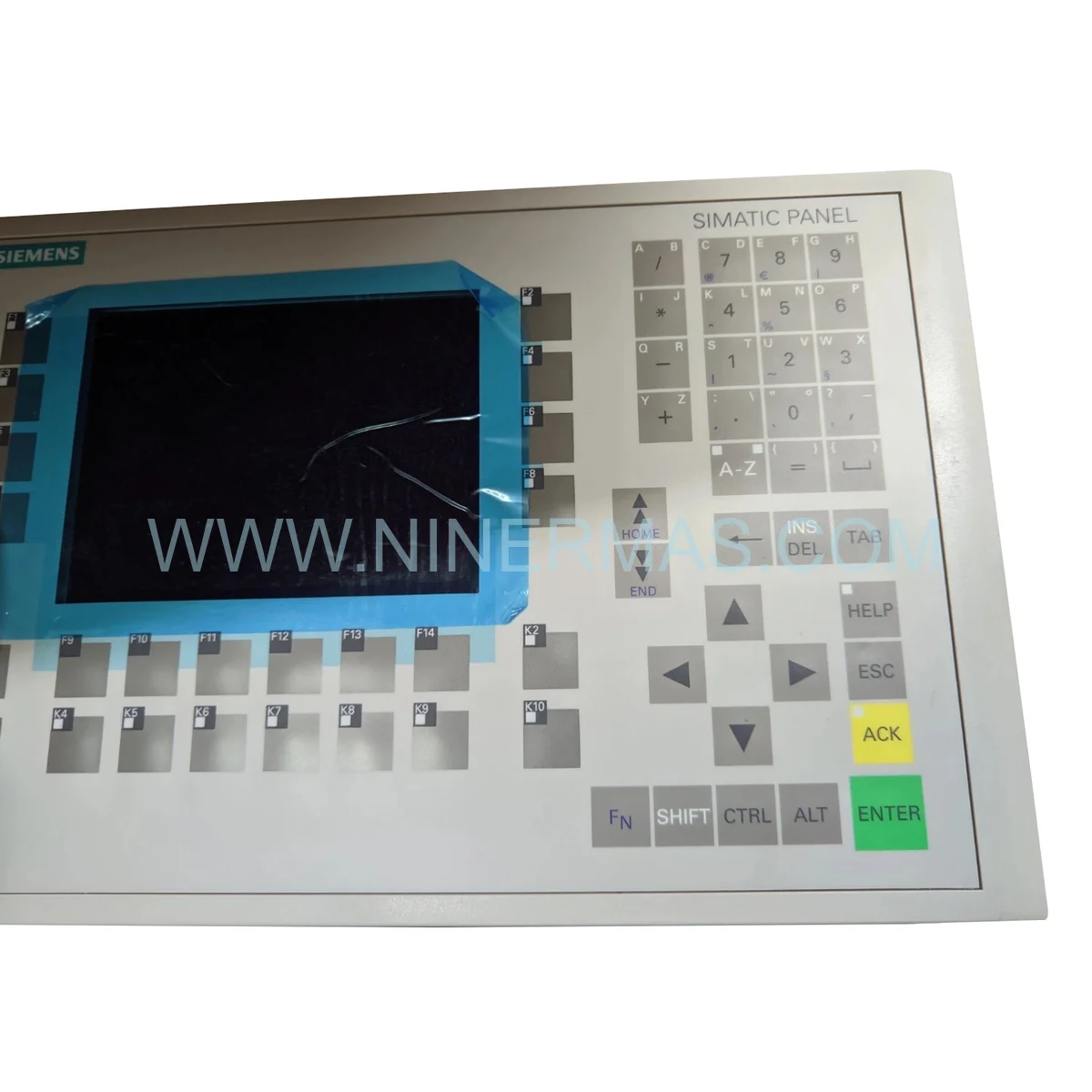

Siemens 6AV6542-0CA10-0AX1 SIMATIC OP 270 | Retrofit & Modernization HMI

Siemens 6AV6542-0CA10-0AX1 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead, the first question any modernization initiative must answer is: which components can anchor the transition without disrupting production continuity? The Siemens 6AV6542-0CA10-0AX1 SIMATIC OP 270 stands out as precisely that anchor. In aging DCS and TSI architectures where operator interfaces have become bottlenecks — slow refresh rates, failing backlights, discontinued firmware support — deploying the Siemens 6AV6542-0CA10-0AX1 delivers an immediate performance uplift without requiring a full platform overhaul. Its 5.7″ STN color display, 2MB onboard memory, and PROFIBUS-DP communication backbone make it a high-value insertion point in any phased modernization roadmap.

Legacy compatibility is not a compromise — it is a strategic advantage. The 6AV6542-0CA10-0AX1 integrates directly into existing SIMATIC S7-300/400 control frameworks via PROFIBUS-DP, eliminating the need for protocol converters or gateway hardware. For facilities operating mixed-generation equipment, this backward compatibility dramatically reduces migration risk, allowing engineering teams to upgrade the HMI layer while preserving validated PLC logic and field instrumentation. This is the essence of a Retrofit Solution: maximum performance gain with minimum system disruption.

From a total cost of ownership perspective, the 6AV6542-0CA10-0AX1 reduces migration expenditure on three fronts: no new communication infrastructure, no PLC reprogramming, and no operator retraining beyond the updated interface. For plant managers balancing capital budgets against aging equipment risk, this component represents a fiscally responsible path to System Migration — extending asset life while laying the groundwork for future IIoT integration.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Direct PROFIBUS-DP integration with SIMATIC S7-300/400 — no gateway required, no protocol translation overhead.

Performance Enhancement: 5.7″ STN color display replaces monochrome or failed legacy panels with high-visibility process visualization.

✅ Future-Proofing via ProTool/WinCC Migration: Existing ProTool projects can be migrated and extended, protecting your engineering investment.

Seamless Integration: IP65 front panel protection and 24V DC industrial power supply align with standard cabinet infrastructure — no rewiring required.

✅ Hardware Upgrade Without Downtime Risk: Compact form factor (compatible with standard panel cutouts) enables hot-swap planning during scheduled maintenance windows.

Alarm & Recipe Management Continuity: 2MB memory supports full alarm log migration and recipe transfer from predecessor OP models.

Modernization Use Cases & Success Stories

DCS Operator Station Refresh — Chemical Processing Plant: A multi-reactor facility running SIMATIC S7-400 PLCs faced repeated HMI failures on legacy OP7 panels. By deploying the 6AV6542-0CA10-0AX1 across 12 operator stations, the plant achieved zero-downtime panel replacement during scheduled turnarounds. PROFIBUS-DP connectivity preserved all existing tag mappings, and the color display enabled operators to distinguish process states at a glance — reducing alarm response time by an estimated 30%.

TSI Turbine Monitoring Upgrade — Power Generation Facility: A gas turbine monitoring system relying on aging text-based operator panels required a Performance Upgrade to meet new safety visualization standards. The 6AV6542-0CA10-0AX1 was selected for its proven PROFIBUS-DP reliability and color trend display capability. Engineering teams migrated existing ProTool projects in under 48 hours, with the new panels providing real-time vibration, temperature, and speed visualization — a critical advancement for predictive maintenance programs.

Packaging Line HMI Standardization — Food & Beverage Manufacturer: A facility operating 20+ packaging lines with mixed-generation HMI hardware standardized on the 6AV6542-0CA10-0AX1 as part of a Hardware Upgrade initiative. Uniform operator interfaces reduced training overhead, simplified spare parts inventory, and enabled centralized project management via a single ProTool configuration baseline.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | 6AV6542-0CA10-0AX1 | | **Product Family** | SIMATIC OP 270 (HMI Operator Panel) | | **Display Type** | 5.7″ STN Color | | **Onboard Memory** | 2MB (Project Data & Recipes) | | **Communication Interface** | PROFIBUS-DP | | **PLC Compatibility** | SIMATIC S7-300 / S7-400 | | **Power Supply** | 24V DC (Industrial Standard) | | **Operating Temperature** | 0°C to 50°C (32°F to 122°F) | | **Front Panel Protection** | IP65 (Panel-Mounted) | | **Configuration Software** | ProTool / WinCC flexible | | **Lifecycle Status** | Legacy / Retrofit-Supported | | **Migration Path** | OP 270 — TP 700 / KTP700 Basic (future upgrade) | | **Retrofit Advantage** | No gateway, no PLC reprogramming, no rewiring | | **Warranty** | 12 Months (Manufacturing Defects) |

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every 6AV6542-0CA10-0AX1 supplied through our network is sourced from verified channels, ensuring authentic Siemens manufacturing quality. Units are inspected and confirmed against original factory specifications before dispatch — critical for retrofit projects where counterfeit hardware poses unacceptable operational risk.

Expedited Global Logistics: Recognizing that legacy hardware failures rarely occur on convenient schedules, we maintain priority shipping lanes to industrial facilities worldwide. Emergency procurement timelines are supported with express air freight options, minimizing production downtime for unplanned HMI failures.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in Legacy Compatibility challenges — from ProTool project migration assistance to PROFIBUS-DP network diagnostics. Whether you are executing a planned System Migration or responding to an unplanned panel failure, technical guidance is available throughout the deployment lifecycle.

Retrofit FAQ — Upgrade Guide

Q1: Is the 6AV6542-0CA10-0AX1 physically compatible with existing panel cutouts designed for older OP models?
A: The SIMATIC OP 270 follows standard Siemens panel cutout dimensions. For most OP7 and OP17 replacement scenarios, the cutout dimensions are compatible or require only minor modification. We recommend verifying the exact cutout specifications (width — height — depth) against your existing enclosure drawings before procurement. Our technical team can assist with dimensional comparison upon request.

Q2: How does the 6AV6542-0CA10-0AX1 communicate with legacy S7-300/400 PLCs — is any additional hardware required?
A: No additional hardware is required. The 6AV6542-0CA10-0AX1 connects directly to SIMATIC S7-300/400 controllers via the integrated PROFIBUS-DP port. Existing PROFIBUS cables and network topology are fully reusable, making this a true Seamless Integration retrofit without gateway or converter investment.

Q3: Can existing ProTool projects from predecessor OP panels be migrated to the 6AV6542-0CA10-0AX1?
A: Yes. ProTool projects developed for earlier OP models (OP7, OP17, OP27) can be migrated to the OP 270 platform using ProTool software. Tag mappings, alarm configurations, and recipe structures are generally preserved during migration, though screen layouts may require adjustment to leverage the OP 270’s color display capabilities. Migration typically requires 8-48 hours of engineering time depending on project complexity.

Q4: What are the recommended spare part substitution options if the 6AV6542-0CA10-0AX1 becomes unavailable?
A: For applications requiring continued PROFIBUS-DP HMI capability, the SIMATIC KTP700 Basic PN (with PROFINET) or the TP 700 Comfort represent the recommended forward migration path. These panels support WinCC flexible project import and offer expanded functionality. For direct form-factor replacement, the OP 277 series provides enhanced performance within a similar physical envelope.

Q5: What is the expected installation timeline for a retrofit deployment of the 6AV6542-0CA10-0AX1?
A: A standard single-panel retrofit — including physical installation, PROFIBUS-DP connection, project download, and functional verification — typically requires 4-8 hours of planned maintenance window time. Multi-panel deployments across a production line can be staged across consecutive maintenance shifts to minimize operational impact.

Q6: Does the 6AV6542-0CA10-0AX1 support IIoT or OPC-UA connectivity for future digital transformation initiatives?
A: The 6AV6542-0CA10-0AX1 operates within the PROFIBUS-DP communication paradigm and does not natively support OPC-UA or Ethernet-based IIoT protocols. For facilities planning a phased Performance Upgrade toward IIoT integration, we recommend using the OP 270 as a stable interim solution while planning migration to the SIMATIC Comfort Panel or Unified Comfort Panel series, which offer native OPC-UA and MQTT support.
