Siemens 6AV3617-1JC20-0AX1 Safety-Reliable HMI for Critical Control Sites

Siemens 6AV3617-1JC20-0AX1 Safety-Reliable HMI for Critical Control Sites

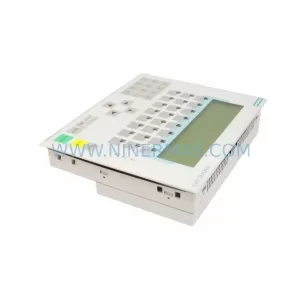

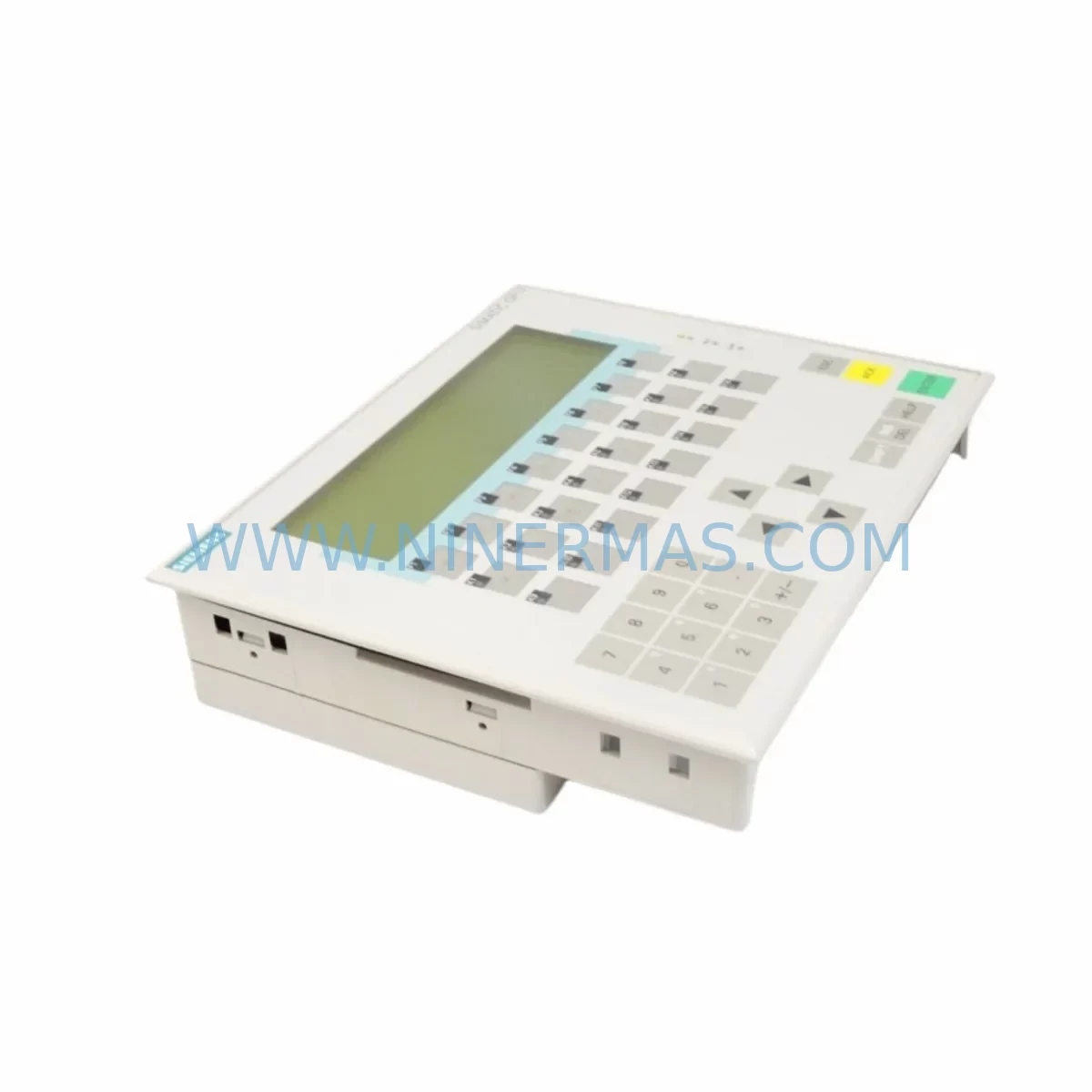

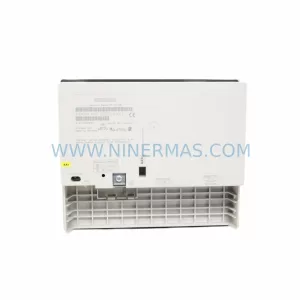

The Siemens 6AV3617-1JC20-0AX1 is a proven OP17 operator panel engineered for demanding industrial environments where control continuity, operator safety, and system reliability are non-negotiable. Designed as part of the SIMATIC HMI family, this unit delivers dependable human-machine interface performance across continuous production lines, critical interlock circuits, and high-load control cabinets where unplanned downtime carries severe operational and safety consequences.

In facilities operating under high electromagnetic interference — such as arc furnace floors, variable frequency drive (VFD) enclosures, or high-voltage switchgear rooms — the 6AV3617-1JC20-0AX1 maintains stable communication with SIMATIC S5 and S7 PLCs via its robust serial interface architecture. Its compact panel-mount design integrates directly into existing control cabinet cutouts, making it a preferred retrofit solution for aging DCS and PLC-based control systems without requiring structural cabinet modifications.

For sites managing hazardous processes — petrochemical reactors, power generation auxiliaries, mine ventilation controls, or water treatment dosing systems — operator panel reliability is a frontline safety requirement. Signal drift, display freeze, or communication timeout on an HMI in these environments can delay operator response to process alarms, increasing the risk of safety interlock failure or uncontrolled process excursion. The 6AV3617-1JC20-0AX1 addresses these risks through its hardened display electronics, stable backlight system, and deterministic communication response to the connected PLC.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the operator panel is only one layer of a multi-component safety and reliability architecture. The Siemens 6AV3617-1JC20-0AX1 is most effective when paired with complementary protection and control components that collectively reduce the risk of control interruption, nuisance tripping, and unplanned process shutdown.

On the power supply side, a stable 24 V DC rail is essential. Units such as the Siemens SITOP PSU100S 6EP1334-2BA20 or equivalent regulated DC power supplies ensure the OP17 panel receives clean, surge-protected power even during grid fluctuations or motor start transients. Voltage dips below the panel’s operating threshold can cause display resets or communication dropouts — a critical failure mode in interlock-dependent processes.

Communication integrity between the OP17 and the host PLC — typically a Siemens SIMATIC S7-300 CPU such as the 6ES7315-2AH14-0AB0 or 6ES7314-1AG14-0AB0 — depends on a properly terminated and shielded PROFIBUS or MPI cable network. In environments with heavy motor loads or welding equipment, unshielded or improperly grounded bus cables introduce noise that manifests as communication errors or watchdog faults on the PLC. Proper use of PROFIBUS bus connectors (6ES7972-0BA52-0XA0) with integrated termination resistors is a standard risk mitigation measure in these installations.

For digital I/O protection in the same cabinet, Siemens SM321 and SM322 digital I/O modules (e.g., 6ES7321-1BL00-0AA0) provide the field signal interface layer. Surge protection on field wiring — using DIN-rail mounted surge arresters compatible with 24 V DC signal circuits — prevents transient overvoltage from field instruments from propagating into the PLC backplane or the HMI communication bus.

In safety-critical applications requiring SIL-rated interlock functions, the OP17 panel typically operates as a non-safety operator interface alongside a dedicated safety PLC such as the Siemens SIMATIC S7-300F or a Pilz PNOZ safety relay module. The operator panel handles process visualization and parameter entry, while the safety layer independently manages emergency stop, valve interlock, and protective relay logic — ensuring that HMI faults do not compromise the safety function.

For installations in dusty, humid, or chemically aggressive environments — common in cement plants, fertilizer facilities, and offshore platforms — the IP65-rated front face of the 6AV3617-1JC20-0AX1 provides a meaningful barrier against ingress. Pairing this with a properly sealed control cabinet (IP54 or higher enclosure rating) and a cabinet air conditioner or heat exchanger (such as Rittal or Pfannenberg units rated for the local ambient) ensures the panel’s internal electronics remain within the specified operating temperature range even in high-ambient or solar-loaded outdoor enclosures.

Critical Industrial Safety Applications

The Siemens 6AV3617-1JC20-0AX1 OP17 operator panel has established a long service record across a broad range of critical industrial applications where control system reliability directly supports process safety and regulatory compliance.

Petrochemical and Refinery Plants: In continuous distillation, reactor feed control, and compressor management systems, the OP17 serves as the local operator interface for SIMATIC S7-based control loops. Operators use it to monitor process variables, acknowledge alarms, and adjust setpoints without requiring access to the central DCS workstation. Its resistance to hydrocarbon vapors and its IP65 front protection make it suitable for Zone 2 classified areas when installed in appropriately rated enclosures.

Power Generation Auxiliaries: In coal-fired, gas turbine, and hydroelectric power plants, the OP17 panel is commonly deployed on boiler feed pump control panels, cooling water system controllers, and auxiliary transformer protection panels. The ability to interface directly with SIMATIC S5 legacy PLCs — still widely in service at older power stations — makes the 6AV3617-1JC20-0AX1 a critical retrofit spare for sites that cannot justify a full control system upgrade.

Mining and Mineral Processing: Underground ventilation fan controllers, conveyor drive panels, and crusher control systems in mining operations demand HMI components that tolerate vibration, dust ingress, and wide temperature swings. The OP17’s robust construction and sealed front panel address these requirements, while its straightforward keypad interface reduces operator error risk in high-noise, high-stress environments.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on SIMATIC-based automation for dosing pump control, filtration sequencing, and effluent monitoring. The 6AV3617-1JC20-0AX1 provides local operator access to these systems, supporting both routine parameter adjustment and fault acknowledgment without requiring network connectivity to the SCADA system.

Metallurgy and Steel Production: Rolling mill auxiliary drives, ladle transfer car controls, and fume extraction systems in steel plants operate in extreme thermal and electromagnetic environments. The OP17’s proven EMC performance and stable MPI/PROFIBUS communication make it a reliable interface component in these high-interference installations.

Port and Marine Applications: Ship-to-shore crane control systems, bulk material handling terminals, and vessel engine room automation panels increasingly rely on SIMATIC S7 platforms. The 6AV3617-1JC20-0AX1 supports these applications with its compact form factor and compatibility with the S7 communication stack, enabling straightforward integration into existing marine and port automation architectures.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Siemens 6AV3617-1JC20-0AX1?
All units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional defects, communication failures, and display faults under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement dispatch to minimize site downtime.

Q2: Is pre-shipment testing performed on each unit?
Yes. Every 6AV3617-1JC20-0AX1 unit undergoes a full functional test prior to dispatch, including power-on verification, display and backlight check, and communication interface validation. Test records are available upon request for quality-critical procurement programs.

Q3: Is this unit compatible with both SIMATIC S5 and S7 PLC families?
The OP17 operator panel supports MPI, PROFIBUS DP, and PPI communication protocols, providing compatibility with SIMATIC S5, S7-200, S7-300, and S7-400 PLC platforms. Configuration is performed using Siemens ProTool or WinCC flexible software. Compatibility with specific CPU firmware versions should be confirmed against the project’s PLC configuration prior to installation.

Q4: Can long-term spare parts supply be arranged for critical maintenance programs?
Yes. NINERMAS maintains dedicated stock of the 6AV3617-1JC20-0AX1 and related SIMATIC HMI components to support planned maintenance, emergency replacement, and multi-year spare parts programs. Customers operating aging SIMATIC-based control systems are encouraged to contact our team to discuss consignment stock arrangements, lead time commitments, and volume pricing for critical spare parts programs.
