Siemens 6AV2123-2DB03-0AX0 Safety-Reliable HMI Panel

Siemens 6AV2123-2DB03-0AX0 Safety-Reliable HMI Panel: Industrial Control Reliability for Critical Sites

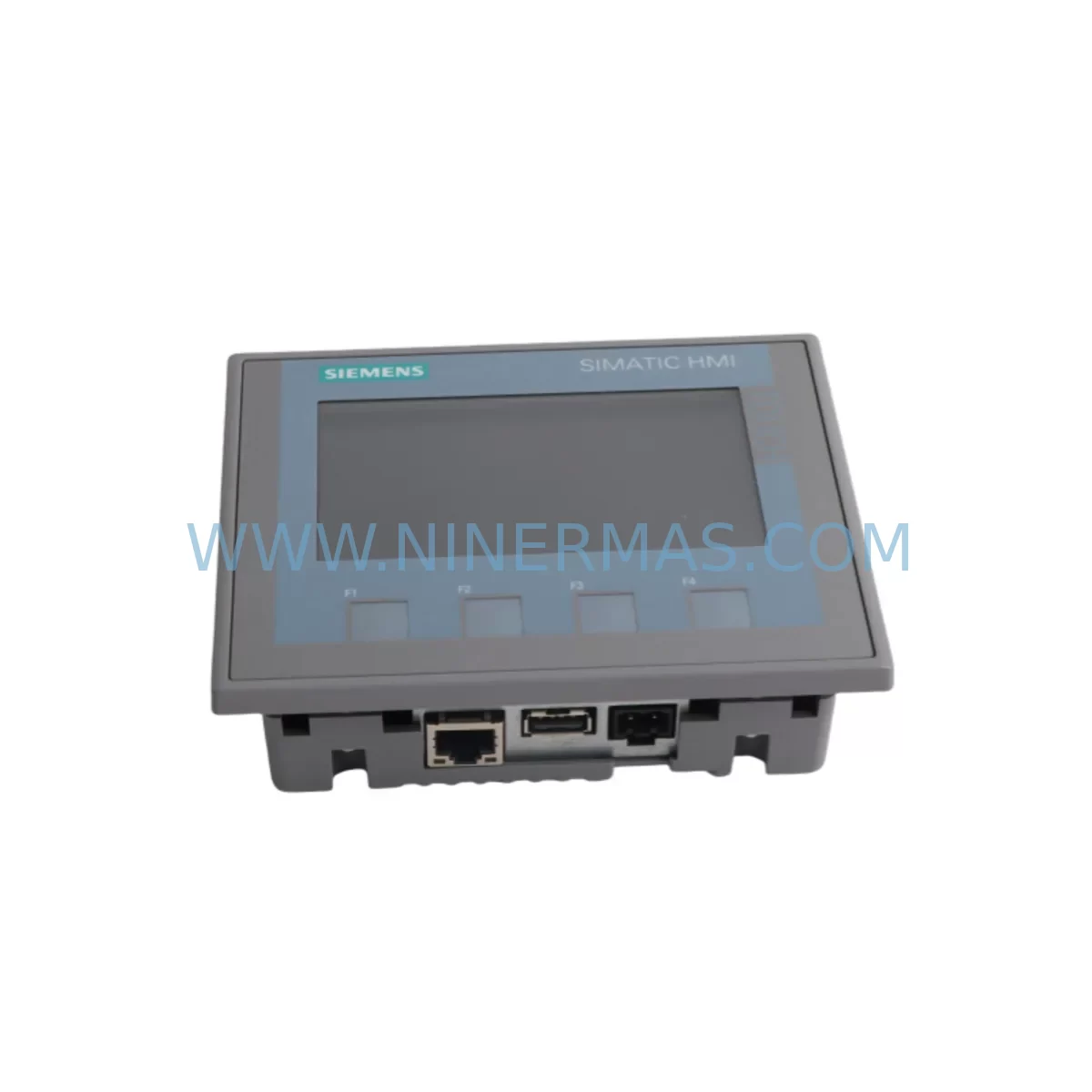

The Siemens 6AV2123-2DB03-0AX0 is a SIMATIC HMI KTP400 Basic Panel — a 4-inch TFT widescreen touch-and-key operator panel engineered for demanding industrial environments where control interruption is not an option. Designed for integration into safety-critical control cabinets across continuous manufacturing, chemical processing, power distribution, and heavy-load automation systems, this HMI panel delivers stable, responsive human-machine interface performance even under high electromagnetic interference, vibration, dust ingress, and temperature fluctuation.

At NINERMAS, every unit of the 6AV2123-2DB03-0AX0 is sourced, inspected, and dispatched with a 12-month warranty, backed by long-term spare parts inventory commitment — ensuring your critical control sites are never left without a qualified replacement.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving continuous production lines, the Siemens 6AV2123-2DB03-0AX0 acts as the primary operator interface node — the point where process engineers monitor interlocks, acknowledge alarms, and issue manual overrides without leaving the field. Its PROFINET connectivity integrates seamlessly with Siemens S7-1200 and S7-1500 PLCs, enabling real-time data exchange with minimal latency, which is essential for preventing misoperation in safety-critical sequences.

Power stability is a foundational requirement in any control cabinet. The 6AV2123-2DB03-0AX0 operates on a clean DC 24 V SELV supply, making it fully compatible with Siemens SITOP PSU100S 24V power supplies — a combination that eliminates voltage fluctuation risk and protects the HMI from surge-induced resets during load switching events. For cabinets with high inductive loads, pairing this panel with a Siemens 5SD7 surge protection device further reduces the risk of transient overvoltage reaching the display circuitry.

In environments with elevated electromagnetic interference — such as variable frequency drive (VFD) enclosures or motor control centers — the panel’s CE and UL-certified EMC design ensures signal integrity is maintained. When deployed alongside Siemens SINAMICS G120 drives or similar frequency converters, the PROFINET-based communication architecture avoids the signal drift and communication anomalies that plague legacy RS-485 or analog wiring schemes.

For safety interlock circuits, the 6AV2123-2DB03-0AX0 is frequently integrated with Siemens 3SK1 safety relays and 3RK3 Modular Safety Systems, providing operators with a clear visual confirmation of safety loop status — E-stop acknowledgment, guard door monitoring, and light curtain bypass states — directly on the HMI screen. This eliminates the ambiguity that leads to unplanned shutdowns or, worse, unsafe manual interventions.

In dusty, humid, or high-vibration environments such as mining conveyors, cement plants, or port crane cabinets, the IP65-rated front panel of the 6AV2123-2DB03-0AX0 prevents particulate ingress and moisture condensation from degrading touch sensitivity or causing display failure. Complementary protection is achieved by housing the unit alongside Siemens 3RT2 contactors and 3RV2 motor circuit breakers within sealed, climate-controlled enclosures, ensuring the entire control assembly meets the environmental demands of the installation site.

For distributed control architectures, the panel’s TIA Portal compatibility allows it to be configured as a visualization node within a broader network that includes Siemens ET 200SP remote I/O modules and SCALANCE X industrial Ethernet switches — maintaining communication availability even when network segments experience partial faults. This architecture directly reduces the risk of control interruption propagating from a single point of failure to a full-line shutdown.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments where operator response time directly impacts safety, the 6AV2123-2DB03-0AX0 provides a reliable local HMI node for monitoring valve positions, pressure interlocks, and emergency shutdown (ESD) system status. Its IP65 front protection and wide operating temperature range make it suitable for installation in Zone 2 adjacent control rooms and field junction boxes.

Power Generation & Substation Control: Electrical switchgear panels and transformer protection cabinets demand HMI solutions that remain operational during high-voltage switching transients. The EMC-hardened design of the 6AV2123-2DB03-0AX0, combined with PROFINET communication, ensures that protection relay status and breaker control commands are displayed and executed without communication dropout.

Mining & Mineral Processing: Conveyor drive control stations, crusher monitoring panels, and slurry pump control cabinets in underground or open-pit mining operations expose HMI equipment to extreme vibration, coal dust, and humidity. The 6AV2123-2DB03-0AX0’s ruggedized construction and sealed front panel sustain reliable operation in these conditions, reducing the frequency of unplanned maintenance interventions.

Water & Wastewater Treatment: SCADA-integrated pump stations and chemical dosing control panels require operator interfaces that can withstand corrosive atmospheres and continuous 24/7 operation. The panel’s low power consumption (typ. 3.6 W) and fanless design eliminate mechanical wear points, extending mean time between failures (MTBF) in unmanned remote installations.

Metallurgy & Steel Production: Rolling mill control desks, ladle furnace operator stations, and continuous casting line HMI panels operate in environments with intense radiant heat, metallic dust, and electromagnetic noise from large induction furnaces. The 6AV2123-2DB03-0AX0’s thermal tolerance and EMC certification make it a dependable choice for these high-consequence control points.

Port & Marine Automation: Ship-to-shore crane control cabinets and vessel engine room automation panels require compact, vibration-resistant HMI solutions with reliable network communication. The panel’s PROFINET interface and compact 4″ form factor allow integration into space-constrained marine control enclosures without compromising operator visibility or control responsiveness.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Siemens 6AV2123-2DB03-0AX0?
Every unit supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed directly through NINERMAS with priority response to minimize control system downtime at your facility.

Q2: What pre-shipment testing is performed on this HMI panel?
All units undergo outgoing quality inspection prior to dispatch, including power-on functional verification, display integrity check, touch response calibration, and communication port continuity testing. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical procurement orders.

Q3: Is the 6AV2123-2DB03-0AX0 compatible with existing Siemens TIA Portal projects?
Yes. The 6AV2123-2DB03-0AX0 is fully supported by Siemens TIA Portal V13 SP1 and above, including WinCC Basic. It is a direct replacement for earlier KTP400 Basic PN variants and can be integrated into existing S7-1200 and S7-1500 PLC projects with minimal reconfiguration. Compatibility with third-party PROFINET controllers should be validated against the device’s GSD file.

Q4: Can NINERMAS support long-term or bulk procurement for spare parts programs?
Yes. NINERMAS maintains dedicated stock of the 6AV2123-2DB03-0AX0 and related SIMATIC HMI components to support long-term spare parts programs for industrial facilities with lifecycle management requirements. We offer stock commitment agreements, scheduled delivery planning, and priority allocation for customers with critical uptime obligations. Contact our team at sale@ninermas.com to discuss your procurement program.
