Siemens 6AU1435-2AD00-0AA0 Service-Ready Spare Part

Siemens 6AU1435-2AD00-0AA0 Service-Ready Spare Part for Industrial Maintenance

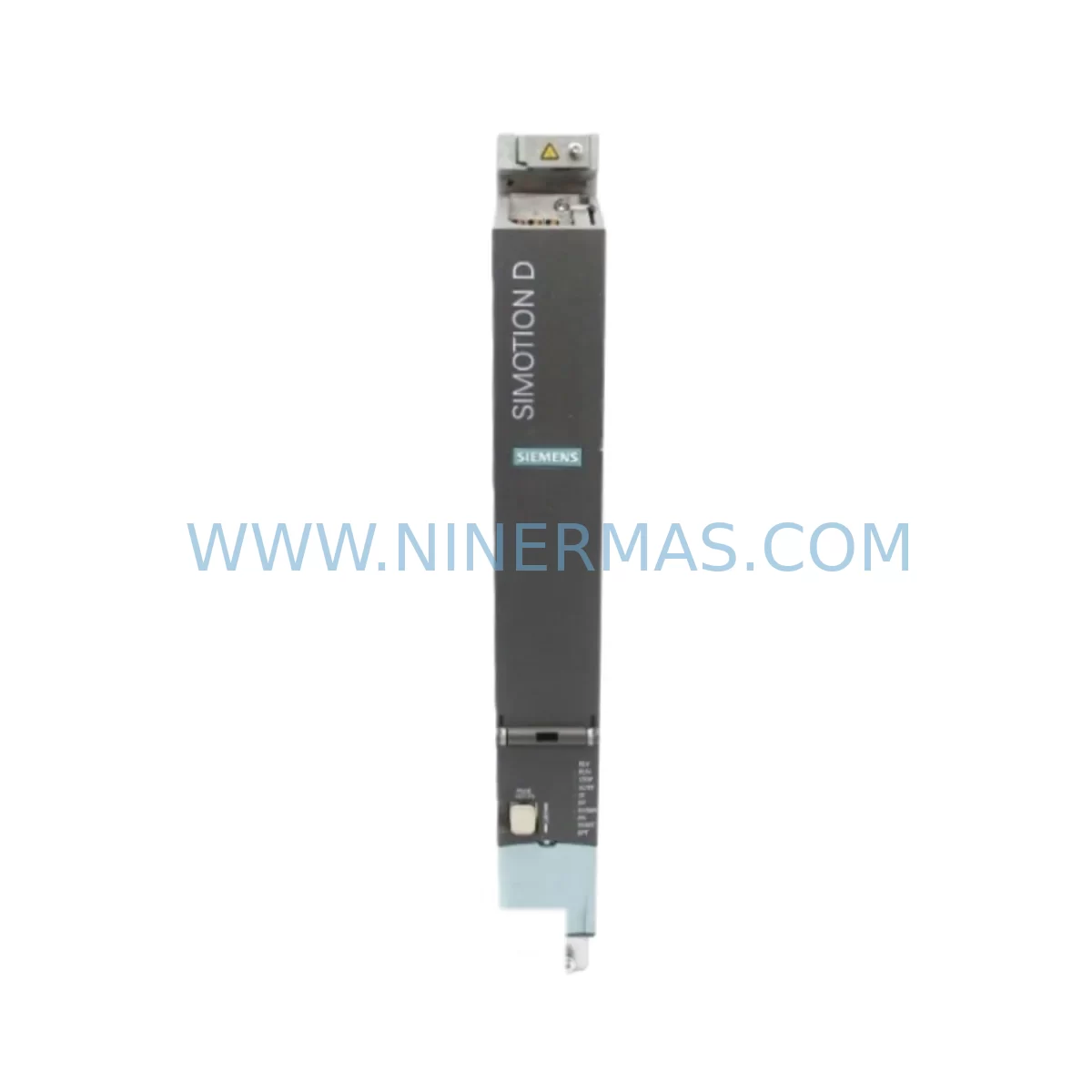

The Siemens 6AU1435-2AD00-0AA0 is a SIMOTION D series motion controller module engineered for high-performance multi-axis coordination in demanding industrial automation environments. As production lines age and OEM support windows close, maintaining a verified, service-ready spare of this module becomes a critical pillar of any plant’s uptime strategy. Whether you are managing a CNC machining cell, a packaging line, a textile machine, or a press drive system, the 6AU1435-2AD00-0AA0 sits at the heart of motion sequencing, and its failure without a ready replacement can translate directly into hours or days of unplanned downtime.

At NINERMAS, every unit of the 6AU1435-2AD00-0AA0 is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We support maintenance engineers and procurement teams across Asia, Europe, and the Americas who need fast, reliable access to Siemens SIMOTION spare parts — particularly for systems that are no longer in active production but remain operationally critical.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a SIMOTION D module such as the 6AU1435-2AD00-0AA0 is flagged for replacement during a scheduled shutdown or emergency fault isolation, experienced maintenance engineers know that the module itself is rarely the only component that needs attention. A thorough site inspection and replacement workflow should encompass the entire motion control cabinet and its associated electrical circuit.

Begin with the SINAMICS S120 Control Unit — typically a CU320-2 DP or CU320-2 PN — which works in tandem with the SIMOTION D module to coordinate drive commands. Verify firmware version compatibility between the control unit and the replacement SIMOTION module before powering up. Next, inspect the SINAMICS S120 Active Line Module (ALM) and Motor Modules in the booksize drive line-up; worn DC bus capacitors or degraded IGBT gate drivers in these units can cause recurring faults that are often misattributed to the motion controller.

The 24 VDC power supply module feeding the control electronics — often a Siemens SITOP PSU100S or equivalent — should be load-tested and replaced if output ripple exceeds specification, as unstable control voltage is a leading cause of SIMOTION communication faults. Similarly, the DRIVE-CLiQ hub module (DMC20 or DME20) connecting encoders and motor modules to the control unit should be inspected for cable integrity and connector oxidation.

On the I/O side, check the SIMATIC ET 200SP or ET 200M distributed I/O modules connected via PROFIBUS or PROFINET. Faulty digital input modules can generate spurious enable signals that stress the motion controller. Inspect terminal blocks and wiring ferrules in the control cabinet — loose connections on 24 VDC rails or PROFIBUS termination resistors are a common source of intermittent faults in aging systems.

For systems using SIMATIC S7-300 or S7-400 PLCs as higher-level controllers communicating with the SIMOTION D via PROFIBUS, verify the CPU module’s battery backup and memory card integrity. A corrupted project on the PLC side can prevent the SIMOTION from completing its startup sequence even after a successful module swap. If the cabinet includes a SIMATIC HMI panel — such as a TP700 Comfort or MP377 — confirm that the HMI project version is compatible with the replacement SIMOTION firmware to avoid operator screen communication errors post-restart.

Finally, review the signal isolators and surge protection devices on analog I/O channels connected to the motion system. In environments with heavy motor switching, transient voltages can degrade these components silently over time, leading to encoder signal noise that manifests as axis positioning drift — a symptom that is often misdiagnosed as a controller fault.

Stocking the 6AU1435-2AD00-0AA0 alongside these associated components as part of a critical spare parts kit is the most effective strategy for minimizing mean time to repair (MTTR) and protecting production continuity.

Site Replacement Workflow

Step 1 — Fault Isolation: Use SIMOTION SCOUT or STARTER software to read active alarms and identify whether the fault is isolated to the SIMOTION D module or originates from a connected drive or I/O device. Export the current project and parameter backup before any hardware change.

Step 2 — Safe Shutdown: Follow the SINAMICS S120 de-energization procedure — disable pulses, discharge the DC bus, and isolate the 24 VDC control supply. Confirm zero-energy state with a calibrated multimeter before opening the cabinet.

Step 3 — Module Removal: Disconnect all DRIVE-CLiQ cables, PROFIBUS/PROFINET connectors, and the 24 VDC supply connector from the existing 6AU1435-2AD00-0AA0. Note cable routing and label all connectors before removal to ensure correct reinstallation.

Step 4 — Replacement Installation: Install the new 6AU1435-2AD00-0AA0 into the drive line-up. Reconnect all cables in the documented sequence. Verify that the CompactFlash card (if applicable) containing the SIMOTION project is correctly seated.

Step 5 — Commissioning & Verification: Power up the control supply and perform a controlled startup using SIMOTION SCOUT. Verify axis homing, motion program execution, and PROFIBUS/PROFINET communication status. Run a no-load test cycle before returning the machine to production.

This structured workflow reduces replacement time, eliminates re-work caused by wiring errors, and ensures the system returns to its validated operating state — minimizing both downtime duration and the risk of secondary faults.

Spare Parts Support FAQ

Q1: Is the 6AU1435-2AD00-0AA0 still available as a new original part, and what is the lead time?
Yes. NINERMAS maintains stock of the 6AU1435-2AD00-0AA0 sourced from verified channels. In-stock units are dispatched within 2–5 business days after order confirmation and payment. For large-quantity procurement or long-term supply agreements, please contact our sales team to discuss dedicated stock reservation.

Q2: How do I verify compatibility between the replacement module and my existing SIMOTION D system?
Compatibility is primarily determined by the SIMOTION firmware version and the SINAMICS S120 drive system configuration. Provide us with your existing module’s order number, firmware version (readable via SIMOTION SCOUT), and drive line-up configuration. Our technical team will confirm compatibility before shipment. We recommend always performing a project backup and firmware version check before installing any replacement module.

Q3: What pre-shipment testing is performed on each unit?
Every 6AU1435-2AD00-0AA0 unit undergoes a functional power-on inspection and visual examination for physical damage, connector integrity, and component condition prior to dispatch. Units that do not pass inspection are not shipped. A test report is available upon request for quality-critical procurement processes.

Q4: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the fault, and any available diagnostic data from SIMOTION SCOUT. Our team will respond within 2 business days with a resolution path, which may include repair, replacement, or credit.
