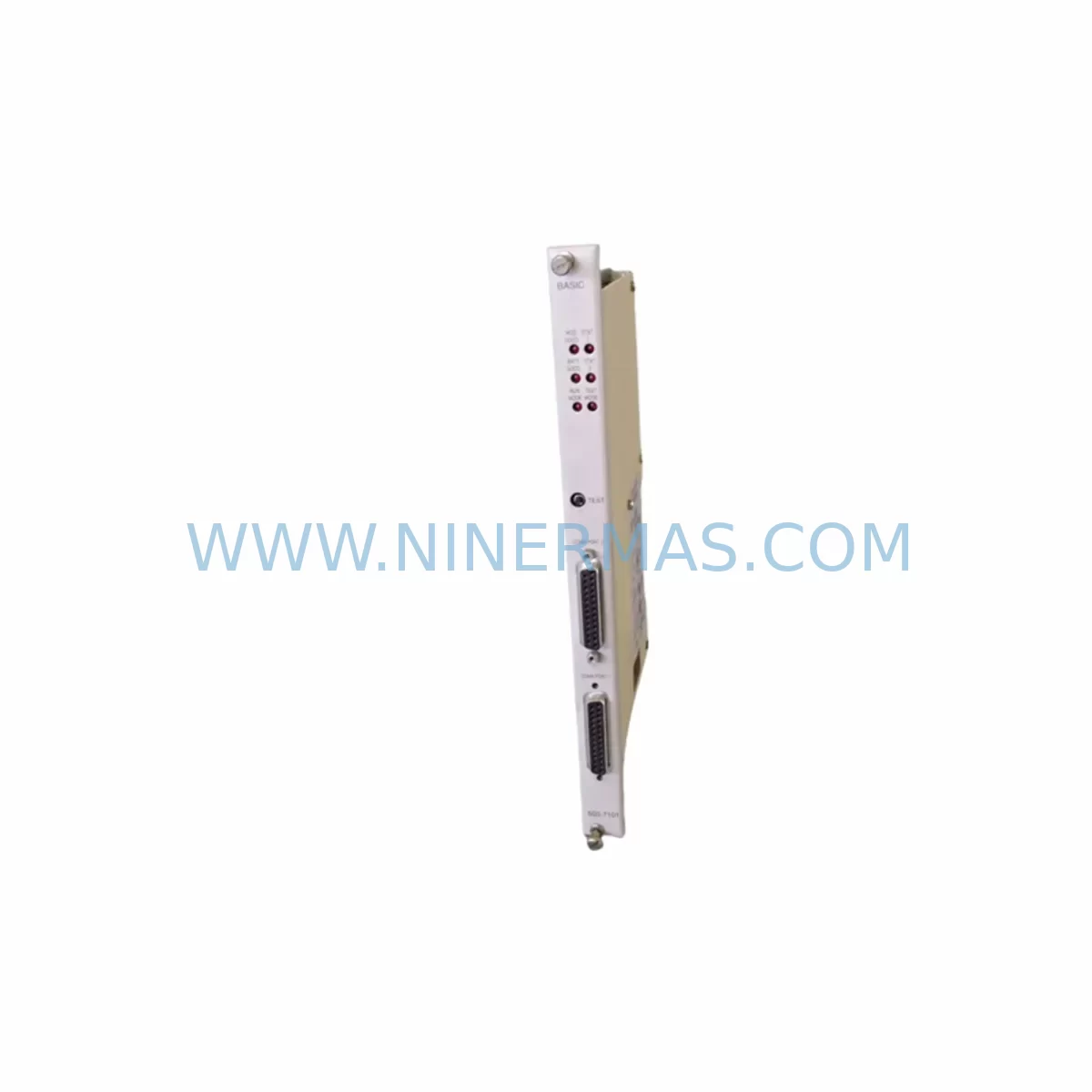

The Siemens 505-7101 is a critical I/O module within the TI505 series programmable logic controller platform — a legacy control architecture still widely deployed across manufacturing, utilities, water treatment, and process automation facilities worldwide. As original equipment manufacturers phase out active production of legacy PLC components, maintaining a verified stock of service-ready spare parts such as the 505-7101 becomes a cornerstone of any responsible industrial maintenance strategy.

For maintenance engineers managing aging control cabinets, the 505-7101 represents more than a line item on a BOM — it is the difference between a controlled, planned replacement and an unplanned production stoppage. Procurement engineers sourcing this module should prioritize suppliers who can confirm original part provenance, provide pre-shipment functional testing documentation, and guarantee a minimum 12-month warranty on every unit shipped. This listing meets all three criteria.

Each unit offered through this listing has been inspected, functionally verified, and prepared for immediate field deployment. Whether you are executing a scheduled annual overhaul, responding to an emergency fault condition, or building a strategic spare parts buffer for a multi-site TI505 installation, the 505-7101 is available for fast dispatch with full traceability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Siemens 505-7101 in a live TI505 installation is rarely an isolated task. Experienced maintenance engineers understand that a module fault in one slot often signals stress or degradation in adjacent components sharing the same backplane, power bus, or field wiring circuit. A disciplined replacement workflow should include a concurrent inspection of the following system elements:

Begin with the 505-6860 or 505-6870 power supply module feeding the rack — a failing PSU is a common root cause of I/O module faults and should be load-tested before the new 505-7101 is commissioned. Inspect the 505-4910 or 505-4920 CPU module for firmware integrity and memory battery status; a degraded CPU can generate false I/O fault flags that mask the true failure point. Check all 505-series terminal base units and field wiring connectors for corrosion, loose terminations, or insulation breakdown — particularly in high-humidity or chemically aggressive environments.

If the 505-7101 interfaces with analog field devices, verify the calibration and signal integrity of any signal isolators or signal conditioners installed between the module and field transmitters. Surge or transient events that damage I/O modules frequently also degrade upstream 24VDC field power distribution fuses and terminal blocks; replace any discolored or thermally stressed fuse holders as a precaution. For installations using 505-series communication modules (such as TIWAY or Ethernet interface cards), confirm that the network configuration has not been corrupted by the fault event.

Where the TI505 system interfaces with an HMI panel or SCADA workstation, validate that all I/O tags mapped to the 505-7101 slot are correctly re-initialized after module swap. In multi-rack configurations, inspect the I/O expansion cables and rack interconnect assemblies for continuity and mechanical integrity. Finally, review the UPS or battery backup system supplying the control cabinet — an under-voltage event during a power disturbance is a leading cause of module failure in legacy PLC installations and should be addressed as part of any corrective maintenance action.

Building a structured spare parts kit around the 505-7101 — including at minimum one spare PSU module, one CPU backup, a set of terminal connectors, and a communication interface card — is the most cost-effective strategy for minimizing mean time to repair (MTTR) across a TI505-based production line.

Site Replacement Workflow

Replacing the Siemens 505-7101 on-site follows a structured sequence designed to minimize downtime and eliminate re-commissioning errors. Before removing the faulty module, document the current rack slot assignment, field wiring labels, and any DIP switch or jumper configurations visible on the module face. Photograph the wiring harness and terminal connections for reference during reinstallation.

Power down the affected rack section following your site’s lockout/tagout (LOTO) procedure. Remove the 505-7101 by releasing the module locking mechanism and sliding it clear of the backplane connector. Inspect the backplane connector pins for damage or contamination before inserting the replacement unit. Seat the new 505-7101 firmly, verify the locking tab is engaged, and restore power to the rack.

From the CPU or programming terminal, perform a forced I/O scan or module initialization sequence as required by your TI505 system configuration. Confirm that all field I/O points associated with the replaced module are reading correctly and that no fault LEDs remain active. Update your maintenance log with the replacement date, serial number of the new module, and the name of the technician who performed the swap — this record supports warranty claims and future fault trend analysis.

For sites transitioning away from TI505 hardware entirely, the 505-7101 can serve as a bridge component during a phased migration to a modern Siemens S7-300 or S7-1500 platform, allowing continued operation of legacy field devices while new control infrastructure is installed in parallel. This approach eliminates the need for a full production shutdown during platform migration and significantly reduces capital expenditure risk.

Spare Parts Support FAQ

Q1: Is the 505-7101 still available as a new original part, or is this a refurbished unit?
Units offered through this listing are sourced from verified industrial supply channels and may include new old stock (NOS) or professionally refurbished units that have passed functional pre-shipment testing. Each unit is covered by a 12-month warranty regardless of its production date. Availability of new original units depends on current stock — contact us to confirm the condition of units available at time of order.

Q2: How do I confirm compatibility with my existing TI505 rack before ordering?
The 505-7101 is designed for use within the TI505 / SIMATIC TI505 rack system. To confirm compatibility, identify your rack model number (typically printed on the rack chassis label), your current backplane revision, and the slot type (standard I/O vs. special function). Provide these details when placing your order and our technical team will verify fit before dispatch.

Q3: What is your lead time and long-term supply commitment for this part?
In-stock units are typically dispatched within 3–7 business days. For customers requiring ongoing supply across multiple maintenance cycles or multi-site deployments, we offer reserved stock arrangements and scheduled delivery programs. Long-term supply continuity for legacy TI505 components is a core part of our service offering — contact sale@ninermas.com to discuss volume and scheduling requirements.
