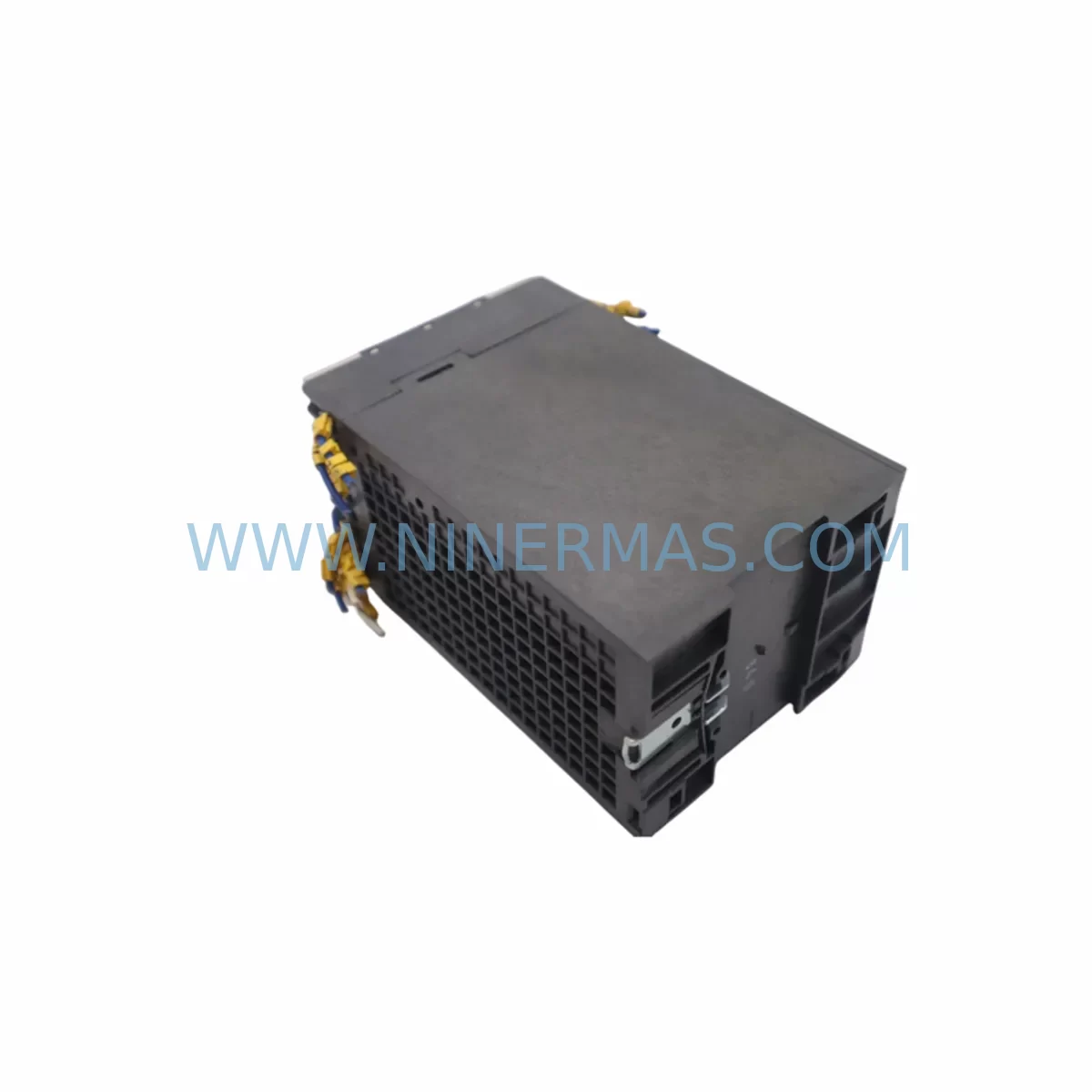

Siemens 3TK2923-0BB4 Retrofit-Compatible Delay Module

Siemens 3TK2923-0BB4 Retrofit-Compatible Delay Module: Legacy System Compatibility and Smooth Upgrade Path

The Siemens 3TK2923-0BB4 is a ruggedized, time-delay expansion module designed for integration within the SIRIUS safety relay platform. As legacy automation systems across process and discrete manufacturing facilities reach end-of-life, the 3TK2923-0BB4 continues to serve as a critical retrofit component — enabling engineers to extend the operational life of existing safety circuits without requiring a full control system overhaul. Whether you are replacing a failed unit in a running production line or planning a phased migration from an older SIRIUS 3TK28 or 3TK29 series configuration, this module provides the timing accuracy, terminal compatibility, and DIN-rail form factor required for seamless integration.

NINERMAS maintains verified stock of the 3TK2923-0BB4 with pre-shipment functional testing, documented inspection records, and a 12-month warranty covering all supplied units. Our inventory supports urgent replacement orders as well as long-term spare parts programs for facilities managing extended equipment lifecycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the 3TK2923-0BB4, the starting point is always a full audit of the existing safety relay circuit. In most legacy installations, the 3TK2923-0BB4 is mounted adjacent to a 3TK2810-0CB30 or 3TK2822-1BB40 base safety relay, forming a combined timing and monitoring circuit for E-stop, light curtain, or two-hand control applications. Before removing the failed or obsolete module, engineers should photograph the existing terminal wiring, record the DIP switch or jumper settings for timing range, and note the reset mode configuration.

Power supply integrity is the first checkpoint. The 3TK2923-0BB4 operates on 24 V DC, and many aging control cabinets rely on older SITOP Power 10 A or SITOP modular units that may themselves be approaching end-of-life. If the existing supply shows voltage ripple or output instability, replacing it with a current-generation SITOP PSU100S 24 V / 10 A unit before installing the new delay module eliminates a common source of nuisance tripping after commissioning.

Terminal re-wiring is typically straightforward. The 3TK2923-0BB4 uses standard screw terminals accepting up to 2.5 mm² conductors, matching the wiring gauge used in most legacy SIRIUS installations. If the original cabinet used ferrule-terminated conductors, these can be reused directly. Engineers should verify that the A1/A2 coil terminals, the Y1/Y2 feedback loop connections, and the output relay terminals (13/14, 23/24) are correctly mapped against the original wiring diagram before energizing the circuit.

For facilities running SIMATIC S7-300 or S7-400 PLCs with hardwired safety relay interfaces, the 3TK2923-0BB4 retrofit does not require any program changes to the PLC logic, provided the output relay contacts are wired to the same digital input addresses as the original module. However, if the migration is part of a broader upgrade toward a SIMATIC S7-1500F or ET 200SP safety platform, engineers should plan for the eventual transition from hardwired safety relays to PROFINET-based safety I/O modules such as the ET 200SP F-DI or F-DO modules, which offer integrated diagnostics and reduce panel wiring complexity.

In control cabinets where space is constrained, the 3TK2923-0BB4’s compact DIN-rail footprint allows it to be installed in the same slot as the original unit without requiring rail extension or cabinet modification. If the retrofit is part of a wider I/O expansion — for example, adding additional safety zones to an existing line — the 3TK2923-0BB4 can be combined with additional 3TK2810 base relays and 3TK2924 or 3TK2925 expansion modules to build out a multi-channel safety architecture within the existing cabinet envelope.

For facilities using older Siemens OP7 or OP17 HMI panels connected to the safety circuit via discrete I/O, no HMI screen changes are required for a like-for-like relay replacement. However, if the upgrade path includes migration to a SIMATIC HMI KTP700 Basic or TP1200 Comfort panel, engineers should plan for updated tag mapping and alarm configuration to reflect the new safety relay status signals.

Downtime Control During System Migration

Minimizing production downtime during a safety relay replacement requires careful pre-staging and a structured commissioning sequence. The recommended approach for a 3TK2923-0BB4 replacement is to pre-wire and bench-test the new module before the scheduled maintenance window. Using a portable 24 V DC bench supply and a test load, verify that the delay timing, output relay operation, and reset behavior match the original module’s settings before the unit is installed in the cabinet.

During the actual replacement, the existing PLC program logic does not need to be modified for a like-for-like swap. The original ladder logic or function block diagram controlling the safety circuit remains valid, provided the output relay contact addresses are preserved. Engineers should use a temporary bypass jumper — installed only under a formal permit-to-work procedure — to maintain control circuit continuity while the module is being changed, where plant safety rules permit this approach.

After installation, the commissioning sequence should include a full functional test of the E-stop loop, verification of the delay timing against the original setpoint, and a reset cycle test to confirm that both manual and automatic reset modes operate as expected. All test results should be documented in the plant’s safety relay maintenance log, and the 12-month warranty start date should be recorded against the module’s serial number for future reference.

For facilities managing multiple safety relay replacements across a production line, NINERMAS supports bulk order programs with fixed lead times and reserved stock allocation, reducing the risk of extended downtime caused by spare part unavailability. Our pre-shipment testing protocol ensures that every 3TK2923-0BB4 unit shipped has been functionally verified before dispatch.

Retrofit Support FAQ

Q1: Is the 3TK2923-0BB4 a direct drop-in replacement for the 3TK2923-0AB4?
The 3TK2923-0BB4 and 3TK2923-0AB4 differ in control supply voltage — the 0BB4 suffix designates 24 V DC operation, while the 0AB4 suffix designates 24 V AC/DC. Before ordering, confirm the coil voltage of the original module from the cabinet wiring diagram or the module’s nameplate. Using the incorrect voltage variant will prevent the module from operating correctly and may damage the unit.

Q2: What pre-shipment testing does NINERMAS perform on the 3TK2923-0BB4?
Each unit undergoes a functional test covering coil energization at rated voltage, output relay contact continuity verification, delay timing accuracy check across the full timing range, and reset mode confirmation. A test record is available upon request and accompanies the unit’s 12-month warranty documentation.

Q3: Can the 3TK2923-0BB4 be used with a SIMATIC S7-1200 safety PLC?
The 3TK2923-0BB4 is a hardwired safety relay module and operates independently of the PLC platform. It can be used alongside any PLC — including SIMATIC S7-1200, S7-1500, or S7-300 — as long as the PLC’s digital inputs are wired to the relay’s output contacts and the safety circuit is designed in accordance with the applicable machinery safety standard (e.g., ISO 13849 or IEC 62061).

Q4: What is the lead time and warranty coverage for the 3TK2923-0BB4?
NINERMAS maintains in-stock inventory of the 3TK2923-0BB4 for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Long-term supply agreements with reserved stock allocation are available for facilities requiring ongoing spare parts support.
