Siemens 3RW4434-6BC44 Service-Ready Spare Part for Industrial Maintenance

Siemens 3RW4434-6BC44 Service-Ready Spare Part for Industrial Maintenance

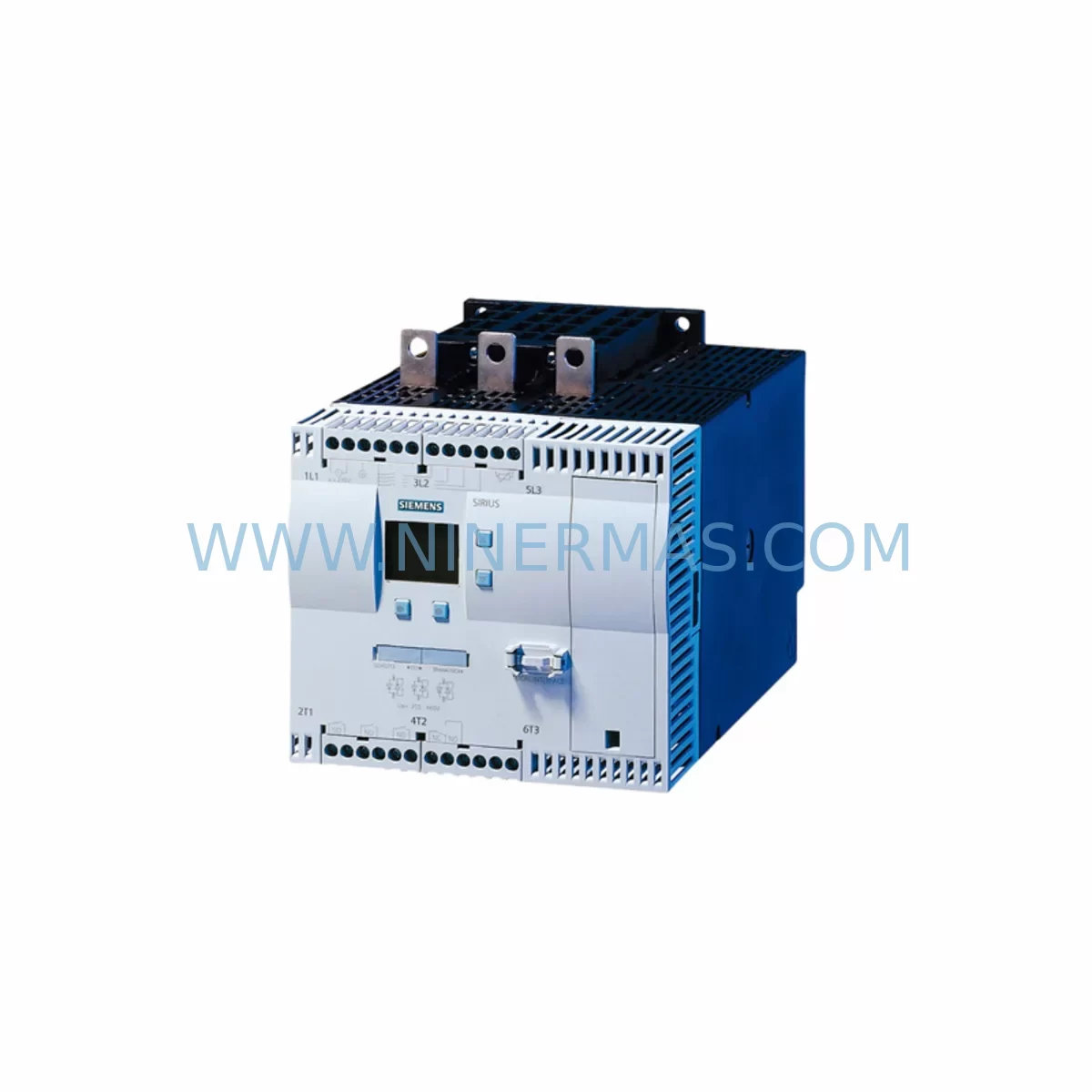

The Siemens 3RW4434-6BC44 is a ruggedized soft starter module from the SIRIUS 3RW44 series, engineered for demanding industrial environments where voltage fluctuations, vibration, and thermal stress are constant operational realities. As a service-ready original spare part, the 3RW4434-6BC44 is a critical component for maintenance engineers managing motor control centers, pump stations, compressor drives, conveyor systems, and heavy-duty production lines. Sourced directly from authorized supply channels, this unit is tested, verified, and shipped with a 12-month warranty to support your plant’s uptime commitments.

For maintenance and procurement engineers responsible for aging SIRIUS-based control systems, securing a verified replacement for the 3RW4434-6BC44 before failure occurs is the most effective strategy to eliminate unplanned downtime. The 3RW44 series is widely deployed across process industries, and end-of-life supply risk makes proactive stock management essential. NINERMAS maintains long-term supply capability for this SKU, supporting both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 3RW4434-6BC44 in the field, a thorough inspection of the surrounding electrical circuit is essential to prevent repeat failures and ensure system integrity. Maintenance engineers should begin by verifying the incoming supply voltage at the motor control center bus, checking for phase imbalance or voltage sags that may have contributed to the original soft starter failure. The 24 V DC auxiliary power supply feeding the SIRIUS control circuit should be tested for ripple and output stability — a degraded SITOP PSU100S or equivalent 24 V power supply module is a common root cause of soft starter faults that goes undetected during routine checks.

Inspect the upstream circuit breaker or motor protection relay — typically a 3RV2 motor starter protector or 3RT2 contactor — for contact wear, arc erosion, or thermal deformation. These components share the same fault exposure as the soft starter and should be treated as co-replacement candidates during any 3RW4434-6BC44 swap. The bypass contactor, if externally wired, must also be checked for coil resistance and contact gap before the new soft starter is energized.

On the signal side, verify the thermistor input wiring from the motor winding to the 3RW44 thermistor terminals. A broken or high-resistance thermistor circuit will trigger false thermal trips on the new unit. If the installation includes a PROFIBUS DP or PROFINET communication module connected to the soft starter, confirm that the network address and parameter set are backed up before removal — the 3RW44 parameter memory is not automatically retained across hardware replacements without a memory module or PLC upload.

For plants running Siemens S7-300 or S7-400 PLC systems with direct soft starter integration via ET 200S or ET 200M distributed I/O, ensure that the I/O module addressing and GSD file configuration remain consistent after the swap. Terminal blocks — particularly Weidmüller or Phoenix Contact DIN rail terminal strips — should be inspected for loose screws and oxidized contacts at the power and control wiring points. Signal isolators on analog feedback channels (4–20 mA current output from the soft starter) should be verified for zero and span calibration after the replacement is complete.

Procurement engineers building annual maintenance kits for SIRIUS-based motor control centers should consider stocking the 3RW4434-6BC44 alongside related components: 3RV2 motor protection circuit breakers, 3RT2 contactors, SITOP power supply modules, 3RW44 parameter memory modules, and appropriate cable glands and DIN rail mounting hardware. A structured spare parts list aligned to the control cabinet BOM reduces emergency procurement lead times from weeks to hours.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the motor circuit and apply LOTO (Lockout/Tagout) per site safety procedures. Confirm zero voltage at the soft starter input terminals L1, L2, L3 using a calibrated multimeter.

Step 2 — Parameter Backup: If the existing 3RW4434-6BC44 is still partially functional, use the Siemens STARTER or SIRIUS Soft Starter ES software to export the parameter set. Alternatively, note all DIP switch positions and manual parameter entries from the operator panel.

Step 3 — Wiring Documentation: Photograph or sketch the control wiring at terminals A1/A2 (control supply), T1/T2/T3 (motor output), and the thermistor terminals before disconnection. Label all wires with adhesive markers.

Step 4 — Module Removal: Loosen the DIN rail mounting clip or unscrew the panel-mount fasteners. Disconnect power and control terminals in reverse order of the wiring diagram. Remove the faulty 3RW4434-6BC44.

Step 5 — New Unit Installation: Mount the replacement 3RW4434-6BC44. Reconnect all terminals per the original wiring documentation. Restore DIP switch settings or upload the saved parameter file.

Step 6 — Pre-Energization Check: Verify insulation resistance between phases and between phase and earth using a 500 V megohmmeter. Confirm control supply voltage is within specification before closing the main isolator.

Step 7 — Commissioning & Test Run: Energize the circuit and perform a no-load test start. Monitor ramp-up time, current profile, and thermistor feedback. Log the commissioning data for the maintenance record.

This workflow minimizes downtime to under 2 hours for a prepared maintenance team and ensures the replacement 3RW4434-6BC44 is commissioned to the same operational standard as the original installation.

Spare Parts Support FAQ

Q1: Is the 3RW4434-6BC44 still available as a new original part, or only as a refurbished unit?
NINERMAS supplies the 3RW4434-6BC44 as a new, original Siemens unit sourced through authorized industrial distribution channels. All units are new-in-box and include the manufacturer’s original packaging and documentation. Refurbished or reconditioned units are not offered under this listing.

Q2: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the rated specification. To initiate a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, installation date, and a description of the fault. Replacement units are dispatched after fault verification.

Q3: Can the 3RW4434-6BC44 directly replace older 3RW44 variants such as the 3RW4434-6BC34?
In most applications, yes. The 3RW4434-6BC44 is the current production variant and is backward-compatible with earlier 3RW4434 suffix variants in terms of electrical ratings and mounting dimensions. However, minor differences in firmware version or parameter defaults may require re-commissioning. Always verify the control voltage range and thermistor input configuration against your existing wiring diagram before installation.

Q4: What is NINERMAS’s lead time and long-term supply commitment for this SKU?
Standard in-stock orders ship within 1–3 business days via international express courier. For planned maintenance programs requiring guaranteed annual supply, NINERMAS offers forward-stocking agreements and priority allocation for critical SKUs including the 3RW4434-6BC44. Contact our team to discuss long-term supply contracts aligned to your plant’s maintenance calendar.
