Siemens 1FL6044-1AF61-2AA1 Service-Ready Spare Part

Siemens 1FL6044-1AF61-2AA1 Service-Ready Spare Part: Precision Servo Motor Replacement for Minimal Downtime

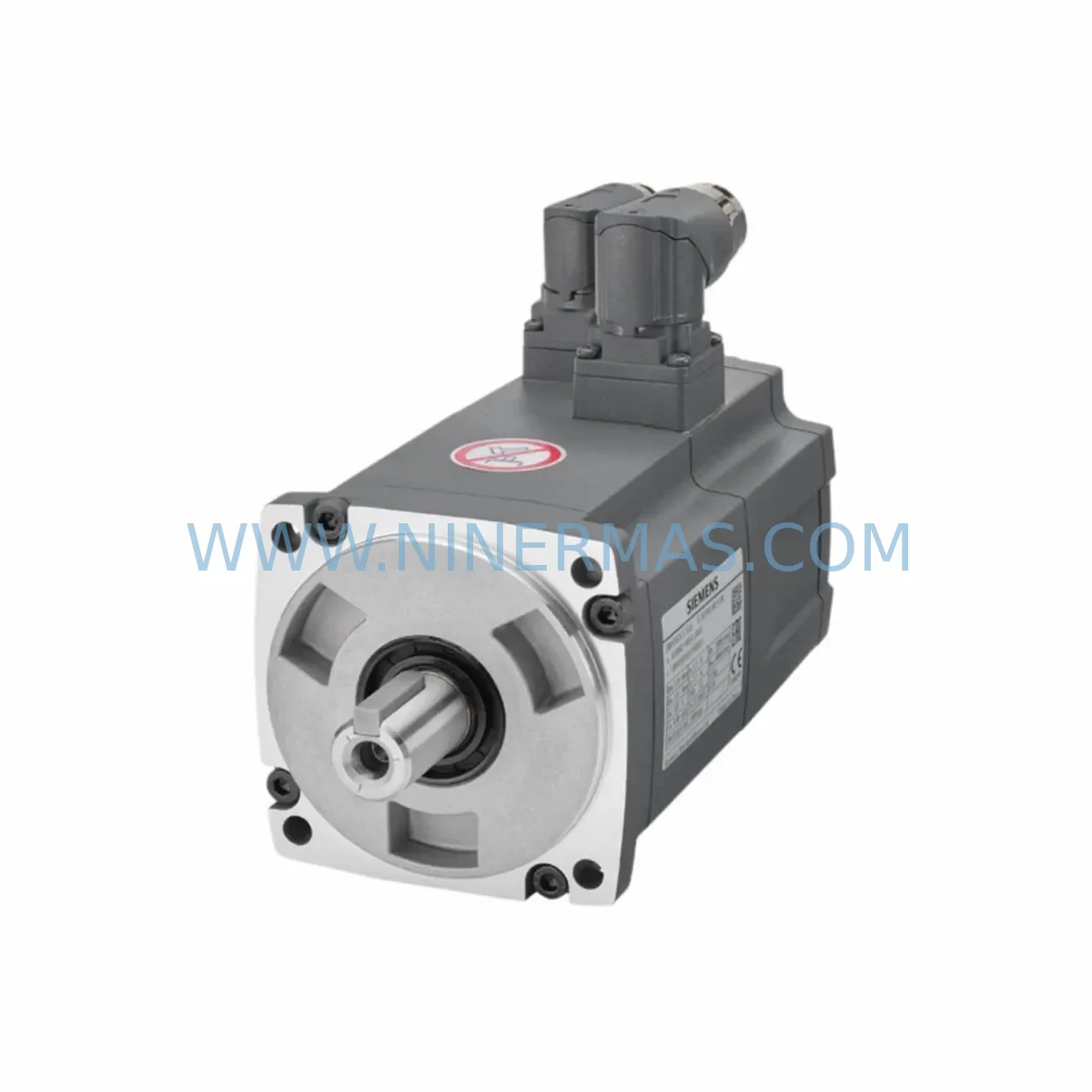

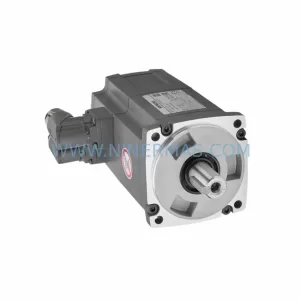

The Siemens 1FL6044-1AF61-2AA1 is a compact permanent magnet synchronous servo motor from the SIMOTICS S-1FL6 series, engineered for high-dynamic motion control applications within the SINAMICS S120 drive ecosystem. Rated for demanding industrial environments, this motor delivers precise torque response, low cogging, and integrated encoder feedback — making it a critical component in CNC machining centers, packaging lines, printing presses, material handling systems, and process automation cells.

When this motor fails or reaches end-of-service life, every minute of unplanned downtime translates directly into production loss. NINERMAS maintains verified stock of the 1FL6044-1AF61-2AA1 to support emergency replacement, scheduled overhaul, and long-term spare parts programs for maintenance engineers and procurement teams managing aging SINAMICS-based control architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1FL6044-1AF61-2AA1 servo motor is rarely an isolated task. Experienced maintenance engineers know that a motor fault in a SINAMICS S120 axis often signals stress across adjacent components in the same drive cabinet or motion control loop. A thorough site inspection during motor replacement should include the following systems and components:

Begin with the SINAMICS S120 Motor Module (e.g., 6SL3120-series single-axis or double-axis module) that powers this motor. Verify DC bus voltage stability and check for stored fault codes on the CU320-2 Control Unit or CU310-2 before re-commissioning. Inspect the DRIVE-CLiQ encoder cable connecting the motor to the drive — cable degradation is a common root cause of encoder faults that are misdiagnosed as motor failure.

Check the 24 VDC power supply module (such as the Siemens SITOP PSU100S or equivalent) feeding the control electronics. A sagging auxiliary supply can cause intermittent drive trips that accelerate motor wear. Inspect terminal blocks and power connectors on the motor cable side for signs of arcing, corrosion, or loose crimps — particularly in high-vibration environments where the 1FL6044 series is commonly deployed.

If the control cabinet includes a Siemens SIMATIC S7-300 or S7-1500 PLC coordinating axis motion, verify that the motion program parameters (acceleration ramps, torque limits, following error windows) are correctly restored after motor swap. Mismatched inertia settings post-replacement are a frequent cause of nuisance trips in the first hours of operation.

For multi-axis systems, inspect neighboring servo motor axes sharing the same DC bus — a failing motor can inject ripple that stresses adjacent Motor Modules. Also review the Line Module (Active Line Module or Basic Line Module) for any thermal warnings or derating events logged during the fault period.

Where signal isolation is required between the drive system and field instrumentation, verify that signal isolators or barriers on analog speed reference or torque command lines are functioning correctly. In older installations, check relay output modules used for motor enable, brake control, or fault acknowledgment — contact wear in these relays is often overlooked during servo motor replacement.

Finally, if the machine uses a Siemens SINUMERIK CNC controller or a SIMATIC HMI panel (TP700, KTP900, or similar), confirm that axis data and drive parameters are backed up before and after replacement. Restoring from a verified backup eliminates commissioning errors and reduces restart time significantly.

Site Replacement Workflow

Step 1 — Isolation & Safety: De-energize the SINAMICS S120 drive system and lock out the main circuit breaker. Allow the DC bus capacitors to discharge fully (minimum 5 minutes after power-off) before opening the motor connector.

Step 2 — Documentation: Record all drive parameters from the CU320-2 or CU310-2 using STARTER or Startdrive commissioning software. Export the axis configuration to a backup file. Photograph existing cable routing and connector orientation before disconnection.

Step 3 — Motor Removal: Disconnect the power cable (U, V, W, PE) and the DRIVE-CLiQ encoder cable. Remove the motor brake connector if fitted. Unbolt the motor from the machine flange, noting the shaft coupling alignment marks.

Step 4 — Inspection: Inspect the motor mounting flange, coupling, and gearbox input (if applicable) for wear or damage. Clean the mating surfaces before installing the replacement 1FL6044-1AF61-2AA1.

Step 5 — Installation: Mount the new motor, reconnect all cables in the documented sequence. Verify cable shielding continuity and PE bonding. Restore drive parameters from backup.

Step 6 — Recommissioning: Power up in a controlled sequence. Perform a motor identification run if prompted by the drive. Run the axis at reduced speed and torque before returning to full production load. Confirm encoder feedback is stable and no fault codes are active.

This structured workflow minimizes restart risk, preserves system compatibility, and ensures the replacement motor operates within its rated parameters from the first production cycle.

Spare Parts Support FAQ

Q1: Is the 1FL6044-1AF61-2AA1 a direct drop-in replacement for my existing SIMOTICS S-1FL6 motor?
Yes — provided the mounting flange, shaft diameter, encoder type, and power rating match your existing installation. NINERMAS recommends cross-referencing the motor nameplate data and the SINAMICS drive parameter set (motor data block) before ordering. Our technical team can assist with compatibility verification based on your drive configuration file.

Q2: What pre-shipment testing is performed on this spare part?
Every unit undergoes functional electrical verification prior to dispatch, including insulation resistance check, encoder signal integrity test, and mechanical rotation inspection. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging suitable for international freight.

Q3: Can NINERMAS support long-term supply agreements for this SKU?
Yes. NINERMAS offers long-term spare parts supply programs for critical SKUs including the 1FL6044-1AF61-2AA1. These programs include reserved stock allocation, priority lead times, and fixed pricing for 12–36 month procurement horizons — reducing exposure to market shortages and obsolescence risk for aging SINAMICS S120 installations.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. NINERMAS provides replacement or repair support for any warranted claim within the coverage period.
