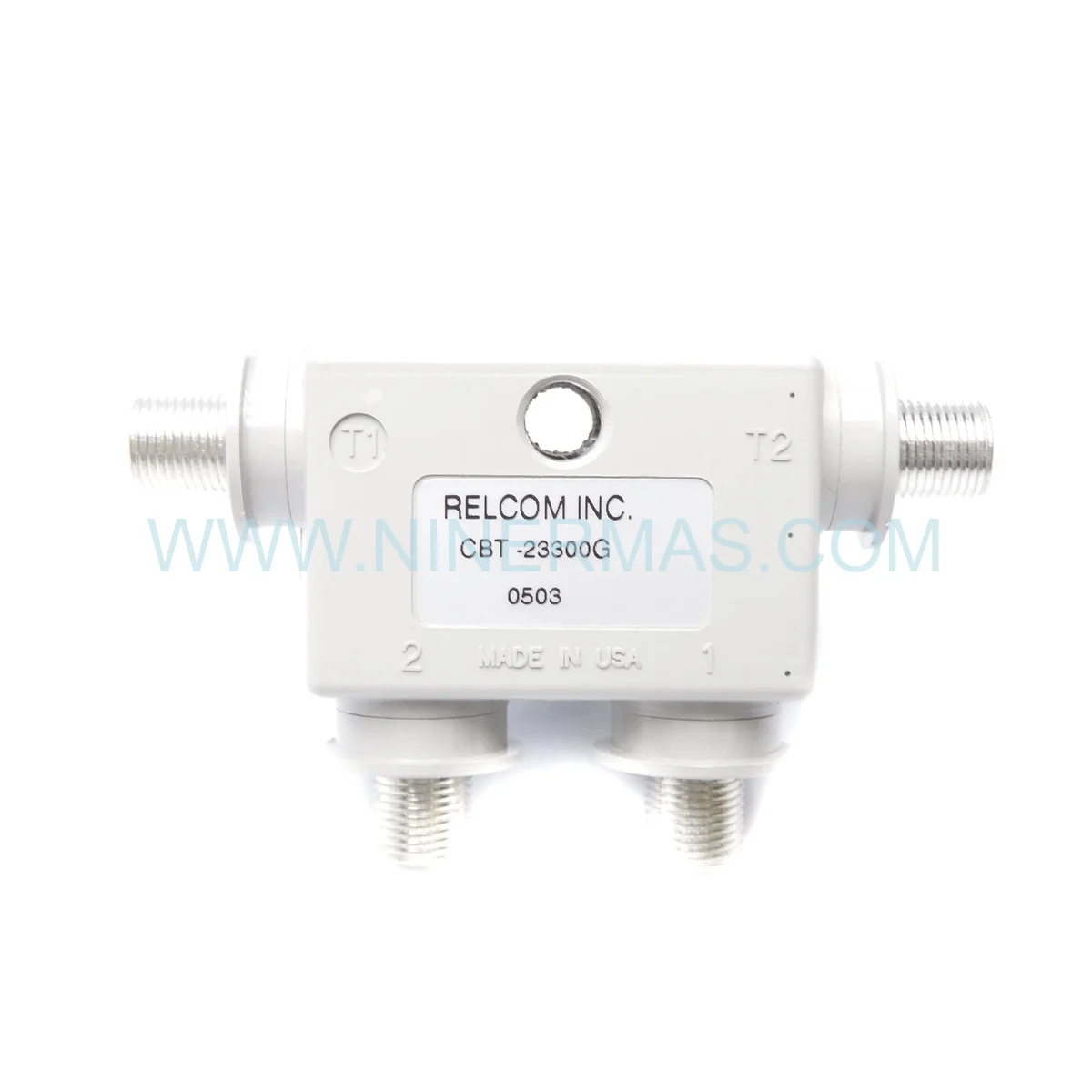

Siemens 16056-371 M-NET 2-Port Tap Kit — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the Siemens 16056-371 M-NET 2-Port Tap Kit occupies a mission-critical position in any building automation modernization initiative. As aging BMS infrastructures face mounting pressure from energy mandates, cybersecurity requirements, and operational efficiency targets, this component serves as the connective backbone that allows facilities to extend the productive life of their existing control networks — without the prohibitive cost of a full system replacement. The Siemens 16056-371 enables engineers to incrementally modernize their M-NET topology, adding communication nodes precisely where performance bottlenecks or coverage gaps exist.

A defining advantage of this tap kit lies in its backward compatibility with legacy M-NET architectures. Whether your facility operates a first-generation Siemens HVAC controller or a mixed-generation BMS environment, the 16056-371 integrates without requiring firmware overhauls or protocol converters. This makes it an ideal retrofit solution for projects where downtime must be minimized and existing wiring infrastructure must be preserved. Its plug-and-play tap interface eliminates the need for specialized commissioning tools, dramatically reducing the skill threshold for field deployment.

From a migration risk and cost perspective, deploying the 16056-371 as part of a phased upgrade strategy allows project leads to defer capital expenditure on full controller replacements while immediately improving network reliability and data throughput. This approach reduces migration risk by validating each network segment before proceeding to the next phase — a proven methodology in large-scale industrial and commercial retrofit programs.

Upgrade Highlights & Compatibility

✅ Drop-in Legacy Compatibility: Integrates directly into existing M-NET bus topologies without protocol conversion or rewiring — preserving your infrastructure investment.
Dual-Port Efficiency: Supports daisy-chain and branch configurations, enabling network expansion across multiple control zones from a single installation point.
? Signal Integrity Over Distance: Maintains reliable communication across cable runs up to 500 meters, with built-in termination resistors eliminating multi-drop reflection issues.
Future-Proof Architecture: Designed to coexist with next-generation BMS controllers, ensuring your network investment remains viable as you migrate to modern platforms.
? Passive Bus Operation: Draws power directly from the M-NET bus — no external power supply required, simplifying panel design and reducing component count.
Certified for Industrial Use: CE and UL compliant, meeting the regulatory requirements for commercial and light-industrial building automation deployments.

Modernization Use Cases & Success Stories

DCS Network Expansion in Multi-Zone Commercial Facilities:
In distributed control system (DCS) environments managing large commercial campuses, the 16056-371 has been deployed to extend M-NET coverage to newly constructed wings or previously isolated mechanical rooms. By tapping into the existing backbone rather than running new primary cable, project teams have reduced installation labor by up to 40% while achieving full network integration within a single maintenance window.

Turbine & Mechanical System Monitoring (TSI Retrofit):
In turbine supervisory instrumentation (TSI) modernization projects, facilities have used the 16056-371 to bridge legacy vibration monitoring panels into modern SCADA and BMS platforms. The tap kit’s passive architecture ensures it introduces no electrical interference into sensitive measurement circuits — a critical requirement when retrofitting high-precision rotating machinery monitoring systems.

Phased HVAC Controller Migration:
Facilities transitioning from end-of-life pneumatic or first-generation DDC controllers have leveraged the 16056-371 to maintain communication continuity during staged controller replacements. New digital controllers are commissioned on isolated network branches via the tap kit, then cut over to the main M-NET backbone once validated — eliminating the risk of a full-system outage during migration.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every Siemens 16056-371 unit is sourced directly from authorized distribution channels and shipped in original manufacturer packaging with full traceability documentation — ensuring authenticity for critical infrastructure projects.

Expedited Global Logistics: We maintain ready stock to support urgent retrofit timelines. Express international shipping is available to all major industrial regions, with customs documentation pre-prepared for smooth cross-border clearance. Lead times for standard orders are typically 3-7 business days globally.

Technical Support for Legacy & Obsolete Hardware: Our engineering support team specializes in legacy Siemens BMS ecosystems. Whether you need pre-installation compatibility verification, wiring diagram review, or post-installation commissioning guidance, we provide dedicated technical assistance throughout your retrofit project lifecycle.

Warranty Coverage: 12-month warranty against manufacturing defects, with replacement support coordinated through our global logistics network to minimize project downtime.

Retrofit FAQ — Upgrade Guide

Q1: Is the Siemens 16056-371 compatible with my existing M-NET wiring without modification?
A: In the vast majority of retrofit scenarios, yes. The 16056-371 is designed as a passive tap that connects inline with your existing shielded twisted-pair M-NET cable (22-18 AWG). No rewiring of the primary bus is required — simply insert the tap at the desired branch point and connect your new device or sub-network segment.

Q2: Can this tap kit facilitate communication between legacy Siemens controllers and modern BMS platforms?
A: The 16056-371 operates at the physical network layer, extending M-NET connectivity to any device that supports the M-NET protocol standard. For integration with non-M-NET modern platforms (e.g., BACnet or Modbus-based systems), a protocol gateway would be required in addition to this tap kit — a common configuration in hybrid retrofit architectures.

Q3: How many 16056-371 tap kits can be deployed on a single M-NET segment?
A: M-NET segments support up to 64 addressable devices per segment. The number of tap kits deployable depends on your total device count and cable topology. For large facilities, multiple segments connected via M-NET routers or repeaters allow virtually unlimited network scale.

Q4: What is the recommended installation approach for minimizing downtime during a retrofit?
A: The preferred methodology is a phased branch-and-validate approach: install the 16056-371 on a live network segment during a low-activity period, connect the new device or controller to the branch port, commission and validate communication on the branch, then integrate into the main control sequence. This approach eliminates the need for full system shutdowns during migration.

Q5: Are there alternative Siemens components that can replace the 16056-371 if it becomes unavailable?
A: The 16056-371 is currently in Active lifecycle status and available for new procurement. In the event of future obsolescence, Siemens typically provides migration guidance to successor tap or repeater components within the M-NET product family. Our technical team can advise on compatible alternatives based on your specific network topology and controller generation.

Q6: Does the tap kit support installation in environments with high electromagnetic interference (EMI)?
A: The 16056-371 is designed for use with shielded twisted-pair cable, which provides inherent EMI rejection. For installations in high-interference environments (near variable frequency drives, large motors, or power distribution panels), ensure proper cable shielding continuity and grounding at a single point per segment to maintain signal integrity.
