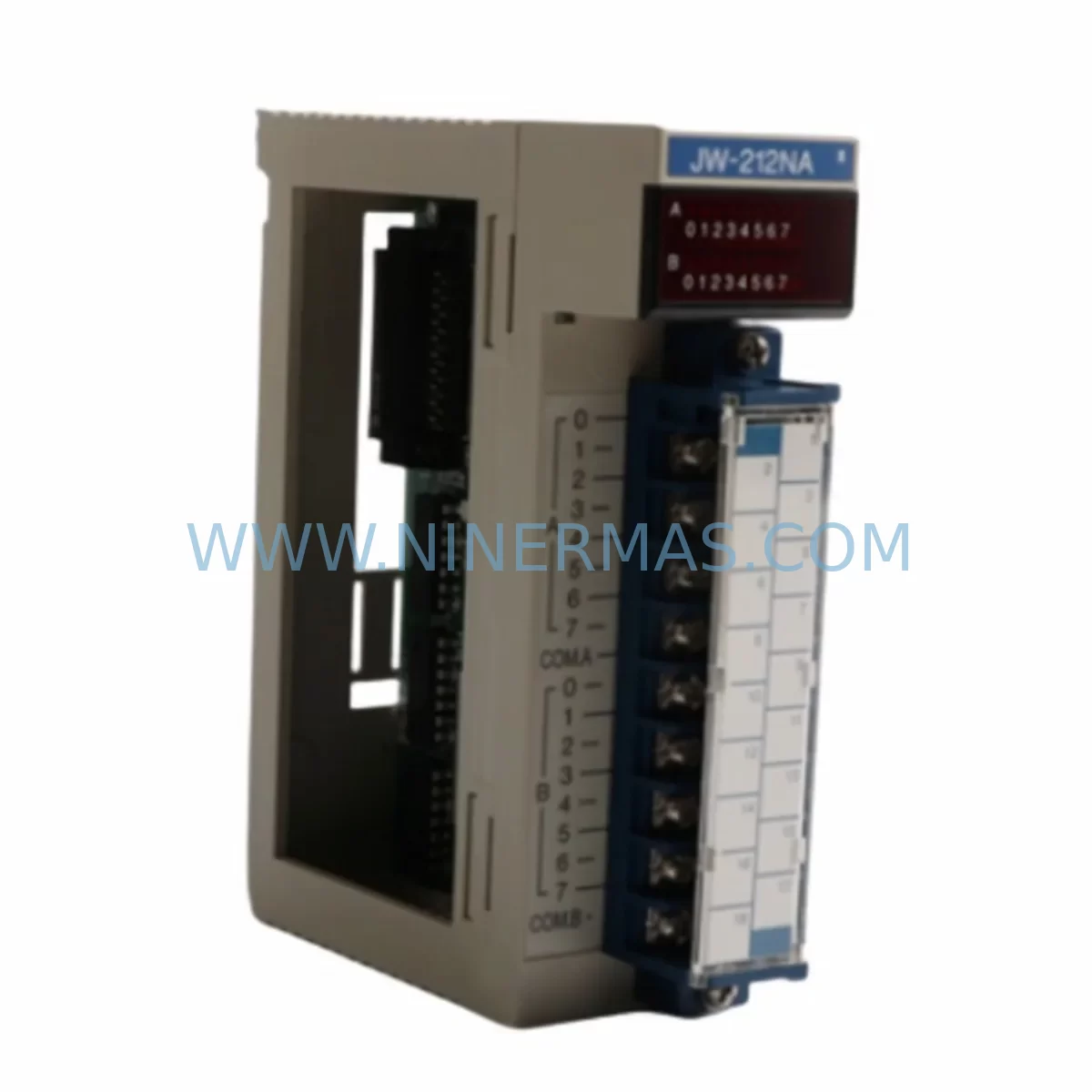

The Sharp JW-212NA is a CPU module designed for the Sharp JW Series programmable logic controller (PLC) platform, widely deployed across discrete manufacturing, process control, and machine automation environments. As production lines age and OEM support windows close, maintaining a verified stock of the JW-212NA becomes a critical element of any industrial maintenance strategy. Unplanned downtime caused by a failed CPU module can halt an entire production cell within minutes — sourcing a pre-tested, service-ready replacement from a reliable supplier is the fastest path to system restoration.

At NINERMAS, every JW-212NA unit is inspected and functionally tested prior to shipment. We supply original and equivalent-grade spare parts backed by a 12-month warranty, with long-term availability programs designed to support facilities running legacy Sharp JW Series systems well beyond the standard product lifecycle. Whether you are building a preventive maintenance buffer, responding to an emergency fault, or executing a scheduled annual overhaul, the JW-212NA is available for immediate dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a Sharp JW-212NA CPU module fails or is flagged during a routine control cabinet inspection, experienced maintenance engineers know that the fault rarely exists in isolation. A thorough site assessment should accompany any CPU replacement to prevent repeat failures and ensure full system restoration.

Begin by verifying the JW Series power supply module — an under-voltage or ripple condition on the 24V DC rail is a common root cause of CPU faults and memory corruption. Inspect the JW Series backplane for signs of oxidation, loose connector seating, or physical damage to the bus connectors, as a degraded backplane can cause intermittent CPU communication errors even after a module swap. Check all JW Series I/O modules (digital input, digital output, and analog I/O) for blown fuses, failed output transistors, or input signal anomalies that may have contributed to the original fault condition.

Review the RS-232C or RS-485 communication cables connecting the JW-212NA to upstream SCADA, HMI terminals, or programming devices — damaged shielding or loose terminal connections are a frequent source of communication timeouts that are misdiagnosed as CPU failures. If the system includes a Sharp JW Series communication module for network connectivity (e.g., Ethernet or proprietary fieldbus), verify its firmware version and link status after the CPU replacement.

For systems with relay output modules in the same control cabinet, inspect coil voltage ratings and contact wear, particularly on high-cycle outputs controlling motors, solenoids, or heating elements. Examine terminal blocks and wiring harnesses for loose connections, insulation degradation, or corrosion — these are often overlooked during emergency repairs but are a leading cause of recurring faults. If signal isolators are present in the analog I/O loop, confirm their input/output ranges remain within calibration tolerance.

Where the JW Series PLC interfaces with a local HMI or operator panel, test the communication link and screen functionality after the CPU swap to confirm program data and display logic are intact. Finally, check any fuse holders and circuit protection devices on the 24V DC distribution rail — a blown fuse upstream of the CPU power input is a simple fault that can be missed during a rushed emergency repair, leading to a second no-power condition after the new module is installed.

Maintaining a structured spare parts kit that includes the JW-212NA CPU alongside a JW Series power supply module, a set of JW Series I/O modules, spare communication cables, relay output modules, and a stock of terminal block connectors is the most effective strategy for minimizing mean time to repair (MTTR) on aging Sharp JW Series installations.

Site Replacement Workflow

Step 1 — Preparation: Before powering down the system, use the programming software to upload and save a verified backup of the current PLC program from the JW-212NA. Confirm the backup file against the last known-good version in your document management system.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. Isolate the control cabinet power supply and discharge any residual voltage on the backplane bus before removing the CPU module.

Step 3 — Module Removal: Release the JW-212NA from its backplane slot using the module ejector lever (if fitted). Note the slot position and any DIP switch or jumper settings on the outgoing module — photograph these before removal.

Step 4 — Replacement Installation: Insert the new JW-212NA into the same backplane slot. Confirm the module is fully seated and the connector is engaged. Replicate any DIP switch or jumper settings from the original unit.

Step 5 — Program Restore: Power up the system and use the Sharp JW Series programming tool to download the verified program backup to the new CPU. Confirm program checksum and run mode before releasing the system to production.

Step 6 — Functional Verification: Cycle through all I/O points, verify communication links to HMI and SCADA, and confirm all output devices (motors, valves, conveyors) respond correctly. Document the replacement in your maintenance log with the new module serial number and date.

This structured workflow reduces unplanned downtime, eliminates re-work caused by missed configuration steps, and ensures full system compatibility is maintained after the spare part swap.

Spare Parts Support FAQ

Q1: Is the JW-212NA compatible with all Sharp JW Series backplanes and I/O modules?
The JW-212NA is designed for the Sharp JW Series PLC platform and is compatible with standard JW Series backplanes and I/O expansion units. Compatibility should be verified against your specific system configuration and firmware revision. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q2: What pre-shipment testing is performed on the JW-212NA?
Every JW-212NA unit supplied by NINERMAS undergoes a functional power-on test and communication interface check before dispatch. Units that do not pass testing are not shipped. A test report is available upon request for critical maintenance applications.

Q3: Can NINERMAS support long-term supply of the JW-212NA for multi-year maintenance contracts?
Yes. NINERMAS operates a long-term spare parts program for legacy industrial automation components, including the Sharp JW Series. We can provide committed stock reservations, scheduled delivery programs, and fixed pricing agreements to support facilities with extended maintenance horizons. Contact our sales team to discuss your requirements.

Q4: What does the 12-month warranty cover for the JW-212NA?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, or environmental conditions outside the specified operating range. Warranty claims are processed with priority turnaround to minimize site downtime.
