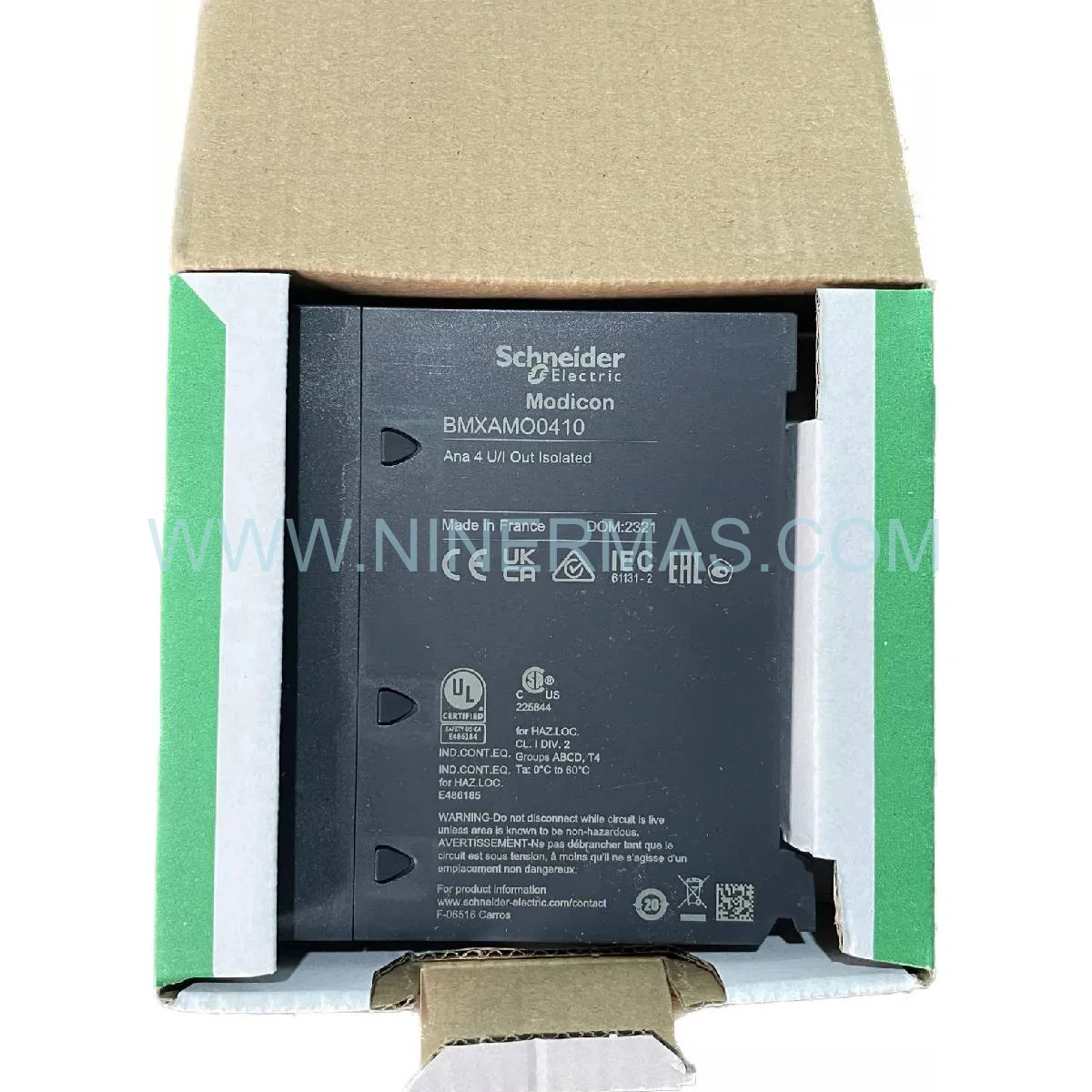

Schneider Electric BMXAMO0410 Analog Output Module (Modicon X80) – New & Original in Stock

Schneider Electric BMXAMO0410 Analog Output Module | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the Schneider Electric BMXAMO0410 is a mission-critical automation component that directly governs system availability in continuous-process environments. Deployed within Modicon X80 distributed I/O architectures, the BMXAMO0410 delivers four fully isolated analog output channels — each configurable for voltage (0-10 V, ±10 V) or current (0-20 mA, 4-20 mA) — enabling seamless integration into closed-loop control strategies where signal fidelity is non-negotiable. Its 12-bit resolution (4096 discrete steps) and ±0.25% full-scale accuracy translate directly into tighter process tolerances and reduced variance across production batches.

Operational durability is a defining characteristic of this module. Rated for continuous service from 0 °C to 60 °C and compliant with CE, UL, CSA, and ATEX standards, the BMXAMO0410 withstands the thermal cycling, vibration, and electromagnetic interference typical of heavy industrial environments. Installation engineers should note that channel-to-channel and channel-to-bus galvanic isolation eliminates ground-loop interference — a common failure mode in multi-loop analog systems. Proper torque on terminal connections and adherence to Schneider Electric’s cable-routing guidelines are essential to sustaining rated accuracy over the module’s service life.

For maintenance planners operating under reliability-centered maintenance (RCM) frameworks, stocking the BMXAMO0410 as a critical spare is a straightforward risk-mitigation decision. As a legacy-compatible yet actively supported component within the Modicon X80 ecosystem, its availability directly determines mean time to repair (MTTR) for analog output faults — one of the most impactful failure categories in process automation. Securing original factory stock ensures that emergency replacements arrive pre-configured and firmware-compatible, eliminating the commissioning delays associated with counterfeit or refurbished alternatives.

Key Operational Features

4 Isolated Analog Output Channels — Full channel-to-channel and channel-to-bus galvanic isolation for noise-free signal transmission
12-Bit Resolution / ±0.25% Accuracy — Precision process control with minimal drift across operating temperature range
Multi-Range Output Flexibility — Software-selectable 0-10 V, ±10 V, 0-20 mA, 4-20 mA per channel; no hardware jumpers required
Hot-Swap Capability — Supports live module replacement on energized X80 backplanes, maximizing system uptime during corrective maintenance
Seamless System Integration — Native compatibility with Unity Pro / Control Expert; zero custom driver development required
High Availability by Design — Redundancy-ready architecture supports dual-ring Ethernet topologies and hot-standby PLC configurations
Operational Excellence Compliance — ATEX-rated for Zone 2 hazardous area deployment; supports IEC 61511 functional safety workflows

Maintenance & Performance Benchmarks

The BMXAMO0410 is engineered to perform consistently across a broad spectrum of industrial network architectures — from compact standalone M340 cells to large-scale distributed control systems (DCS) spanning multiple plant areas. In small-to-medium installations, the module operates directly on a local X80 backplane connected to an M340 or M580 CPU, with configuration managed through a single Control Expert project. Diagnostic data — including channel-level fault codes, output saturation flags, and communication health indicators — is surfaced natively in the PLC’s I/O map, enabling predictive maintenance without additional middleware.

In enterprise-scale architectures, the BMXAMO0410 participates in Ethernet-based distributed I/O topologies via EtherNet/IP or Modbus TCP, with deterministic scan times that satisfy the latency requirements of fast-response control loops (e.g., pressure regulation, flow control). Its 2.5 W typical power draw minimizes thermal load on the backplane power supply — a critical consideration when designing high-density I/O racks for process optimization in energy-intensive facilities. Firmware updates are applied non-disruptively through the CPU’s online download function, preserving process continuity during scheduled maintenance windows.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every BMXAMO0410 unit dispatched from our facility is sourced directly from authorized distribution channels and ships in original Schneider Electric factory packaging — complete with tamper-evident seals, factory test certificates, and full traceability documentation. This guarantees that the module you receive is firmware-current, dimensionally compliant, and covered under manufacturer warranty terms from day one.

For mission-critical procurement scenarios, we offer same-day dispatch on confirmed in-stock units (order confirmation before 14:00 CST), with worldwide express logistics via DHL, FedEx, and UPS Priority — typical transit times of 3-7 business days to major industrial hubs globally. We maintain strategic buffer stock specifically for end-of-life (EOL) and legacy module support, ensuring that plants running long-lifecycle Modicon X80 systems can source genuine replacement parts without being forced into premature platform migrations. All shipments include commercial invoice, packing list, and certificate of origin for smooth customs clearance.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the BMXAMO0410 in an existing X80 rack?
A: Power down the backplane supply before insertion unless hot-swap is explicitly required. Align the module with the backplane connector, press firmly until the locking tab engages, then apply power. In Control Expert, perform an I/O bus scan to auto-detect the module and assign its rack/slot address. Verify channel configuration (range, fallback value) before enabling outputs.

Q2: Which firmware versions of Control Expert are compatible with the BMXAMO0410?
A: The module is supported from Unity Pro V4.1 onward and all versions of EcoStruxure Control Expert (formerly Unity Pro XL). For optimal diagnostic feature access — including per-channel fault masking and output forcing — Control Expert V14.1 or later is recommended. Always cross-reference the Modicon X80 I/O Platform Compatibility Matrix (document reference EIO0000001474) before firmware upgrades.

Q3: How does the BMXAMO0410 behave during a CPU communication fault?
A: Each channel can be independently configured with a fallback (safe-state) output value that activates automatically upon loss of CPU communication. This is configured in the module’s I/O object properties within Control Expert — a critical setting for process safety in applications governed by IEC 61511.

Q4: What is the warranty claim process for this module?
A: Our 1-year warranty covers manufacturing defects and component failures under normal operating conditions. To initiate a claim, contact sale@ninermas.com with your order number, module serial number, and a brief fault description. We will issue a Return Merchandise Authorization (RMA) within 24 business hours and dispatch a replacement unit upon receipt of the defective module.

Q5: Can the BMXAMO0410 be used in SIL-rated safety loops?
A: The module itself is not SIL-certified as a standalone safety device. For functional safety applications (SIL 1-3), Schneider Electric’s Modicon M580 Safety platform with dedicated safe I/O modules is the appropriate solution. The BMXAMO0410 can, however, be used in the non-safety portion of a mixed safety/standard architecture.

Q6: Is calibration required after installation?
A: Factory calibration is performed on every BMXAMO0410 unit prior to shipment. Field recalibration is not required under normal operating conditions. If accuracy drift is observed after extended service (typically >5 years), Schneider Electric’s authorized service centers can perform a full calibration procedure per the module’s maintenance manual.
