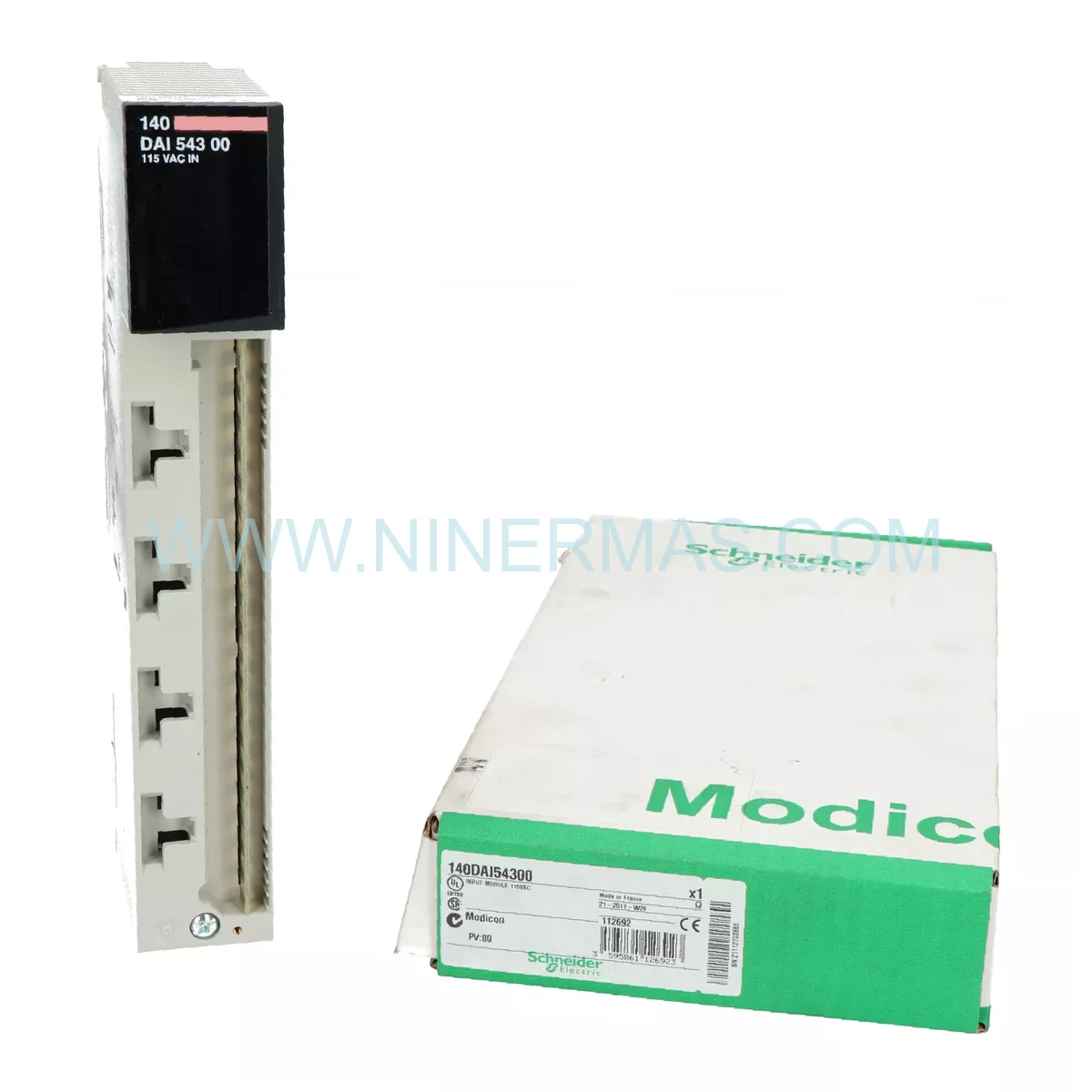

Schneider Electric 140DAI54300 | 16-Ch 115V AC Input Module Modicon Quantum

Schneider Electric 140DAI54300 | Reliable Automation Component for Modicon Quantum

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 140DAI54300 is a mission-critical discrete input module that directly determines the availability of your Modicon Quantum control architecture. Deployed across 16 independent input channels at 115V AC, the 140DAI54300 ensures deterministic signal acquisition from field devices — eliminating ambiguous state transitions that trigger unplanned shutdowns in process-intensive environments. Its role in process optimization is not supplementary; it is foundational to operational excellence.

Engineered for harsh industrial environments, this I/O module withstands operating temperatures from 0°C to 60°C and sustains 95% non-condensing humidity without signal degradation. During installation, engineers must verify backplane slot compatibility within the Quantum rack and confirm that field wiring does not exceed the 132V AC continuous rating. Transient overvoltage tolerance of 156V AC (10 seconds) and 200V AC (1 cycle) provides a critical buffer against line surges common in heavy manufacturing facilities.

As a strategic spare part, maintaining at least one 140DAI54300 unit in your critical inventory pool is a non-negotiable reliability practice. End-of-life procurement windows for legacy Modicon Quantum components are narrowing — securing verified original stock now prevents costly production stoppages when field units reach their service limit.

Key Operational Features

16 Discrete Inputs / 2 Independent Channel Groups — Enables segmented fault isolation without full module replacement
115V AC Operation (47-63 Hz) — Seamless system integration across 50 Hz and 60 Hz global power grids
1780 Vrms Group-to-Bus Isolation — Protects PLC backplane from field-side transients, supporting high availability
Fast Response Time: 4.9 ms Off n / 7.3 ms On ff — Meets timing requirements for safety interlock and conveyor control loops
18 Status LEDs (1 Bus + 1 Fault + 16 Channel) — Accelerates field diagnostics and reduces mean time to repair (MTTR)
Compatible with Unity Pro, Concept & ProWORX 32 — Zero-friction automation component integration into existing Quantum projects
FM Class I Division 2 Certified — Approved for use in hazardous area classifications common in oil & gas and chemical processing

Maintenance & Performance Benchmarks

The 140DAI54300 is architected to slot into both small-scale standalone Quantum racks and large distributed control networks spanning multiple remote I/O drops. In a typical mid-size manufacturing plant, this module handles feedback signals from motor starters, limit switches, and proximity sensors — all routed through a single backplane address consuming 1 input word. This compact addressing footprint simplifies PLC program maintenance and reduces scan-time overhead.

For large-scale infrastructure deployments — such as water treatment facilities or power distribution substations — the module’s dual-group isolation architecture allows engineers to segregate safety-critical inputs from standard process signals on the same module, reducing panel footprint without compromising redundancy design principles. Periodic maintenance benchmarks recommend verifying LED indicator status during scheduled PLC audits and confirming input threshold voltages remain within the State 1 guaranteed range of 79-132V AC.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 140DAI54300 unit shipped from our inventory is sourced directly from authorized distribution channels and arrives in original factory packaging with full traceability documentation. For in-stock orders, same-day dispatch is available on confirmed payments received before the daily cut-off window — minimizing your plant’s exposure to extended downtime.

We specialize in global supply of EOL (End-of-Life) and legacy Modicon Quantum automation components, maintaining buffer stock specifically for customers operating long-lifecycle industrial systems where OEM availability has been discontinued. Worldwide express logistics via DHL, FedEx, and UPS ensures delivery to North America, Europe, Southeast Asia, and the Middle East within 3-7 business days. All shipments include commercial invoice, packing list, and optional third-party inspection reports upon request.

Engineering Support & FAQ

Q1: What is the correct installation procedure for the 140DAI54300 in a Modicon Quantum rack?
A: Power down the rack before insertion. Align the module with the backplane connector and press firmly until the locking tabs engage. Assign the slot address in your Unity Pro or Concept project configuration, then verify the green Bus LED illuminates upon power-up. Refer to Schneider Electric document 840 USE 101 00 for detailed rack wiring diagrams.

Q2: Which firmware versions of the Quantum CPU are compatible with this module?
A: The 140DAI54300 is compatible with all Modicon Quantum CPU firmware versions that support standard discrete I/O addressing. No firmware-specific driver is required — the module is recognized automatically via backplane enumeration. Confirm your Unity Pro version supports your CPU reference for full diagnostic visibility.

Q3: Can the 140DAI54300 be used in a hot-standby redundancy configuration?
A: Yes. In Quantum Hot Standby architectures, discrete input modules including the 140DAI54300 are supported on both primary and standby racks. Ensure both racks use identical module references and firmware-compatible CPUs to maintain seamless switchover without I/O state loss.

Q4: What is the warranty coverage and claim process?
A: All units carry a 1-year warranty against manufacturing defects. To initiate a claim, contact our technical support team with your order reference, a description of the fault symptom, and LED status observations at the time of failure. Replacement or repair is processed within 5-10 business days upon receipt of the returned unit.

Q5: How do I verify the module is receiving valid State 1 signals from field devices?
A: Monitor the 16 individual green channel LEDs on the module faceplate. A lit LED confirms the corresponding input is in State 1 (voltage within 79-132V AC range). Cross-reference with your PLC’s I/O diagnostic table in Unity Pro to confirm software-side bit status matches physical LED indication.

Q6: Is this module suitable for use in Division 2 hazardous locations?
A: Yes. The 140DAI54300 carries FM Class I Division 2 certification, permitting installation in areas where flammable gases or vapors may be present under abnormal conditions. Verify local installation codes and conduit sealing requirements before deployment in classified areas.
