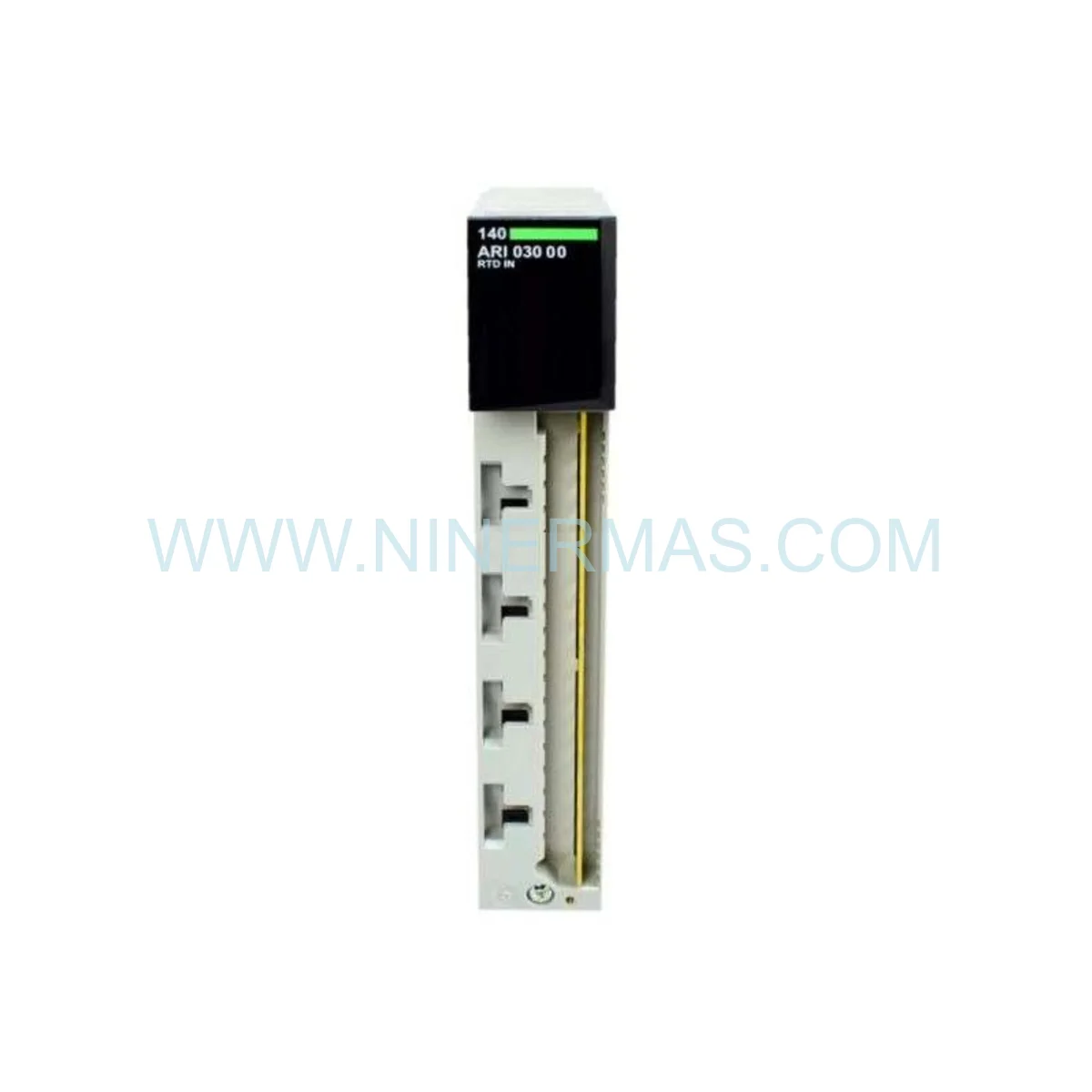

Schneider Electric 140ARI03000 RTD Analog Input Module (Quantum) – New & Original

Schneider Electric RTD Analog Input Module 140ARI03000 | Reliable Automation Component

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the 140ARI03000 is a mission-critical automation component engineered to maximize system availability in Modicon Quantum control architectures. Deployed across petrochemical, power generation, and pharmaceutical environments, the 140ARI03000 delivers eight independent RTD input channels with multi-wire flexibility nabling precise temperature acquisition that directly supports process optimization and operational excellence. Its seamless integration into the Quantum backplane eliminates signal conditioning overhead, reducing mean time to repair (MTTR) and sustaining high-availability production cycles.

Durability under harsh industrial conditions is a defining characteristic of this I/O module. Rated for continuous operation from 0°C to 60°C with humidity tolerance up to 95% non-condensing, the 140ARI03000 withstands the electromagnetic interference, vibration, and thermal cycling common in heavy-industry control rooms. Installation teams should note that proper backplane seating and torque-controlled terminal connections are essential to maintain signal integrity across all eight channels articularly in 4-wire configurations where lead resistance compensation is critical.

As production lines age and original equipment reaches end-of-life status, maintaining a certified stock of the 140ARI03000 as a strategic spare is no longer optional t is a core element of any credible maintenance reliability program. Unplanned downtime caused by unavailable I/O modules can cost facilities tens of thousands of dollars per hour; sourcing verified, factory-original units in advance is the most cost-effective risk mitigation available to plant engineers.

Key Operational Features

8 Independent RTD Input Channels — Simultaneous multi-point temperature acquisition for high-density process monitoring
Universal Sensor Compatibility — Supports Pt100, Pt200, Ni100, Ni200; configurable per channel via Unity Pro for system integration flexibility
Redundancy-Ready Architecture — Compatible with Quantum hot-standby CPU configurations, supporting seamless failover without measurement interruption
Flexible Wiring Modes — 2-wire, 3-wire, and 4-wire configurations selectable per channel, balancing installation cost against measurement accuracy
Comprehensive Fault Diagnostics — Open-circuit and short-circuit detection with configurable fail-safe responses; fault flags propagate directly to Unity Pro for rapid alarm management
High Availability by Design — Hot-swap capable within Quantum chassis; module replacement without system shutdown preserves continuous process control

Maintenance & Performance Benchmarks

The 140ARI03000 is engineered to adapt across industrial network architectures of varying scale and complexity. In small standalone Quantum systems, a single module provides sufficient RTD capacity for localized temperature loops, with Unity Pro enabling rapid channel configuration without specialist programming resources. In mid-scale distributed control networks, multiple 140ARI03000 modules can be deployed across remote I/O drops connected via Modbus Plus or Ethernet, extending temperature monitoring reach without additional signal conditioning hardware.

For large-scale enterprise automation environments efineries, power stations, or multi-line manufacturing facilities he module’s compatibility with Quantum’s redundant CPU and power supply architecture ensures that temperature data remains continuously available even during planned maintenance windows. Performance benchmarks confirm channel-to-channel isolation prevents cross-talk in high-density installations, while the module’s 16-bit resolution delivers measurement repeatability that satisfies both process control and regulatory compliance requirements. Firmware updates are managed centrally through Unity Pro, eliminating the need for physical module intervention during software lifecycle management.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every 140ARI03000 unit dispatched from our facility is sourced directly from Schneider Electric’s authorized supply chain and ships in original factory packaging with full traceability documentation. For in-stock units, same-day dispatch is available on orders confirmed before the daily cut-off, ensuring your maintenance team receives the module with minimal delay. Our global logistics partnerships cover express delivery to North America, Europe, Southeast Asia, and the Middle East ritical for facilities operating in regions where local distributor stock for legacy or end-of-life Quantum modules is unreliable or exhausted.

We specialize in global supply for EOL and legacy automation components. If your facility is maintaining aging Quantum infrastructure beyond the standard product lifecycle, our sourcing team maintains verified inventory pipelines to ensure continuity of supply for mission-critical spare parts programs. All units undergo pre-shipment inspection and are accompanied by a certificate of conformity upon request.

Engineering Support & FAQ

Q: What are the recommended installation steps for the 140ARI03000 in an existing Quantum chassis?
A: Power down the chassis or confirm hot-swap compatibility with your CPU firmware version before insertion. Align the module with the backplane connector and apply firm, even pressure until the locking tabs engage. After seating, open Unity Pro, navigate to the I/O configuration, and assign the module to its slot. Configure each channel’s sensor type and wiring mode individually. Verify channel status in the diagnostics view before returning the system to service.

Q: Which Unity Pro firmware versions are compatible with the 140ARI03000?
A: The 140ARI03000 is supported across Unity Pro versions 2.x through 15.x. For installations running legacy OS versions below 2.3, Schneider Electric recommends a firmware review prior to module commissioning to confirm DDT (Derived Data Type) compatibility. Contact our technical team for version-specific guidance.

Q: Can the 140ARI03000 replace a 140ARI03010 without software changes?
A: Yes. Both models share identical electrical specifications and Unity Pro DDT structures. Substitution is transparent to the control program o logic modifications or I/O remapping are required. This interchangeability simplifies spare parts consolidation across mixed Quantum installations.

Q: How is the warranty claim process handled?
A: In the event of a confirmed manufacturing defect within the 12-month warranty period, contact our support team with the module serial number and a description of the fault. We will arrange advance replacement shipment to minimize downtime, followed by return of the defective unit for technical analysis. Warranty coverage includes component failures under normal operating conditions and excludes physical damage or misapplication.

Q: What diagnostics are available for sensor fault detection?
A: The module continuously monitors each RTD channel for open-circuit (wire break) and short-circuit conditions. Fault events generate status bits readable in Unity Pro’s I/O diagnostics panel. Engineers can configure channel-level responses: hold last valid value, drive output to a defined safe state, or trigger an immediate process alarm roviding granular control over fault management in safety-sensitive applications.

Q: Is the 140ARI03000 suitable for SIL-rated safety applications?
A: The 140ARI03000 is a standard process control module and is not independently SIL-certified. For safety instrumented systems requiring IEC 61508 compliance, Schneider Electric’s Modicon Safety platform (140CPS series) should be evaluated. However, the 140ARI03000 is widely used in non-SIL process monitoring loops that feed data to separate safety logic solvers.
