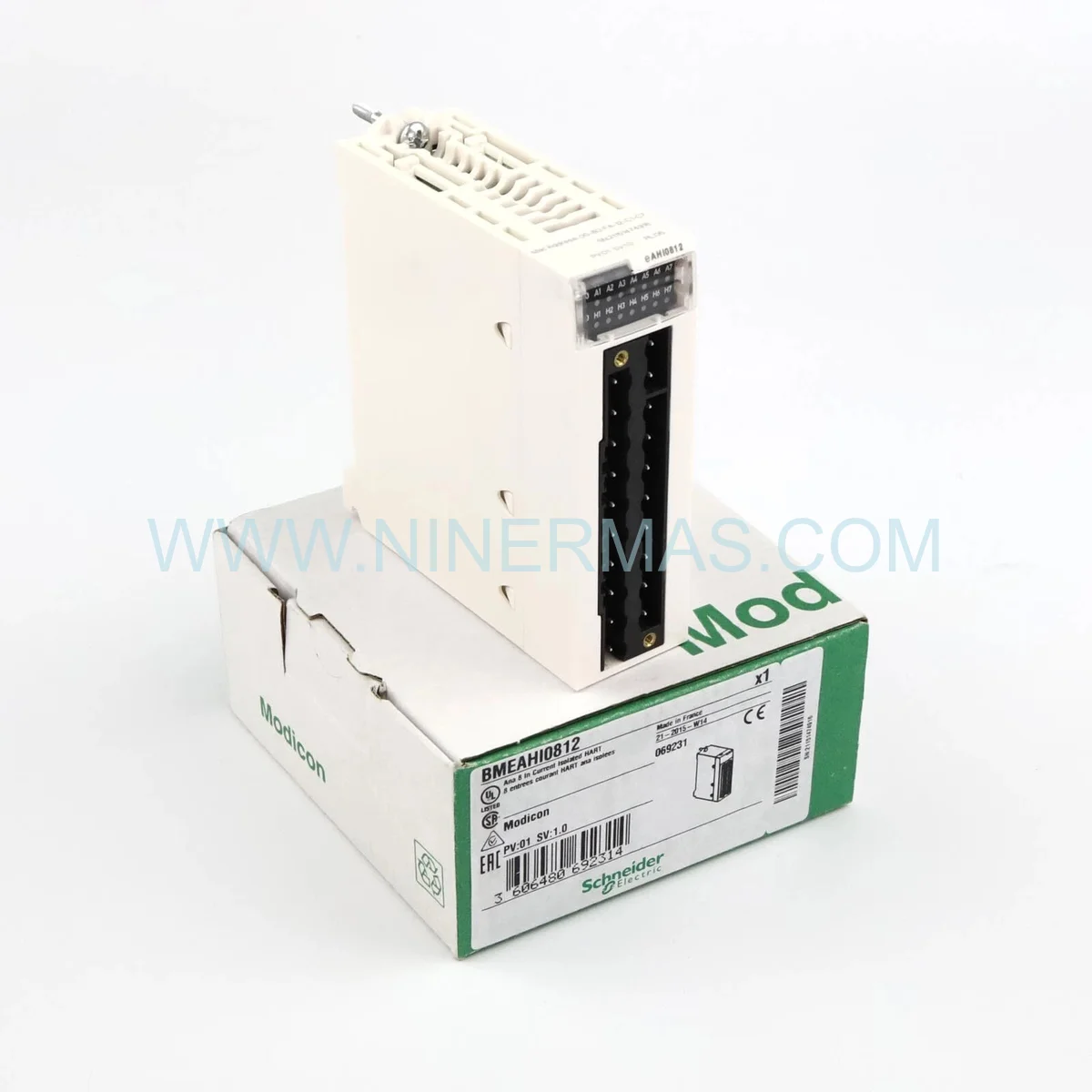

Schneider BMEAHI0812 | X80 HART Analog Input Retrofit Module

Schneider BMEAHI0812 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and power generation facilities, the Schneider BMEAHI0812 stands out as a cornerstone component in any Modicon X80 modernization initiative. Its 8-channel isolated HART-enabled current input architecture directly addresses the performance bottlenecks found in aging analog I/O infrastructures — enabling facilities to achieve measurable gains in signal fidelity, diagnostic depth, and system uptime without a full platform overhaul. The Schneider BMEAHI0812 delivers 15-bit + sign resolution across all channels, a specification that legacy modules from earlier Quantum or Premium generations simply cannot match, making it the preferred hardware upgrade path for engineers seeking precision without disruption.

From a legacy compatibility standpoint, this module integrates natively into existing Modicon X80 backplane architectures (BMEXBP series), supporting both local and distributed EIO topologies via BMECRA31210 drop adapters. This means retrofit projects can preserve existing cabinet layouts, wiring infrastructure, and PLC logic while selectively replacing underperforming I/O cards — a strategy that dramatically reduces migration risk and engineering rework. Its Telefast ABE7-compatible terminal block further simplifies field wiring transitions from older Premium TSX systems.

In terms of total migration cost reduction, the BMEAHI0812’s hot-swap capability and broken wire diagnostics eliminate unplanned downtime during cutover phases. Facilities that have transitioned from Quantum 140AHI03000 or TSX AEY800 modules report significant reductions in commissioning time and post-migration calibration cycles — validating this module as a high-ROI retrofit investment for both greenfield expansions and brownfield system upgrades.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Drop-in compatible with BMEP58x processors and BMEXBP backplanes — no firmware re-architecture required.
Performance Enhancement: 15-bit + sign resolution vs. 12-bit legacy modules — a 8 improvement in measurement granularity.
? Legacy Compatibility: Supports Telefast ABE7 wiring accessories, preserving existing field cable infrastructure during migration.
HART Transparency: Full HART protocol pass-through enables smart device diagnostics without additional hardware investment.
? Future-Proofing: Certified to IEC 61131-2, UL 61010-2-201, and CSA — compliant with current and anticipated global industrial standards.
Channel Isolation: 1000V DC channel-to-channel isolation eliminates ground loop interference common in legacy analog wiring environments.

Modernization Use Cases & Success Stories

DCS Analog I/O Refresh — Chemical Processing Plant: A petrochemical facility operating a legacy Modicon Quantum DCS replaced aging 140AHI03000 modules with BMEAHI0812 units across 12 remote I/O drops. The retrofit solution delivered a 40% reduction in analog signal noise, eliminated recurring broken wire false alarms, and enabled HART-based valve positioner diagnostics — all without modifying the existing Unity Pro control logic or field wiring.

TSI System Upgrade — Gas Turbine Power Plant: A combined-cycle power station integrated BMEAHI0812 modules into its turbine supervisory instrumentation (TSI) network to replace obsolete TSX AEY800 cards. The hardware upgrade enabled real-time vibration and temperature trend analysis via HART pass-through, reducing unplanned turbine trips by an estimated 25% in the first operational year. The seamless integration with existing EIO Ethernet backbones meant zero changes to the SCADA historian configuration.

Water Treatment SCADA Modernization: A municipal water authority undertaking a phased system migration deployed BMEAHI0812 modules to replace mixed-generation analog inputs across 6 pump stations. The performance upgrade provided unified 4-20mA + HART acquisition across all stations, enabling centralized asset health monitoring and predictive maintenance scheduling — a capability previously unavailable with the legacy hardware.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Schneider BMEAHI0812 | | **Platform** | Modicon X80 Distributed I/O | | **Channel Count** | 8 — Isolated Analog Inputs | | **Signal Type** | 4-20 mA (HART-compatible) | | **Resolution** | 15-bit + sign | | **Accuracy @ 25°C** | ±0.15% Full Scale | | **Accuracy (0-60°C)** | ±0.3% Full Scale | | **Channel Isolation** | 1000V DC (ch-to-ch), 1400V DC (to ground/bus) | | **Input Impedance** | 250Ω internal | | **Temperature Drift** | 50 ppm/°C | | **Connection Type** | 20-way terminal block / Telefast ABE7 | | **Diagnostics** | Broken wire detection, HART pass-through | | **Hot-Swap Support** | Yes (with compatible X80 backplane) | | **Certifications** | IEC 61131-2, UL 61010-2-201, CSA, CE, RCM | | **Operating Temperature** | 0°C to 60°C | | **Protection Rating** | IP20 | | **Dimensions (W L H)** | 11.2 — 12.0 — 5.7 cm | | **Weight** | 233g | | **Lifecycle Status** | Active |

Supply Chain & Deployment Support

Original & Factory Sealed: Every BMEAHI0812 unit is sourced directly from authorized Schneider Electric distribution channels and shipped in original manufacturer packaging with full traceability documentation — critical for regulated industries and audit-compliant retrofit projects.

Expedited Global Logistics: We maintain strategic inventory buffers to support urgent retrofit timelines. Express air freight options are available to all major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas — with typical lead times of 3-7 business days for in-stock units.

Technical Support for Legacy & Obsolete Hardware: Our engineering team specializes in cross-referencing BMEAHI0812 against legacy Quantum (140AHI series) and Premium (TSX AEY series) modules. We provide migration compatibility reports, Unity Pro configuration templates, and post-installation commissioning guidance to ensure your retrofit project meets schedule and performance targets.

Retrofit FAQ — Upgrade Guide

Q1: Is the BMEAHI0812 physically compatible with existing X80 cabinet layouts during a retrofit?
A: Yes. The BMEAHI0812 uses the standard Modicon X80 module form factor and mounts directly onto BMEXBP backplanes without mechanical modification. Its 20-way terminal block is dimensionally compatible with Telefast ABE7 pre-wired sub-bases, allowing field wiring to be transferred from legacy modules with minimal re-termination effort.

Q2: How does the BMEAHI0812 handle communication between new HART devices and legacy non-HART field instruments during a phased migration?
A: The module operates transparently across both HART and standard 4-20mA signals on a per-channel basis. Channels connected to legacy non-HART transmitters function as standard current inputs, while HART-enabled channels simultaneously carry digital diagnostic data. This mixed-mode operation makes it ideal for phased system migration where not all field instruments are upgraded simultaneously.

Q3: What are the recommended spare part substitution options if BMEAHI0812 becomes unavailable?
A: For applications requiring backward compatibility, the BMEAHI0812 can be cross-referenced against the BMXAMI0810 (non-HART, 8-channel X80 analog input) for non-HART applications, or the BMEAHI0812H for high-density variants. Our technical team can provide a formal compatibility assessment and alternative sourcing strategy upon request.

Q4: Does replacing legacy Quantum 140AHI modules with BMEAHI0812 require changes to existing Unity Pro or Concept PLC programs?
A: In most cases, the I/O mapping structure and data types are compatible with minimal logic modification. However, HART channel configuration requires Unity Pro DTM (Device Type Manager) setup. Our team provides pre-validated Unity Pro configuration templates to accelerate this process and reduce engineering hours during the retrofit phase.

Q5: What is the maximum cable run length supported for analog input signals in a retrofit scenario with existing field wiring?
A: With the module’s 250Ω internal input impedance and proper cable shielding, signal runs up to 500 meters are achievable in standard industrial environments. For longer runs or high-noise environments typical of older plant layouts, we recommend shielded twisted-pair cable with single-point grounding to maintain ±0.15% accuracy specifications.

Q6: Is the BMEAHI0812 suitable for use in safety-instrumented system (SIS) retrofit projects?
A: The BMEAHI0812 is designed for standard process control applications and is not SIL-rated for use as a primary safety function element. For SIS retrofit projects, it should be used in the basic process control layer, with dedicated SIL-certified modules handling safety functions. Our team can advise on appropriate system architecture for mixed BPCS/SIS retrofit designs.
