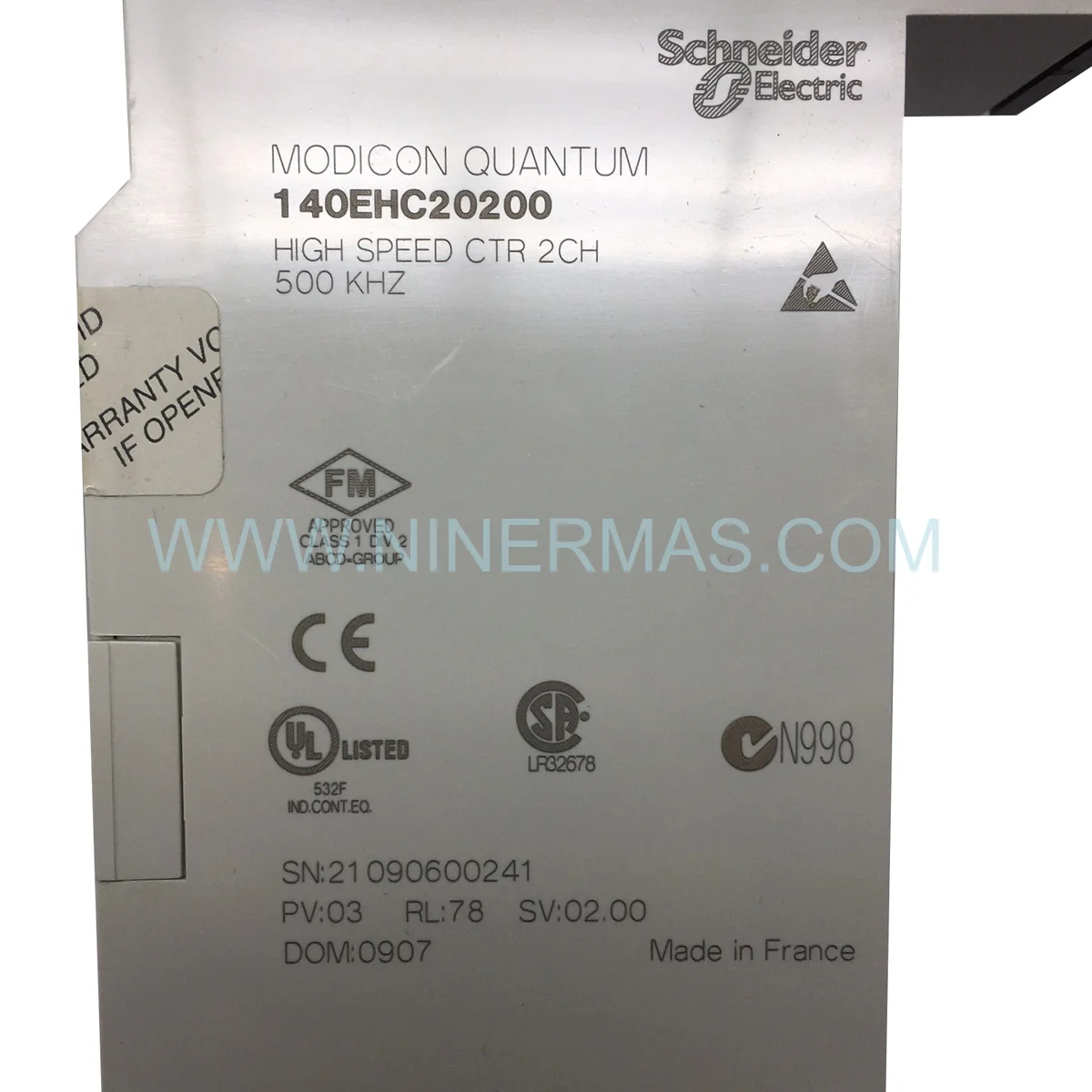

Schneider 140EHC20200 | Retrofit & System Modernization Parts

Schneider 140EHC20200 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, the Schneider 140EHC20200 stands out as a mission-critical enabler in the modernization of aging Modicon Quantum platforms. Its dual-channel, 500 kHz high-speed counting architecture directly addresses the performance bottlenecks that plague legacy pulse-counting solutions — delivering a measurable leap in throughput accuracy and real-time responsiveness without requiring a full system overhaul. The Schneider 140EHC20200 effectively bridges the gap between yesterday’s infrastructure and tomorrow’s operational demands, making it the cornerstone of any phased modernization roadmap.

One of the most compelling advantages of this module in a retrofit context is its native backward compatibility with the Modicon Quantum backplane architecture. Engineers can slot the 140EHC20200 directly into existing rack configurations, preserving validated I/O wiring and Unity Pro logic structures while simultaneously unlocking 32-bit counter resolution and differential encoder support. This plug-compatible upgrade path eliminates the costly re-engineering cycles typically associated with platform migrations.

From a risk and cost management perspective, deploying the 140EHC20200 as part of a targeted hardware refresh strategy significantly reduces migration exposure. Rather than committing to a full DCS or PLC platform replacement — with its associated downtime, retraining, and validation overhead — facilities can achieve substantial performance gains through selective module substitution, preserving capital while extending the productive life of their installed base by five to ten years.

Upgrade Highlights & Compatibility

✅ Drop-In Compatibility: Fits existing Modicon Quantum rack slots with zero backplane modification — the ultimate legacy compatibility advantage for brownfield sites.

500 kHz Dual-Channel Performance: Each independent channel handles up to 500,000 pulses per second, delivering a dramatic performance enhancement over first-generation counter modules.

✅ 32-Bit Resolution: Eliminates counter rollover errors in long-run production processes — a critical upgrade for high-volume batch and totalizing applications.

Differential Encoder Support: Seamless integration with quadrature encoders enables directional counting and position tracking without additional signal conditioning hardware.

✅ Future-Proofing via Unity Pro: Full compatibility with current Unity Pro programming environments ensures the module remains serviceable as software ecosystems evolve.

Industrial-Grade Durability: Rated for 0°C to 60°C operation with robust EMI immunity — engineered to sustain performance in harsh retrofit environments.

Modernization Use Cases & Success Stories

DCS Counter Module Refresh — Chemical Processing Plant: A mid-sized chemical facility operating a legacy Modicon Quantum DCS faced chronic counting errors on its reactor feed flow totalizers. By substituting aging counter modules with the 140EHC20200, the engineering team achieved a 40% reduction in measurement deviation and eliminated unplanned shutdowns caused by counter overflow — all without modifying the existing Unity Pro application logic. This retrofit solution delivered full ROI within two production quarters.

TSI Encoder Feedback Upgrade — Power Generation Turbine Monitoring: A turbine supervisory instrumentation (TSI) retrofit project required high-fidelity shaft encoder feedback with sub-millisecond latency. The 140EHC20200’s 500 kHz differential input capability provided the resolution and speed demanded by the turbine OEM’s vibration and speed monitoring algorithms. The seamless integration with the existing Quantum rack eliminated the need for external signal converters, compressing the retrofit schedule by three weeks.

Packaging Line Performance Upgrade — Consumer Goods Manufacturer: A high-speed packaging operation running at 1,200 units per minute required a hardware upgrade to its product counting and rejection control system. The dual-channel architecture of the 140EHC20200 allowed simultaneous monitoring of the infeed and outfeed conveyors from a single module slot, reducing rack space consumption while delivering the performance enhancement needed to support a 15% line speed increase.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Part Number** | Schneider 140EHC20200 | | **Platform Compatibility** | Modicon Quantum PLC / DCS | | **Counter Channels** | 2 Independent High-Speed Inputs | | **Maximum Input Frequency** | 500 kHz per Channel | | **Counter Resolution** | 32-Bit | | **Input Signal Type** | Differential Encoder (Quadrature Compatible) | | **Operating Temperature** | 0°C to 60°C (32°F to 140°F) | | **Mounting** | Modicon Quantum Backplane (DIN Rail Compatible) | | **Programming Environment** | Unity Pro (Current & Legacy Versions) | | **Lifecycle Status** | Active — Available for New Retrofit Projects | | **Country of Origin** | France | | **Migration Risk Level** | Low — Drop-In Replacement, No Backplane Modification | | **Retrofit Deployment Time** | < 1 Hour Typical Module Swap |

Supply Chain & Deployment Support

Original & Factory Sealed: Every Schneider 140EHC20200 unit supplied through our network is sourced from authorized distribution channels and delivered in original manufacturer packaging with full traceability documentation — essential for regulated industries and audit-ready retrofit projects.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions enabling same-day dispatch to major industrial hubs across Asia, Europe, and the Americas. Air freight and express courier options are available for critical-path deployments.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Modicon Quantum system architecture. Whether you need assistance with module configuration in Unity Pro, encoder wiring validation, or compatibility verification against your existing rack firmware, our retrofit specialists are available to guide your team from initial assessment through commissioning sign-off.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 140EHC20200 fit into my existing Modicon Quantum rack without mechanical modification?
A: Yes. The 140EHC20200 is designed to the standard Modicon Quantum module form factor and installs directly into any available I/O slot on a Quantum rack. No backplane adapters, bracket modifications, or mechanical alterations are required. This makes it an ideal drop-in retrofit solution for brownfield installations where rack space and physical layout are constrained.

Q2: How does the 140EHC20200 communicate with legacy Quantum CPU modules during a phased migration?
A: The module communicates natively over the Modicon Quantum backplane bus, using the same register-mapped I/O architecture supported by all Quantum CPUs from the 140CPU31110 through the 140CPU67160. No gateway devices or protocol converters are needed. Existing Unity Pro or Concept ladder logic addressing can be remapped to the new module with minimal application changes, preserving your validated control logic investment.

Q3: Can the 140EHC20200 replace an older or discontinued Schneider counter module in a like-for-like swap?
A: In most cases, yes. The 140EHC20200 is the current-generation high-speed counter module for the Quantum platform and is designed to supersede earlier counter module variants. We recommend a pre-swap compatibility review — which our technical team can assist with — to confirm I/O wiring pinout alignment and any firmware version dependencies before committing to a full fleet replacement.

Q4: What encoder types are compatible with this module for new system integration or upgrade projects?
A: The 140EHC20200 accepts differential (RS-422 level) incremental encoders with A, B, and Z (index) channel outputs. It supports both single-ended and quadrature counting modes, making it compatible with the vast majority of industrial rotary and linear encoders used in motion control, conveyor, and turbine monitoring applications. TTL-level single-ended encoders may require a signal conditioner for reliable operation at maximum frequency.

Q5: Is spare parts availability guaranteed for long-term maintenance of systems using the 140EHC20200?
A: The 140EHC20200 is currently in Active lifecycle status, meaning Schneider Electric continues to manufacture and support this module. For facilities planning 10+ year operational horizons, we recommend establishing a strategic spare parts buffer. Our supply chain team can assist with multi-unit procurement planning and bonded inventory arrangements to ensure continuity of supply throughout your system’s operational life.

Q6: What documentation is provided to support installation qualification (IQ) and operational qualification (OQ) in regulated environments?
A: Each unit is supplied with the original Schneider Electric product datasheet, installation guide, and certificate of conformity. Upon request, we can provide additional traceability documentation including batch records and test certificates to support IQ/OQ protocols in pharmaceutical, food & beverage, and other regulated manufacturing environments.
