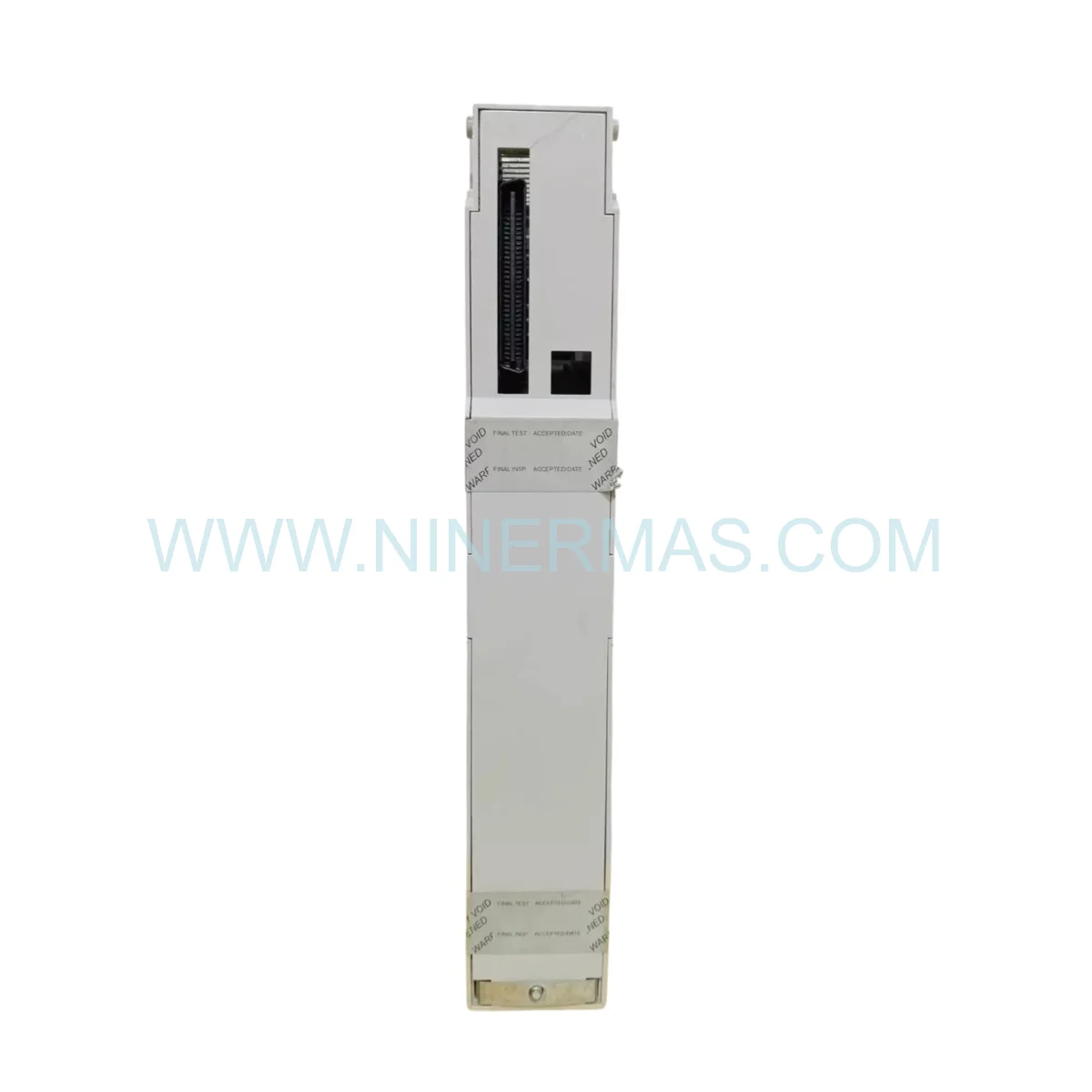

Schneider 140DDO35300 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure upgrades, the Schneider 140DDO35300 stands out as a mission-critical component in extending the operational lifespan of Modicon Quantum-based automation platforms. In aging DCS and PLC environments where downtime carries enormous financial consequences, the Schneider 140DDO35300 delivers a proven pathway to performance enhancement without requiring a full system overhaul — preserving capital investment while modernizing output control capabilities.

One of the most compelling advantages of this module in a retrofit context is its native backward compatibility with the entire Modicon Quantum backplane ecosystem. Whether your facility is running a legacy 4-slot or a 16-slot rack configuration, this module slots in without firmware conflicts or hardware adaptation layers — making it the cornerstone of any seamless integration strategy for aging control architectures.

From a migration risk and cost perspective, deploying the 140DDO35300 as a direct replacement or capacity expansion unit dramatically reduces the engineering hours typically associated with I/O layer migrations. No re-wiring of field devices, no PLC logic rewrites — just a clean, validated hardware upgrade that keeps your production line running while your modernization roadmap advances on schedule.

Upgrade Highlights & Compatibility

• 32-Channel Solid-State Output: High-density 24VDC positive logic outputs eliminate mechanical relay wear — a direct performance enhancement over electromechanical predecessors
• ✅ Legacy Compatibility Guaranteed: Plug-and-play fit for all standard Modicon Quantum backplanes — zero hardware adaptation required for retrofit deployments
• 1500V Optical Isolation: Protects legacy control logic from field-side voltage transients common in older industrial environments
• ✅ Sub-1ms Response Time: Enables high-speed sequencing upgrades in time-critical manufacturing and process control loops
• Electronic Short-Circuit Protection: Auto-recovery per channel — reduces maintenance intervention in facilities transitioning from older relay-based output modules
• ✅ Future-Proofing via Hot-Swap Support: Supports redundant configuration upgrades without production shutdown — a key enabler for phased system migration strategies
• UL / CSA / CE Certified: Meets global compliance standards required for cross-border retrofit projects and international plant upgrades

Modernization Use Cases & Success Stories

DCS Retrofit in Chemical Processing Plants: Facilities operating legacy Modicon Quantum DCS architectures with aging relay output cards have successfully replaced end-of-life discrete output modules with the 140DDO35300, achieving a 40% reduction in unplanned output failures. The module’s solid-state design eliminates contact bounce and arc erosion — common failure modes in older electromechanical output hardware.

Turbine Supervisory Instrumentation (TSI) System Upgrades: In power generation environments where TSI systems monitor critical turbine parameters, the 140DDO35300 has been deployed to modernize alarm and trip signal output layers. Its optical isolation and fast response time ensure that upgraded output channels meet the stringent timing requirements of turbine protection logic without modifying the existing PLC program structure.

Conveyor & Material Handling Modernization: Manufacturing facilities upgrading from pneumatic or relay-based conveyor control to solid-state PLC output architectures have leveraged the 140DDO35300 as the hardware upgrade foundation. The module’s 0.5A per channel rating supports direct interface with modern 24VDC solenoid valves and motor starters, enabling a phased hardware upgrade without disrupting the existing Quantum rack layout.

HVAC & Building Automation Retrofit: Large industrial campuses migrating legacy building automation systems to centralized Modicon Quantum control have standardized on the 140DDO35300 for damper actuator and fan starter control — achieving seamless integration between new BMS software layers and existing field wiring infrastructure.

Migration Technical Data Sheet

Supply Chain & Deployment Support

• Original & Factory Sealed Units: All 140DDO35300 modules are sourced as genuine Schneider Electric components — no refurbished or grey-market inventory. Critical for retrofit projects where component authenticity directly impacts system certification and warranty validity.
• Expedited Global Logistics: Priority shipping to support emergency retrofit timelines and unplanned hardware failures in legacy Modicon Quantum installations worldwide. DDP and DAP Incoterms available for international project deployments.
• Technical Support for Obsolete & Legacy Hardware: Our engineering team provides pre-sales compatibility verification, installation guidance, and post-deployment troubleshooting support — specifically tailored for retrofit and system migration scenarios involving aging Quantum infrastructure.
• Documentation Package: Full datasheet, wiring diagrams, and Quantum rack compatibility matrix available upon request to support your retrofit engineering team.

Retrofit FAQ (Upgrade Guide)

Q1: Will the 140DDO35300 fit in my existing Quantum rack without mechanical modification?
A: Yes. The 140DDO35300 is designed to mount directly on any standard Modicon Quantum backplane — from 4-slot to 16-slot configurations — with no mechanical adapters, bracket modifications, or rack re-spacing required. This makes it an ideal drop-in hardware upgrade for facilities looking to replace aging output modules without disrupting adjacent rack-mounted equipment.

Q2: Can this module communicate with both legacy Quantum CPUs and newer Unity Pro-programmed processors?
A: Absolutely. The 140DDO35300 communicates via the standard Quantum backplane bus protocol, which is fully supported by both legacy Concept/ProWORX-programmed CPUs and modern Unity Pro environments. No firmware updates or communication parameter changes are required when integrating this module into mixed-generation Quantum systems.

Q3: Is my existing field wiring compatible with the 140DDO35300 during a retrofit?
A: In most cases, yes. The module accepts 14-22 AWG (0.5-2.5mm²) copper conductors with 60/75°C insulation — a specification that aligns with the majority of field wiring installed in Quantum systems over the past two decades. A pre-retrofit wiring audit is recommended to confirm conductor sizing and insulation ratings before deployment.

Q4: What are the recommended spare part substitution options if the 140DDO35300 is unavailable?
A: The 140DDO35310 (conformal coated variant) shares identical electrical specifications and backplane pinout, making it a validated functional substitute in non-harsh environments. For applications requiring higher current per channel, the 140DDO84300 (0.75A/channel) may be evaluated as an upgrade path. Contact our technical team for a compatibility assessment specific to your application.

Q5: How does the 140DDO35300 support phased system migration without full production shutdown?
A: The module’s hot-swap capability in redundant Quantum configurations allows it to be installed and commissioned while adjacent modules remain in service. Combined with its plug-and-play backplane compatibility, retrofit teams can execute a slot-by-slot output module replacement strategy — minimizing production impact and eliminating the need for a full system shutdown during the migration window.

Q6: What diagnostic tools are available to verify the module’s performance post-retrofit?
A: The 140DDO35300 features per-channel diagnostic LEDs for real-time output status monitoring. Within Unity Pro or Concept programming environments, the module’s I/O map provides channel-level fault diagnostics accessible via the PLC’s online monitoring interface — enabling rapid verification of output channel integrity immediately following retrofit installation.
