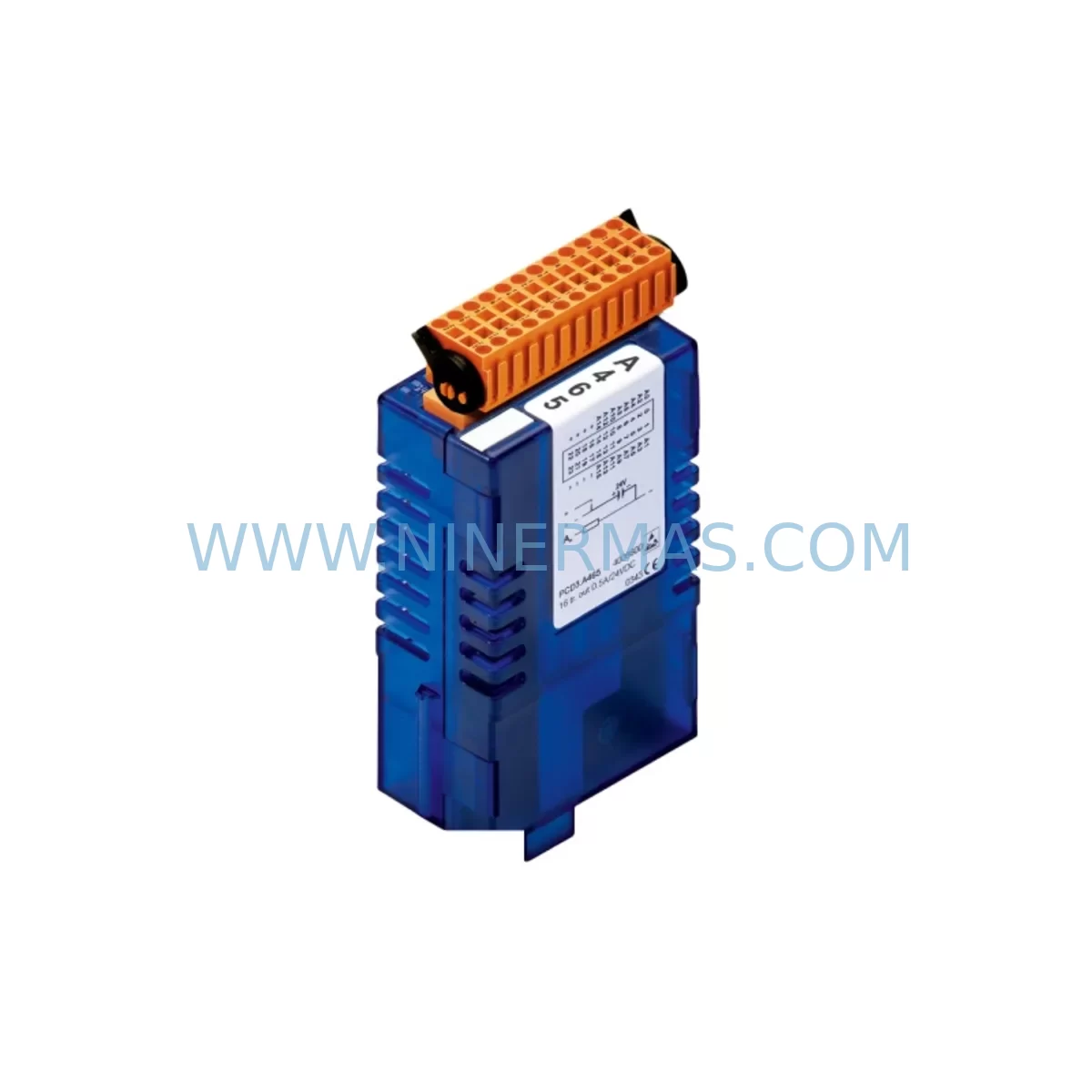

The Saia PCD3.A465 is a 16-channel digital output module engineered for the Saia PCD3 modular automation platform. Designed to deliver reliable 24 VDC switching across demanding industrial environments, this module has become a critical component in building automation, HVAC control, energy management, and process control applications worldwide. As legacy PCD2 and early PCD3 installations reach end-of-service milestones, the PCD3.A465 serves as the primary retrofit-compatible replacement, enabling facilities to extend operational life without full system replacement. NINERMAS maintains verified stock of the PCD3.A465 to support urgent spare part requirements, planned maintenance windows, and long-term supply agreements.

For engineers and maintenance teams managing aging Saia Burgess installations, the PCD3.A465 offers a direct upgrade path that preserves existing backplane infrastructure, wiring harnesses, and program logic. Its compatibility with the PCD3 rack system means that replacement can be completed within a standard maintenance window, significantly reducing unplanned downtime and the cost of emergency intervention.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful PCD3.A465 retrofit begins well before the module arrives on site. Maintenance engineers should start by auditing the existing PCD3 rack configuration, identifying the slot position of the output module to be replaced, and documenting the current terminal wiring layout. In many legacy installations, the PCD3.A465 shares a rack with the PCD3.E110 digital input module and the PCD3.E160 16-channel digital input module, both of which handle field sensor signals feeding into the same control logic. Confirming that these input modules remain functional before isolating the output module prevents misdiagnosis of field faults during the changeover.

The PCD3.C200 CPU module or PCD3.M5560 main controller governs the I/O addressing scheme for all modules in the rack. Before removing the legacy output module, engineers should export the current PG5 project file and verify that the I/O address assigned to the PCD3.A465 slot matches the replacement module’s expected configuration. In most cases, the address is retained automatically when the module is inserted into the same rack slot, but this must be confirmed in the hardware configuration editor within PG5 before going live.

Communication continuity is another critical checkpoint. If the PCD3 system communicates upstream via the PCD3.W600 communication module using Saia S-Bus or Modbus RTU, the output module replacement does not affect the communication link. However, if the system has been extended with a PCD3.F261 analog input/output module for process variable monitoring, engineers should verify that the analog signal chain remains intact after the digital output module swap, as shared power rail disturbances during hot-work can occasionally affect adjacent analog channels.

For installations that include a PCD7.D443 HMI operator panel, screen objects mapped to the digital output channels of the PCD3.A465 should be reviewed. In most Saia PG5 projects, HMI variables are linked by symbolic name rather than hardware address, so the panel display should update correctly once the replacement module is online. However, if the legacy project used absolute addressing, a brief HMI variable audit is recommended to prevent ghost alarms or incorrect status displays after commissioning.

Temperature monitoring modules such as the PCD3.T665 are often installed in the same control cabinet as the PCD3.A465, particularly in HVAC and energy management applications. During the retrofit, confirm that the cabinet ambient temperature remains within the operating range of all installed modules, especially if the replacement work requires the cabinet door to remain open for an extended period. The PCD3.R600 backplane rack should also be inspected for corrosion, loose connectors, or damaged bus contacts before the new module is seated, as backplane integrity directly affects module communication reliability.

Terminal wiring adaptation is one of the most time-sensitive steps in the retrofit process. The PCD3.A465 uses a standard removable terminal block, which allows the existing field wiring to be transferred to the replacement module without cutting or re-labelling cables. Engineers should photograph the terminal layout before removal and cross-reference against the original wiring diagram to confirm polarity and channel assignment. Any discrepancies between the as-built wiring and the project documentation should be resolved before the module is powered up.

Downtime Control During System Migration

Minimizing downtime during a PCD3.A465 replacement requires a structured pre-migration checklist and a clear rollback plan. Begin by scheduling the replacement during a planned maintenance window, ideally during a low-production period or shift changeover. Before isolating the output module, place the PLC in a safe operating state — either by switching to manual control at the field level or by using the PG5 online mode to force output channels to a safe de-energized state.

Back up the current PG5 project to a secure location before making any hardware changes. This ensures that the original program logic, I/O configuration, and communication settings can be restored immediately if the replacement module exhibits unexpected behavior during commissioning. The backup should include the hardware configuration file, the program source code, and any HMI project files associated with the PCD7.D443 or equivalent operator interface.

Once the replacement PCD3.A465 is seated and the terminal block is reconnected, power up the rack and allow the PCD3.M5560 or PCD3.C200 CPU to perform its startup diagnostic cycle. Monitor the module status LEDs to confirm that all 16 output channels initialize correctly. Use PG5 online monitoring to verify that each output channel responds to program commands before returning the system to automatic operation. A staged channel-by-channel verification, starting with non-critical outputs, reduces the risk of field equipment damage if a wiring error has been introduced during the swap.

NINERMAS provides pre-shipment functional testing for every PCD3.A465 unit dispatched, including channel continuity checks and output switching verification under load. This reduces the risk of receiving a non-functional module and eliminates the need for incoming inspection testing at the customer site, further compressing the total replacement timeline.

Retrofit Support FAQ

Q1: Can the PCD3.A465 directly replace older PCD2.A465 output modules?
In most cases, yes. The PCD3.A465 is designed to be backward-compatible with PCD2 rack installations when used with the appropriate adapter or when the rack has been upgraded to PCD3 standard. Engineers should confirm the rack type and backplane connector version before ordering. NINERMAS technical support can assist with compatibility verification based on the existing system configuration.

Q2: What pre-shipment testing is performed on each PCD3.A465 unit?
Every PCD3.A465 dispatched by NINERMAS undergoes a full functional test that includes channel continuity verification, output switching under rated load, and visual inspection for physical damage. Test results are documented and available upon request. Units that do not pass the full test protocol are not dispatched.

Q3: Is the PCD3.A465 available as a discontinued or end-of-life spare part?
Yes. NINERMAS maintains reserved inventory of the PCD3.A465 specifically to support end-of-life and discontinued spare part requirements. Long-term supply agreements are available for customers with ongoing maintenance programs, ensuring predictable lead times and price stability over multi-year maintenance contracts.

Q4: What warranty coverage applies to the PCD3.A465?
All PCD3.A465 units supplied by NINERMAS are covered by a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the module’s rated specification. Warranty claims are processed promptly, with replacement units dispatched upon confirmation of the defect.
