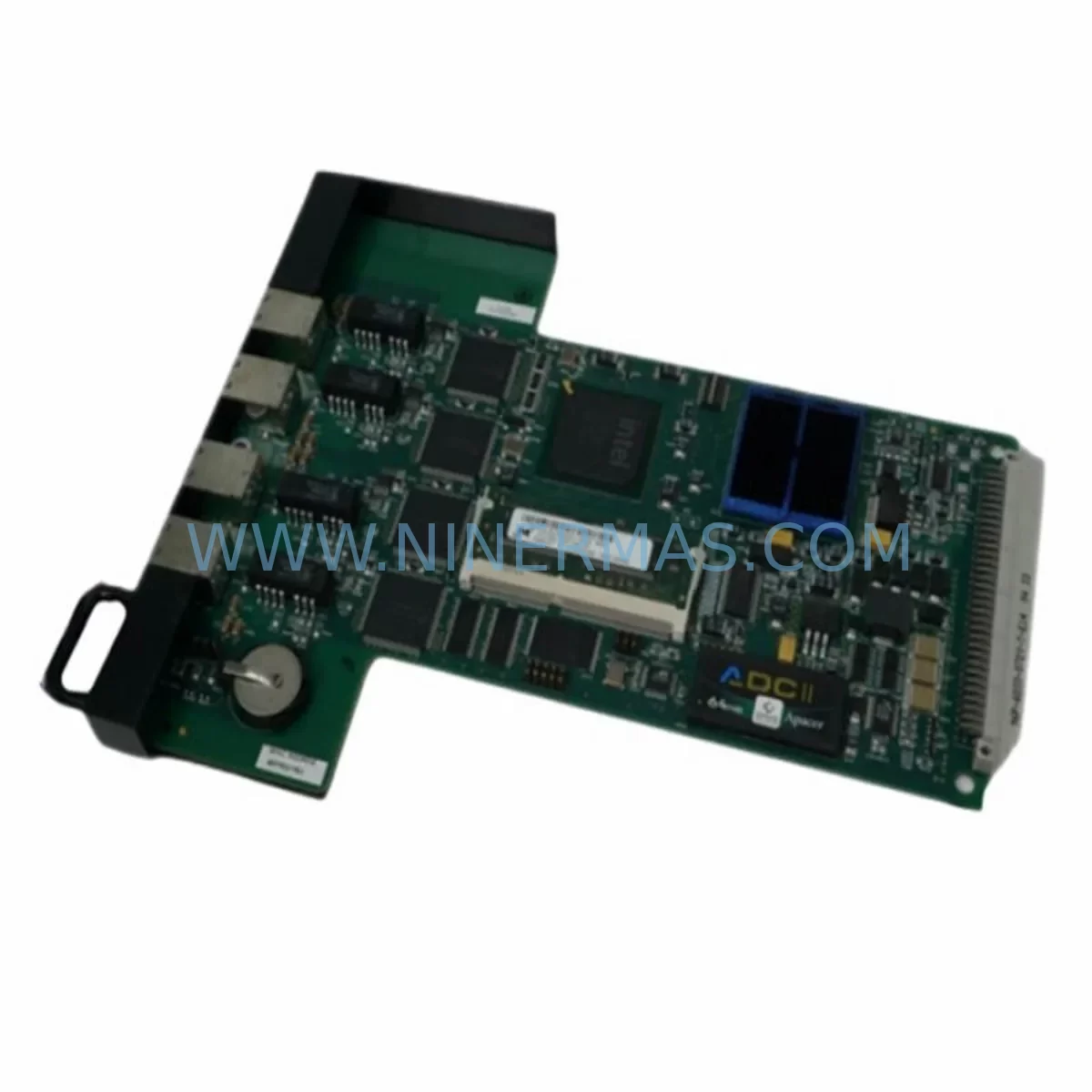

RTP 3000/02 SER 3000 Safety-Reliable CPU Board for Critical Control Sites

RTP 3000/02 SER 3000 Safety-Reliable CPU Board for Critical Control Sites

The RTP 3000/02 SER 3000 CPU Board is a high-integrity central processing unit designed for deployment in the most demanding industrial control environments. As the computational core of the RTP 3000 Series programmable controller platform, this CPU board is engineered to sustain uninterrupted logic execution across continuous production processes, critical safety interlocks, and high-consequence control loops where any unplanned interruption carries significant operational and safety risk.

Industrial facilities operating in petrochemical refining, power generation, mineral processing, water treatment, metallurgical production, port logistics, and marine automation depend on control system components that perform reliably under conditions of high electromagnetic interference, airborne particulates, elevated ambient temperatures, mechanical vibration, and fluctuating supply voltages. The RTP 3000/02 SER 3000 CPU Board is purpose-built to meet these challenges, delivering deterministic scan-cycle execution and stable I/O communication even when the surrounding electrical environment is hostile.

At NINERMAS, every RTP 3000/02 SER 3000 CPU Board is sourced through verified supply channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Inventory is maintained in stock to support urgent spare parts requirements and planned maintenance outages without extended lead times.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a critical control cabinet housing an RTP 3000 Series system, the CPU board is the nerve centre — but its reliability is only as strong as the components surrounding it. A comprehensive risk reduction strategy for continuous production sites addresses every layer of the control architecture.

Power quality is the first line of defence. The RTP 3000/05 Power Supply Module provides regulated DC power to the backplane, and pairing it with an upstream Phoenix Contact QUINT-PS UPS module ensures that voltage sags, surges, and momentary outages do not propagate to the CPU. Where the incoming AC supply is subject to switching transients or lightning-induced surges, a Siemens 3RV surge protection device installed at the panel entry point absorbs impulse energy before it reaches sensitive logic boards.

Communication integrity is equally critical. The RTP 3000/02 SER 3000 CPU Board interfaces with field devices through the RTP 3000 Series I/O subsystem, which may include RTP 3000/10 Analog Input Modules and RTP 3000/20 Digital Output Modules. Signal drift on analog loops — a common failure mode in high-temperature or high-vibration environments — can be mitigated by specifying shielded twisted-pair field wiring and installing Pepperl+Fuchs Z787 signal conditioners on critical 4–20 mA loops to isolate ground loops and filter noise before signals reach the I/O bus.

For facilities operating safety instrumented systems alongside the basic process control system, the CPU board’s deterministic execution capability supports the implementation of safety interlock logic. Complementary components such as the RTP 3000/30 Relay Output Module provide hardwired de-energise-to-trip output capability for emergency shutdown valves and motor contactors, ensuring that a CPU fault or communication anomaly defaults the process to a safe state rather than an undefined condition.

Network-level protection is addressed through managed industrial Ethernet switches — such as the Hirschmann RS20 series — which provide VLAN segmentation and port-level fault isolation, preventing a communication storm on one network segment from disrupting the CPU’s upstream SCADA or DCS connectivity. Where legacy serial communication is retained, Moxa NPort serial device servers provide reliable RS-232/RS-485 to Ethernet conversion with hardware flow control and watchdog restart capability.

Finally, maintaining a documented spare parts inventory that includes the RTP 3000/02 SER 3000 CPU Board alongside matched RTP 3000 Series memory modules and RTP 3000/02 firmware media ensures that mean time to repair is minimised when a board-level fault occurs during a production run. A pre-tested, warranted spare on the shelf is the most effective single measure a maintenance team can take to protect uptime.

Critical Industrial Safety Applications

Petrochemical and Refining: In hydrocarbon processing units, the RTP 3000/02 SER 3000 CPU Board executes the logic for fired heater burner management systems, compressor anti-surge control, and high-integrity pressure protection. The deterministic scan cycle ensures that trip signals are processed within defined response times, and the board’s resistance to hydrocarbon vapour environments and elevated ambient temperatures supports reliable operation in classified hazardous areas when installed in appropriately rated enclosures.

Power Generation: Turbine governor control, boiler drum level protection, and generator excitation interlock systems demand CPU-level reliability that tolerates the strong electromagnetic fields generated by large rotating machines and high-voltage switchgear. The RTP 3000 Series platform, anchored by the 3000/02 CPU Board, provides the processing stability required for these applications.

Mining and Mineral Processing: Conveyor belt protection systems, crusher interlock logic, and flotation cell level control in mining operations are subject to extreme vibration, heavy dust loading, and wide temperature swings. The RTP 3000/02 SER 3000 CPU Board’s industrial-grade construction supports continuous operation in these conditions without the scan-cycle jitter or memory corruption that can affect commercial-grade processors.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous PLC operation for dosing pump sequencing, UV disinfection interlock, and effluent quality monitoring. A CPU board failure in this context can result in regulatory non-compliance and public health risk. Stocking a verified spare RTP 3000/02 SER 3000 CPU Board eliminates the extended downtime associated with sourcing obsolete components from the open market.

Metallurgy and Steel Production: Electric arc furnace electrode regulation, rolling mill tension control, and ladle transfer sequencing operate in environments of intense heat radiation, high-frequency electrical noise from thyristor drives, and mechanical shock. The RTP 3000 Series CPU’s robust backplane design and noise-immune architecture make it a proven choice for these high-consequence applications.

Port and Marine Automation: Ship-to-shore crane control systems, ballast water management, and engine room automation on vessels and offshore platforms require control hardware that performs reliably in salt-laden, high-humidity atmospheres with significant vibration from propulsion machinery. The RTP 3000/02 SER 3000 CPU Board’s industrial temperature rating and vibration tolerance support these demanding marine and port applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the RTP 3000/02 SER 3000 CPU Board?
Every RTP 3000/02 SER 3000 CPU Board supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides warranty support including fault diagnosis, replacement dispatch, and documentation for maintenance records.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes functional verification testing prior to shipment. This includes power-on self-test confirmation, communication bus integrity checks, and visual inspection for physical damage. A test record is available upon request. This process ensures that the board arrives at your facility in verified working condition, reducing the risk of a failed installation during a critical maintenance window.

Q3: Is this CPU board a direct replacement for existing RTP 3000/02 SER 3000 installations?
Yes. The RTP 3000/02 SER 3000 CPU Board supplied by NINERMAS is a direct drop-in replacement for existing RTP 3000 Series control systems using the same part number. No backplane modification or firmware re-engineering is required for like-for-like replacement. For sites upgrading from an earlier SER revision, our technical team can advise on compatibility considerations and firmware media requirements.

Q4: Can NINERMAS support long-term spare parts supply for RTP 3000 Series systems?
Yes. NINERMAS maintains ongoing inventory of RTP 3000 Series components to support facilities operating legacy control systems through their full operational lifecycle. We can assist with spare parts planning, recommended holding quantities based on system criticality, and priority dispatch arrangements for emergency requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss a long-term supply arrangement.
