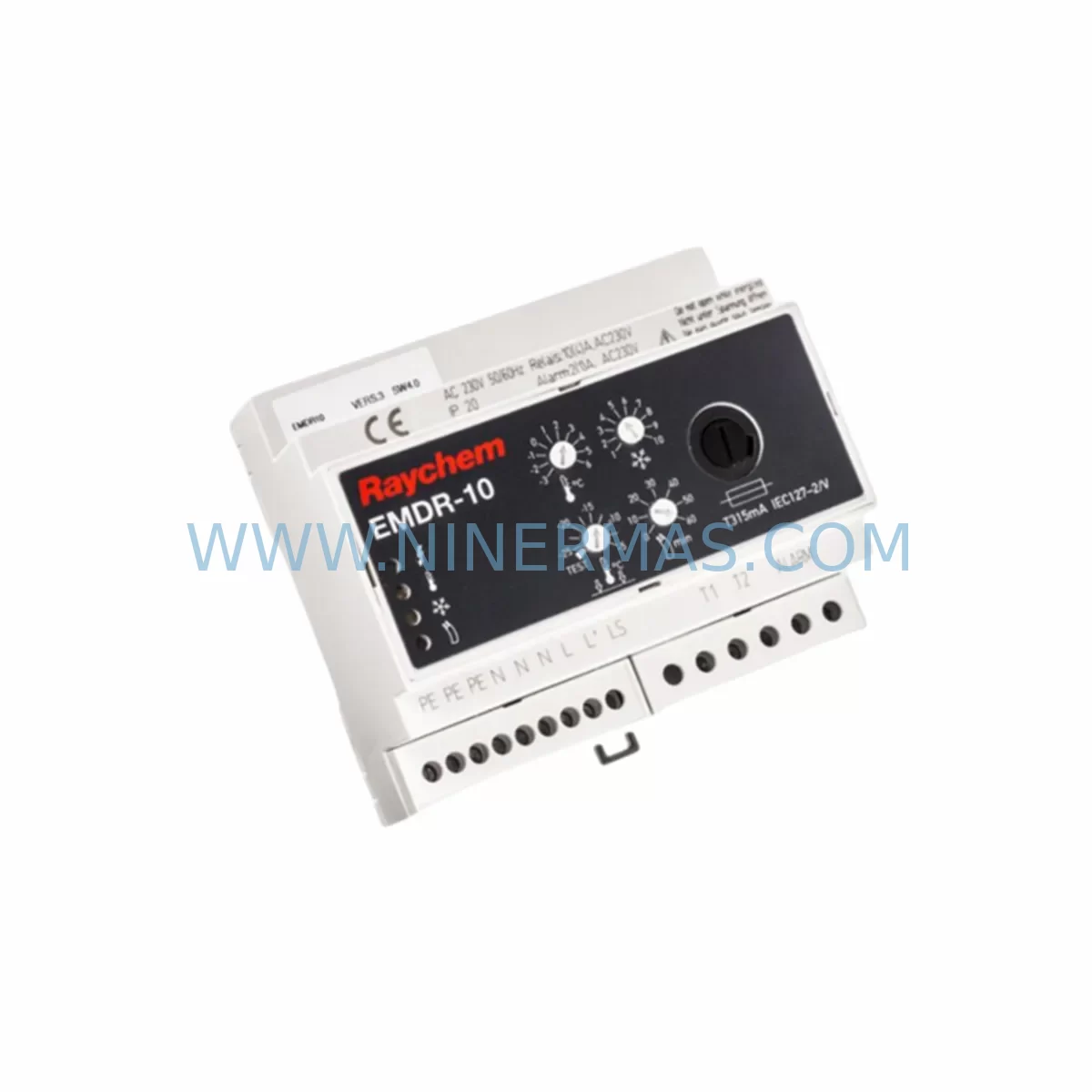

RAYCHEM EMDR-10 Safety-Reliable Heat Tracing Control Module

RAYCHEM EMDR-10 Safety-Reliable Heat Tracing Control Module for Critical Industrial Control Sites

The RAYCHEM EMDR-10 Ruggedized Heat Tracing Control Module (SKU: EMDR-10) is purpose-engineered for continuous, uninterrupted heat tracing management in the most demanding industrial environments. Designed to meet the rigorous requirements of critical process facilities — including petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical facilities, and offshore marine installations — the EMDR-10 delivers consistent, safety-first performance where control interruptions carry serious operational and safety consequences.

As part of the RAYCHEM EMDR series, this module integrates directly into ruggedized control cabinet architectures, providing reliable switching, monitoring, and protection functions for electric heat tracing circuits. Its hardened design addresses the core failure modes that compromise heat tracing reliability in harsh field conditions: signal drift under high electromagnetic interference, nuisance tripping from voltage transients, moisture ingress in humid or washdown environments, and thermal stress in high-temperature enclosures. By eliminating these vulnerabilities, the EMDR-10 significantly reduces the risk of unplanned process shutdowns, freeze protection failures, and safety interlock violations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered heat tracing control cabinet, the RAYCHEM EMDR-10 does not operate in isolation — it functions as a critical node within a layered protection architecture. Upstream, a properly rated RAYCHEM HTPG power distribution panel or equivalent heat tracing panel ensures that supply voltage remains stable and within tolerance before reaching the EMDR-10 switching stage. Alongside it, RAYCHEM NGC-40 or NGC-30 controllers provide the supervisory intelligence that monitors circuit current, ground fault status, and temperature setpoints, feeding control signals to the EMDR-10 for precise switching decisions.

For surge and transient protection — a persistent risk in industrial facilities with large motor loads, variable frequency drives, and frequent switching operations — pairing the EMDR-10 with a DIN-rail mounted surge protective device (SPD) rated for the panel’s supply voltage is strongly recommended. This combination prevents voltage spikes from propagating into the control module’s switching circuitry, which is a leading cause of premature module failure in high-EMI environments.

Ground fault protection is equally critical in heat tracing applications. A RAYCHEM GFPD ground fault protection device installed in series with the heat tracing circuit provides the early-warning detection needed to identify insulation degradation before it escalates into a full ground fault trip or, worse, a fire hazard. The EMDR-10’s compatibility with these protection devices ensures that the overall safety loop remains intact even under abnormal operating conditions.

On the communication side, integration with a RAYCHEM HTSC heat tracing system controller or a Modbus-compatible RTU gateway allows plant operators to monitor EMDR-10 circuit status remotely, enabling predictive maintenance strategies that reduce unplanned downtime. In facilities where RAYCHEM self-regulating heating cables such as the BTV, XTV, or QTVR series are deployed, the EMDR-10 serves as the reliable switching interface between the control system and the heating element, ensuring that power is applied and removed precisely as the control logic demands.

For control cabinets operating in classified hazardous areas, the EMDR-10 is typically installed in conjunction with Ex-rated enclosures and intrinsically safe barriers or Zener barriers to maintain zone compliance. Auxiliary components such as DIN-rail terminal blocks, miniature circuit breakers (MCBs), and current transformers (CTs) complete the cabinet assembly, providing the overcurrent protection and measurement points needed for a fully instrumented heat tracing control system.

Critical Industrial Safety Applications

Petrochemical and Refinery Facilities: In crude oil processing, LNG terminals, and chemical plants, freeze protection and process temperature maintenance are non-negotiable safety requirements. The EMDR-10 controls heat tracing on pipelines, valve bodies, instrument impulse lines, and storage tank roofs, preventing viscosity-related flow restrictions and ensuring that safety relief valves remain operable in cold ambient conditions. Its ruggedized construction withstands the corrosive atmospheres and high-vibration environments common in these facilities.

Power Generation Stations: Coal-fired, gas turbine, and nuclear power plants rely on heat tracing to maintain fuel oil viscosity, protect cooling water lines from freezing, and keep instrument sensing lines clear. The EMDR-10’s stable switching performance under high-EMI conditions — generated by large transformers, bus bars, and switchgear — makes it a preferred control module for power plant heat tracing panels.

Mining and Mineral Processing: Open-pit and underground mining operations face extreme temperature swings, heavy dust loading, and persistent vibration from blasting and heavy equipment. Heat tracing systems protecting slurry pipelines, reagent dosing lines, and hydraulic systems depend on control modules that can maintain reliable operation without frequent maintenance interventions. The EMDR-10’s ruggedized design directly addresses these challenges.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use heat tracing to prevent pipe freezing in outdoor installations and to maintain chemical dosing temperatures. The EMDR-10 provides the reliable control switching needed to keep these systems operational through winter conditions, with its moisture-resistant construction offering additional protection in the wet environments typical of water treatment facilities.

Metallurgical and Steel Plants: High-temperature industrial environments in steel mills and smelters place extreme thermal demands on control equipment. Heat tracing systems in these facilities protect hydraulic lines, lubrication systems, and instrumentation from thermal shock and freezing during planned shutdowns. The EMDR-10’s ability to operate reliably across a wide temperature range makes it suitable for these thermally challenging applications.

Port, Marine, and Offshore Installations: Salt-laden air, high humidity, and constant vibration from vessel movement and cargo handling equipment create a hostile environment for control electronics. Heat tracing systems on offshore platforms, FPSOs, and port infrastructure rely on ruggedized control modules like the EMDR-10 to maintain freeze protection and process temperature control without corrosion-induced failures.

Safety and Quality FAQ

Q1: What warranty does the RAYCHEM EMDR-10 carry when purchased through NINERMAS?
All RAYCHEM EMDR-10 modules supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement coordination to minimize site downtime.

Q2: What pre-shipment testing is performed on the EMDR-10?
Every EMDR-10 unit undergoes a full functional inspection prior to dispatch, including verification of switching operation, terminal integrity, and physical condition. Units that do not meet NINERMAS quality standards are quarantined and not shipped. A test record is available upon request for critical procurement applications.

Q3: Is the RAYCHEM EMDR-10 compatible with existing RAYCHEM heat tracing control systems and panels?
Yes. The EMDR-10 is designed for direct integration within the RAYCHEM EMDR series control architecture and is compatible with RAYCHEM NGC controllers, HTPG panels, and standard DIN-rail cabinet configurations. For site-specific compatibility verification, NINERMAS technical support can assist with cross-referencing your existing system documentation.

Q4: Can NINERMAS support long-term or blanket-order supply of the EMDR-10 for ongoing maintenance programs?
Yes. NINERMAS operates a dedicated spare parts supply program for critical industrial automation components, including the RAYCHEM EMDR-10. Long-term supply agreements, safety stock arrangements, and priority allocation for critical sites are available. Contact our team to discuss your facility’s ongoing procurement requirements and lead-time planning needs.
