PROFACE GP477R-EG11 Safety-Reliable HMI for Critical Control Sites

PROFACE GP477R-EG11 Safety-Reliable HMI for Critical Control Sites

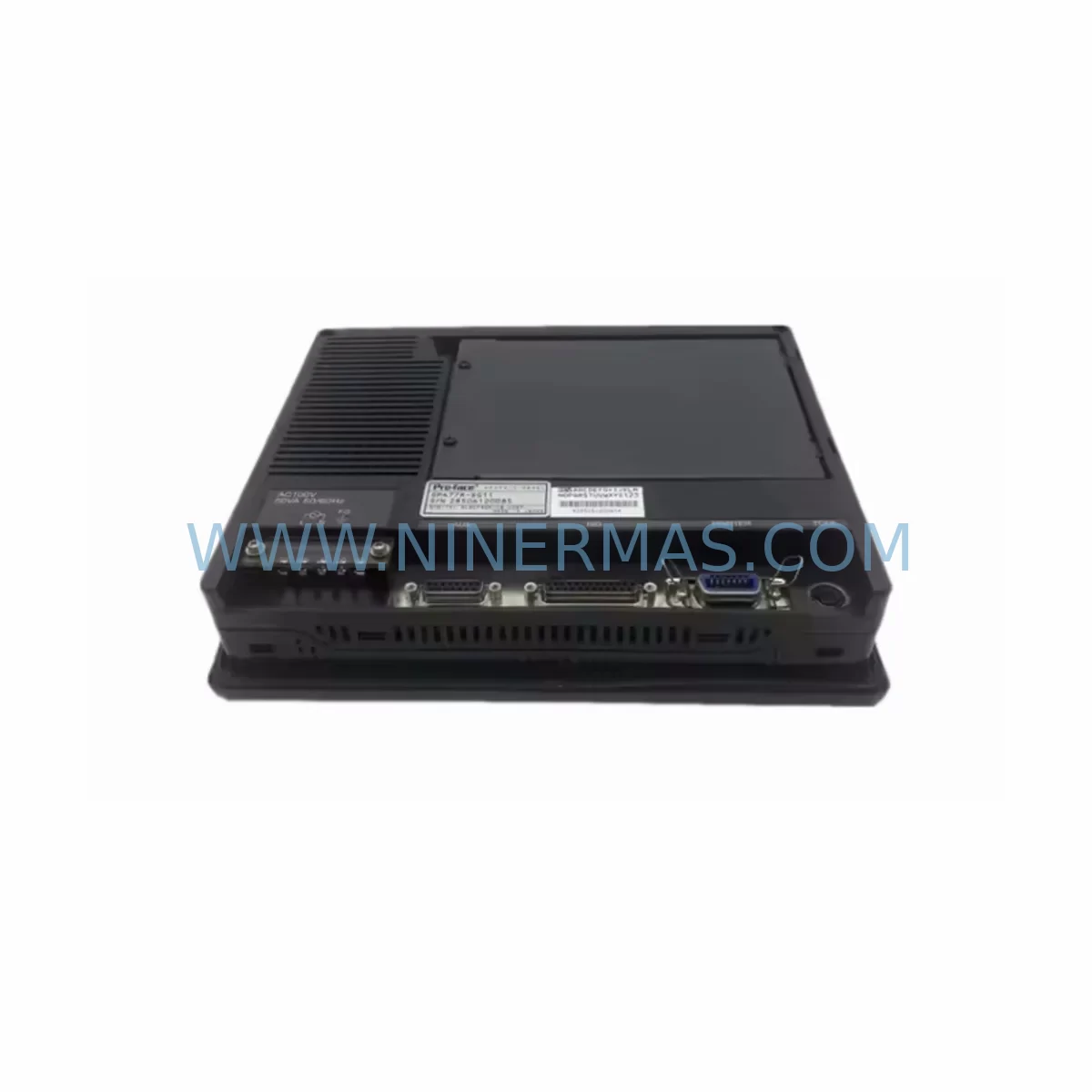

The PROFACE GP477R-EG11 is a proven operator interface terminal from the GP77R/GP77 Series, engineered for continuous-duty industrial environments where control interruption is not an option. Designed to serve as the human-machine interface backbone in critical control cabinets, this unit delivers stable, high-contrast display performance and robust communication capability across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, marine, and continuous manufacturing facilities. Its compact panel-mount form factor integrates seamlessly into legacy and modern control architectures, making it the preferred choice for maintenance engineers managing end-of-life system continuity and unplanned downtime prevention.

In safety-critical applications, the GP477R-EG11 functions as the primary visualization and operator input node within interlock and emergency shutdown loops. Its deterministic screen refresh and reliable RS-232C/RS-422 serial communication ensure that process status, alarm states, and operator commands are transmitted without latency or signal drift — even under high electromagnetic interference conditions common in variable-frequency drive (VFD) cabinets, motor control centers (MCC), and high-voltage switchgear rooms. The unit’s sealed front panel (IP65-rated bezel) provides effective protection against dust ingress, moisture condensation, and chemical splash, sustaining reliable operation in harsh field environments without requiring additional enclosure upgrades.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet, the GP477R-EG11 does not operate in isolation — it anchors a layered protection architecture that spans visualization, power conditioning, communication integrity, and field-level safety. When paired with a PROFACE GP577R-SC41 or GP577R-TC41 as a redundant display node in dual-panel configurations, operators maintain full process visibility even during primary HMI maintenance windows, eliminating blind-spot risk during shift changeovers.

Power stability is foundational to HMI reliability. Integrating a Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent DIN-rail 24 VDC power supply with active power boost and diagnostic output ensures the GP477R-EG11 receives clean, regulated power free from voltage sags and surge transients generated by large motor starts or capacitor bank switching. Upstream surge protection devices such as the Phoenix Contact VAL-MS 24DC/1+1 SPD further clamp transient overvoltages before they reach the HMI’s internal power circuitry.

For serial communication integrity in high-EMI environments, RS-422 line isolators and signal repeaters — such as the Moxa TCC-100 RS-232 to RS-422/485 converter — extend communication distances and provide galvanic isolation between the GP477R-EG11 and connected PLCs such as the Mitsubishi MELSEC Q02UCPU or Omron CJ2M-CPU31, preventing ground loop interference from corrupting HMI-PLC data exchange. This is particularly critical in steel mills and chemical plants where ground potential differences between control room and field junction boxes can exceed several volts.

Within safety interlock circuits, the GP477R-EG11 complements safety relay modules such as the Pilz PNOZ X3 or Schneider Electric XPSAF5130 by providing real-time operator feedback on interlock status, bypass authorization, and emergency stop acknowledgment — reducing the risk of inadvertent process restart after a safety trip. Coupling the HMI with a Weidmüller ACT20P signal conditioner on analog input channels further eliminates signal drift from thermocouple and 4–20 mA transmitter loops, ensuring that temperature, pressure, and flow readings displayed on the GP477R-EG11 accurately reflect field conditions without offset errors accumulating over time.

Critical Industrial Safety Applications

Petrochemical & Refinery: The GP477R-EG11 is deployed at compressor control panels and reactor interlock stations where continuous process monitoring is mandatory. Its IP65 front panel withstands hydrocarbon vapor condensation and cleaning agent exposure, while its serial communication links maintain real-time data exchange with DCS systems managing pressure relief and emergency depressurization sequences.

Power Generation & Substation: In turbine control rooms and 110 kV substation relay panels, the GP477R-EG11 provides operators with clear visualization of protection relay status, breaker positions, and load dispatch commands. Its EMI-hardened design tolerates the intense electromagnetic fields generated by high-voltage bus bars and current transformers without display corruption or communication dropout.

Mining & Mineral Processing: Conveyor drive control panels and crusher automation cabinets in underground and open-pit mining operations rely on the GP477R-EG11 for operator interface in dusty, high-vibration environments. The unit’s robust construction and wide operating temperature range sustain reliable performance through seasonal temperature extremes and continuous mechanical vibration from crushing and screening equipment.

Water & Wastewater Treatment: Pump station SCADA panels and chemical dosing control cabinets in municipal water treatment plants use the GP477R-EG11 to display flow rates, chemical feed rates, and alarm conditions. Its moisture-resistant front panel is essential in wet process areas where condensation and chemical spray are routine.

Metallurgy & Steel: Rolling mill and continuous casting control systems in steel plants demand HMI terminals capable of withstanding radiant heat, metallic dust, and intense electromagnetic interference from large AC drives. The GP477R-EG11’s industrial-grade design meets these demands, providing stable operator control at furnace charging stations and ladle transfer positions.

Port & Marine: Crane control cabinets and shipboard automation panels in port terminals and offshore vessels require compact, reliable HMI solutions tolerant of salt air, humidity, and vibration. The GP477R-EG11’s sealed front panel and wide-temperature operation make it suitable for these demanding maritime environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the GP477R-EG11?
Every GP477R-EG11 unit supplied by NINERMAS carries a 12-month warranty from the shipment date. This covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement unit dispatch to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each GP477R-EG11 undergoes a full power-on functional verification prior to shipment, including display initialization, communication port response, and front panel input testing. Units that do not pass all functional checks are quarantined and not dispatched, ensuring that every unit received on-site is operationally ready for immediate installation.

Q3: Is the GP477R-EG11 compatible with existing GP77R Series projects and software?
Yes. The GP477R-EG11 is fully compatible with the GP77R/GP77 Series hardware platform and is supported by Pro-face GP-PRO/PBIII project development software. Existing screen projects created for GP77R Series terminals can be transferred to the GP477R-EG11 without modification, enabling direct drop-in replacement without re-engineering operator interface screens or communication configurations.

Q4: Can long-term supply be guaranteed for this end-of-life component?
NINERMAS maintains dedicated inventory reserves for legacy PROFACE GP77R Series components, including the GP477R-EG11, specifically to support customers managing extended equipment lifecycles. Our global sourcing network enables us to fulfill both immediate single-unit requirements and scheduled bulk orders, providing supply continuity for multi-year maintenance contracts and planned spare parts programs.
