PRIMA LOGIC 9SSIS1623/0C Safety Keyboard Module

PRIMA LOGIC 9SSIS1623/0C Safety Keyboard Module

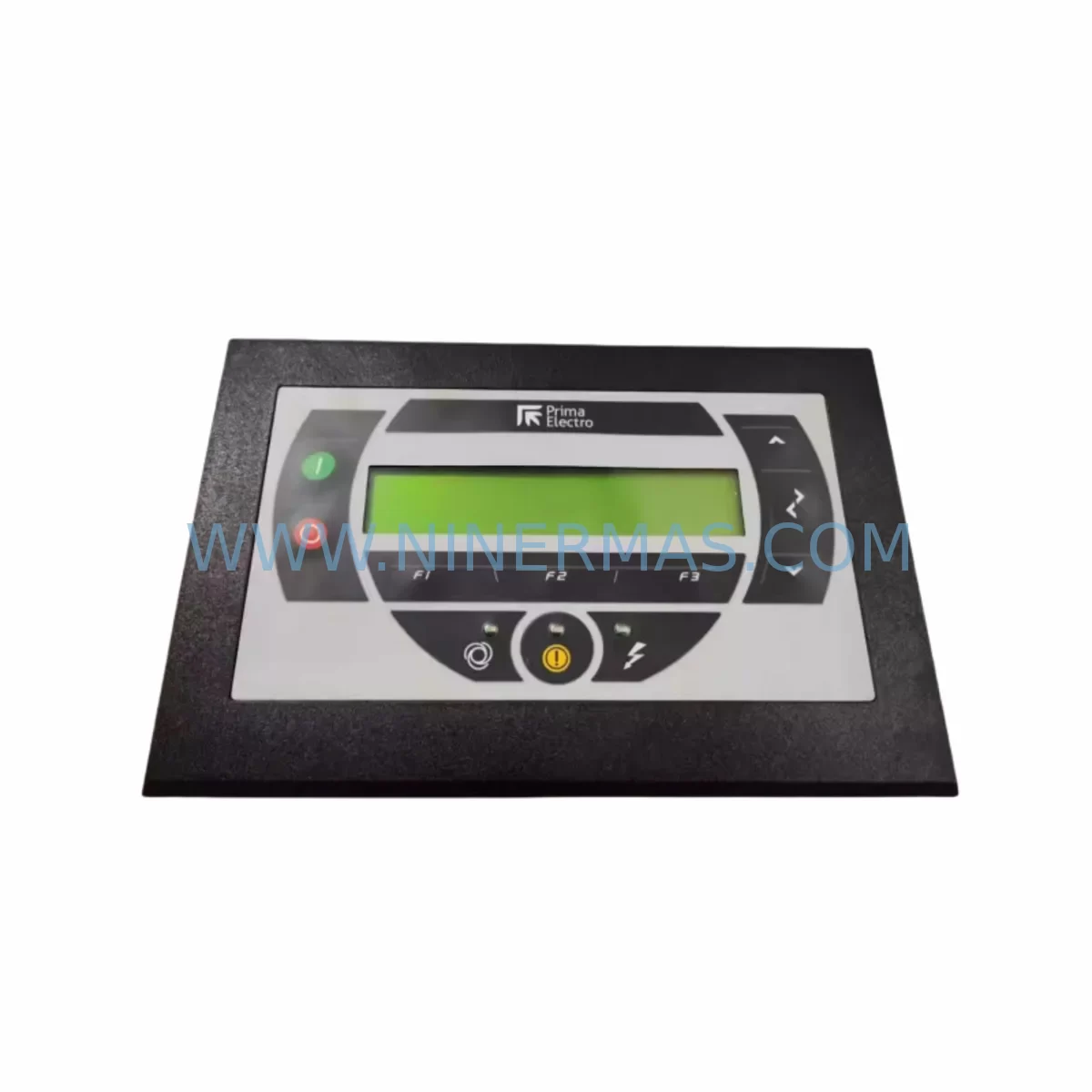

The PRIMA LOGIC 9SSIS1623/0C (part reference 0549-050-50) is a ruggedized switch keyboard module engineered for safety-critical and harsh-environment industrial control applications. Designed to operate reliably under continuous production demands, high electromagnetic interference, mechanical vibration, dust ingress, and wide temperature fluctuations, this module delivers consistent operator input integrity where control interruptions carry serious operational and safety consequences. Whether deployed in a DCS operator station, a PLC-based control cabinet, or a standalone HMI enclosure, the 9SSIS1623/0C provides the tactile and electrical reliability that maintenance engineers and safety system designers depend on.

As a service-ready spare part available through NINERMAS, this unit is pre-tested prior to shipment and backed by a 12-month warranty, ensuring that your replacement program carries the same confidence as an OEM procurement cycle — without the lead-time risk of sourcing directly from the manufacturer.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When replacing the 9SSIS1623/0C keyboard module in a critical control cabinet, a thorough site inspection of the surrounding operator interface and control infrastructure is essential to prevent recurring faults and ensure system-wide safety integrity. Maintenance engineers should simultaneously verify the condition of the PRIMA LOGIC 9SSIS series HMI display unit, which shares the same enclosure backplane and is subject to identical environmental stresses. The 9SSIS series front panel membrane and overlay should be inspected for delamination or contamination that could cause false key actuation — a safety-critical failure mode in interlock-driven processes.

Beyond the HMI layer, the control cabinet power supply feeding the operator station deserves close attention. A 24 VDC regulated DIN-rail power supply with adequate hold-up time protects the keyboard module from voltage transients generated by nearby variable frequency drives or motor starters. Installing a surge protection device (SPD) on the 24 VDC bus further reduces the risk of surge-induced latch-up in the keyboard controller circuitry. If the cabinet includes a PRIMA LOGIC communication interface module linking the HMI to the main PLC or DCS, its firmware version and cable integrity should be confirmed during the same maintenance window to avoid post-replacement communication faults.

For cabinets operating in high-vibration environments — common in mining, offshore, and heavy manufacturing — vibration-damping DIN-rail mounting clips and strain-relief cable glands on the keyboard ribbon cable or connector harness are recommended additions. Terminals connecting the keyboard module to the control bus should be inspected with a thermal imaging camera or torque-checked using calibrated tools to eliminate loose connections that generate intermittent faults. Where the control cabinet also houses safety relay modules for emergency stop or light curtain circuits, their test cycles should be logged and verified as part of the same inspection, since a keyboard module replacement often coincides with a broader safety function validation requirement under IEC 62061 or ISO 13849.

Finally, if the site uses a SCADA or DCS historian to log operator inputs, the keyboard module replacement should be followed by a functional acceptance test that confirms all key inputs are correctly mapped and logged — preventing silent data integrity failures in regulated industries such as pharmaceuticals, water treatment, or power generation.

Critical Industrial Safety Applications

The PRIMA LOGIC 9SSIS1623/0C switch keyboard module is deployed across a broad range of safety-sensitive and continuous-process industrial environments where operator interface reliability is non-negotiable.

In petrochemical and refinery plants, operator keyboard modules form part of the primary interface between field operators and the distributed control system. A failed or intermittent keyboard input in a hydrocarbon processing unit can delay critical operator responses during abnormal situations, increasing the risk of process exceedance. The ruggedized construction of the 9SSIS1623/0C — with its resistance to hydrocarbon vapors, humidity, and temperature cycling — makes it a preferred replacement component for DCS operator stations in these environments.

In power generation and electrical substation control rooms, the module supports SCADA operator workstations and protection relay configuration terminals. High electromagnetic interference from bus bars, transformers, and switching equipment demands the EMI-hardened design that the 9SSIS series provides. Replacement of this module during planned outages ensures that protection system operators retain full input capability during the next operational cycle.

In mining and mineral processing facilities, control cabinets are exposed to fine particulate dust, vibration from crushers and conveyors, and wide ambient temperature swings. The ruggedized keyboard module maintains reliable operator input under these conditions, supporting conveyor interlock panels, crusher control stations, and flotation cell monitoring interfaces. Planned spare holding of the 9SSIS1623/0C is a standard recommendation for mine maintenance planners operating legacy PRIMA LOGIC HMI systems.

In water and wastewater treatment plants, where continuous operation is a regulatory requirement, the keyboard module supports SCADA operator terminals controlling pump stations, dosing systems, and filtration sequences. The 12-month warranty and pre-shipment testing protocol provided by NINERMAS aligns with the procurement standards of municipal utility operators who require documented quality assurance for all control system spare parts.

In metallurgical and steel production environments, the module is used in rolling mill and furnace control operator stations, where heat radiation, vibration, and electromagnetic noise from induction heating systems create demanding conditions for any HMI component. The 9SSIS1623/0C’s ruggedized design supports reliable operation in these high-stress environments, reducing the risk of unplanned production stoppages caused by operator interface failures.

Safety and Quality FAQ

Q1: Does the 9SSIS1623/0C come with a warranty, and what does it cover?
Yes. Every PRIMA LOGIC 9SSIS1623/0C unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify key input response, connector integrity, and module communication before dispatch.

Q2: How do I confirm compatibility before ordering?
Compatibility is confirmed by matching the full part number 9SSIS1623/0C and the secondary reference 0549-050-50 against your existing module label or the PRIMA LOGIC system documentation for your HMI enclosure. If you have the original system drawing or cabinet BOM, our technical team at sale@ninermas.com can assist with cross-referencing before your order is placed.

Q3: Can NINERMAS support long-term or repeat procurement of this module?
Yes. NINERMAS maintains ongoing sourcing channels for PRIMA LOGIC 9SSIS series components, including the 9SSIS1623/0C. We support blanket purchase orders, scheduled delivery programs, and emergency procurement for unplanned outages. Contact our team to discuss volume pricing and lead-time commitments for your maintenance planning cycle.

Q4: What is the recommended replacement interval for this keyboard module in harsh environments?
For sites with continuous operation, high vibration, or elevated dust and humidity exposure, a condition-based inspection of the keyboard module is recommended every 12–18 months. Physical inspection should include key actuation force testing, connector seating verification, and visual inspection of the overlay and housing for cracking or contamination. Proactive replacement before visible failure is the preferred strategy for safety-critical operator stations where downtime carries production or regulatory consequences.
