Parker GV6-U12E-NK Service-Ready Spare Part for Industrial Maintenance

Parker GV6-U12E-NK Service-Ready Spare Part for Industrial Maintenance

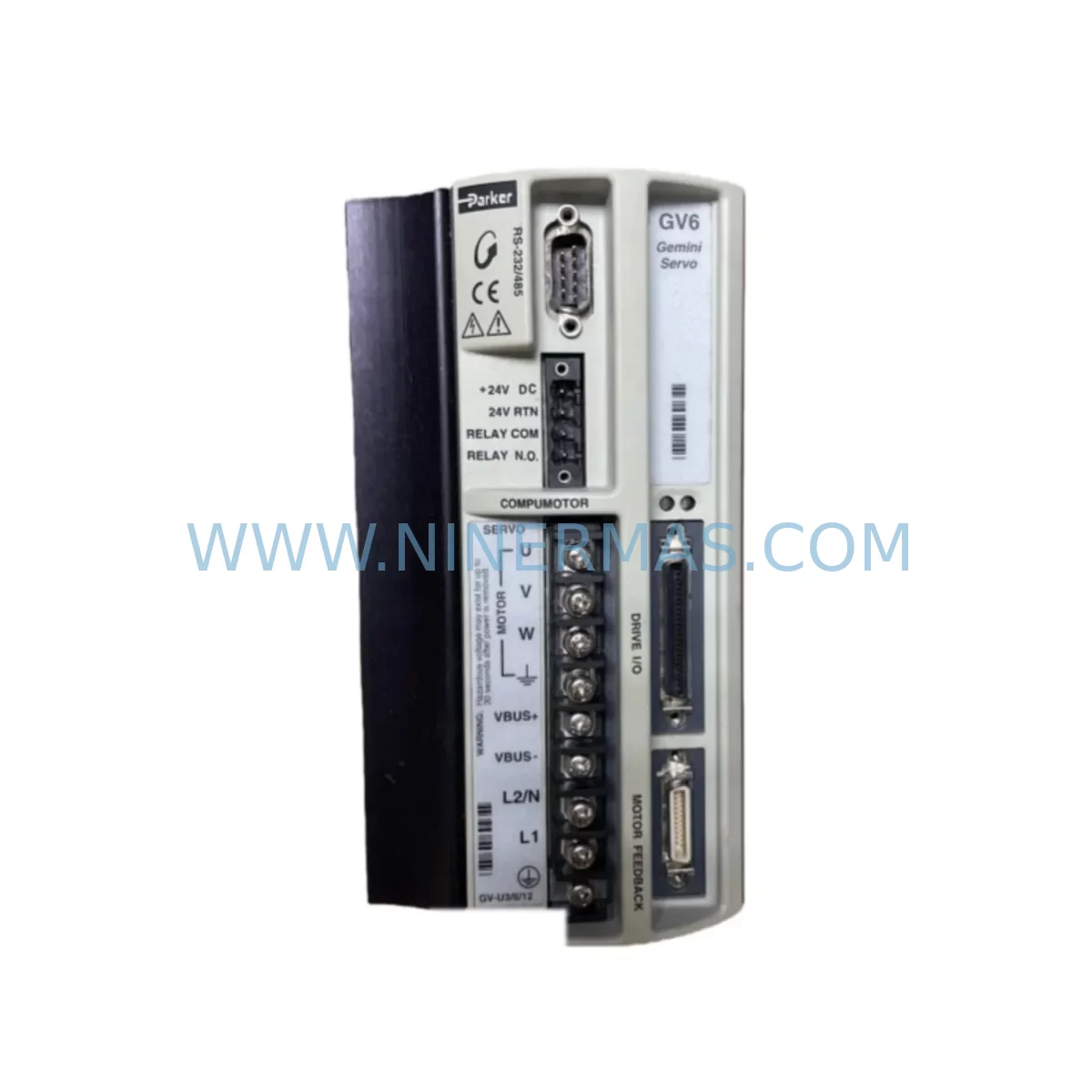

The Parker GV6-U12E-NK is a ruggedized digital drive safety module engineered for demanding industrial automation environments. As a service-ready spare part, it is designed to support rapid replacement during scheduled maintenance windows or unplanned downtime events. Sourced as an original Parker component, the GV6-U12E-NK delivers the full compatibility and performance specifications required by GV6 series drive systems — making it a critical asset for maintenance engineers managing motion control infrastructure in manufacturing, process automation, and heavy industry applications.

For procurement engineers, stocking the GV6-U12E-NK as part of a proactive spare parts inventory strategy directly reduces mean time to repair (MTTR). Drive safety modules are among the highest-risk single points of failure in servo and digital drive systems. A confirmed-compatible, tested replacement unit on the shelf eliminates lead-time exposure during emergency shutdowns and supports compliance with planned maintenance intervals.

Every unit shipped by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty, providing confidence for both immediate deployment and long-term inventory holding.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the GV6-U12E-NK safety module during a control cabinet inspection or corrective maintenance event, a thorough system-level review is strongly recommended. The safety module interfaces directly with the drive’s enable circuit and motion control logic, meaning adjacent components should be evaluated concurrently to prevent repeat failures and ensure full system restoration.

Maintenance engineers should inspect the Parker GV6 series drive power supply module to confirm stable DC bus voltage within specification before re-enabling the drive. The 24VDC control power supply feeding the safety circuit should be load-tested, as voltage sag under load is a common root cause of nuisance safety trips. Wiring integrity on the STO (Safe Torque Off) input terminals should be verified — loose or corroded terminations on the safety input connector are frequently overlooked during fault isolation.

The drive’s I/O expansion module, if installed, should be checked for correct signal mapping and any latched fault codes cleared after module replacement. Relay output modules connected to the drive’s fault relay circuit — commonly used to signal upstream PLCs or DCS controllers — should be tested for correct switching behavior post-replacement. If the GV6 drive communicates over a fieldbus network such as EtherNet/IP, PROFIBUS, or CANopen, the communications module or network adapter should be confirmed online and fault-free before returning the axis to automatic mode.

For systems using Parker’s ACR or Aries controller platforms in conjunction with GV6 drives, the motion controller’s axis enable logic should be reviewed to confirm the safety module replacement has not altered the enable chain state. Terminal blocks and DIN rail-mounted signal isolators in the safety circuit should be inspected for continuity and correct isolation resistance. Fuse holders protecting the 24VDC safety supply should be checked and fuses replaced as a precautionary measure during any safety module swap.

Where HMI panels are integrated into the control system, operators should verify that drive status displays and alarm acknowledgment screens reflect the restored drive state correctly after the GV6-U12E-NK replacement. Backplane connectors and module seating should be confirmed secure, particularly in high-vibration environments where connector fretting is a known failure mode.

Site Replacement Workflow

Step 1 — Fault Isolation: Identify the GV6-U12E-NK as the failed component through drive diagnostic LEDs, fault code readout, and continuity testing of the safety input circuit. Document the fault code and timestamp for maintenance records.

Step 2 — Safe Isolation: De-energize the drive system following site lockout/tagout (LOTO) procedures. Confirm zero energy state on the DC bus using an appropriate voltage meter before opening the control cabinet.

Step 3 — Module Removal: Disconnect the safety module connector and any associated wiring harnesses. Note wire labeling and connector orientation before removal. Photograph the installation for reference.

Step 4 — Replacement Installation: Install the GV6-U12E-NK replacement module, ensuring correct connector seating and secure mechanical retention. Reconnect all wiring per the original configuration and the Parker GV6 hardware installation guide.

Step 5 — Pre-Energization Checks: Verify control power supply voltage, inspect terminal connections, and confirm no tools or foreign objects are present in the cabinet before re-energization.

Step 6 — Commissioning Verification: Energize the system and confirm the drive powers up without fault. Test the STO function per the site safety validation procedure. Confirm axis enable and motion response before returning to automatic production mode.

Step 7 — Documentation: Record the replacement in the site maintenance management system (CMMS), update the spare parts inventory, and note the 12-month warranty start date for the replacement unit.

This structured workflow minimizes downtime, ensures safety compliance, and provides a clear audit trail for maintenance and quality teams.

Spare Parts Support FAQ

Q1: Is the GV6-U12E-NK a direct drop-in replacement for the original Parker module?
Yes. The GV6-U12E-NK is an original Parker Hannifin component manufactured to the same specification as the factory-installed module. It is a direct replacement for GV6 series drives without requiring firmware changes or parameter reconfiguration in most standard applications. Always verify the drive firmware version against the module compatibility matrix in the Parker GV6 documentation before installation.

Q2: How is the GV6-U12E-NK tested before shipment?
Every unit undergoes pre-shipment functional verification at NINERMAS prior to dispatch. Testing confirms module integrity and basic operational parameters. Units are packaged in anti-static protective packaging to prevent ESD damage during transit. A 12-month warranty is provided from the date of shipment.

Q3: What is the recommended inventory strategy for this spare part?
For facilities operating multiple GV6 series drives, maintaining a minimum of one GV6-U12E-NK safety module per drive bank is recommended. Given the criticality of the safety module to drive enable function, a zero-stock position creates unacceptable downtime risk. NINERMAS supports long-term supply agreements and can provide volume pricing for planned annual maintenance stock purchases.

Q4: Can NINERMAS support long-term supply for legacy Parker GV6 systems?
Yes. NINERMAS specializes in sourcing and supplying spare parts for legacy and end-of-life industrial automation systems, including discontinued Parker drive series. Long-term supply commitments, scheduled delivery programs, and technical compatibility support are available. Contact sale@ninermas.com or +0086 187 5021 5667 to discuss your maintenance inventory requirements.
