OMRON CP1W-DA041 Safety-Reliable Analog Output for Critical Control

OMRON CP1W-DA041: Safety-Reliable Analog Output for Critical Industrial Control Sites

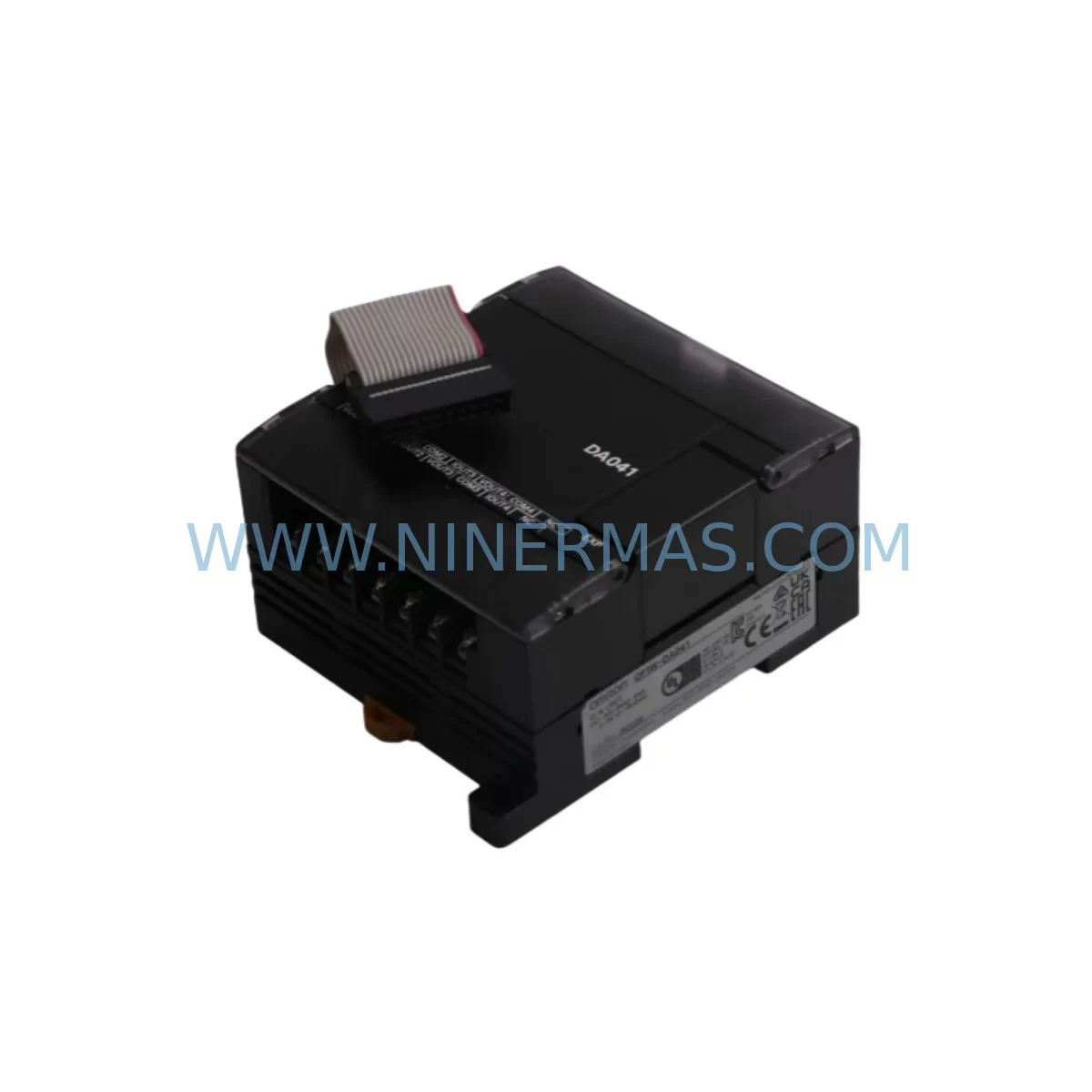

The OMRON CP1W-DA041 is a 4-channel analog output expansion module engineered for the CP1W and CP1H PLC series, delivering precision voltage and current signal output in demanding industrial environments. Designed to meet the rigorous requirements of continuous production, critical interlock loops, and high-load control cabinets, the CP1W-DA041 provides stable, drift-free analog output that directly reduces the risk of control interruption, signal deviation, and unplanned downtime across safety-critical field sites.

Whether deployed in petrochemical process control, power generation switchgear rooms, mining extraction automation, water treatment dosing systems, or metallurgical furnace regulation, the CP1W-DA041 maintains output accuracy under high electromagnetic interference, dust ingress, humidity fluctuation, thermal cycling, and mechanical vibration — conditions that routinely compromise lesser-grade I/O modules.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, analog output accuracy is a foundational safety requirement. The CP1W-DA041 integrates directly into the CP1W expansion bus, eliminating the signal conversion losses and wiring complexity that arise when using standalone signal conditioners. When paired with the CP1W-AD041 analog input module, engineers can establish closed-loop PID control architectures that continuously monitor and correct process variables — a critical capability in chemical dosing, pressure regulation, and temperature control loops where drift can trigger safety shutdowns.

For power supply stability in the control cabinet, the CP1W-DA041 relies on the CP1H or CP1L CPU unit’s regulated internal bus. Supplementing the cabinet with a dedicated S8VS-series DIN-rail power supply (such as the S8VS-06024) ensures that voltage sags, surge events, and transient loads from contactors or variable frequency drives do not propagate into the PLC backplane — protecting analog output integrity during motor start sequences and load switching.

In high-EMI environments such as arc furnace control rooms or VFD-dense motor control centers, the CP1W-DA041’s photocoupler isolation provides a critical barrier against common-mode noise. Complementing this with CP1W-CIF11 RS-422A/485 communication modules or CP1W-EIP21 EtherNet/IP units allows the CP1H system to maintain deterministic communication with SCADA hosts even when the field environment generates significant radiated interference. For installations requiring additional surge protection on field wiring, inline MTL or Phoenix Contact surge protection devices on the 4–20 mA loops are standard practice.

Safety interlock architectures in petrochemical and power generation sites often require that analog output modules maintain last-known-good output states during CPU communication faults. The CP1W-DA041 supports output hold and clear behavior configurable via the CP1H CPU — a feature that prevents actuator runaway during PLC restart sequences. This behavior is coordinated with CP1W-32ER digital output modules and relay output units to ensure that both discrete and analog safety commands remain coherent during fault recovery.

For distributed control architectures, the CP1W-DA041 can operate as a remote I/O node when the CP1H CPU is configured with CP1W-PDPV1 PROFIBUS-DP slave units or CP1W-EIP21 EtherNet/IP adapter modules, enabling centralized DCS supervision of analog output channels across multiple field panels. This architecture is widely adopted in water treatment plants and port logistics automation where control rooms must supervise dozens of remote I/O cabinets simultaneously.

Long-term spare parts planning is essential for sites operating CP1W-based systems beyond their original design life. Stocking the CP1W-DA041 alongside companion modules such as the CP1W-DA021 (2-channel analog output), CP1W-MAD11 (combined analog I/O), and CP1W-TS001/TS002 temperature sensor units ensures that maintenance teams can execute rapid module replacement without extended lead times — a critical factor in continuous process industries where control system downtime directly impacts production throughput and safety compliance.

Critical Industrial Safety Applications

Petrochemical & Refinery Process Control: The CP1W-DA041 is deployed in flow control valve positioner loops, where 4–20 mA output signals drive electro-pneumatic I/P converters. Its drift-free output ensures that control valve positions remain accurate during extended production runs, reducing the risk of overpressure events and product quality deviations in distillation columns and reactor feed systems.

Power Generation & Substation Automation: In turbine governor control and excitation regulation panels, the CP1W-DA041 provides the analog reference signals required for AVR (Automatic Voltage Regulator) setpoint adjustment. Its CE and UL certifications support deployment in IEC 61850-compliant substation environments where equipment qualification is mandatory.

Mining & Mineral Processing: Conveyor belt speed regulation, slurry pump flow control, and flotation cell level management all rely on stable 0–10 V or 4–20 mA output signals. The CP1W-DA041’s vibration and shock resistance ratings make it suitable for installation in mobile crushing plant control panels and underground mine automation cabinets subject to continuous mechanical stress.

Water & Wastewater Treatment: Chemical dosing pump speed control, UV disinfection intensity regulation, and aeration blower output management are typical CP1W-DA041 applications in municipal water treatment facilities. The module’s humidity tolerance supports installation in wet process areas where condensation is a persistent concern.

Metallurgy & Steel Production: Furnace temperature profiling, rolling mill tension control, and cooling water flow regulation demand analog output modules capable of sustained accuracy at elevated ambient temperatures. The CP1W-DA041’s 0–55 °C operating range and thermal stability make it a reliable choice for hot-end process control panels in steel and aluminum production facilities.

Port Logistics & Ship-to-Shore Equipment: Crane hoist speed control and spreader positioning systems in container terminals use analog output signals to command variable frequency drives. The CP1W-DA041’s EMI immunity is particularly valuable in port environments where high-power crane drives generate significant conducted and radiated interference on shared power infrastructure.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the CP1W-DA041?
Every CP1W-DA041 unit is covered by a 12-month warranty from the date of shipment. All units undergo pre-shipment functional testing including analog output accuracy verification across all 4 channels, isolation integrity check, and bus communication validation before dispatch. Warranty claims are supported with direct technical assistance and priority replacement.

Q2: How is compatibility with existing CP1H and CP1L systems verified before shipment?
The CP1W-DA041 is fully compatible with all CP1H CPU variants (CP1H-X40DR-A, CP1H-XA40DR-A, CP1H-Y20DT-D, etc.) and CP1L-M/L series CPUs with expansion capability. Compatibility is confirmed against the OMRON CP1W expansion module compatibility matrix. If your CPU model requires verification, provide the CPU part number and our technical team will confirm compatibility before order processing.

Q3: Is long-term supply availability guaranteed for the CP1W-DA041?
Yes. The CP1W-DA041 is maintained as a stocked spare parts item with consistent inventory replenishment. For sites requiring guaranteed availability over multi-year maintenance contracts, volume reservation arrangements are available. We support both immediate replacement needs and planned preventive maintenance schedules for CP1W-based control systems.

Q4: What safety precautions apply when replacing a CP1W-DA041 in a live control cabinet?
Module replacement should be performed with the CP1H/CP1L CPU in STOP mode and analog output channels set to safe output values (typically 4 mA or 0 V) before disconnecting field wiring. The CP1W expansion bus is hot-swap capable on select CPU configurations — consult the CP1H Hardware Manual (Cat. No. W451) for your specific CPU’s hot-swap support status. Always verify output channel behavior after replacement using the CX-Programmer I/O monitor function before returning the system to RUN mode.
