NSK MCS06020P10K-302BZ Service-Ready Spare Part

NSK MCS06020P10K-302BZ Service-Ready Spare Part: Precision Linear Stage Replacement for Downtime Control

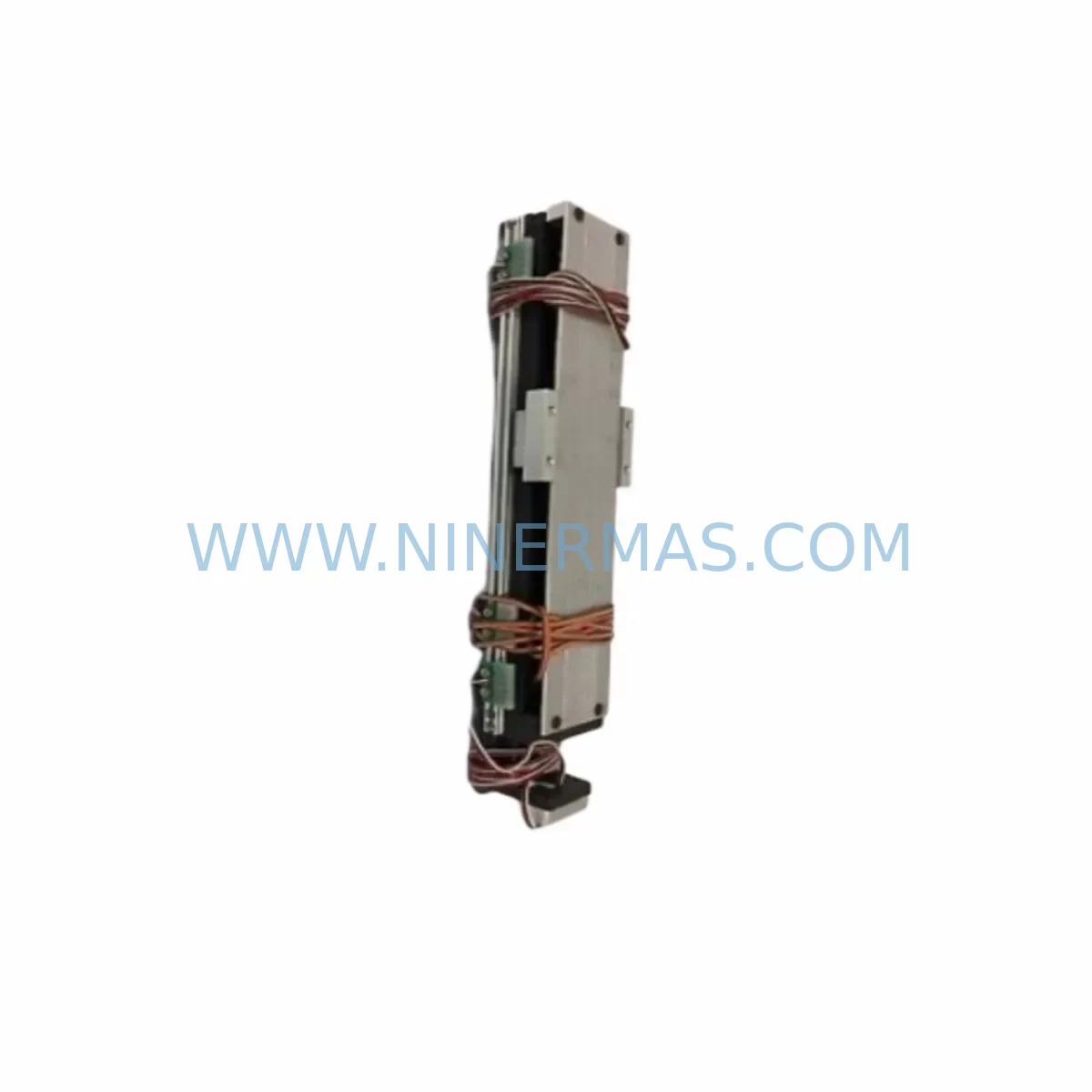

The NSK MCS06020P10K-302BZ is a precision linear stage bearing table from NSK’s MCS (Monocarrier) Series, engineered for high-accuracy linear motion in demanding industrial automation environments. Whether you are managing a scheduled annual overhaul, responding to an unplanned axis failure, or building a proactive spare parts inventory for your control cabinet, the MCS06020P10K-302BZ delivers the dimensional accuracy, load capacity, and positional repeatability required to restore production lines to full operation with minimal downtime.

For maintenance engineers and procurement engineers operating semiconductor equipment, PCB assembly lines, laser cutting systems, medical device manufacturing platforms, or precision inspection machinery, sourcing a verified original NSK MCS Series linear stage is a critical step in any corrective or preventive maintenance workflow. NINERMAS supplies this unit as a service-ready spare, fully tested prior to dispatch, with a 12-month warranty and long-term supply commitment.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a linear stage such as the MCS06020P10K-302BZ reaches end-of-life or fails unexpectedly, the impact extends well beyond the axis itself. A thorough site inspection and coordinated spare parts strategy are essential to prevent repeat failures and ensure a stable return to production.

During replacement of the MCS06020P10K-302BZ, maintenance engineers should simultaneously inspect the servo motor coupling and motor flange connecting to the ball screw shaft — worn couplings are a common secondary cause of premature stage wear. The servo drive or amplifier powering the axis (such as an NSK-compatible AC servo driver or equivalent Mitsubishi MR-J series or Yaskawa SGDV series drive) should be checked for alarm history, encoder feedback errors, and current overload logs that may indicate the stage was operating under abnormal load conditions prior to failure.

The linear encoder or magnetic scale mounted alongside the MCS stage — often a Renishaw or Heidenhain linear scale — should be cleaned and verified for signal integrity, as contamination or misalignment frequently accompanies stage degradation. If the system uses a motion controller or PLC axis card (such as a Mitsubishi Q172DSCPU, Omron CJ1W-MC472, or equivalent multi-axis motion module), review the axis parameter settings to confirm that software travel limits, acceleration ramps, and following error thresholds are correctly configured for the replacement stage’s specifications.

Procurement engineers building a resilient spare parts inventory for MCS-based systems should consider stocking the following alongside the MCS06020P10K-302BZ: NSK MCS Series end blocks and bearing units, ball screw support bearings (angular contact type, matched to the MCS screw diameter), flexible motor couplings (jaw or bellows type), linear guide carriages compatible with the MCS rail profile, and lubrication cartridges or grease nipple fittings for scheduled re-lubrication intervals. For systems with integrated limit switches or home sensors (typically NPN/PNP proximity sensors or optical sensors mounted to the stage end caps), maintaining a stock of replacement sensors prevents secondary downtime after a stage swap.

In multi-axis gantry or XY table configurations, it is advisable to inspect the mating axis stage (e.g., the Y-axis MCS unit paired with this X-axis MCS06020P10K-302BZ) for signs of uneven wear, as asymmetric loading from a failing axis often accelerates wear on adjacent stages. Cable carrier chains and flexible conduits routing motor power and encoder cables along the stage travel path should also be inspected for fatigue cracking, which can cause intermittent encoder faults that mimic stage failure symptoms.

Site Replacement Workflow

Step 1 — Isolation and Safety: De-energize the servo drive and lock out the axis. Confirm zero residual motion using the controller’s axis status display before approaching the stage.

Step 2 — Documentation: Record the current axis position, home offset, and software travel limit parameters from the motion controller before disconnecting any cables. Photograph the motor coupling alignment and cable routing for reference during reassembly.

Step 3 — Removal: Disconnect the motor power cable, encoder cable, and any limit sensor wiring. Remove the motor and coupling from the ball screw shaft. Unbolt the stage base from the machine frame, noting the shimming or leveling arrangement.

Step 4 — Dimensional Verification: Before installing the MCS06020P10K-302BZ replacement unit, verify that the mounting hole pattern, rail height, and ball screw shaft diameter match the original. Confirm the lead (10 mm/rev) matches the motion controller’s axis configuration to avoid positioning errors after commissioning.

Step 5 — Installation and Alignment: Mount the replacement stage, re-apply any original shimming, and torque all fasteners to specification. Reinstall the motor coupling, ensuring zero angular and parallel misalignment using a dial indicator. Reconnect all cables in the original routing path.

Step 6 — Commissioning: Restore power and perform a homing cycle. Verify encoder feedback, check for following error alarms, and run a slow-speed traverse across the full stroke to confirm smooth motion and correct limit switch operation. Gradually increase speed to the operational setpoint and confirm positioning accuracy with a reference measurement.

Step 7 — Documentation and Inventory Update: Record the replacement date, unit serial number, and post-installation test results in the equipment maintenance log. Update the spare parts inventory to trigger reorder of a replacement MCS06020P10K-302BZ unit to maintain buffer stock.

Spare Parts Support FAQ

Q1: Is the MCS06020P10K-302BZ a direct drop-in replacement for the original NSK unit?
Yes. NINERMAS supplies the MCS06020P10K-302BZ as an original NSK spare with identical dimensional specifications, ball screw lead, preload class, and lubrication type. No mechanical modification is required for direct replacement in existing NSK MCS Series installations. We recommend verifying the motion controller’s axis parameters (lead, travel limits, home offset) after installation to ensure correct positional calibration.

Q2: What is the recommended spare parts inventory strategy for MCS Series linear stages?
For production-critical systems, we recommend maintaining a minimum of one MCS06020P10K-302BZ unit on-site as a cold standby spare. For facilities operating multiple MCS-based axes or running continuous shifts, a buffer of two units is advisable. Pairing this with stocked motor couplings, limit sensors, and lubrication consumables reduces mean time to repair (MTTR) to under two hours for a trained maintenance team.

Q3: How does NINERMAS verify the condition of spare parts before shipment?
Every MCS06020P10K-302BZ unit supplied by NINERMAS undergoes pre-shipment inspection covering dimensional checks, smooth-travel verification across the full stroke, ball screw backlash measurement, and visual inspection of the rail surface, carriage, and end blocks. Units are packaged in anti-static, moisture-resistant packaging with desiccant to maintain condition during international transit. A 12-month warranty is provided from the date of delivery.

Q4: Can NINERMAS support long-term supply for discontinued or hard-to-source NSK MCS Series parts?
Yes. NINERMAS specializes in long-term supply of industrial automation spare parts, including legacy and low-volume NSK MCS Series components. We maintain sourcing relationships that allow us to fulfill orders for parts that are no longer available through standard distribution channels. Contact our team at sale@ninermas.com to discuss scheduled procurement agreements, consignment stock arrangements, or multi-unit orders for annual maintenance planning.
