NORTH AMERICAN H6142-05 Safety-Reliable DC Voltage Meter

NORTH AMERICAN H6142-05 Safety-Reliable DC Voltage Meter for Critical Control Sites

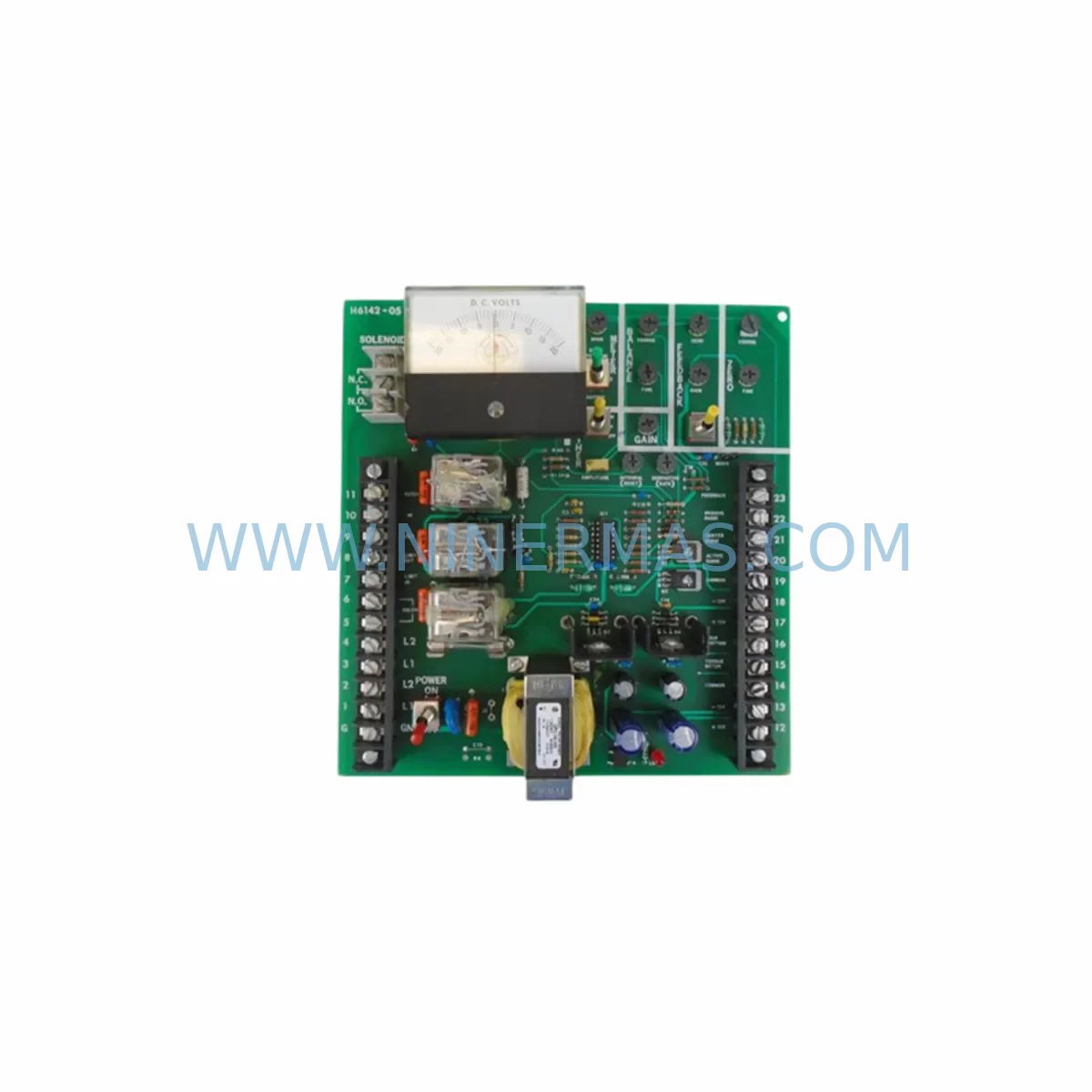

The NORTH AMERICAN H6142-05 is a precision DC Voltage Meter PC Board engineered for continuous-duty industrial control environments where measurement accuracy, signal stability, and uninterrupted operation are non-negotiable safety requirements. Designed to integrate seamlessly into legacy and modern control cabinets, the H6142-05 delivers reliable DC voltage monitoring across demanding applications including petrochemical processing, power generation, mining automation, water treatment, metallurgy, port logistics, and marine vessel control systems.

In critical industrial facilities, an undetected voltage deviation or signal drift can cascade into a full control loop failure, triggering unplanned shutdowns, equipment damage, or — in worst-case scenarios — personnel safety incidents. The H6142-05 addresses this risk directly by providing stable, high-accuracy DC voltage measurement with robust immunity to electromagnetic interference (EMI), power supply fluctuations, and harsh ambient conditions including high humidity, dust ingress, elevated temperatures, and mechanical vibration.

Every H6142-05 unit supplied by NINERMAS undergoes pre-shipment functional testing to verify measurement accuracy, board integrity, and connector reliability before dispatch. This quality gate ensures that replacement boards arrive site-ready, minimizing installation time and eliminating the risk of commissioning a defective spare into a live control circuit. All units are backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the DC voltage measurement subsystem is a foundational safety layer. The NORTH AMERICAN H6142-05 DC Voltage Meter PC Board works in concert with a broader ecosystem of protective and control components to minimize the risk of control interruption, false trips, and unplanned downtime.

At the power supply level, the H6142-05 is typically deployed alongside regulated DC power supply modules — such as 24 VDC SMPS units — that provide stable bus voltage to the measurement circuit. Voltage ripple or transient surges from the power rail can introduce measurement error or damage sensitive analog front-end components; pairing the H6142-05 with a quality surge protection device (SPD) or transient voltage suppressor (TVS) module at the cabinet entry point is strongly recommended for sites with unstable grid conditions or frequent lightning exposure.

For control loop integrity, the H6142-05 operates in conjunction with safety relays and interlock modules that act on the voltage measurement output. In safety-instrumented systems (SIS), the voltage meter board feeds signal data to programmable logic controllers (PLCs) or distributed control system (DCS) I/O modules, where threshold logic determines whether a safe-state action — such as de-energizing a contactor or triggering an emergency stop relay — is required. Ensuring the H6142-05 board is functioning correctly is therefore a prerequisite for the entire interlock chain to operate as designed.

Communication integrity is equally critical. In cabinets where the H6142-05 interfaces with SCADA systems via RS-485 Modbus or analog 4–20 mA signal loops, signal isolation modules and communication repeaters help prevent ground loop interference and data corruption. Terminal block assemblies with integrated surge protection further reduce the risk of transient damage propagating from field wiring into the measurement board.

For high-vibration environments — common in mining, marine, and heavy manufacturing — board-level vibration damping mounts and conformal coating on the PCB surface extend service life and reduce the probability of solder joint fatigue failures. Periodic inspection of the H6142-05 board alongside associated fuse holders, DIN rail power distribution blocks, and wiring duct assemblies is recommended as part of a preventive maintenance schedule to catch early signs of thermal stress or connector oxidation before they escalate into control failures.

Critical Industrial Safety Applications

The NORTH AMERICAN H6142-05 DC Voltage Meter PC Board is deployed across a wide range of critical industrial sectors where continuous, accurate DC voltage monitoring is essential to operational safety and regulatory compliance.

Petrochemical & Refining: In hazardous area control rooms and field junction boxes, the H6142-05 monitors DC bus voltage for solenoid valve drivers, flame detector power supplies, and emergency shutdown (ESD) system power rails. Voltage deviations in these circuits can compromise the response time of safety-critical actuators, making reliable measurement a core element of functional safety management.

Power Generation & Substation Automation: Battery-backed DC systems in power plants and substations rely on accurate voltage monitoring to confirm that backup power is available for protection relays, circuit breaker trip coils, and SCADA communication equipment. The H6142-05 provides the measurement confidence needed to validate DC system health during routine testing and post-fault recovery.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust, and temperature cycling. The H6142-05’s robust board construction supports reliable operation in these conditions, providing accurate voltage data for conveyor drive control panels, ventilation fan starters, and dewatering pump control systems.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities depend on uninterrupted control system operation to maintain dosing accuracy, pump sequencing, and alarm system integrity. The H6142-05 supports DC voltage monitoring in SCADA-connected control panels where measurement reliability directly impacts process safety and environmental compliance.

Metallurgy & Steel Production: High-current DC drives for rolling mills, arc furnace electrode regulators, and ladle crane controls generate significant electromagnetic interference. The H6142-05’s EMI-resistant design ensures measurement accuracy is maintained even in close proximity to large power conversion equipment.

Port Logistics & Marine Vessels: Ship automation systems and port crane control panels require DC voltage monitoring for battery management, thruster control, and cargo handling equipment. The H6142-05 supports reliable operation in salt-air, high-humidity marine environments where board corrosion and connector degradation are primary failure modes.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the NORTH AMERICAN H6142-05?
All H6142-05 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are supported with replacement or repair at no additional cost to the customer.

Q2: Is the H6142-05 tested before shipment?
Yes. Every H6142-05 board undergoes a pre-shipment functional test that verifies DC voltage measurement accuracy, board power-up integrity, and connector continuity. This ensures that the unit is fully operational upon arrival at site, reducing commissioning risk and installation downtime.

Q3: Is the H6142-05 a direct replacement for the original NORTH AMERICAN board?
The H6142-05 is an original NORTH AMERICAN part number and is a direct form-fit-function replacement for the same board in NORTH AMERICAN H6142-series control systems. No hardware modification or firmware reconfiguration is required for standard replacement applications. Compatibility with specific system configurations should be verified against the original equipment documentation.

Q4: Can NINERMAS support long-term supply of the H6142-05 for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the H6142-05 and supports long-term spare parts supply programs for industrial maintenance teams. Customers managing multi-site operations or planned maintenance schedules are encouraged to contact our team to discuss volume availability, lead times, and consignment stock arrangements to ensure uninterrupted access to this critical spare.
