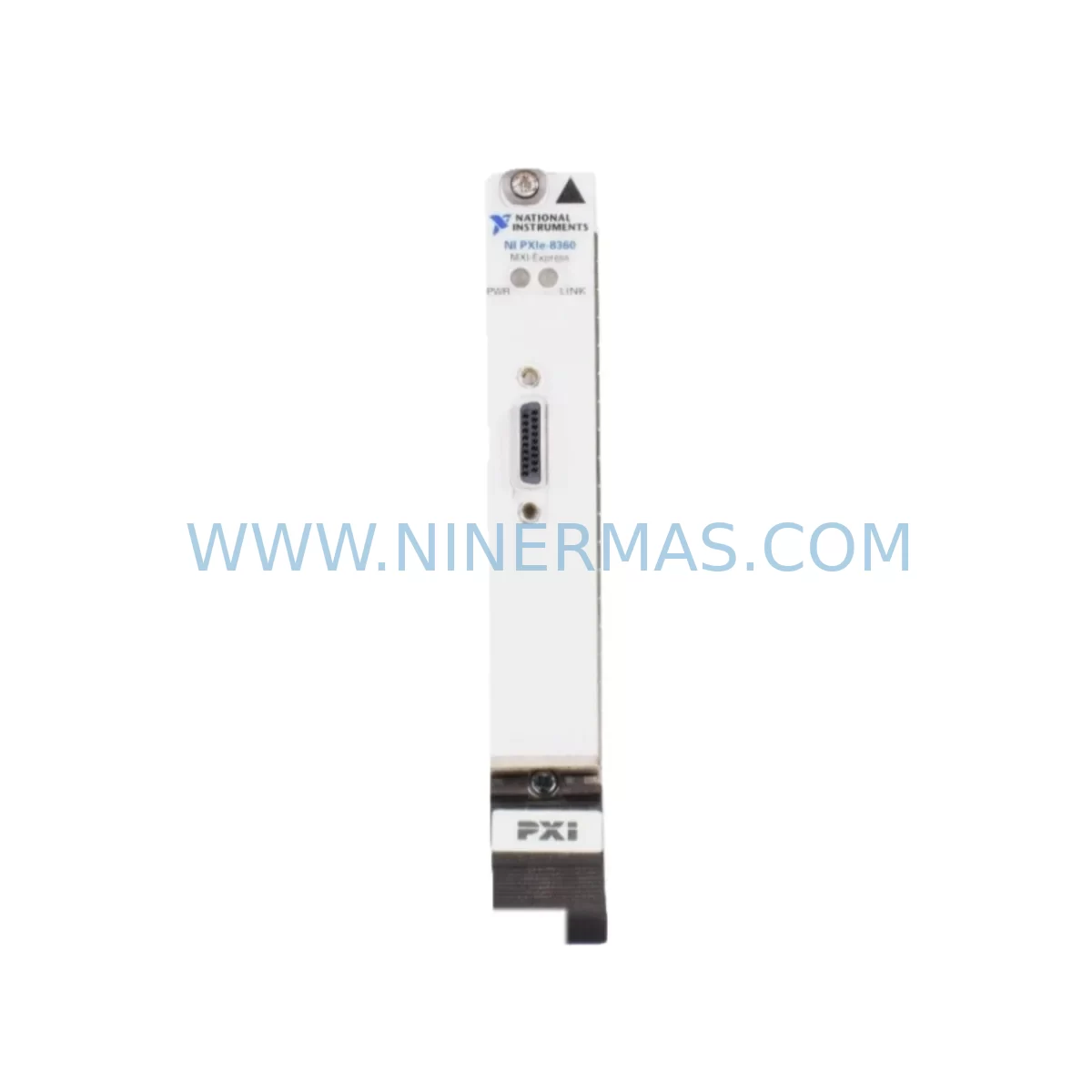

NI PXIe-8360 Safety-Reliable Remote Control Module

NI PXIe-8360 Safety-Reliable Remote Control Module for Critical Industrial Control Sites

The NI PXIe-8360 is a high-performance PXI Express remote control module engineered by National Instruments (NI) to deliver uncompromising reliability in the most demanding industrial automation and safety-critical environments. Designed for continuous production lines, critical interlock systems, and high-density control cabinets, the PXIe-8360 provides a stable, high-bandwidth MXI-Express interface that keeps your PXI Express chassis and host controller in perfect synchronization — even under severe electromagnetic interference, voltage fluctuation, and mechanical vibration.

In industries where an unplanned shutdown costs thousands of dollars per minute, the PXIe-8360 is not merely a connectivity component — it is a frontline defense against control interruption, signal drift, and communication anomalies. NINERMAS maintains verified stock of the PXIe-8360 with full pre-shipment functional testing and a 12-month warranty, ensuring your spare parts strategy is never compromised.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, every component in the signal chain must be qualified for the harshest real-world conditions. The NI PXIe-8360 anchors the remote control architecture by providing a deterministic, low-latency MXI-Express link between the host PC and the PXI Express chassis — eliminating the communication anomalies and bus contention that plague legacy parallel MXI or GPIB-based systems.

When deployed alongside the NI PCIe-8361 host interface card, the PXIe-8360 forms a tightly coupled remote control pair capable of sustaining full-bandwidth data transfer even in environments with significant conducted and radiated EMI — a common challenge in motor drive cabinets, variable frequency drive (VFD) enclosures, and high-current switchgear panels. The shielded MXI-Express cable assembly further suppresses surge coupling and ground loop interference that can cause signal drift or spurious triggers in sensitive measurement and control modules.

For applications requiring precise analog output and interlock control, the PXIe-8360 reliably hosts modules such as the NI PXIe-6738 32-channel analog output module and the NI PXIe-6535 digital I/O module, both of which depend on a stable chassis backplane clock and trigger bus — resources that the PXIe-8360 preserves through its deterministic PCIe link. In safety interlock loops where a missed trigger or delayed response can escalate to an emergency shutdown, this determinism is non-negotiable.

Power integrity is equally critical. The PXIe-8360 operates within the chassis power budget managed by the integrated chassis power supply — such as those found in the NI PXIe-1082 or NI PXIe-1085 chassis — which provide regulated, filtered DC rails to all installed modules. Pairing the PXIe-8360 with an external UPS (Uninterruptible Power Supply) or a dedicated DIN-rail DC/DC converter on the host PC side further protects against power fluctuation and brownout events that could corrupt active measurements or interrupt a running test sequence.

In high-vibration environments such as mining conveyors, offshore platforms, or heavy press lines, the PXIe-8360’s rugged module locking mechanism and IEC 60068-compliant shock and vibration ratings ensure that the MXI-Express connection remains stable without intermittent disconnects — a failure mode that can be catastrophic in closed-loop control applications. Complementary chassis accessories such as NI PXI filler panels and EMC gasket kits should be installed in all unused slots to maintain the chassis’s electromagnetic shielding integrity and thermal airflow design.

For communication-intensive architectures that also incorporate NI PXIe-8234 image acquisition modules, NI PXIe-5122 digitizers, or NI PXIe-4300 simultaneous analog input modules, the PXIe-8360’s high-bandwidth backplane ensures that DMA transfers from multiple modules do not compete for bus bandwidth — a key factor in preventing data overruns and measurement gaps in continuous acquisition applications.

Critical Industrial Safety Applications

The NI PXIe-8360 is deployed across a broad spectrum of safety-critical and continuous-process industries where control system uptime is directly linked to operational safety and production economics.

In petrochemical and refinery plants, the PXIe-8360 enables remote PXI Express chassis deployment in hazardous-area-adjacent control rooms, allowing the host workstation to be located in a safe area while the measurement chassis resides closer to the process — reducing cable runs, signal attenuation, and the risk of ground potential differences that can corrupt 4–20 mA loop signals or thermocouple readings.

In electric power generation and substation automation, the module supports high-speed protection relay testing and power quality analysis applications where the PXI chassis must be synchronized to GPS-disciplined timing sources. The PXIe-8360’s transparent PCIe extension preserves the chassis’s internal 10 MHz reference and PXI_TRIG bus, enabling precise multi-module synchronization essential for IEC 61850 GOOSE message timing verification.

In mining and mineral processing, where dust ingress, humidity, and mechanical shock are constant threats, the PXIe-8360 allows the sensitive host PC to be installed in a pressurized, climate-controlled enclosure while the PXI chassis — protected by its own sealed or filtered chassis — operates closer to the process instrumentation. This architecture significantly reduces the risk of non-planned downtime caused by environmental contamination of the host system.

In water and wastewater treatment facilities, the module supports continuous monitoring and control of pump stations, chemical dosing systems, and SCADA integration points. Its ability to maintain a stable remote control link over distances up to 200 meters (with appropriate MXI-Express cable) makes it ideal for distributed control architectures across large treatment plant footprints.

In metallurgical and steel production environments, where high-power induction furnaces and arc furnaces generate extreme electromagnetic interference, the PXIe-8360’s EMC-compliant design and shielded interface cable provide the noise immunity necessary to sustain reliable data acquisition and closed-loop temperature control without spurious resets or communication timeouts.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the NI PXIe-8360?
All NI PXIe-8360 units supplied by NINERMAS carry a 12-month warranty covering functional defects under normal operating conditions. Warranty support includes replacement or repair, with priority processing for customers in critical production environments.

Q2: How is the PXIe-8360 tested before shipment?
Every unit undergoes a full functional verification process prior to dispatch, including MXI-Express link establishment, bandwidth verification, and chassis communication handshake testing. This pre-shipment inspection ensures that the module arrives ready for immediate installation and commissioning, minimizing downtime risk during spare part replacement.

Q3: Is the NI PXIe-8360 compatible with my existing NI PXI Express chassis and software?
The PXIe-8360 is compatible with all NI PXI Express chassis that feature a system controller slot, including the PXIe-1062Q, PXIe-1071, PXIe-1075, PXIe-1082, and PXIe-1085 series. It requires the NI PCIe-8361 host card and is fully supported under NI-VISA, NI-DAQmx, and LabVIEW/LabWindows/CVI software environments. Compatibility with third-party PXIe chassis should be verified against the chassis’s MXI-Express specification.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the PXIe-8360?
Yes. NINERMAS maintains dedicated inventory of the NI PXIe-8360 to support customers with long-term spare parts strategies, planned maintenance cycles, and emergency replacement needs. Our supply chain is structured to support both single-unit urgent orders and bulk procurement for multi-site industrial operations, with consistent lead times and stable pricing.
