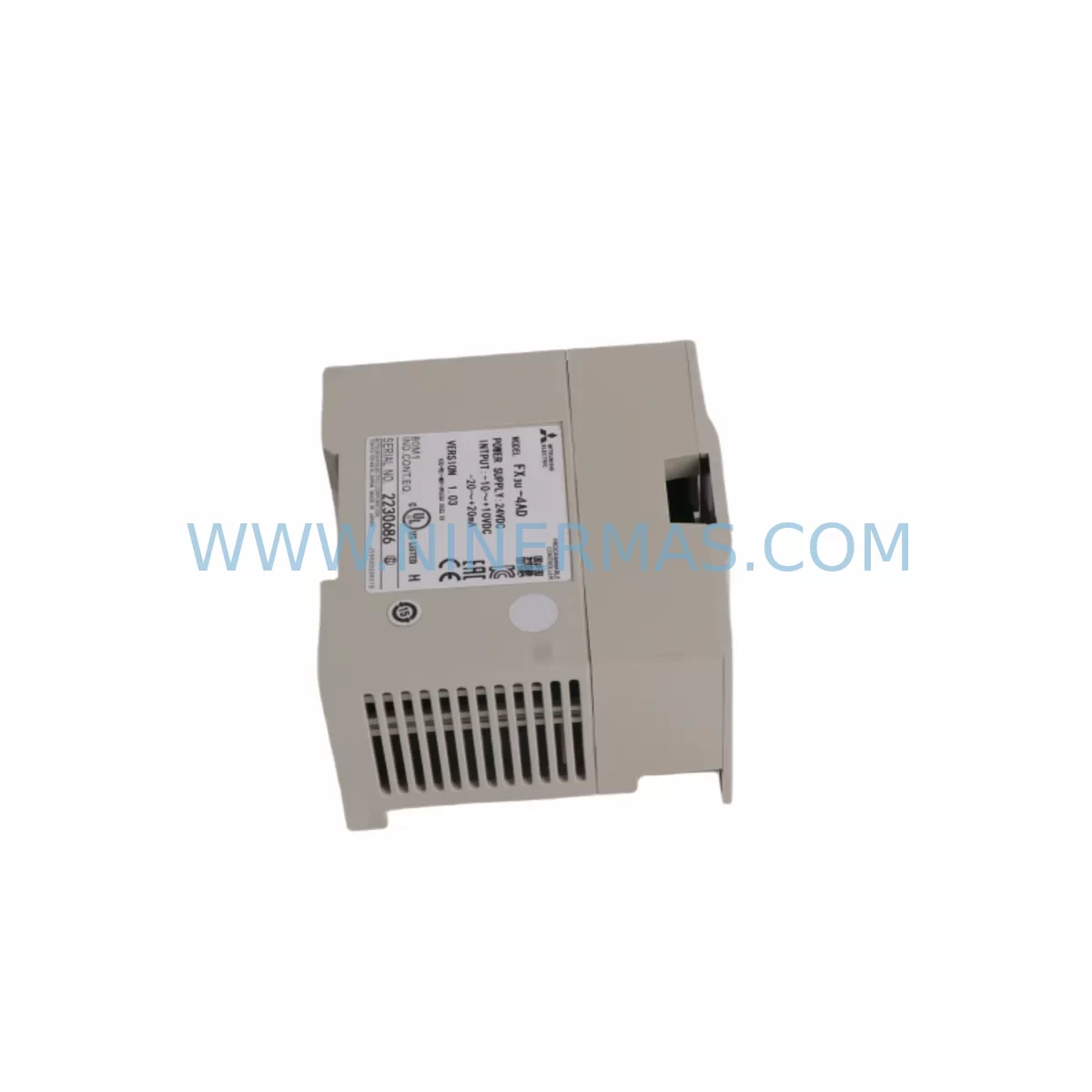

Mitsubishi FX3U-4AD Safety-Reliable Analog Input Module

Mitsubishi FX3U-4AD Safety-Reliable Analog Input Module

The Mitsubishi FX3U-4AD is a high-precision 4-channel analog input module engineered for the MELSEC FX3U programmable logic controller series. Designed to operate reliably in demanding industrial environments — including high electromagnetic interference, temperature extremes, mechanical vibration, and moisture-laden atmospheres — the FX3U-4AD delivers stable, accurate signal acquisition that is essential for maintaining safe and uninterrupted control loops in critical production facilities.

In continuous manufacturing and process industries, signal drift and analog input instability are among the leading causes of unplanned shutdowns and control system misoperation. The FX3U-4AD addresses these risks through its high-resolution A/D conversion architecture, which provides 12-bit resolution across voltage and current input ranges. This level of precision ensures that process variables — such as temperature, pressure, flow rate, and level — are faithfully represented in the PLC’s control logic, reducing the risk of false alarms, spurious trips, and unsafe process deviations.

The module connects directly to the FX3U main unit or extension base via the dedicated bus interface, maintaining signal integrity without the noise susceptibility associated with long-distance analog wiring. In control cabinets where multiple drives, contactors, and power supplies generate significant electromagnetic noise, the FX3U-4AD’s shielded input design and common-mode noise rejection capability protect measurement accuracy. This is particularly critical in applications where the FX3U-4AD operates alongside high-current components such as the FX3U-4DA analog output module, FX3U-232ADP-MB serial communication adapter, or FX3U-ENET Ethernet interface module — all of which share the same backplane bus and must coexist without mutual interference.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet serving a continuous process plant, the FX3U-4AD plays a central role in the analog signal acquisition layer. Its four input channels are typically assigned to critical process variables — for example, reactor temperature via a 4–20 mA transmitter, pump discharge pressure via a voltage-output transducer, or tank level via a submersible pressure sensor. When these signals are acquired with high fidelity, the FX3U-3A1 (a combined analog I/O module) or dedicated FX3U-4DA output module can respond with precise actuator commands, closing the control loop without the latency or noise that would otherwise cause oscillation or unsafe process excursions.

Power supply stability is equally critical. The FX3U-4AD draws its operating power from the FX3U main unit’s internal 5 VDC bus, which is in turn supplied by the FX3U series power supply module. In installations where the incoming AC supply is subject to voltage sags, surges, or harmonic distortion — common in heavy industrial environments near large motor drives or arc furnaces — the use of a dedicated DIN-rail mounted surge protection device and an uninterruptible power supply (UPS) module upstream of the FX3U power supply is strongly recommended. This prevents the analog input module from experiencing reference voltage shifts that would corrupt measurement accuracy and trigger nuisance alarms.

Communication integrity is another dimension of risk reduction. In distributed control architectures, the FX3U-4AD’s data is transmitted to the supervisory system via the FX3U-ENET Ethernet module or the FX3U-485ADP-MB MODBUS RTU adapter. Both communication paths must be protected against packet loss and bus contention, particularly in environments where the PLC cabinet is located near variable frequency drives (VFDs) or high-voltage switchgear. Proper cable shielding, grounding discipline, and the use of optical isolation on RS-485 links are essential companion measures. Additionally, the FX3U-32MT/ES main CPU module’s watchdog timer and self-diagnostic functions provide a last line of defense against software faults that could misinterpret analog data and generate unsafe control outputs.

For safety interlock applications, the analog values acquired by the FX3U-4AD are often used as inputs to high-limit and low-limit comparators within the PLC program. These comparators drive safety relay outputs — such as those provided by the FX3U-16EYR relay output extension module — to de-energize actuators or trigger emergency shutdown sequences when process variables exceed safe operating limits. This architecture, when properly configured and tested, provides a robust layer of protection against runaway processes, equipment damage, and personnel hazards.

Critical Industrial Safety Applications

The FX3U-4AD is deployed across a wide range of critical industrial sectors where analog signal accuracy directly impacts operational safety and regulatory compliance.

In petrochemical and refinery facilities, the module monitors temperature and pressure signals from heat exchangers, distillation columns, and reactor vessels. Accurate analog acquisition is essential for maintaining process conditions within safe operating envelopes and for triggering high-temperature or high-pressure shutdowns before equipment damage or hazardous releases occur.

In electric power generation and substation automation, the FX3U-4AD acquires current and voltage feedback signals from power conditioning equipment, enabling the PLC to regulate output parameters and detect abnormal electrical conditions. Its photocoupler isolation prevents ground loops that could corrupt measurements or damage the PLC in high-voltage environments.

In mining and mineral processing, the module is used to monitor conveyor belt load cells, crusher motor current, and slurry density transmitters. The ability to operate reliably in dusty, vibration-intensive environments — where lesser modules would suffer from connector oxidation and signal drift — makes the FX3U-4AD a preferred choice for long-lifecycle installations.

In water and wastewater treatment plants, the FX3U-4AD acquires flow, pH, dissolved oxygen, and turbidity signals from field transmitters. These measurements drive dosing pump control and aeration blower modulation, where inaccurate analog inputs could result in under-treatment or chemical overdosing — both of which carry regulatory and public health consequences.

In metallurgical and steel production environments, the module withstands the high ambient temperatures and intense electromagnetic fields generated by induction furnaces and rolling mill drives, maintaining measurement accuracy that is critical for temperature-controlled rolling and heat treatment processes.

Safety and Quality FAQ

Q1: What warranty coverage does the FX3U-4AD carry?
All FX3U-4AD units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with replacement dispatch and technical documentation to minimize site downtime.

Q2: What pre-shipment testing is performed on each unit?
Every FX3U-4AD undergoes a full functional verification test prior to dispatch. This includes channel-by-channel accuracy verification across voltage and current input ranges, isolation integrity check, and bus communication confirmation with a reference FX3U main unit. Test records are available upon request.

Q3: Is the FX3U-4AD compatible with FX3UC and FX3G series PLCs?
The FX3U-4AD is natively compatible with the Mitsubishi MELSEC FX3U and FX3UC series. Compatibility with FX3G requires verification of the extension bus interface version. NINERMAS technical support can confirm compatibility based on your specific main unit model and firmware version before order confirmation.

Q4: Can long-term supply of FX3U-4AD be guaranteed for lifecycle extension programs?
NINERMAS maintains dedicated stock of FX3U-4AD modules to support long-term spare parts programs for customers operating FX3U-based control systems beyond the standard product lifecycle. Bulk stock commitment arrangements and fixed lead-time agreements are available for facilities requiring guaranteed availability over multi-year maintenance contracts.
