Mitsubishi FX2N-4AD-PT Safety-Reliable PT Analog Input Module

Mitsubishi FX2N-4AD-PT Safety-Reliable PT Analog Input Module for Critical Control Sites

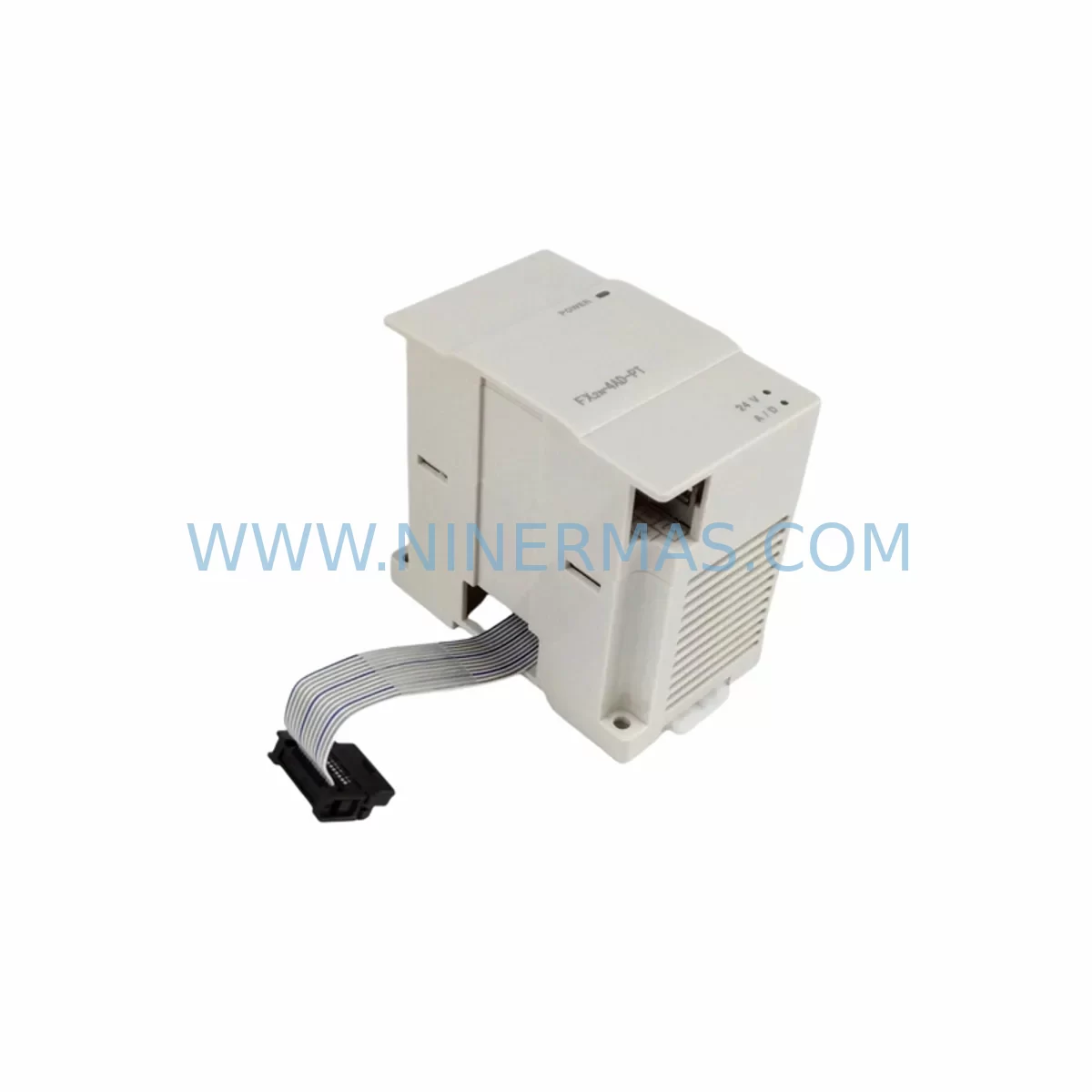

The Mitsubishi FX2N-4AD-PT is a dedicated 4-channel platinum resistance thermometer (Pt100/Pt1000) analog input module engineered for the Mitsubishi MELSEC FX2N programmable logic controller series. Designed to deliver precise, drift-resistant temperature measurement in demanding industrial environments, the FX2N-4AD-PT is a cornerstone component for safety-critical control loops where signal integrity, measurement stability, and uninterrupted operation are non-negotiable requirements. From continuous process manufacturing to hazardous-area monitoring, this module provides the reliable analog front-end that modern industrial safety architectures depend upon.

In critical control sites — including petrochemical reactors, power generation auxiliaries, metallurgical furnaces, and water treatment dosing systems — temperature measurement errors can cascade into process upsets, equipment damage, or safety interlock failures. The FX2N-4AD-PT addresses these risks through high-resolution A/D conversion, stable Pt sensor excitation circuitry, and robust noise rejection, ensuring that the FX2N CPU receives accurate, repeatable temperature data even under high electromagnetic interference, heavy vibration, or fluctuating supply conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the FX2N-4AD-PT within a well-engineered control cabinet architecture significantly reduces the risk of temperature-related process faults, unplanned shutdowns, and safety interlock failures. In a typical FX2N-based control panel, the module connects directly to the FX2N main unit — such as the Mitsubishi FX2N-48MR-001 or FX2N-64MT-001 — via the proprietary extension bus, eliminating the need for external signal conditioners and reducing wiring complexity that can introduce ground loops or noise pickup.

For power supply stability, the FX2N-4AD-PT draws its 5 VDC logic power from the FX2N main unit’s internal regulated supply. Pairing the system with a high-quality DIN-rail power supply — such as the Mitsubishi FX2N-1PG pulse generator module or an external Omron S8VS or Phoenix Contact QUINT-PS 24 VDC power supply — ensures that voltage sags and transient surges from heavy motor loads or contactor switching do not propagate into the analog measurement chain. Surge protection devices installed at the cabinet entry point further shield the Pt sensor wiring from lightning-induced transients common in outdoor process installations.

In high electromagnetic interference environments — such as variable frequency drive (VFD) cabinets housing Mitsubishi FR-A700 or FR-E700 series inverters — the photocoupler isolation built into the FX2N-4AD-PT provides a critical barrier against common-mode noise that would otherwise corrupt 0.1°C resolution measurements. Shielded, twisted-pair Pt100 sensor cables, grounded at a single point at the module terminal block, further suppress differential-mode interference from adjacent power conductors.

For applications requiring expanded I/O alongside temperature monitoring, the FX2N-8EX digital input expansion module and FX2N-8EYR relay output module can be added to the same extension bus, enabling integrated temperature-triggered safety relay outputs — for example, activating a cooling fan contactor or triggering an alarm horn when a monitored zone exceeds a defined threshold. The FX2N-4DA analog output module can be paired with the FX2N-4AD-PT to close a temperature control loop, driving a modulating valve or heater SCR controller based on real-time Pt100 feedback.

Communication redundancy is addressed by adding the FX2N-485-BD RS-485 communication board or the FX2N-232-BD RS-232C board to the FX2N main unit, enabling MODBUS RTU or proprietary MELSEC protocol transmission of temperature data to a SCADA system or distributed control system (DCS) historian. This ensures that temperature trends are continuously logged, supporting both predictive maintenance programs and post-incident safety investigations.

Critical Industrial Safety Applications

The Mitsubishi FX2N-4AD-PT is deployed across a broad spectrum of safety-critical and continuous-process industrial sites where temperature measurement accuracy directly influences operational safety and product quality.

In petrochemical and refinery environments, the module monitors heat exchanger outlet temperatures, reactor jacket temperatures, and pipeline trace heating circuits. Accurate Pt100 measurement prevents overtemperature conditions that could trigger pressure relief valve actuation or, in worst-case scenarios, runaway exothermic reactions. The module’s photocoupler isolation and noise immunity are essential in these environments, where large motor drives and high-voltage switchgear generate significant electromagnetic interference.

In electric power generation and substation auxiliary systems, the FX2N-4AD-PT monitors transformer winding temperatures, battery room ambient temperatures, and cooling system fluid temperatures. Reliable temperature data feeds into protection relay logic, ensuring that thermal overload conditions are detected and acted upon before insulation degradation or equipment failure occurs.

In metallurgical and steel processing plants, the module is used to monitor furnace zone temperatures, cooling water temperatures, and hydraulic oil temperatures in rolling mill control systems. The wide measurement range (up to 600°C with appropriate Pt sensor selection) and 0.1°C resolution make it suitable for precise thermal process control in annealing furnaces and heat treatment lines.

In water and wastewater treatment facilities, the FX2N-4AD-PT monitors chemical dosing tank temperatures, UV disinfection system temperatures, and pump motor winding temperatures. Stable, drift-free measurement over extended periods — months or years between calibration cycles — is critical in these applications, where manual intervention is infrequent and remote monitoring is the norm.

In mining and mineral processing operations, the module operates in high-dust, high-vibration environments monitoring conveyor drive motor temperatures, crusher bearing temperatures, and flotation cell process temperatures. Its DIN-rail mounting and compact form factor allow installation in space-constrained field junction boxes and local control panels close to the process equipment.

In port and marine applications, the FX2N-4AD-PT monitors engine room temperatures, cargo hold ambient conditions, and hydraulic system fluid temperatures aboard vessels and in port crane control systems. Its operating temperature range and humidity tolerance (5–95% RH) support reliable performance in the salt-air, high-humidity environments typical of coastal and offshore installations.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the FX2N-4AD-PT?
Every FX2N-4AD-PT supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported by our technical team, and replacement units are dispatched promptly to minimize control system downtime.

Q2: What pre-shipment testing is performed on each unit?
Each FX2N-4AD-PT undergoes a full functional verification before dispatch, including channel-by-channel accuracy checks against calibrated Pt100 reference resistors, bus communication verification with an FX2N main unit, and visual inspection for connector integrity and PCB condition. Test records are available upon request for quality-critical procurement processes.

Q3: Is the FX2N-4AD-PT compatible with both FX2N and FX2NC series PLCs?
The FX2N-4AD-PT is designed for the Mitsubishi MELSEC FX2N series and is compatible with FX2N main units. For FX2NC series applications, a dedicated FX2NC-4AD-PT variant or an FX2N-CNV-BC bus conversion adapter is required. Please confirm your PLC model before ordering to ensure direct compatibility.

Q4: Can long-term supply and spare parts availability be guaranteed?
NINERMAS maintains dedicated stock of FX2N series special function modules, including the FX2N-4AD-PT, to support long lifecycle industrial installations. We offer stock-commitment programs for customers requiring guaranteed spare parts availability over multi-year maintenance contracts, with fixed lead times and priority allocation for critical site customers.
