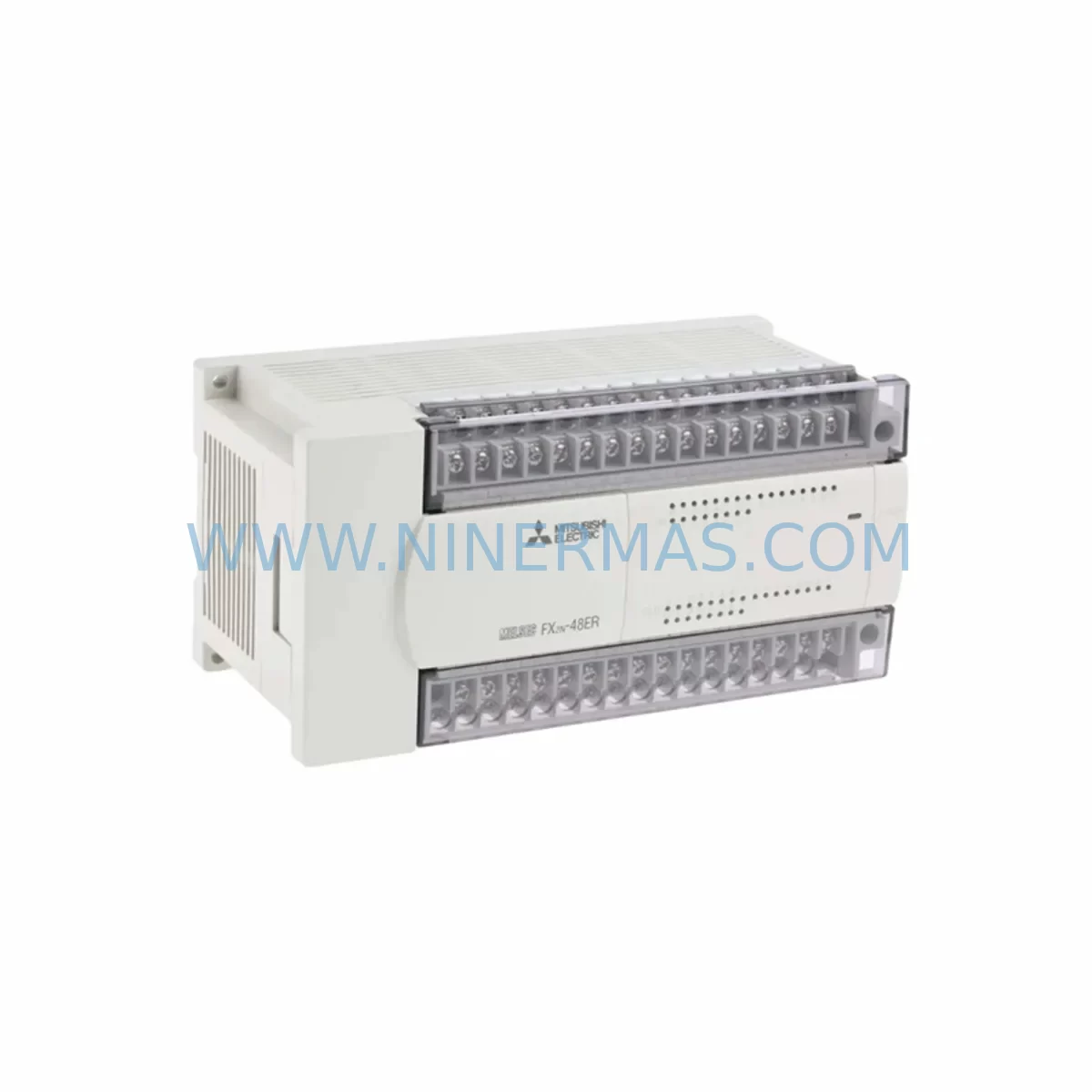

The Mitsubishi FX2N-48ER is a high-density I/O extension module within the renowned MELSEC FX2N Series programmable logic controller family. Designed for demanding industrial automation environments, this relay output extension module provides 24 inputs and 24 relay outputs, expanding the I/O capacity of an FX2N base unit to support complex machine control, production line sequencing, and process automation tasks. For maintenance engineers managing aging control systems, the FX2N-48ER represents a critical spare part — one whose failure can halt an entire production line within minutes.

At NINERMAS, every FX2N-48ER unit is sourced as an original Mitsubishi Electric component, individually inspected, function-tested, and shipped with a 12-month warranty. Whether you are responding to an emergency breakdown, building a preventive maintenance stock, or executing a planned annual overhaul, our service-ready inventory ensures rapid dispatch and reliable compatibility with your existing FX2N system architecture.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer identifies the FX2N-48ER as a replacement requirement, it is rarely an isolated component failure. The FX2N expansion bus architecture means that the module operates in close electrical and logical dependency with several adjacent components — all of which should be inspected or stocked as part of a comprehensive maintenance plan.

Begin with the FX2N base unit itself (such as the FX2N-48MR or FX2N-64MR): verify that the main CPU module is functioning correctly and that the expansion bus connector on the right side is undamaged and free of corrosion. A faulty base unit can cause the FX2N-48ER to appear defective when the root cause lies upstream. Next, inspect the FX2N-1PS-5V or equivalent power supply extension module if your configuration uses one — relay output modules draw additional current, and an undersized or aging power supply is a common hidden cause of intermittent I/O faults.

On the output side, relay contact wear is cumulative. If the FX2N-48ER has been in service for several years, it is prudent to simultaneously audit the terminal blocks and wiring harnesses connected to the relay outputs. Loose or oxidized terminals on the output side can cause contact bounce, false signals, or localized overheating. Replacing the module without addressing terminal integrity will not resolve the underlying reliability issue.

For systems where the FX2N-48ER controls motor starters, solenoid valves, or contactor coils, check the associated surge suppressors and RC snubber circuits across inductive loads. Missing or failed suppressors accelerate relay contact degradation and can introduce electrical noise that disrupts the PLC’s CPU operation. Similarly, inspect any FX2N-8EX or FX2N-16EX input extension modules in the same cabinet — shared ground faults or common-mode noise can affect multiple modules simultaneously.

If your FX2N system includes communication modules such as the FX2N-232IF (RS-232C interface) or FX2N-485BD (RS-485 communication board), verify that these remain operational after the I/O module replacement. Communication faults sometimes surface only after a module swap due to bus impedance changes. For systems integrated with an FX2N-4AD analog input module or FX2N-4DA analog output module, re-verify signal calibration post-replacement, as analog modules are sensitive to ground loop changes introduced during maintenance.

Procurement engineers should also consider stocking the FX2N-CNV-IF conversion interface if the installation includes FX0N or FX series legacy extension modules in the same cabinet — this adapter is frequently overlooked until a mixed-generation expansion chain fails. Maintaining one spare FX2N-48ER alongside a spare FX2N-8ER or FX2N-16ER relay output module provides flexible coverage for both high-density and low-density I/O replacement scenarios without over-investing in inventory.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before powering down, document the current I/O mapping by printing or photographing the PLC program’s I/O assignment table. Confirm that the replacement FX2N-48ER matches the original in output type (relay vs. transistor) — substituting an FX2N-48ET (transistor output) for an FX2N-48ER (relay output) without program modification will cause output logic errors.

Step 2 — Safe Isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Disconnect the expansion bus connector carefully — do not force the locking tab, as a broken connector on the base unit will require a full base unit replacement. Label all field wiring terminals before disconnection.

Step 3 — Module Swap: Mount the new FX2N-48ER on the DIN rail and reconnect the expansion bus. Reconnect field wiring in sequence, verifying terminal torque to manufacturer specification (typically 0.5–0.8 N·m for M3 screws). Do not rely on memory alone — use the documented terminal layout from Step 1.

Step 4 — Power-Up and Functional Test: Restore power and observe the module’s LED indicators. The POWER LED should illuminate green; the ERROR LED should remain off. Force-test each output point individually using the PLC programming software (GX Developer or GX Works2) before returning the system to automatic mode. Verify that all relay outputs switch correctly under load.

Step 5 — System Return and Documentation: Log the replacement in your maintenance management system (CMMS), recording the date, replaced module serial number, technician name, and post-replacement test results. Update your spare parts inventory to trigger a reorder for the consumed FX2N-48ER unit, maintaining your minimum stock level.

This structured workflow minimizes re-work risk, reduces total downtime from fault to recovery, and ensures full system compatibility is confirmed before production resumes.

Spare Parts Support FAQ

Q1: Is the FX2N-48ER still available as a new original part, and how long can NINERMAS support long-term supply?
The FX2N Series has reached end-of-life status from Mitsubishi Electric’s standard production schedule, but original new-stock units remain available through authorized spare parts channels. NINERMAS maintains dedicated inventory for legacy FX2N components to support customers with long-lifecycle machinery. We recommend customers with critical FX2N installations discuss a long-term supply agreement to secure multi-year stock commitments and avoid procurement gaps as market availability tightens.

Q2: How do I verify compatibility between the FX2N-48ER and my existing FX2N base unit before installation?
The FX2N-48ER is compatible with all FX2N series base units (FX2N-16M through FX2N-128M). Compatibility verification requires confirming: (1) the base unit is FX2N series (not FX1N, FX3U, or FX5U — these use different expansion bus standards); (2) the total I/O count after adding the FX2N-48ER does not exceed the FX2N system’s maximum of 256 I/O points; and (3) the combined current draw of all extension modules does not exceed the base unit’s expansion bus power budget. Contact our technical team with your base unit model number for a pre-purchase compatibility confirmation.

Q3: What pre-shipment testing does NINERMAS perform on the FX2N-48ER before dispatch?
Every FX2N-48ER unit undergoes a multi-point inspection prior to shipment: visual inspection for physical damage, relay contact resistance measurement, input circuit continuity check, bus connector integrity verification, and a powered functional test confirming all 24 inputs and 24 relay outputs operate within Mitsubishi Electric’s published specifications. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with quality assurance documentation requirements.

Q4: What does the 12-month warranty cover, and what is the replacement process if a fault occurs?
The NINERMAS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage, physical impact, or operation outside the specified environmental range. In the event of a warranty claim, contact sale@ninermas.com with your order reference and a description of the fault. We will arrange priority replacement dispatch to minimize your downtime exposure. Warranty replacements are processed within 3–5 business days upon fault confirmation.
