Mitsubishi FX2N-16EX-ES/UL Service-Ready Spare Part for Industrial Maintenance

Mitsubishi FX2N-16EX-ES/UL Service-Ready Spare Part for Industrial Maintenance

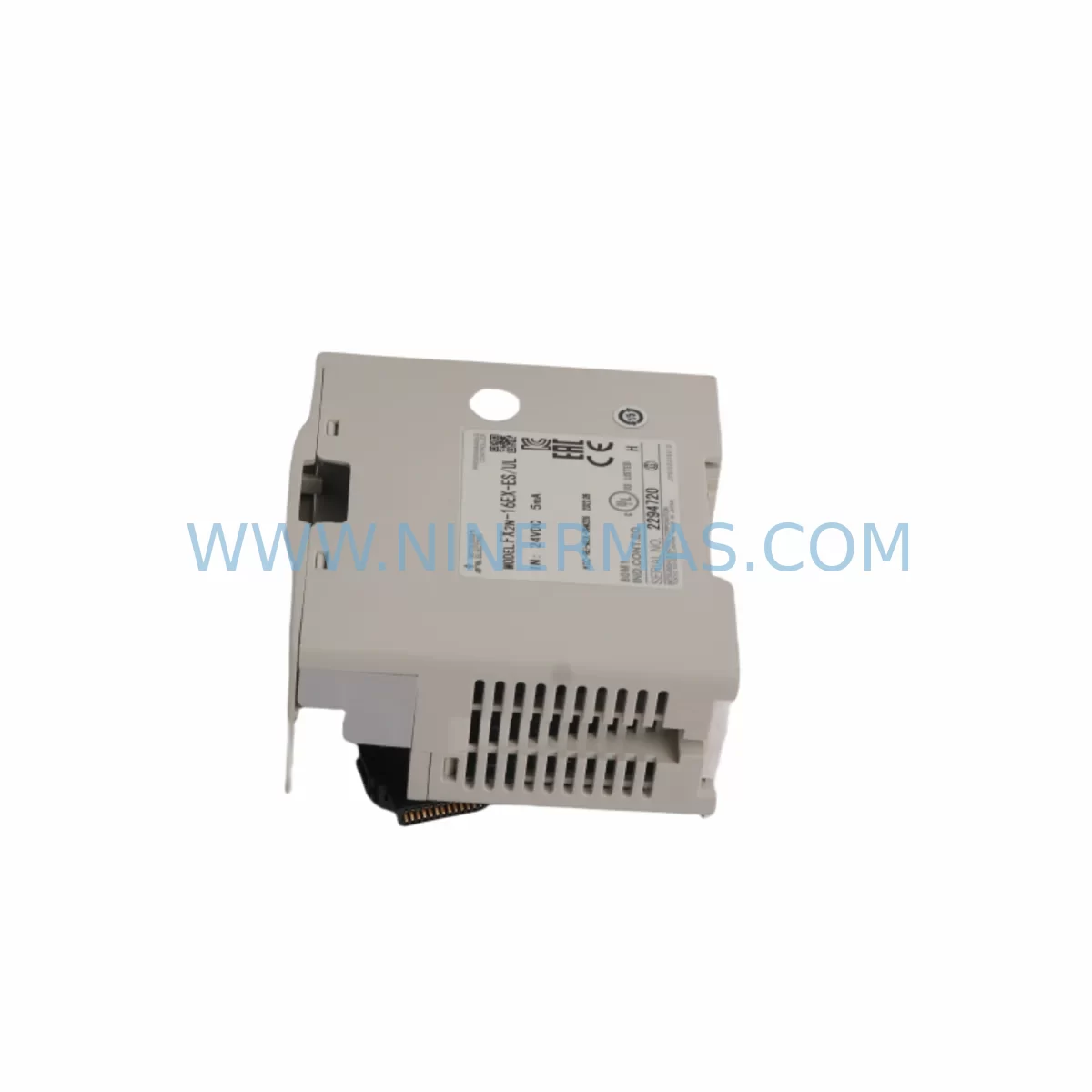

The Mitsubishi FX2N-16EX-ES/UL is a 16-point DC input expansion module designed for the Mitsubishi MELSEC FX2N series programmable logic controller platform. As a service-ready spare part sourced and tested by NINERMAS, this unit is positioned to support maintenance engineers and procurement teams managing aging FX2N-based control systems across discrete manufacturing, material handling, packaging lines, and process automation environments.

Unplanned downtime caused by a failed I/O expansion module can halt an entire production line within minutes. Holding a verified, pre-tested FX2N-16EX-ES/UL in your on-site spare parts inventory is one of the most cost-effective strategies for protecting uptime in facilities that continue to rely on the FX2N platform. With a 12-month warranty backed by NINERMAS and pre-shipment functional testing, this spare part is ready to install the moment it arrives on site.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer evaluates the FX2N-16EX-ES/UL as a replacement spare, the surrounding control cabinet ecosystem must be assessed simultaneously to avoid repeat failures and ensure a complete, stable restoration of the control loop.

Begin with the FX2N base CPU unit — models such as the FX2N-32MR-ES/UL or FX2N-64MR-ES/UL are the host controllers that the expansion module connects to via the extension bus. Verify that the base unit firmware and I/O allocation table are intact before installing the replacement module. If the base unit itself shows signs of age — erratic scan times, battery alarms, or corrupted program memory — it should be flagged for parallel replacement planning.

The FX2N-1PG pulse generator module and FX2N-2AD analog input module are commonly installed alongside the 16EX in mixed-signal control cabinets. During a cabinet inspection triggered by an I/O module fault, these adjacent special function modules should be checked for loose ribbon connectors and verified against the system’s I/O map.

Power supply integrity is critical. The FX2N-CNV-IF conversion interface and the 24VDC field power rail feeding the input terminals of the FX2N-16EX-ES/UL must be measured under load. A degraded SMPS or an undersized DIN-rail power supply — such as a 24V/5A unit shared across multiple expansion modules — can cause intermittent input faults that mimic a failed expansion module. Always verify supply voltage at the terminal block, not just at the PSU output.

Field wiring connected to the 16 input terminals should be inspected for insulation degradation, loose M3 terminal screws, and signal ground continuity. In environments with high-frequency drives or servo amplifiers — such as the Mitsubishi FR-E700 or FR-A700 series inverters — EMI-induced false triggering on DC input channels is a known failure mode. Shielded cable, proper grounding of cable shields at a single point, and ferrite cores on signal leads are recommended corrective measures.

For facilities running Mitsubishi GOT1000 or GOT2000 series HMI panels connected to the FX2N CPU via RS-422 or USB, confirm that the HMI communication parameters and I/O tag addresses remain consistent after the module swap. A module replacement that shifts the I/O numbering in the PLC program — due to incorrect extension bus sequencing — will cause the HMI to display incorrect process values until the program is corrected.

Relay output modules such as the FX2N-16EYR or FX2N-32ER installed in the same cabinet should have their output relay contact resistance checked during the same maintenance window. Relay contacts in high-cycle applications degrade independently of the input expansion module and are a common secondary fault source in aging FX2N systems.

Finally, review the cabinet’s terminal blocks, fuse holders, and surge protection devices. Blown fuses on the 24VDC input supply rail, failed surge arrestors on field signal lines, and corroded terminal block contacts are frequently overlooked root causes that lead to repeat I/O module failures if not addressed during the replacement event.

Site Replacement Workflow

Step 1 — Isolation and Backup: Place the FX2N CPU in STOP mode via the RUN/STOP switch or the GOT HMI. Use GX Developer or GX Works2 to upload and save the current PLC program and parameter file to a laptop before any hardware is disturbed. Confirm the program version matches the site documentation.

Step 2 — Power Down: De-energize the control cabinet via the main isolator. Verify absence of voltage on the 24VDC rail and all field supply circuits using a calibrated multimeter. Lock out and tag out per site LOTO procedures.

Step 3 — Module Removal: Disconnect all field wiring from the terminal block of the FX2N-16EX-ES/UL, labelling each wire or photographing the terminal layout before removal. Disconnect the extension bus connector. Remove the module from the DIN rail by releasing the mounting clip.

Step 4 — Inspection: Inspect the extension bus connector on the base unit and adjacent modules for bent pins, corrosion, or debris. Clean with isopropyl alcohol if required. Check the DIN rail grounding continuity.

Step 5 — Install Replacement: Mount the NINERMAS-supplied FX2N-16EX-ES/UL on the DIN rail. Connect the extension bus. Reconnect field wiring per the original terminal layout. Torque M3 terminal screws to 0.5–0.8 N·m.

Step 6 — Power-Up and Verification: Restore power. Place the CPU in RUN mode. Verify all 16 input LEDs respond correctly to field signals. Cross-check I/O status in GX Developer or the GOT HMI against the process state. Document the replacement in the site maintenance log.

Step 7 — Functional Test: Run a full I/O scan test and confirm no error codes appear on the FX2N CPU (ERR LED off, all special M flags normal). Restore normal production operation and monitor for one full production cycle before closing the work order.

Spare Parts Support FAQ

Q1: Is the FX2N-16EX-ES/UL still available as a new or equivalent spare part?
The FX2N series has reached end-of-production status with Mitsubishi Electric, but service-ready units remain available through specialist industrial spare parts suppliers. NINERMAS maintains stock of the FX2N-16EX-ES/UL and equivalent-condition units that have been functionally tested and verified prior to shipment. Each unit ships with a 12-month warranty. For long-term supply planning, we recommend securing a minimum of two units per installed base to cover both immediate replacement and standby inventory needs.

Q2: How is compatibility with my existing FX2N system confirmed before shipment?
Compatibility is confirmed based on the FX2N extension bus standard, which is consistent across all FX2N base CPU models (16MR through 128MR variants). The FX2N-16EX-ES/UL connects via the standard FX2N extension bus and does not require firmware matching with the CPU. If your system uses a mixed FX2N/FX2NC configuration, please contact our technical team at sale@ninermas.com with your base unit model number before ordering to confirm bus interface compatibility.

Q3: What pre-shipment testing is performed on each unit?
Every FX2N-16EX-ES/UL dispatched by NINERMAS undergoes a functional I/O verification test: all 16 input channels are individually activated and confirmed via a test PLC program before the unit is packaged. Units that fail any channel test are quarantined and not shipped. A test report is available upon request. Units are packed in anti-static packaging with physical protection for the terminal block and extension bus connector.

Q4: Can NINERMAS support long-term or scheduled spare parts supply for FX2N systems?
Yes. NINERMAS offers long-term spare parts supply agreements for facilities managing aging FX2N-based control systems. This includes scheduled stock reservation, priority dispatch for emergency orders, and multi-unit pricing for annual maintenance budgets. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss a supply arrangement tailored to your maintenance schedule and installed base size.
