MITSUBISHI FX2N-128MR-001 Safety-Reliable PLC for Critical Control

MITSUBISHI FX2N-128MR-001: Safety-Reliable PLC for Critical Industrial Control Sites

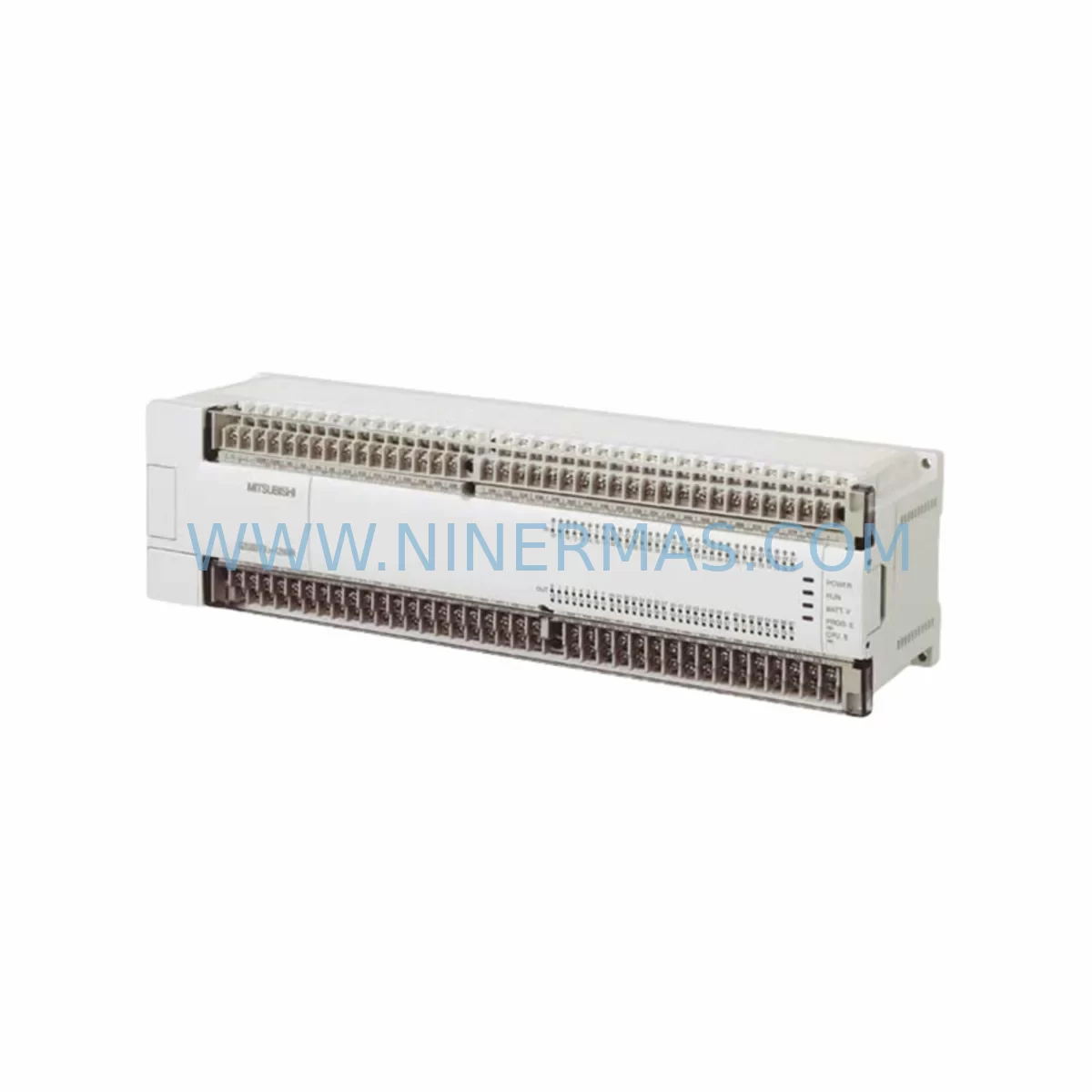

The MITSUBISHI FX2N-128MR-001 is a high-performance relay output programmable logic controller engineered for demanding industrial environments where control continuity, safety interlock integrity, and long-term operational reliability are non-negotiable. As part of Mitsubishi Electric’s proven MELSEC FX2N Series, this 128-point I/O PLC delivers the processing speed, noise immunity, and environmental resilience required for critical control sites across process industries, heavy manufacturing, and infrastructure operations.

In continuous production facilities — where an unplanned shutdown can cost tens of thousands of dollars per hour — the FX2N-128MR-001 provides the stable, deterministic scan cycle performance that safety engineers and control system integrators depend on. Its relay output architecture ensures robust isolation between the control logic and field devices, dramatically reducing the risk of signal cross-contamination, false triggering, and output short-circuit propagation that can cascade into dangerous machine states.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the FX2N-128MR-001 as the central logic controller in a critical control cabinet requires a layered protection strategy to eliminate the most common causes of unplanned downtime and safety incidents. In high-electromagnetic-interference environments — such as those found near variable frequency drives, large motor starters, or arc welding equipment — the FX2N-128MR-001’s built-in noise filter and relay output isolation provide a first line of defense against signal drift and spurious output activation.

For power supply stability, pairing the FX2N-128MR-001 with a Mitsubishi FX2N-1PG pulse generator module or a dedicated DIN-rail 24VDC power supply unit with active power factor correction ensures that voltage sags, micro-interruptions, and harmonic distortion from heavy loads do not corrupt the PLC’s internal logic state. In facilities with frequent power fluctuations — common in mining, port crane operations, and steel rolling mills — an upstream surge protective device (SPD) rated for the control panel’s supply voltage is strongly recommended to protect the CPU module from transient overvoltage events.

Communication reliability is equally critical. The FX2N-128MR-001’s RS-422 port supports noise-immune differential signaling for long-distance connections to Mitsubishi GOT series HMI panels and SCADA systems. For multi-drop RS-485 networks, the FX2N-485-BD communication board extends the PLC’s connectivity to remote I/O stations, drives, and intelligent field instruments without introducing ground loop interference. In applications requiring Ethernet connectivity for MES integration or remote diagnostics, the FX2N-ENET-ADP Ethernet adapter provides seamless TCP/IP communication while maintaining the PLC’s deterministic scan performance.

Expansion I/O requirements in large control cabinets are addressed through the FX2N series’ modular expansion architecture. The FX2N-16EX input expansion module and FX2N-16EYR relay output expansion module allow the control system to scale without replacing the base unit, protecting the capital investment in the FX2N-128MR-001 platform. For analog process control loops — such as temperature, pressure, or flow regulation — the FX2N-4AD analog input module and FX2N-4DA analog output module integrate directly into the FX2N backplane, enabling closed-loop PID control within the same programming environment.

In safety interlock circuits, the relay output contacts of the FX2N-128MR-001 can be wired directly into hardwired emergency stop loops, motor contactor control circuits, and safety relay modules such as the Pilz PNOZ series or equivalent IEC 62061-compliant safety relays, providing a dual-channel shutdown path that meets the requirements of SIL 1 and SIL 2 safety functions when properly engineered. This architecture minimizes the risk of dangerous failure modes caused by output transistor latch-up — a known vulnerability of transistor-output PLCs in high-inductive-load environments.

Critical Industrial Safety Applications

The FX2N-128MR-001 has established a strong track record across the most demanding industrial sectors where control system failure carries significant safety, environmental, and financial consequences.

In petrochemical and refinery operations, the FX2N-128MR-001 is deployed in compressor anti-surge control panels, pump station interlock systems, and fired heater burner management auxiliary circuits. Its relay output contacts provide the galvanic isolation required to interface with field instruments operating on intrinsically safe barriers and Zener diode isolators in Zone 1 and Zone 2 hazardous areas.

In electric power generation and substation automation, the PLC manages auxiliary equipment control — including cooling fans, oil pumps, and circuit breaker position monitoring — where a control system malfunction could trigger a forced outage of generating capacity. The FX2N-128MR-001’s wide operating temperature range and vibration resistance make it suitable for installation in outdoor switchgear buildings and transformer substations subject to seasonal temperature extremes.

In underground and open-cut mining, the FX2N-128MR-001 controls conveyor belt safety systems, ventilation fan interlocks, and dewatering pump stations in environments characterized by coal dust, high humidity, and mechanical vibration. Its sealed control cabinet installation, combined with appropriate IP65 or IP66 enclosure selection, ensures reliable operation in these challenging conditions.

In municipal water treatment and wastewater facilities, the PLC manages dosing pump sequencing, UV disinfection system interlocks, and lift station pump alternation logic. The reliability of the FX2N-128MR-001’s relay outputs is particularly valued in these applications, where a failed output could result in either under-treatment of drinking water or overflow of untreated sewage — both carrying serious regulatory and public health consequences.

In port and bulk material handling terminals, the FX2N-128MR-001 is integrated into ship loader and stacker-reclaimer control systems, where it manages conveyor sequencing, belt misalignment detection, and emergency stop circuits across extended cable runs subject to high electromagnetic interference from large variable speed drives and slip ring motors.

Safety and Quality FAQ

Q1: What warranty does the FX2N-128MR-001 carry when purchased from NINERMAS?
All FX2N-128MR-001 units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team with replacement dispatch or repair service, minimizing your site’s exposure to extended downtime.

Q2: What pre-shipment testing is performed on each unit?
Every FX2N-128MR-001 undergoes a comprehensive outgoing quality inspection prior to dispatch, including power-on functional verification, I/O point continuity testing, and communication port validation. Units are shipped in original or equivalent protective packaging to prevent transit damage. Test records are available upon request for critical project documentation requirements.

Q3: Is the FX2N-128MR-001 compatible with existing FX2N expansion modules and programming software?
Yes. The FX2N-128MR-001 is fully compatible with the complete range of Mitsubishi FX2N series expansion modules, special function modules, and communication adapters. It is programmed using Mitsubishi’s GX Developer or GX Works2 software, ensuring seamless integration into existing FX2N-based control architectures without requiring hardware or software platform changes.

Q4: Can NINERMAS support long-term supply and emergency replacement requirements?
NINERMAS maintains dedicated stock of the FX2N-128MR-001 and key FX2N series components to support both planned maintenance programs and emergency breakdown replacement scenarios. We understand that production continuity is critical — our team is available to process urgent orders with expedited shipping to minimize your plant’s exposure to unplanned downtime. Contact us at sale@ninermas.com or +0086 187 5021 5667 for availability confirmation and lead time.
