Mitsubishi FX1N-40MR-001 Service-Ready Spare Part

Mitsubishi FX1N-40MR-001 Service-Ready Spare Part for Industrial Maintenance

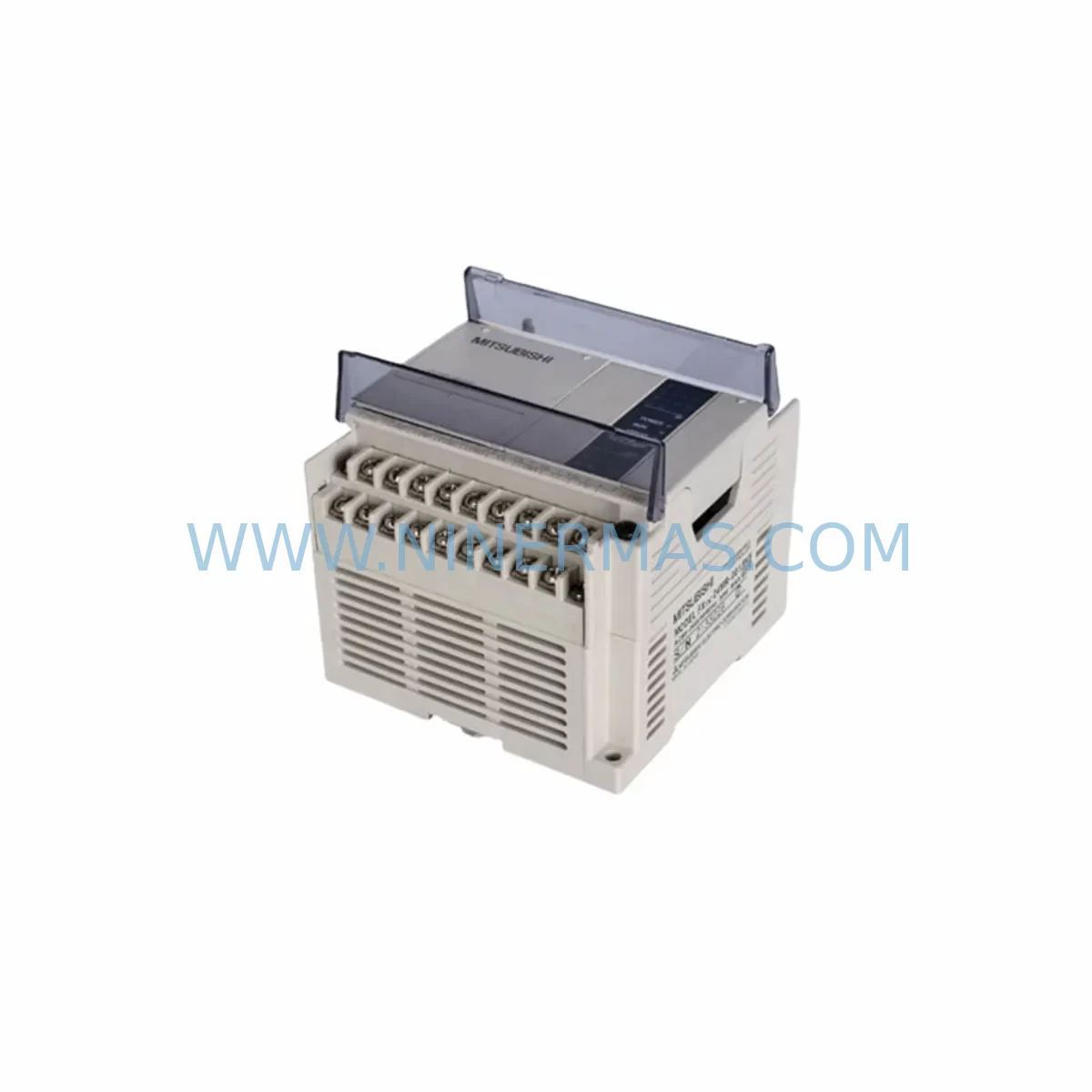

The Mitsubishi FX1N-40MR-001 is a compact, high-reliability programmable logic controller (PLC) main unit from Mitsubishi Electric’s FX1N series — one of the most widely deployed control platforms in discrete manufacturing, packaging lines, material handling systems, and process automation environments across Asia-Pacific and global industrial markets. When this unit fails or reaches end-of-service life, unplanned downtime can cascade rapidly across an entire production cell. NINERMAS maintains verified stock of the FX1N-40MR-001 to support maintenance engineers and procurement teams who need a fast, dependable replacement with full compatibility assurance and a 12-month warranty.

The FX1N-40MR-001 features 24 DC inputs and 16 relay outputs (40 I/O total), an onboard RUN/STOP switch, built-in RS-422 programming port, and supports ladder logic programming via GX Developer or GX Works2. Its relay output configuration makes it suitable for controlling motors, solenoids, and contactors in environments where output isolation and switching durability are critical. With a supply voltage of 100–240V AC and a compact DIN-rail form factor, it integrates directly into existing FX1N-series control cabinets without panel modification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined spare parts strategy around the FX1N-40MR-001 extends well beyond the PLC unit itself. Maintenance engineers performing a scheduled replacement or emergency swap should treat the event as an opportunity to inspect and, where necessary, pre-emptively replace adjacent components that share the same electrical environment and failure timeline.

Begin with the FX1N-40MR-001‘s power supply circuit. The FX1N-PS-5V or equivalent 24VDC field power supply feeding the input commons should be load-tested; a degraded power supply is a frequent root cause of intermittent PLC faults that are misdiagnosed as CPU failures. Inspect the FX1N-CNV-BD communication board if RS-232C or RS-485 connectivity to an HMI or SCADA system is in use — connector oxidation and board fatigue are common after five or more years of continuous operation.

For systems using expansion I/O, the FX1N-8EX-ES/UL (8-point DC input expansion) and FX1N-8EYR-ES/UL (8-point relay output expansion) should be inspected for relay contact wear, especially on outputs driving inductive loads such as motor starters or solenoid valves. Relay output modules in high-cycle applications may require replacement on a shorter interval than the main CPU unit.

Terminal blocks and wiring within the control cabinet deserve close attention during any PLC replacement. Phoenix Contact MKDS or equivalent screw-type terminal strips used for field wiring termination should be checked for loose connections, insulation degradation, and corrosion — particularly in humid or chemically aggressive environments. Ferrule crimping on stranded conductors should be verified to prevent intermittent input signal faults post-replacement.

If the FX1N-40MR-001 communicates with an F940GOT or F940WGOT HMI panel via RS-422, verify the communication cable integrity and the HMI’s internal battery status. A depleted HMI battery can cause screen parameter loss during power cycling, which may be mistakenly attributed to the new PLC unit during commissioning. Similarly, if a FX1N-232-BD or FX1N-485-BD communication board is installed, confirm firmware compatibility with the replacement unit before energizing.

For systems with analog signal conditioning, the FX1N-2AD-BD analog input board or external signal isolators (such as those from the Phoenix Contact MINI Analog series) should be calibrated and verified after the PLC swap, as analog reference voltages may shift slightly between unit revisions. Procurement teams building annual maintenance kits for FX1N-based lines should consider stocking the FX1N-40MR-001 alongside one FX1N-8EX expansion module, a spare CNV-BD communication board, and a set of replacement fuses for the field power distribution rail.

Site Replacement Workflow

Step 1 — Pre-Replacement Backup: Connect GX Developer or GX Works2 via the RS-422 port and perform a full program backup to PC. Verify the backup file against the last known-good version in your document management system. Record all D-register and timer preset values if the application uses retentive data.

Step 2 — Power Isolation: De-energize the control cabinet via the main isolator. Verify absence of voltage on the PLC power supply terminals using a calibrated multimeter. Lock out / tag out (LOTO) per site safety procedures before proceeding.

Step 3 — Wiring Documentation: Photograph or sketch the existing I/O wiring layout before disconnecting. Label each wire group by terminal number. The FX1N-40MR-001 uses a fixed terminal block arrangement — confirm the replacement unit’s terminal layout matches before re-terminating.

Step 4 — Module Removal and Installation: Remove the existing unit from the DIN rail. Transfer any installed communication boards (FX1N-232-BD, FX1N-485-BD, FX1N-CNV-BD) to the replacement unit. Seat the replacement FX1N-40MR-001 on the DIN rail and reconnect all field wiring per the documented layout.

Step 5 — Program Restore and Commissioning: Restore the backed-up program via GX Developer or GX Works2. Set the RUN/STOP switch to STOP, energize the unit, and verify no error LEDs are active. Restore the program, set to RUN, and perform a functional I/O check before returning the line to production.

This workflow minimizes mean time to repair (MTTR) and ensures the replacement unit is fully validated before production restart — reducing the risk of secondary faults caused by wiring errors or program version mismatches.

Spare Parts Support FAQ

Q1: Is the FX1N-40MR-001 still available as a new original spare part?
Yes. NINERMAS maintains verified stock of the Mitsubishi FX1N-40MR-001 sourced from authorized distribution channels. Each unit is inspected and function-tested prior to shipment. While Mitsubishi Electric has transitioned newer product lines to the iQ-F (FX5U) series, the FX1N-40MR-001 remains available as a service spare to support legacy installations. We recommend procurement teams secure multi-unit stock to cover planned maintenance cycles and emergency replacement scenarios.

Q2: How is compatibility with my existing FX1N system verified before shipment?
All FX1N-40MR-001 units are verified against the published Mitsubishi Electric FX1N Hardware Manual (JY992D88201) for I/O configuration, power supply ratings, and communication port specifications. If your application uses specific firmware revisions or expansion modules, our technical team can cross-reference your system configuration prior to order confirmation. We recommend providing your existing unit’s serial number and any installed board model numbers when placing your order.

Q3: What is covered under the 12-month warranty, and what is the claims process?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact sale@ninermas.com with your order number, a description of the fault, and any available diagnostic data (error codes, LED status). Replacement or repair will be processed within the agreed lead time stated at the time of claim.

Q4: Can NINERMAS support long-term supply agreements for FX1N-40MR-001 across multiple sites?
Yes. NINERMAS supports blanket purchase orders and long-term supply agreements for maintenance teams managing multiple FX1N-based production lines. We offer reserved stock allocation, scheduled delivery programs, and consolidated invoicing for multi-site procurement. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss your annual consumption requirements and establish a supply framework that eliminates last-minute sourcing risk.
