Mitsubishi FX0N-8EYT Safety-Reliable Digital Output Module

Mitsubishi FX0N-8EYT Safety-Reliable Digital Output Module for Critical Control Sites

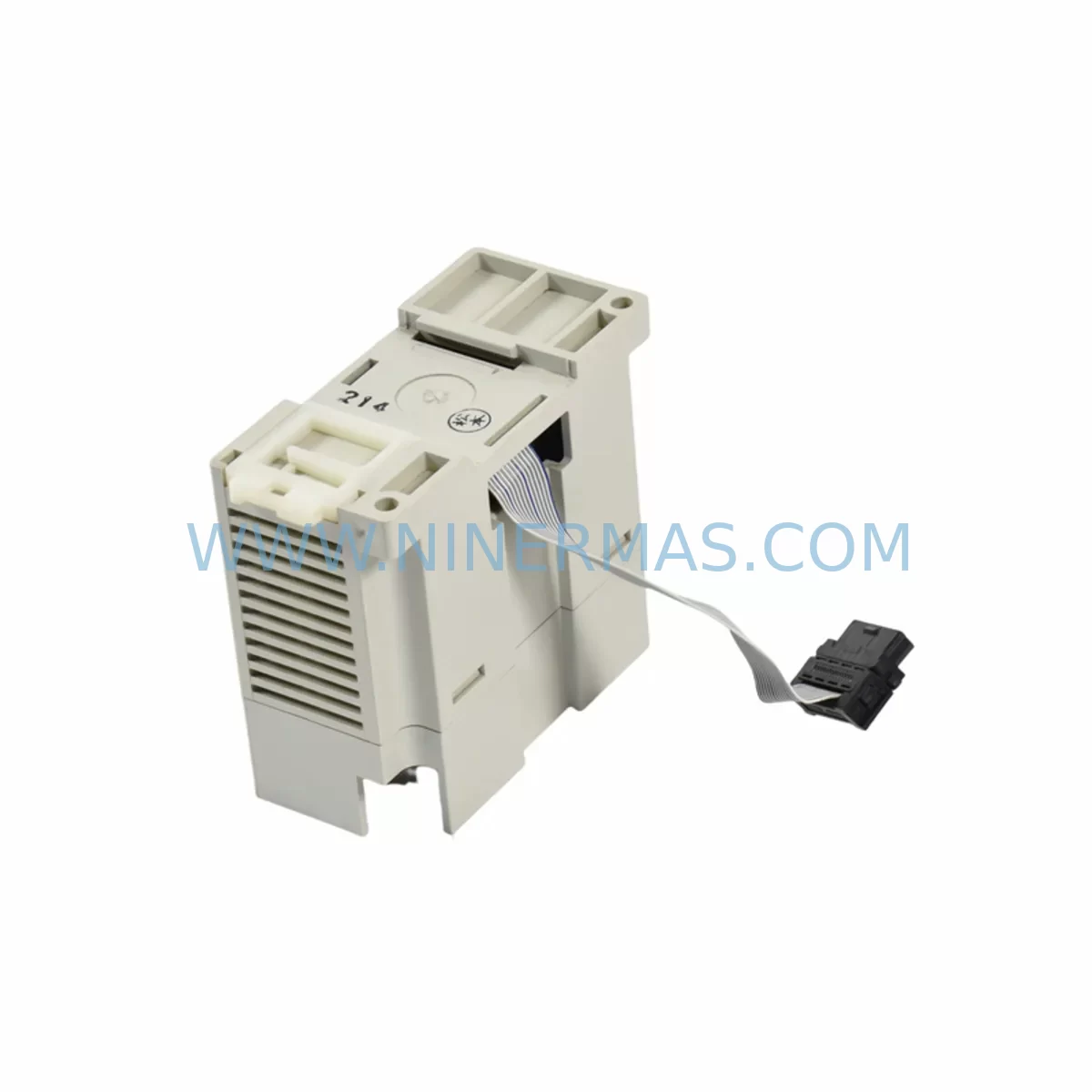

The Mitsubishi Electric FX0N-8EYT is an 8-point transistor (sink) digital output expansion module designed for the MELSEC FX0N series programmable logic controller platform. Built to deliver consistent, interference-resistant switching performance in demanding industrial environments, the FX0N-8EYT is a trusted component for engineers who cannot afford control interruptions in continuous production, critical interlock circuits, or high-load control cabinets. Whether deployed in petrochemical processing, power distribution, metallurgical plants, or water treatment facilities, this module provides the output reliability that safety-critical automation demands.

At NINERMAS, every FX0N-8EYT unit undergoes pre-shipment functional testing to verify output switching integrity, insulation resistance, and terminal continuity before dispatch. Our long-term inventory program ensures stable supply for lifecycle extension projects, planned maintenance shutdowns, and emergency spare parts replacement — backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered MELSEC FX0N control cabinet, the FX0N-8EYT output module works in close coordination with the host CPU unit — typically an FX0N-24MR or FX0N-40MR main unit — to drive field actuators including solenoid valves, motor contactors, indicator lamps, and relay coils. The transistor output architecture eliminates the mechanical wear and contact bounce associated with relay outputs, making it the preferred choice for high-frequency switching cycles in continuous production lines where output degradation could trigger nuisance trips or interlock failures.

Power supply stability is foundational to safe output operation. Pairing the FX0N-8EYT with a dedicated Mitsubishi FX-30P or equivalent 24 VDC regulated power supply ensures that load voltage remains within the module’s rated 5–24 VDC window even during motor start transients or capacitive load surges. In environments with significant electromagnetic interference — such as variable frequency drive (VFD) panels, arc welding stations, or high-current bus bars — the module’s built-in photocoupler isolation provides a critical barrier against common-mode noise coupling into the PLC backplane, preventing signal drift and spurious output activation.

For applications requiring expanded I/O capacity, the FX0N-8EYT can be cascaded with FX0N-8EX digital input expansion modules and FX0N-8ER relay output modules to build a complete mixed I/O configuration. In safety interlock circuits, the transistor outputs of the FX0N-8EYT are often used to drive the coils of safety relay modules (such as Pilz PNOZ or Schneider Electric XPSAF series), ensuring that the PLC’s logical safety commands are faithfully translated into de-energized field circuits during emergency stop conditions. Communication integrity between the FX0N CPU and SCADA or HMI systems — typically via FX0N-232ADP RS-232C communication adapters or FX0N-485ADP RS-485 adapters — is equally important, as communication anomalies can mask output faults or delay alarm acknowledgment in critical control loops.

In dusty, humid, or high-vibration environments such as cement plants, mining conveyors, or offshore platforms, the module’s screw terminal block connections should be torqued to specification and periodically re-inspected to prevent contact resistance creep. Supplementing the control cabinet with FX0N-8EYT hot-spare units in the site’s spare parts inventory eliminates the risk of extended downtime caused by module failure during a production campaign — a practice strongly recommended for any facility operating on a continuous or semi-continuous basis.

Critical Industrial Safety Applications

The Mitsubishi FX0N-8EYT has established a reliable service record across a broad spectrum of safety-critical industrial applications:

Petrochemical and Refinery Plants: In hazardous area control panels (Zone 2 / Class I Div 2 with appropriate barriers), the FX0N-8EYT drives solenoid valve actuators in emergency shutdown (ESD) sequences, where output response time and switching reliability directly affect process containment integrity. Its photocoupler isolation prevents ground loop currents from corrupting the PLC’s internal logic during high-voltage transients common in refinery environments.

Electric Power Generation and Distribution: Substation automation panels and generator control units rely on the FX0N-8EYT to execute breaker trip commands, alarm annunciator outputs, and load-shedding relay activations. The module’s low leakage current (≤ 0.1 mA) ensures that relay coils in the de-energized state remain reliably open, preventing phantom trips in sensitive protection circuits.

Mining and Mineral Processing: Conveyor belt interlock systems, crusher control panels, and ventilation fan controllers in underground and open-pit mining operations benefit from the module’s vibration resistance (10–55 Hz, 0.5 mm amplitude) and wide operating temperature range. The FX0N-8EYT maintains stable output switching even when control cabinets are subjected to continuous structural vibration from heavy machinery.

Water and Wastewater Treatment: Pump station control panels and chemical dosing systems in water treatment facilities operate in high-humidity environments where condensation and corrosive chemical vapors can degrade electronic components. The FX0N-8EYT’s rated humidity tolerance (5–95% RH, non-condensing) and robust terminal block design support reliable long-term operation in these challenging conditions.

Metallurgy and Steel Production: Rolling mill control systems, furnace temperature regulation panels, and ladle transfer automation in steel plants demand output modules capable of withstanding intense electromagnetic interference from high-current induction heating equipment and large DC motor drives. The FX0N-8EYT’s 1,500 Vp-p noise immunity rating provides a meaningful safety margin in these electromagnetically hostile environments.

Port and Maritime Logistics: Crane control systems, ship-to-shore loader automation, and bulk material handling conveyors in port terminals require I/O modules that perform reliably in salt-laden, humid air and under the mechanical shock loads associated with heavy lifting operations. The FX0N-8EYT’s compact form factor and robust construction make it a practical choice for space-constrained marine control panels.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the FX0N-8EYT?
The NINERMAS 12-month warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions as specified in the Mitsubishi Electric FX0N-8EYT hardware manual. Warranty claims are supported by our technical team with replacement dispatch or repair service. Physical damage caused by incorrect wiring, overvoltage, or improper installation is excluded.

Q2: What pre-shipment tests are performed on each FX0N-8EYT unit?
Every unit dispatched from NINERMAS undergoes a structured pre-shipment inspection that includes: (1) output switching function test for all 8 channels under rated load conditions; (2) insulation resistance measurement between I/O terminals and the internal circuit; (3) terminal block continuity and torque verification; and (4) visual inspection for physical damage, label integrity, and connector condition. Test records are retained and available upon request for quality-critical procurement.

Q3: Is the FX0N-8EYT compatible with all MELSEC FX0N CPU units?
Yes. The FX0N-8EYT is designed as a standard expansion module for the entire MELSEC FX0N CPU range, including the FX0N-14MR, FX0N-24MR, FX0N-40MR, and FX0N-60MR. It connects via the FX0N expansion bus connector and is recognized automatically by the CPU without additional parameter configuration. Compatibility with FX1N and FX2N series CPUs is not supported — dedicated expansion modules for those platforms should be selected separately.

Q4: Can NINERMAS support long-term supply for lifecycle extension programs?
Yes. NINERMAS maintains a dedicated stock commitment program for long-lifecycle Mitsubishi MELSEC FX0N series components, including the FX0N-8EYT, FX0N-8EX, FX0N-8ER, and associated CPU units. We support planned maintenance schedules, annual spare parts procurement contracts, and emergency replacement orders with expedited dispatch. Our supply program is designed to support facilities that cannot migrate to newer PLC platforms due to process certification, capital constraints, or system integration complexity.
