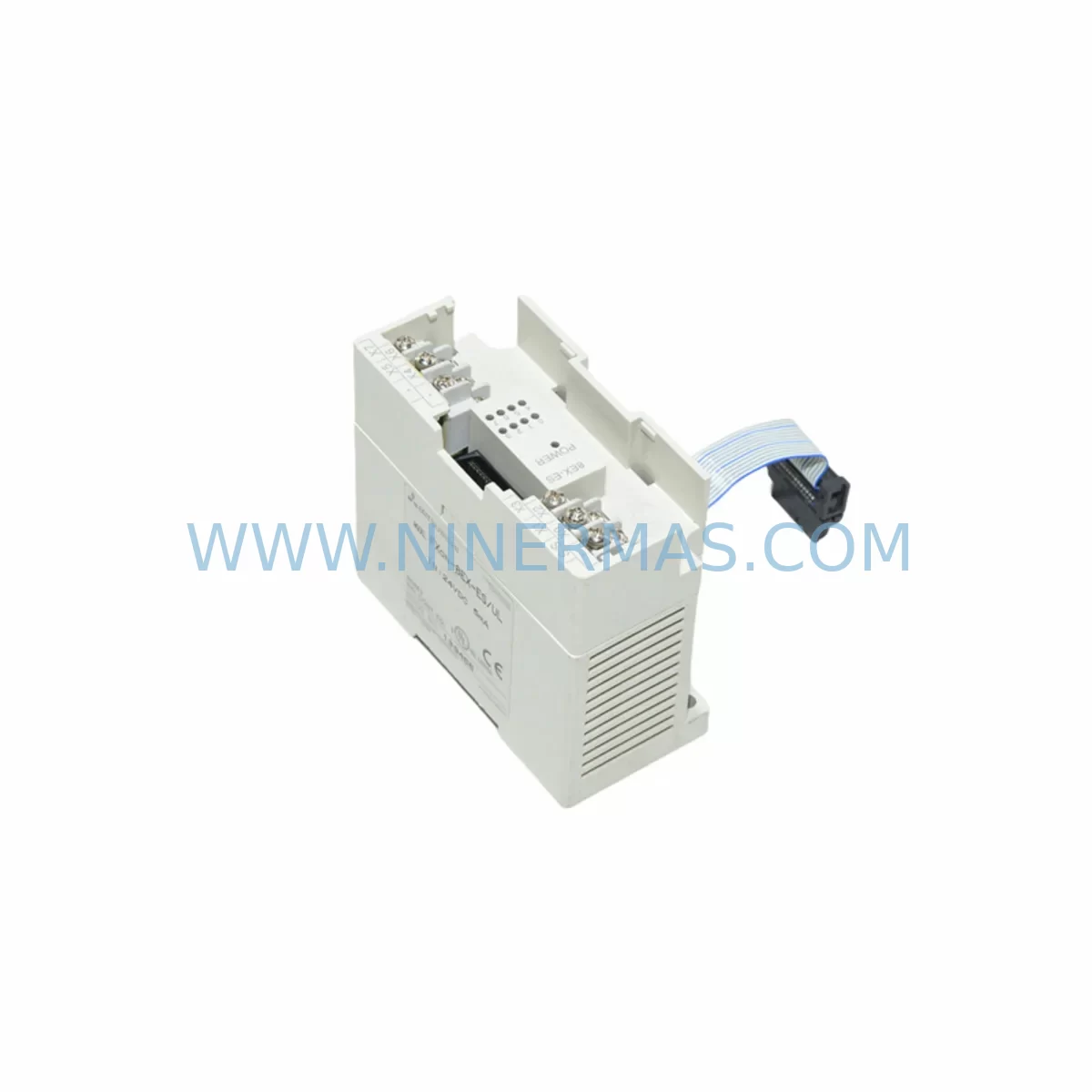

Mitsubishi FX0N-8EX Safety-Reliable Digital Input Module

Mitsubishi FX0N-8EX Safety-Reliable Digital Input Module for Critical Control Sites

The Mitsubishi FX0N-8EX is an 8-point digital input expansion module engineered for the FX0N series programmable logic controller platform. Designed to extend the I/O capacity of FX0N base units in demanding industrial environments, the FX0N-8EX delivers consistent, interference-resistant signal acquisition across continuous production lines, critical interlock circuits, and high-load control cabinets where unplanned downtime carries serious operational and safety consequences.

At NINERMAS, every FX0N-8EX unit is sourced through verified supply channels, subjected to outgoing inspection before dispatch, and backed by a 12-month warranty. Long-term stock availability ensures that maintenance teams can secure replacement units without lead-time risk, supporting both planned overhauls and emergency spare-parts strategies.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets serving continuous processes — petrochemical reactors, power distribution switchgear, mining conveyor drives, or water treatment dosing systems — every I/O expansion point is a potential failure node. The FX0N-8EX mitigates this risk through photocoupler-based optical isolation, which physically separates field-side wiring from the PLC logic bus. This architecture prevents ground loops, surge transients, and high-frequency EMI from propagating into the controller, dramatically reducing the probability of spurious input signals that could trigger unintended actuator responses or interlock trips.

When integrated alongside the Mitsubishi FX0N-8ER relay output expansion module, the FX0N-8EX forms a balanced I/O pair capable of handling both discrete sensing and direct load switching within a single compact cabinet footprint. For applications requiring analog process variables — pressure, temperature, flow — pairing the FX0N-8EX with an FX0N-3A analog I/O module allows the FX0N base unit to supervise both digital safety interlocks and continuous process feedback from a unified program scan.

Power quality is a silent threat in heavy industrial environments. Voltage sags, micro-interruptions, and surge events caused by large motor starts or capacitor bank switching can corrupt PLC memory or cause unexpected CPU resets. Protecting the FX0N base unit with a dedicated 24 VDC regulated power supply — such as units from the Mitsubishi PS series or equivalent DIN-rail SMPS — and adding a surge protection device (SPD) on incoming AC lines ensures that the FX0N-8EX and its host controller remain energized and stable through transient events. An uninterruptible power supply (UPS) module at the panel level provides ride-through capability during brief grid interruptions, preventing mid-cycle shutdowns in batch or continuous processes.

Communication integrity is equally critical. In distributed control architectures where the FX0N communicates upstream via RS-485 or CC-Link fieldbus, signal degradation or bus collisions can cause the master controller to misread I/O states. Installing RS-485 line terminators and optical fiber communication converters where cable runs exceed recommended lengths eliminates reflections and galvanic coupling issues. For cabinet environments with severe vibration — such as those mounted near compressors, crushers, or marine diesel engines — using vibration-damping DIN-rail mounting clips and ensuring all terminal screws on the FX0N-8EX are torqued to specification prevents intermittent contact faults that are notoriously difficult to diagnose during live production.

Thermal management within the control cabinet directly affects the long-term reliability of every installed component. Pairing the FX0N-8EX with a properly sized cabinet cooling unit or thermostat-controlled fan assembly keeps ambient temperature within the module’s rated operating range, preventing accelerated component aging. Where dust and moisture ingress are concerns — common in cement plants, grain handling facilities, and coastal installations — ensuring the enclosure achieves at least IP54 protection at the cabinet level complements the FX0N-8EX’s panel-mount IP20 rating and maintains a clean internal environment.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the FX0N-8EX serves as the discrete input interface for emergency shutdown (ESD) pushbuttons, pressure switch contacts, and flame detector relay outputs. Its optical isolation ensures that high-voltage transients present on field instrument cables — common near high-power motor control centers — cannot propagate into the safety PLC logic, preserving the integrity of the interlock chain.

Electric Power Generation & Substation Automation: Substations and power plant auxiliary systems rely on reliable digital input acquisition to monitor breaker status, relay trip signals, and transformer protection contacts. The FX0N-8EX’s noise immunity makes it well-suited for environments with strong electromagnetic fields generated by high-voltage busbars and current transformers.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to severe vibration, coal dust, and humidity. The FX0N-8EX, installed in sealed control panels, monitors conveyor belt run/stop status, overload relay contacts, and emergency pull-cord switches, providing the FX0N CPU with accurate real-time field status even under harsh mechanical and environmental stress.

Water & Wastewater Treatment: Pump stations, dosing systems, and filtration plants require continuous monitoring of level switches, flow switches, and valve position feedback. The FX0N-8EX reliably captures these dry-contact signals and feeds them to the FX0N controller, enabling automated process responses that protect equipment and maintain regulatory compliance without operator intervention.

Metallurgy & Steel Production: Rolling mills and furnace control systems operate in environments with extreme heat, vibration, and electromagnetic interference from induction heating equipment. The FX0N-8EX’s robust isolation and wide operating temperature range allow it to function reliably in these demanding conditions, monitoring cooling water flow switches, furnace door limit switches, and drive fault contacts.

Port & Marine Applications: Crane control systems, ship engine room automation, and port conveyor management systems benefit from the FX0N-8EX’s compact form factor and reliable input acquisition in high-humidity, salt-air environments. Its compatibility with the FX0N platform makes it a practical choice for retrofitting aging marine automation panels where space is constrained.
