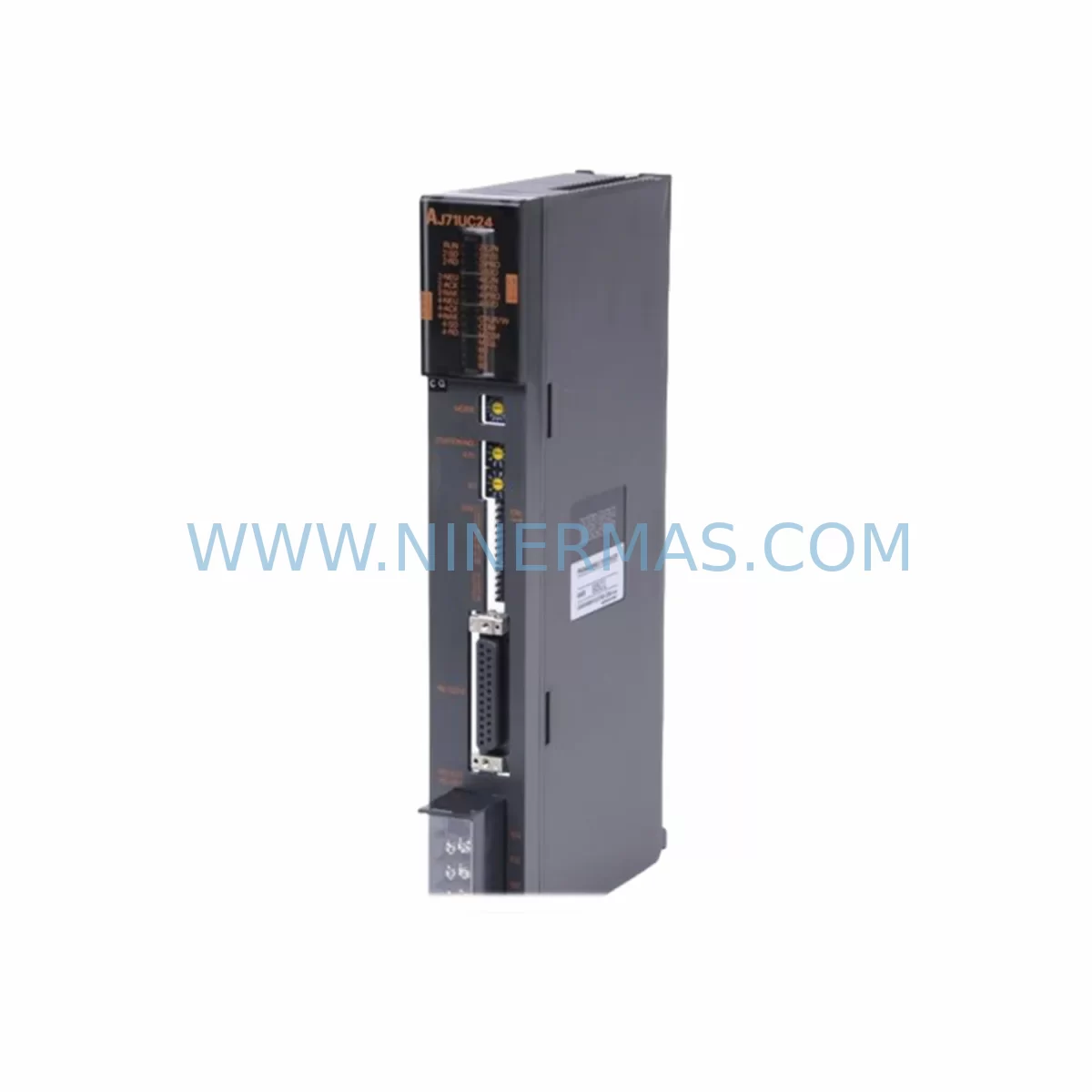

The Mitsubishi AJ71UC24 is a MELSEC A-Series communication module designed for industrial automation environments where system uptime and reliable data exchange are critical. As a service-ready spare part sourced and tested by NINERMAS, this unit supports maintenance engineers and procurement teams in executing fast, low-risk replacements that minimize production downtime and restore control system integrity.

Whether you are managing a scheduled annual overhaul, responding to an unplanned fault, or building a strategic spare parts inventory for aging MELSEC A-Series infrastructure, the AJ71UC24 represents a proven, compatible solution. Its role in the control cabinet — bridging the CPU backplane with external communication networks — makes it a high-priority component in any preventive maintenance program.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AJ71UC24 in a MELSEC A-Series control system, a thorough site inspection is essential to prevent secondary failures and ensure full system recovery. Maintenance engineers should begin by verifying the integrity of the A-Series backplane and confirming that the slot connector shows no signs of oxidation or mechanical damage. The backplane bus directly powers the communication module, and any degradation here can cause intermittent faults even after a successful module swap.

The A1S61PN or A1S62PN power supply module should be checked for output voltage stability — an aging power supply delivering marginal 5 VDC can cause the AJ71UC24 to reset unexpectedly or fail to initialize. Alongside the power supply, inspect the A1SCPU or A2SCPU CPU module for firmware version compatibility and confirm that the communication parameters stored in the CPU program match the replacement module’s configuration.

Serial communication wiring connected to the AJ71UC24’s RS-232C or RS-422 ports should be inspected for continuity and shielding integrity. Damaged or unshielded serial communication cables are a common source of noise-induced communication errors in industrial environments. Terminal blocks and connector housings at both ends of the cable run should be tightened and verified.

If the AJ71UC24 is used in a multi-drop RS-422 network, check the termination resistors at the network endpoints and confirm that all connected devices — such as HMI panels, SCADA gateways, or remote I/O adapters — are powered and responding. In systems where the AJ71UC24 interfaces with an A1SJ71UC24-R4 or AJ71C24-S8 counterpart module on a remote rack, both ends of the communication link should be replaced or verified simultaneously to avoid asymmetric failure modes.

For procurement engineers building a strategic spare parts inventory, it is advisable to stock companion components alongside the AJ71UC24. Key items include the A1S68B or A1S52B extension base unit for rack expansion scenarios, AX40 or AX80 digital input modules for I/O restoration, and AY40 or AY80 digital output modules for output-side recovery. Fuse holders and replacement fuses rated for the control cabinet’s protection circuit should also be maintained on-site to support rapid fault isolation.

In facilities running legacy MELSEC A-Series systems beyond their standard product lifecycle, NINERMAS provides long-term supply continuity for the AJ71UC24 and associated modules. All units are pre-tested, individually packaged, and shipped with documentation to support incoming inspection at the customer’s facility.

Site Replacement Workflow

Before beginning the physical replacement of the AJ71UC24, power down the PLC rack following your site’s lockout/tagout procedure. Document the existing DIP switch settings and parameter configuration stored in the CPU — these settings govern baud rate, data format, station number, and communication mode, and must be replicated exactly on the replacement unit.

Remove the faulty AJ71UC24 by releasing the module locking lever and sliding it clear of the backplane slot. Inspect the slot connector on the backplane for bent pins or contamination before inserting the replacement. Configure the DIP switches on the new AJ71UC24 to match the documented settings, then seat the module firmly and secure the locking lever.

Restore power and monitor the module’s LED indicators during initialization. The RUN LED should illuminate steadily, and communication activity LEDs should begin cycling once the CPU re-establishes the communication link. If the module fails to initialize, verify the CPU program’s communication parameters and confirm that the connected external device is powered and configured correctly.

This workflow applies equally to planned replacement during annual maintenance shutdowns and to emergency replacement following an unplanned fault. NINERMAS ships the AJ71UC24 with pre-shipment functional testing completed, reducing the risk of receiving a non-functional unit during a critical recovery operation.

Spare Parts Support FAQ

Q: Is the AJ71UC24 still available as a new original spare part?
A: Yes. NINERMAS maintains stock of the AJ71UC24 as a service-ready original spare part. All units are sourced, inspected, and tested before shipment to support industrial maintenance requirements.

Q: What warranty is provided with the AJ71UC24?
A: Every AJ71UC24 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions.

Q: How do I confirm compatibility with my existing MELSEC A-Series system?
A: Compatibility is determined by your PLC CPU model, backplane type, and the communication protocol in use. Please provide your CPU model number and system configuration when enquiring, and our technical team will confirm compatibility before shipment.

Q: Can NINERMAS support long-term supply of the AJ71UC24 for ongoing maintenance programs?
A: Yes. NINERMAS specializes in long-term supply of legacy industrial spare parts. We can support scheduled procurement programs, blanket orders, and emergency supply requirements for the AJ71UC24 and related MELSEC A-Series components.
