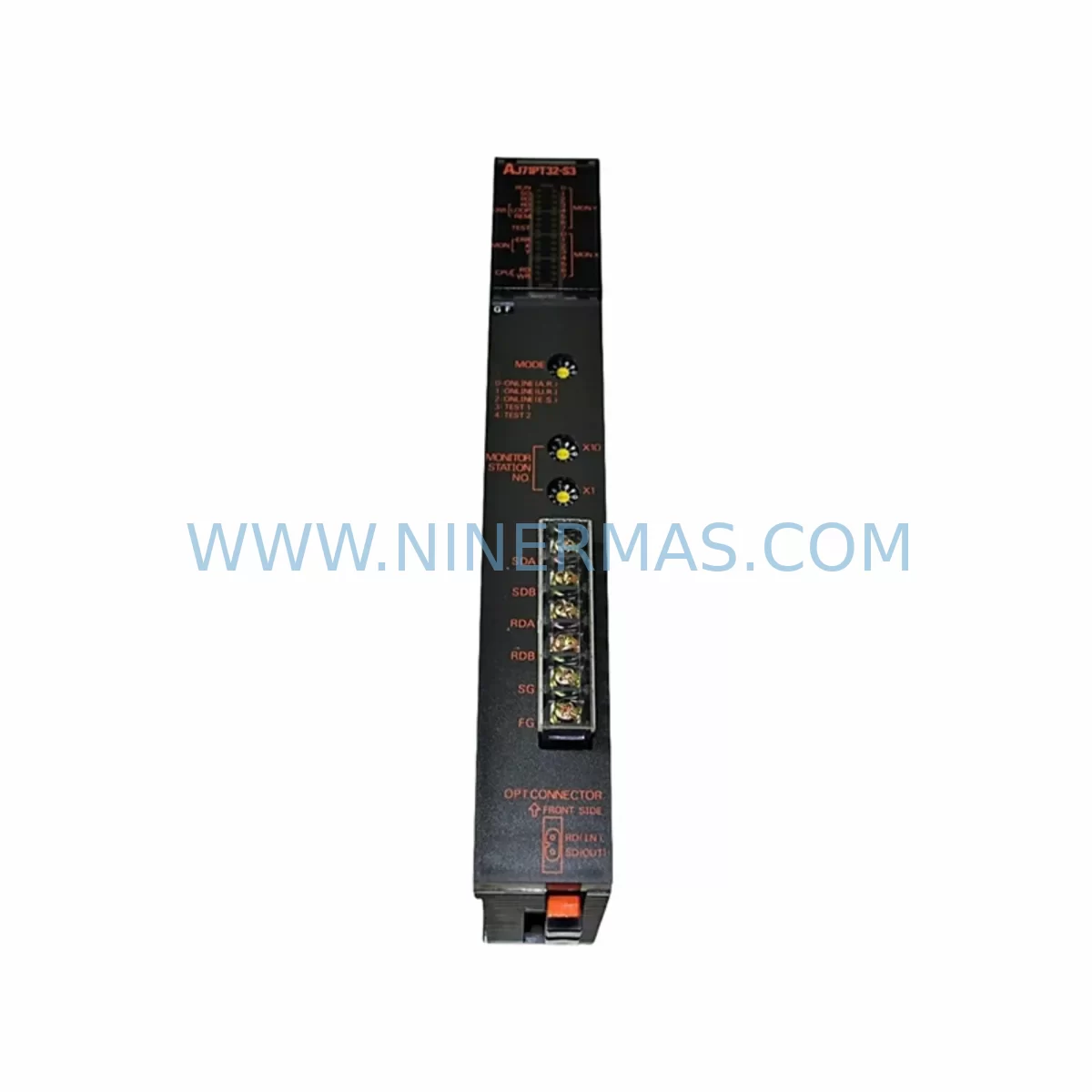

Mitsubishi AJ71PT32-S3 Safety-Reliable MELSEC-A I/O Link Module

Mitsubishi AJ71PT32-S3 Safety-Reliable MELSEC-A I/O Link Module for Critical Control Sites

The Mitsubishi AJ71PT32-S3 is a dedicated I/O Link communication module designed for the MELSEC-A Series programmable logic controller platform. Engineered for continuous production environments, this module delivers stable, low-latency I/O data exchange between the CPU base unit and remote I/O stations — making it a cornerstone component in safety-critical control architectures across heavy industry, process automation, and infrastructure facilities.

In demanding field environments where electromagnetic interference, voltage fluctuation, vibration, and thermal stress are constant threats, the AJ71PT32-S3 maintains deterministic communication integrity. Its robust hardware design minimizes the risk of signal drift, communication timeouts, and unplanned control interruptions — all of which can cascade into costly production stoppages or, in worst-case scenarios, safety incidents at critical interlock stations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered MELSEC-A control cabinet, the AJ71PT32-S3 does not operate in isolation — it functions as part of a tightly integrated safety and control ecosystem. Reliable I/O link communication depends on the stability of every upstream and downstream component in the control loop.

At the power supply layer, modules such as the A1S61PN and A1S62PN power supply units provide regulated 5 VDC and 24 VDC rails to the backplane, ensuring the AJ71PT32-S3 receives clean, stable power even during grid fluctuations or surge events. Pairing these with a dedicated surge protection device at the cabinet entry point significantly reduces the risk of transient-induced communication faults.

At the CPU level, the A2SHCPU or A3HCPU central processing units coordinate scan-cycle timing with the I/O link module. Any instability in the CPU — whether from memory errors, watchdog faults, or firmware anomalies — will directly affect the AJ71PT32-S3’s communication cycle. Maintaining a verified spare CPU in inventory is a standard risk mitigation practice for critical sites.

For remote I/O expansion, the AJ65BTB1-16D and AJ65BTB2-16R remote I/O modules connect to the AJ71PT32-S3 link, extending digital input and relay output capability to field devices such as limit switches, solenoid valves, and motor starters. Ensuring these remote modules are properly terminated and shielded against EMI is essential for maintaining signal integrity across long cable runs in electrically noisy environments such as motor control centers or variable frequency drive (VFD) panels.

Communication integrity is further protected by using shielded twisted-pair cabling between the AJ71PT32-S3 and remote stations, grounded at a single point to prevent ground loop interference. In high-vibration environments — such as compressor rooms, pump stations, or heavy press lines — cable strain relief and vibration-damping DIN rail mounts should be used to prevent connector fatigue and intermittent contact faults.

For safety interlock circuits, the AJ71PT32-S3 is often used alongside dedicated safety relay modules and emergency stop monitoring units. While the MELSEC-A platform predates IEC 61508 SIL-rated safety PLCs, many facilities continue to operate legacy MELSEC-A systems in non-SIL-rated interlock roles, where the AJ71PT32-S3 provides reliable discrete I/O link communication for process permissive and shutdown logic. In these applications, a redundant I/O link configuration — using a secondary AJ71PT32-S3 module in a hot-standby or parallel monitoring role — is recommended to eliminate single points of failure.

Maintaining a stocked inventory of the AJ71PT32-S3, along with companion modules such as the A1SX40 digital input module and A1SY10 transistor output module, ensures that field engineers can execute rapid module swap-outs during planned maintenance windows or emergency corrective actions — minimizing mean time to repair (MTTR) and protecting production continuity.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process facilities, the AJ71PT32-S3 supports distributed I/O communication for reactor feed control, compressor sequencing, and emergency shutdown (ESD) permissive logic. Its deterministic communication cycle ensures that field sensor states are accurately reflected in the PLC scan, reducing the risk of delayed or missed interlock activation during abnormal process conditions.

Electric Power Generation and Substation Automation: Power plant auxiliary control systems — including boiler feed pump control, cooling water systems, and transformer protection panels — rely on stable PLC I/O communication. The AJ71PT32-S3 provides reliable data exchange between the main control room PLC and remote I/O panels located in high-voltage switchgear rooms, where EMI levels are extreme.

Mining and Mineral Processing: In underground and surface mining operations, PLCs controlling conveyor drives, crusher interlocks, and ventilation fan sequencing must operate reliably in environments with heavy dust loading, high humidity, and significant mechanical vibration. The AJ71PT32-S3’s robust construction and sealed connector design support reliable operation in these harsh conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use MELSEC-A PLCs for pump station control, chemical dosing systems, and SCADA-integrated monitoring. The AJ71PT32-S3 enables remote I/O expansion to field junction boxes located in wet, corrosive environments, supporting reliable valve and pump control without requiring additional local PLCs.

Metallurgy and Steel Production: Rolling mill control systems, ladle furnace automation, and continuous casting line PLCs demand high-speed, fault-tolerant I/O communication. The AJ71PT32-S3 supports the fast scan cycles required for precise tension control and position feedback in these high-throughput, high-temperature production environments.

Port and Marine Automation: Ship-to-shore crane control systems, automated stacking cranes, and vessel loading arm automation systems use MELSEC-A PLCs in marine-grade control cabinets. The AJ71PT32-S3 provides reliable I/O link communication in salt-air, high-humidity environments where corrosion resistance and long-term component availability are critical procurement considerations.

Safety and Quality FAQ

Q1: Does the AJ71PT32-S3 come with a 12-month warranty?
Yes. Every AJ71PT32-S3 unit supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication link establishment, I/O data exchange, and backplane interface integrity before dispatch.

Q2: How is the AJ71PT32-S3 tested before shipment?
Each module is bench-tested in a MELSEC-A compatible base unit with a verified CPU module. Testing includes power-on self-diagnostics, I/O link initialization, remote station polling, and error-free communication cycle verification. Units that fail any test stage are quarantined and not shipped.

Q3: Is the AJ71PT32-S3 compatible with all MELSEC-A base units?
The AJ71PT32-S3 is designed for the MELSEC-A Series platform and is compatible with A1S, A2S, A2SH, A3, and A3H series base units. It is not directly compatible with MELSEC-Q or MELSEC-iQ-R series hardware without an appropriate conversion base or adapter. Please confirm your base unit model before ordering.

Q4: Can long-term spare parts supply be guaranteed for the AJ71PT32-S3?
Yes. NINERMAS maintains dedicated inventory of legacy MELSEC-A series modules, including the AJ71PT32-S3, to support facilities operating long-lifecycle control systems. We provide sourcing support for planned maintenance programs, capital spares procurement, and emergency replacement orders with expedited shipping options available.
