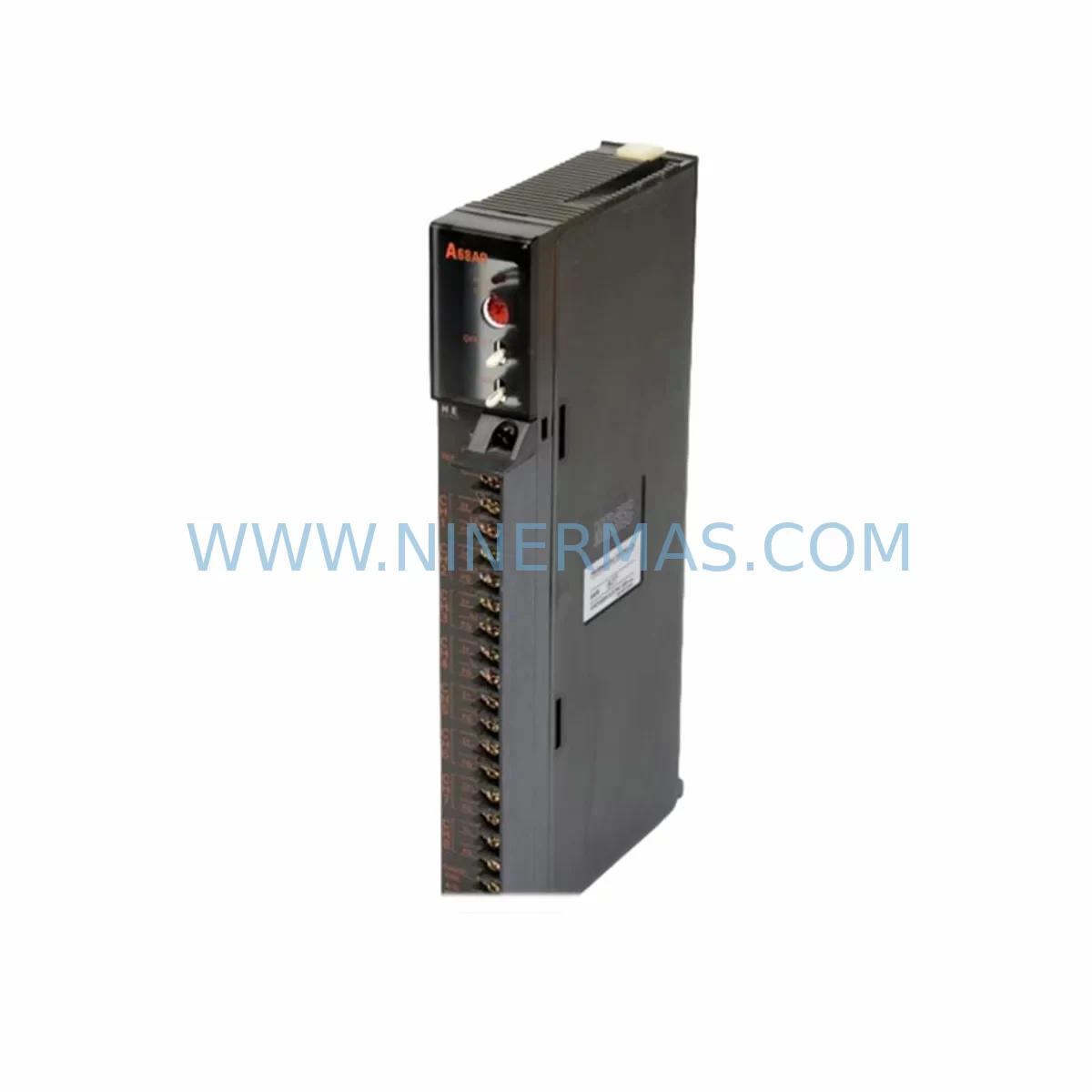

The Mitsubishi Electric A68AD is an 8-channel analog input module designed for the MELSEC-A Series programmable logic controller platform. In industrial automation environments — from automotive assembly lines to chemical processing plants — the A68AD serves as a critical signal acquisition component, converting real-world analog signals (voltage and current) into digital values that the CPU module can process for closed-loop control, process monitoring, and alarm management. When this module fails or degrades, the consequences can range from inaccurate process readings to complete production line shutdown.

Sourced and tested by NINERMAS COMPANY LIMITED, this service-ready A68AD spare part is prepared for immediate deployment. Each unit undergoes pre-shipment functional verification to confirm channel integrity, signal accuracy, and communication handshake with the MELSEC-A CPU. With a 12-month warranty and long-term supply commitment, procurement engineers can confidently add this module to their critical spare parts inventory without the risk of single-source dependency.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance engineer identifies a fault in the A68AD — whether through a GX Developer diagnostic alarm, abnormal analog readings, or a complete channel dropout — the replacement workflow must account for the broader control cabinet ecosystem. Simply swapping the analog input module without inspecting adjacent components risks repeat failures and extended downtime.

Before or during an A68AD replacement, experienced maintenance teams will also inspect the A68DAI or A62DA analog output modules in the same rack, as shared power rail issues can cause simultaneous degradation across multiple I/O modules. The A1S61PN or A1S62PN power supply module should be load-tested to confirm it is delivering stable 5VDC and 24VDC rails — an aging power supply is a common root cause of intermittent analog module faults. The A38B or A68B base unit backplane connector pins should be cleaned and inspected for oxidation, particularly in humid or chemically aggressive environments.

Signal wiring integrity is equally important. The terminal block connectors on the A68AD’s field wiring side should be checked for loose terminations, corroded contacts, or incorrect shielding grounding. In 4–20mA current loop circuits, a failed signal isolator or loop-powered transmitter can inject noise that mimics module failure. Maintenance engineers should verify transmitter output with a calibrated loop calibrator before condemning the A68AD itself.

For sites running MELSEC-A Series systems with A1SJ71UC24-R2 or A1SJ71C24-R2 serial communication modules, confirming that the CPU’s I/O refresh cycle is correctly configured after module replacement is essential — an incorrect parameter setting in GX Developer can cause the new A68AD to appear offline even when physically functional. Similarly, if the control system includes an A985GOT or A975GOT HMI panel, the analog channel tag assignments should be verified post-replacement to ensure process values display correctly on operator screens.

Procurement engineers building annual MRO (Maintenance, Repair & Operations) spare parts lists for MELSEC-A Series installations should consider stocking the A68AD alongside the A1SD75P1-S3 positioning module, A1SX40 or A1SX80 digital input modules, and A1SY10 or A1SY80 digital output modules — all of which share the same base unit platform and are subject to similar aging failure modes in long-running production environments. A proactive spare parts strategy that covers both analog and digital I/O, power supply, and communication modules significantly reduces mean time to repair (MTTR) when unplanned failures occur.

Site Replacement Workflow

Step 1 — Preparation: Before removing the faulty A68AD, use GX Developer or GX Works2 to export the current I/O parameter settings and analog channel configuration (input range, averaging, alarm limits). This data will be needed to configure the replacement module identically.

Step 2 — Safe Isolation: Place the MELSEC-A CPU in STOP mode. De-energize the base unit power supply (A1S61PN or equivalent) following your site’s lockout/tagout (LOTO) procedure. Do not hot-swap the A68AD — the MELSEC-A Series base unit does not support hot-plug I/O replacement.

Step 3 — Physical Replacement: Disconnect the field wiring terminal block from the A68AD front connector. Note the slot position on the base unit (A38B/A68B/A98B). Remove the faulty module and insert the replacement A68AD into the same slot. Reconnect the terminal block, ensuring all wire terminations are secure and shielding is correctly grounded at a single point.

Step 4 — Parameter Restore & Verification: Power up the base unit and restore the previously exported I/O parameters via GX Developer. Switch the CPU to RUN mode and verify that all 8 analog channels are reading correctly against known reference signals. Check the GX Developer diagnostic buffer for any module error codes.

Step 5 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the date, replaced module serial number, and post-replacement test results. Update your spare parts inventory to trigger a reorder for the consumed A68AD unit.

This structured replacement workflow minimizes the risk of configuration errors, reduces total downtime to under 60 minutes for experienced technicians, and ensures the system returns to full operational status with documented traceability.

Spare Parts Support FAQ

Q1: Is this A68AD compatible with all MELSEC-A Series base units and CPUs?
The A68AD is designed for the MELSEC-A Series platform and is compatible with standard A-Series base units including the A38B, A68B, and A98B, as well as CPU modules such as the A2NCPU, A3NCPU, A2ACPU, and A1SCPU. Compatibility with specific system configurations should be verified against your existing GX Developer I/O assignment and base unit slot map before ordering. Our technical team can assist with compatibility confirmation if you provide your CPU model and base unit type.

Q2: What pre-shipment testing does NINERMAS perform on the A68AD?
Every A68AD unit shipped by NINERMAS undergoes a channel-by-channel functional test that verifies analog input accuracy across the full signal range (voltage and current modes), photocoupler isolation integrity, and bus communication handshake. Test records are available upon request. Units that do not meet original Mitsubishi Electric performance specifications are not shipped.

Q3: Can NINERMAS support long-term supply of the A68AD for multi-year maintenance contracts?
Yes. NINERMAS maintains sourcing relationships for legacy MELSEC-A Series components, including the A68AD, to support customers with long-running production systems that cannot be immediately migrated to newer platforms such as the MELSEC-Q or MELSEC-iQ-R Series. We can discuss blanket purchase orders, reserved stock arrangements, and scheduled delivery programs for customers with annual MRO requirements.
