Mitsubishi A1SX10 Service-Ready Spare Part for Industrial Maintenance

Mitsubishi A1SX10 Service-Ready Spare Part for Industrial Maintenance

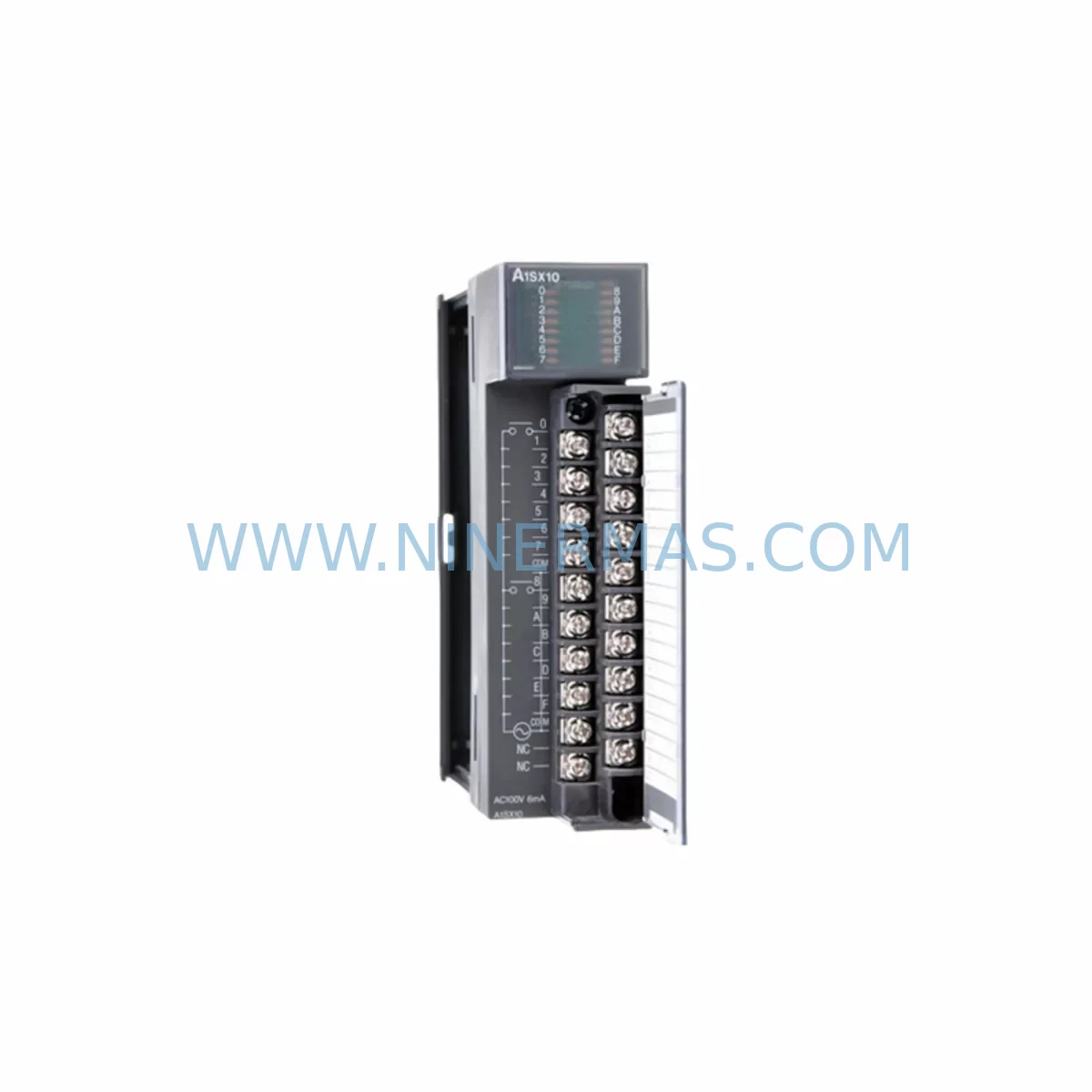

The Mitsubishi Electric A1SX10 is an AC digital input module designed for the MELSEC-A series programmable logic controller platform. As a critical field-replaceable unit in process and discrete manufacturing environments, the A1SX10 accepts AC voltage signals from field devices such as push buttons, limit switches, proximity sensors, and relay contacts, converting them into digital signals processed by the A-series CPU. Maintaining a verified spare of the A1SX10 in your on-site inventory is a fundamental risk-control measure for any facility operating MELSEC-A based control systems, particularly where production continuity and minimal mean-time-to-repair (MTTR) are operational priorities.

At NINERMAS, every A1SX10 unit is sourced from authorized distribution channels or verified surplus stock, subjected to pre-shipment functional testing, and shipped with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Our long-term supply program ensures continued availability of this module even as the MELSEC-A platform approaches and passes its official end-of-life milestone, supporting lifecycle extension strategies for legacy automation infrastructure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the A1SX10 in a MELSEC-A control cabinet, a disciplined maintenance engineer will treat the module swap as an opportunity to audit the surrounding electrical environment. The A1SX10 draws its input signals from field wiring that may have accumulated insulation degradation, loose terminal connections, or ground leakage over years of service. Before reinstalling a new module, verify the integrity of the terminal block wiring and inspect the 40-pin connector for pin corrosion or mechanical deformation.

The A1SX10 sits on an AnS-series base unit — commonly the A1S33B, A1S35B, or A1S38B — and shares the backplane bus with the CPU module and other I/O modules. A backplane fault or degraded bus connector can cause intermittent input errors that are misdiagnosed as module failure. Inspect the base unit backplane for physical damage and confirm bus connector seating before concluding that the A1SX10 itself is the root cause of any fault.

The power supply module feeding the base unit — typically an A1S61PN, A1S62PN, or A1S63P — should be checked for output voltage stability and ripple. An aging power supply delivering marginal 5 VDC to the backplane can cause erratic I/O behavior across all installed modules, including the A1SX10. If the power supply is approaching its rated service life, proactive replacement alongside the input module is a sound maintenance decision.

For facilities running MELSEC-A CPUs such as the A1SCPU or A1SHCPU, the CPU module itself should be evaluated during any unplanned downtime event. Battery-backed RAM retention, program checksum integrity, and communication port functionality are all worth verifying. The A1SCPUC24 variant, which includes a built-in RS-232C/RS-422 port, is commonly used in SCADA-connected installations and should be confirmed operational after any power interruption.

If the control system includes analog I/O — such as the A1S68AD analog input module or the A1S62DA analog output module — verify that signal references and shielding are intact. AC digital input modules like the A1SX10 can introduce ground loops if field wiring shields are improperly terminated, affecting nearby analog signal quality. Signal isolators or barrier modules in the field wiring circuit should also be inspected for drift or failure.

Communication modules such as the A1SJ71UC24-R2 (RS-232C) or A1SJ71AP23Q (MELSECNET/B) installed in the same base unit should be confirmed operational after any maintenance intervention, as backplane disturbances during module replacement can occasionally cause communication parameter loss. For systems integrated with GOT series HMI panels — such as the GT1055-QSBD or GT1150-QLBD — verify that the HMI communication link is restored and screen data is displaying correctly after the A1SX10 replacement is complete.

Fuse and circuit protection elements in the AC input field circuit — including miniature circuit breakers (MCBs) and surge protection devices (SPDs) on the input wiring — should be tested for continuity and proper trip characteristics. Relay output modules in the same cabinet, such as the A1SY10 or A1SY14, may share the same field power distribution and should be checked for contact wear if the fault event involved an electrical surge.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the MELSEC-A programming tool (GX Developer or compatible) to read the I/O diagnostic map and confirm which input points on the A1SX10 are reporting incorrect states. Cross-reference with field device status to distinguish module failure from field wiring faults.

Step 2 — Safe Isolation: De-energize the AC input field circuit using the appropriate MCB or isolation switch. Confirm absence of voltage at the A1SX10 terminal block using a calibrated voltage tester before proceeding. Do not rely solely on the PLC’s software status for safety isolation.

Step 3 — Module Removal: Disconnect the 40-pin connector and remove the A1SX10 from the base unit slot. Note the slot position for correct reinstallation of the replacement unit. Inspect the vacated slot’s backplane connector for damage.

Step 4 — Replacement Installation: Insert the verified A1SX10 replacement into the correct slot. Reconnect the 40-pin field wiring connector. Confirm connector locking mechanism is fully engaged.

Step 5 — Power-Up and Verification: Re-energize the field circuit and the base unit. Use GX Developer to monitor the I/O map in real time and confirm all 16 input points are responding correctly to field device states. Document the replacement in the site maintenance log.

Step 6 — System Handover: Notify the operations team that the control system is restored. Update the spare parts inventory record and initiate a replenishment order to restore buffer stock levels.

Spare Parts Support FAQ

Q1: Is the A1SX10 still available as a new or tested spare part?
The MELSEC-A series has reached end-of-life status with Mitsubishi Electric, meaning new production units are no longer manufactured. However, NINERMAS maintains stock of tested surplus and refurbished A1SX10 modules through our lifecycle supply program. Each unit is functionally verified before shipment and covered by a 12-month warranty, providing a reliable replacement source for facilities committed to extending the operational life of their MELSEC-A systems.

Q2: How do I confirm compatibility between the A1SX10 and my existing base unit and CPU?
The A1SX10 is compatible with all AnS-series slim base units (A1S33B, A1S35B, A1S38B, A1S52B, A1S55B, A1S58B) and the corresponding A1S-series CPU modules. Compatibility is determined by the base unit form factor and the 40-pin I/O connector standard. If you are uncertain about your system configuration, provide your base unit model number and CPU type to our technical team at sale@ninermas.com for confirmation before ordering.

Q3: What does the pre-shipment testing process cover for the A1SX10?
Each A1SX10 unit undergoes functional verification on a live MELSEC-A test bench prior to shipment. Testing confirms correct response across all 16 input points, photocoupler isolation integrity, and proper backplane bus communication. Units that do not pass all test criteria are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q4: Can NINERMAS support long-term or blanket purchase orders for the A1SX10?
Yes. NINERMAS offers long-term supply agreements and blanket purchase order programs for facilities requiring guaranteed stock availability of the A1SX10 and related MELSEC-A components. These programs include reserved inventory allocation, fixed lead times, and priority shipment scheduling. Contact our procurement team to discuss volume requirements and supply terms tailored to your maintenance planning cycle.
