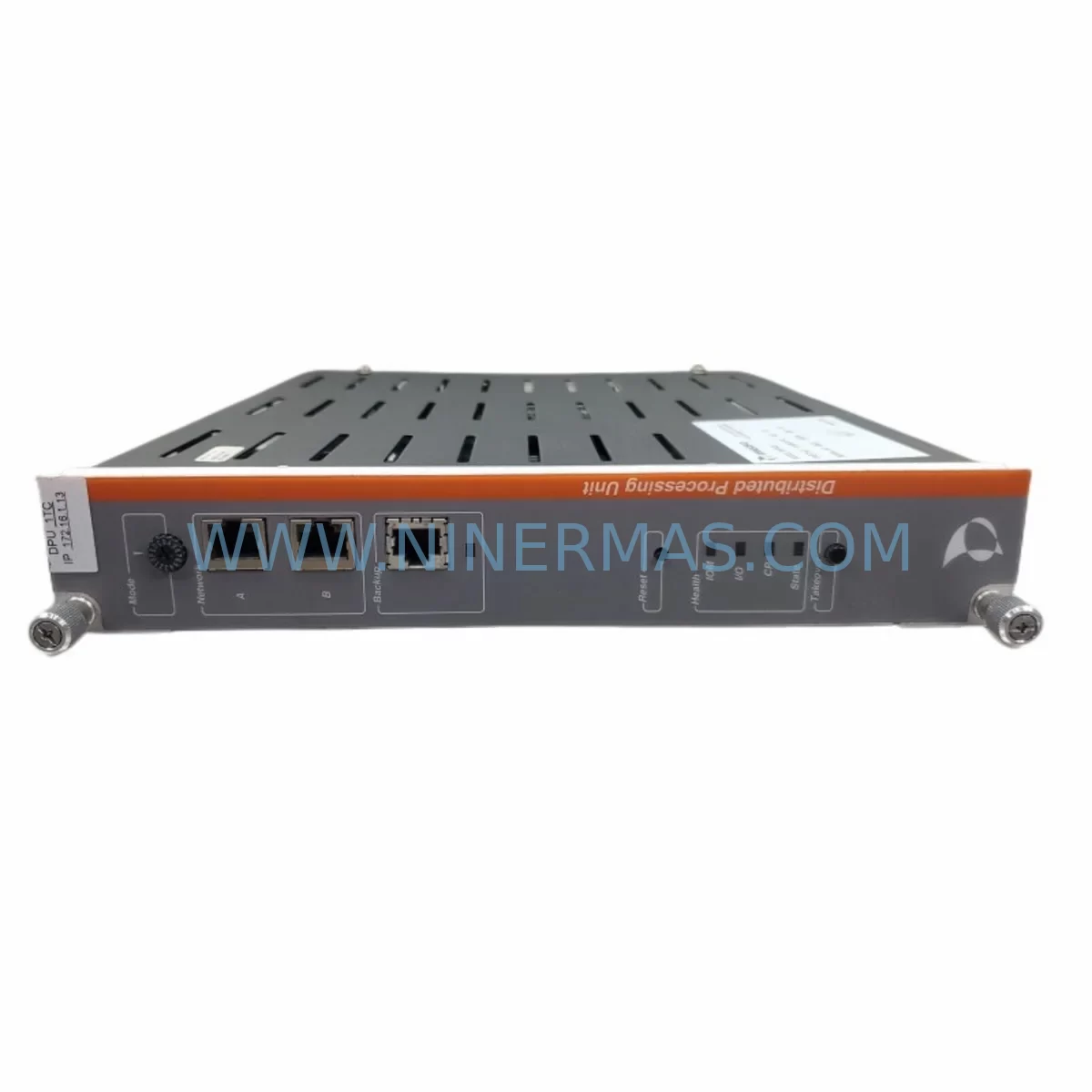

Metso PDP403 Retrofit-Compatible Distributed Processing Unit

Metso PDP403 Retrofit-Compatible Distributed Processing Unit: Legacy System Compatibility & Smooth Upgrade Path

The Metso PDP403 is a distributed processing unit originally designed for Metso’s automation and process control platforms, widely deployed in pulp and paper mills, mining operations, power generation facilities, and heavy industrial process lines. As legacy Metso DNA and Damatic XD/XDi control systems approach end-of-life, the PDP403 remains one of the most sought-after replacement and retrofit modules for engineers tasked with extending the operational lifespan of existing control architectures without committing to a full DCS migration.

NINERMAS maintains verified stock of the Metso PDP403, fully tested prior to shipment, and backed by a 12-month warranty. Each unit undergoes functional verification to confirm processing integrity, backplane communication, and I/O channel response before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a Metso PDP403 in an active process control environment requires careful pre-planning to avoid unplanned downtime and configuration loss. The PDP403 functions as a distributed processing node within the Metso DNA architecture, handling real-time I/O scanning, control loop execution, and communication with the system’s operator stations. Before initiating a swap, engineers should document the existing module address assignment within the rack, as the DNA system uses slot-based addressing that must be preserved in the replacement unit’s configuration.

Power supply capacity is a critical first checkpoint. The rack’s power supply module — typically a Metso PSU unit within the same control cabinet — must be verified to deliver sufficient 24 VDC current headroom for the PDP403 alongside all co-installed I/O modules. In aging cabinets, power supply derating over time can cause intermittent faults that are misdiagnosed as processor failures. Confirming PSU output under load before replacement prevents repeat failures.

Terminal wiring and I/O channel mapping must be reviewed against the original engineering drawings. The PDP403 interfaces with field instruments through dedicated I/O modules mounted in the same rack — including analog input modules for 4–20 mA process signals, digital input/output modules for discrete control, and in some configurations, thermocouple or RTD input modules for temperature measurement. Each I/O module’s channel-to-tag mapping in the DNA engineering tool must be verified to remain intact after the processor swap.

Communication link integrity is equally important. The PDP403 communicates upstream to the Metso DNA operator station network via the system’s internal fieldbus. In plants where the DNA system has been partially upgraded, the communication module or network interface card installed in the same rack must be confirmed compatible with the replacement PDP403’s firmware version. Mismatched firmware between the processing unit and the communication module is a common source of post-replacement communication faults.

For sites running Metso DNA with integrated HMI displays, the operator graphics and faceplates are tag-bound to specific controller nodes. After replacing the PDP403, the HMI engineering environment should be checked to confirm that all process variable tags, alarm setpoints, and trend displays remain correctly associated with the new module. In some DNA versions, a partial re-download of the controller application is required to re-establish tag binding.

Installations that include a Metso fieldbus interface module for HART or PROFIBUS PA instrument communication should verify that the fieldbus segment configuration is preserved. The PDP403’s replacement should not alter fieldbus segment addressing, but a post-installation loop check on critical HART instruments — including control valves and transmitters — is recommended before returning the loop to automatic control.

For control cabinets that house both the PDP403 and associated marshalling panels, physical installation space should be confirmed. The replacement unit must seat fully into the backplane connector without mechanical interference from cable bundles or adjacent modules. In older Damatic XD-generation racks, backplane connector wear can cause intermittent contact issues; inspect the rack connector before insertion and clean if necessary.

Sites managing a broader migration from Damatic XD to Metso DNA R5 or later may also be evaluating replacement of associated rack infrastructure, including the rack chassis itself, the system power supply, and the network switch connecting the DPU nodes to the operator network. Planning the PDP403 replacement as part of a phased rack modernization — rather than a single-module swap — often reduces total migration risk and allows the engineering team to validate each stage before proceeding.

Downtime Control During System Migration

Minimizing process downtime during a PDP403 replacement requires a structured approach that protects the existing control program, preserves field wiring integrity, and maintains operator visibility throughout the transition.

The first step is a full backup of the PDP403’s application program from the Metso DNA engineering workstation before any physical work begins. The DNA engineering tool allows export of the controller application, including all function block configurations, PID tuning parameters, interlock logic, and I/O assignments. This backup serves as both a recovery baseline and a reference for post-installation verification.

Where process conditions allow, the affected control loops should be placed in manual mode at the operator station before the module is removed. This prevents uncontrolled process excursions during the replacement window and gives the field operator time to stabilize the process at a safe operating point. For critical loops — such as boiler drum level control, compressor surge protection, or reactor temperature regulation — a formal management of change procedure should be followed before any hardware intervention.

The physical replacement itself is typically a cold-swap procedure: the rack is de-energized at the cabinet’s main isolator, the failed PDP403 is removed, the replacement unit is inserted and seated, and the rack is re-energized. In some DNA configurations, a hot-swap may be possible if the rack supports it and the system is in a stable state, but this should be confirmed with the site’s automation engineer before attempting.

After power restoration, the DNA system will perform a self-diagnostic cycle. The replacement PDP403 should be observed through the engineering workstation to confirm that it initializes correctly, loads the application program, and establishes communication with all associated I/O modules. Any I/O channel faults or communication errors reported during initialization should be investigated before returning loops to automatic control.

A structured post-replacement loop check — covering at minimum the highest-criticality control loops served by the PDP403 — should be completed before the process is returned to normal operation. This check should verify that analog input signals are reading correctly at the operator station, that digital outputs are responding to manual commands, and that any interlock logic is functioning as designed. Total replacement time for a well-prepared team is typically two to four hours, including backup, physical swap, initialization, and loop verification.

Retrofit Support FAQ

Q1: Is the replacement PDP403 from NINERMAS a direct drop-in for my existing Metso DNA system?
The PDP403 supplied by NINERMAS is the same OEM part number as the original Metso module. It is designed for direct physical and functional replacement within compatible Metso DNA and Damatic XD/XDi rack systems. However, firmware version compatibility should be confirmed against your system’s current DNA software revision before installation, as some DNA versions require specific firmware levels on the processing unit.

Q2: What pre-shipment testing does NINERMAS perform on the PDP403?
Each PDP403 unit is functionally tested prior to shipment to verify processing operation, backplane communication interface integrity, and I/O channel response. Units that do not pass functional verification are not dispatched. All shipped units are covered by a 12-month warranty from the date of delivery.

Q3: Can NINERMAS supply other Metso DNA modules needed for a broader cabinet upgrade?
Yes. NINERMAS maintains inventory of a range of Metso DNA and Damatic series components, including I/O modules, power supply units, communication modules, and rack infrastructure. If your retrofit project requires multiple components, contact our team at sale@ninermas.com to discuss availability and lead times for a complete bill of materials.

Q4: What is the lead time and warranty coverage for the PDP403?
In-stock units are typically dispatched within 1–3 business days of order confirmation. The PDP403 is covered by NINERMAS’s standard 12-month warranty, which covers functional defects under normal operating conditions. Warranty claims are supported directly by NINERMAS with replacement or repair as appropriate.
