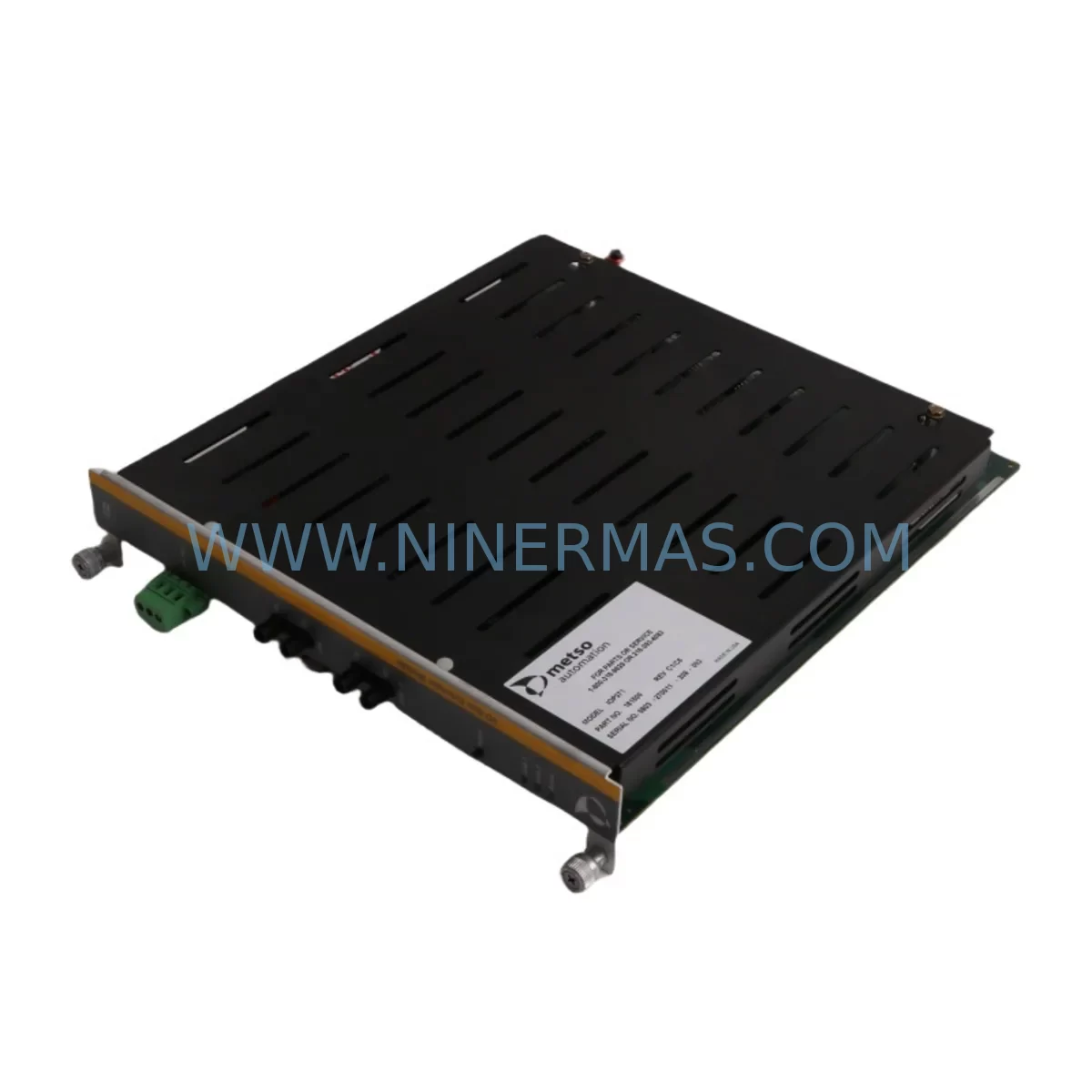

The Metso IOP365 is an isolated analog input module engineered for the Metso DNA automation platform, widely deployed across pulp and paper, power generation, oil and gas, and chemical processing industries. As legacy Metso Damatic XD and early Metso DNA systems approach end-of-life, the IOP365 has become a critical retrofit component for engineers tasked with extending the operational lifespan of existing control infrastructure without committing to a full DCS migration. NINERMAS maintains verified stock of the IOP365 to support planned maintenance windows, emergency replacements, and phased system modernization projects.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IOP365 within an active Metso DNA control system requires careful pre-engineering to avoid signal interruption and process upsets. Before pulling the module, engineers should document all channel assignments using the Metso DNA Engineering Tool, export the current I/O configuration, and confirm that the replacement unit carries a compatible hardware revision. In many retrofit scenarios, the IOP365 is installed alongside the Metso IOP366 (isolated analog output module) within the same I/O rack, sharing a common Metso DNA backplane and 24 VDC power distribution rail. It is essential to verify that the existing Metso PSU power supply module in the cabinet has sufficient residual capacity to support the replacement module without triggering an undervoltage alarm on the controller node.

Terminal wiring on the IOP365 follows the standard Metso DNA field terminal block layout. When migrating from an older Damatic XD rack to a DNA cabinet, technicians frequently encounter differences in terminal pitch and cable ferrule sizing. In these cases, a Metso DNA field terminal adapter or rewiring of the marshalling cabinet may be required. Signal cables should be re-labeled and continuity-tested before the new module is energized. For installations involving HART-enabled field instruments, confirm that the IOP365 revision in stock supports HART pass-through, as earlier hardware revisions may not.

In systems where the IOP365 feeds signals into a Metso AC800M controller or a Metso DNA Application Station, the module address must be re-confirmed in the system topology after physical replacement. Address conflicts with adjacent Metso IOP361 (digital input) or Metso IOP363 (digital output) modules can cause the controller to flag a hardware fault on startup. Running a full I/O diagnostic scan from the DNA Operate workstation before returning the loop to automatic control is strongly recommended. Where the control system interfaces with a Metso Neles ND9000 valve controller or similar fieldbus device, verify that the analog signal scaling in the application program matches the replacement module’s default configuration to prevent setpoint drift.

For sites undergoing a broader communication protocol migration — for example, transitioning from Metso’s proprietary fieldbus to PROFIBUS DP or Modbus TCP — the IOP365 may serve as a bridging component during the transition period, maintaining legacy analog loops while digital I/O is progressively migrated to a new platform. In such hybrid architectures, the module’s galvanic isolation becomes especially valuable in preventing ground loops between the legacy and new control segments.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing any I/O module in a live production environment. For the IOP365, NINERMAS recommends a structured hot-swap protocol where operationally feasible: place all affected control loops in manual mode at the Metso DNA Operate HMI station before removing the module, ensuring that field actuators hold their last commanded position. Document the current process values for all channels on the module so that post-replacement verification can be completed against a known baseline.

Where the process cannot tolerate even a brief interruption, a parallel wiring strategy can be employed — pre-wiring the replacement IOP365 on a temporary terminal block and performing a rapid cutover during a scheduled micro-shutdown. This approach is particularly effective in continuous process industries such as paper machine drives or boiler control systems, where even a 30-second analog signal loss can trigger a process interlock. After the replacement module is seated and powered, use the DNA Engineering Tool to force-download the I/O configuration to the new module and confirm that all channel green LEDs illuminate before releasing loops back to automatic.

Original application program logic does not require modification when performing a like-for-like IOP365 replacement, provided the hardware revision is compatible. HMI faceplates on the DNA Operate station will continue to display correctly without any graphics modification. However, if the replacement is part of a broader rack consolidation — for example, merging two partially populated DNA I/O racks into a single new rack — module slot addresses in the application program will need to be updated and a full program download performed during the maintenance window.

Retrofit Support FAQ

Q1: Is the IOP365 a direct drop-in replacement for the same module in an older Metso DNA cabinet?
A: In most cases, yes. The IOP365 uses the standard Metso DNA backplane connector and terminal block layout. However, you should verify the hardware revision (printed on the module label) against your system’s supported revision list in the DNA Engineering Tool before installation. Minor firmware differences between revisions are typically handled automatically by the DNA controller on first power-up.

Q2: What pre-shipment testing does NINERMAS perform on the IOP365?
A: Each IOP365 unit is function-tested prior to dispatch, including power-on verification, channel signal integrity checks, and backplane communication confirmation where test equipment permits. Units are shipped with anti-static packaging and include a test report. All units carry a 12-month warranty from the date of shipment.

Q3: Can the IOP365 be used in a system that has been partially migrated to a newer Metso DNA generation?
A: Yes. The IOP365 is compatible with mixed-generation DNA I/O racks in most configurations. Confirm with your Metso DNA system documentation that the controller firmware version supports the IOP365 revision you are installing. NINERMAS technical support can assist with revision cross-referencing prior to order confirmation.

Q4: What is the lead time and stock availability for the IOP365?
