Metso IOP-345 Retrofit Digital Input Module for Legacy Systems

Metso IOP-345 Retrofit Digital Input Module for Legacy Systems

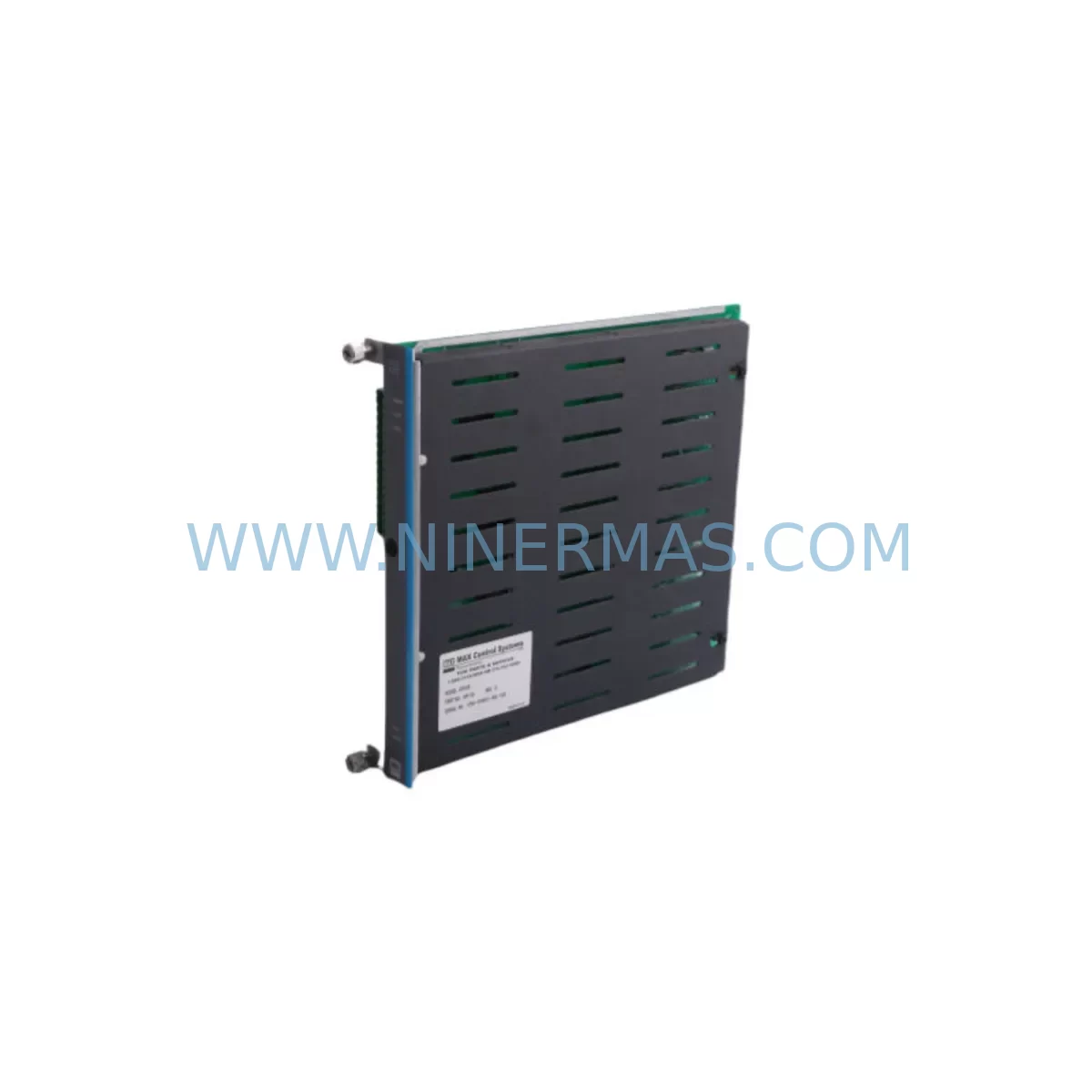

The Metso IOP-345 is a ruggedized digital input module engineered for the Metso DNA (Dynamic Network of Applications) distributed control system platform. As process plants worldwide face the challenge of maintaining aging DCS infrastructure, the IOP-345 has become a critical spare part for facilities that cannot afford unplanned downtime caused by obsolete or discontinued I/O hardware. NINERMAS maintains verified stock of the IOP-345 to support legacy system continuity, planned retrofit projects, and emergency replacement scenarios across pulp and paper, power generation, oil and gas, and chemical processing industries.

When a digital input channel fails on a Metso DNA cabinet, the entire process loop dependent on that signal is compromised. The IOP-345 provides 16 channels of isolated digital input, designed to interface directly with field devices including limit switches, proximity sensors, motor status contacts, and valve position feedback. Its ruggedized construction tolerates the vibration, humidity, and temperature extremes common in heavy industrial environments, making it a preferred choice for facilities that have standardized on the Metso DNA platform for decades.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the IOP-345 in an operating plant requires a structured approach that begins well before the maintenance window opens. Engineers should start by auditing the existing DNA I/O rack configuration, identifying the slot position of the failed or degraded module, and confirming that the rack backplane and power distribution remain intact. The IOP-345 draws its operating power from the rack’s internal bus, supplied by the PSU-345 power supply module; if the PSU-345 shows signs of aging — such as output voltage drift or thermal shutdown events — it is advisable to replace it concurrently to avoid a repeat outage within the same maintenance cycle.

Terminal wiring is the next critical checkpoint. The IOP-345 uses a front-connector terminal block that can be unplugged from the module body, allowing the field wiring to remain connected while the module is swapped. Technicians should photograph or document the terminal assignments before removal, cross-referencing against the original loop drawings to confirm signal polarity, common return wiring, and any shared terminal arrangements. Where field devices share a common 24 VDC supply rail, verify that the replacement module’s input threshold levels are consistent with the existing wiring scheme.

Module address configuration is handled through the Metso DNA Engineering Tool. For a like-for-like replacement, the new IOP-345 inherits the same module address as the unit it replaces, and no changes to the application program are required. However, if the retrofit is part of a broader I/O expansion — for example, adding new digital input points alongside the replacement — engineers must coordinate with the control system programmer to allocate new addresses and update the DNA application accordingly. Related modules commonly involved in such expansions include the IOP-346 digital output module, the AIP-345 analog input module, and the AOP-345 analog output module, all of which share the same rack and backplane architecture.

Communication link integrity should be verified after module insertion. The DNA system’s internal bus diagnostics, accessible through the CIU-345 communication interface unit, will confirm that the new module is recognized and communicating correctly before the process loop is returned to automatic control. In plants where the DNA system interfaces with a higher-level SCADA or historian via OPC, the BIU-345 bus interface unit should also be checked to ensure that the digital input tags associated with the replaced module are updating correctly in the data highway.

For facilities undertaking a more comprehensive control cabinet upgrade — such as migrating from an older DNA generation to a current-generation ACN controller platform — the IOP-345 replacement may be one step in a phased modernization. In these projects, the MIO-345 multi-function I/O module and the EFC-345 fieldbus coupler are often introduced alongside legacy I/O modules to bridge the gap between existing field wiring and new controller architectures, allowing the plant to migrate incrementally without a full cutover shutdown.

Downtime Control During System Migration

Minimizing process downtime during an IOP-345 replacement requires preparation that begins days before the planned maintenance window. The original application program should be backed up from the DNA controller using the Engineering Tool, and the backup verified against the as-built documentation. If the plant operates a redundant DNA controller pair, the replacement can often be performed while the standby controller maintains process control, reducing the outage to the time required for the physical module swap and online verification — typically 15 to 30 minutes for an experienced technician.

Where hot-swap is not possible due to rack design or process safety requirements, the maintenance team should prepare a detailed step-by-step procedure covering: power isolation sequence, terminal block removal, module extraction, new module insertion, terminal block reconnection, power restoration, and online diagnostics confirmation. Each step should have a defined acceptance criterion and a rollback plan in case the new module does not initialize correctly. Pre-testing the replacement IOP-345 on a bench rack or spare chassis before bringing it to the field eliminates the risk of installing a module with a latent defect during a live outage.

NINERMAS performs functional pre-shipment testing on all IOP-345 units before dispatch, verifying channel continuity, isolation resistance, and bus communication under simulated load conditions. This testing protocol reduces the probability of a field installation failure and supports the 12-month warranty coverage that accompanies every unit shipped.

Retrofit Support FAQ

Q: Is the IOP-345 a direct replacement for earlier Metso DNA digital input modules?
A: The IOP-345 is designed for the Metso DNA I/O rack platform. Compatibility with earlier-generation modules depends on the specific rack backplane version. NINERMAS recommends providing your rack part number and DNA system generation for confirmation before ordering.

Q: Can the IOP-345 be installed without shutting down the DNA controller?
A: In racks that support hot-swap, the IOP-345 can be replaced online. The DNA Engineering Tool will detect the new module and restore communication automatically. For non-hot-swap racks, a controlled shutdown of the affected I/O group is required.

Q: What commissioning steps are required after installing a replacement IOP-345?
A: After physical installation, use the DNA Engineering Tool to confirm module recognition, verify channel assignments, and perform a loop check on each digital input point. Update the as-built documentation to reflect the replacement date and new module serial number.

Q: Does NINERMAS provide a warranty on the IOP-345?
A: Yes. All IOP-345 units supplied by NINERMAS carry a 12-month warranty from the date of shipment. Each unit is pre-tested before dispatch to verify functionality. In the event of a warranty claim, NINERMAS provides replacement or repair support with documented traceability.
