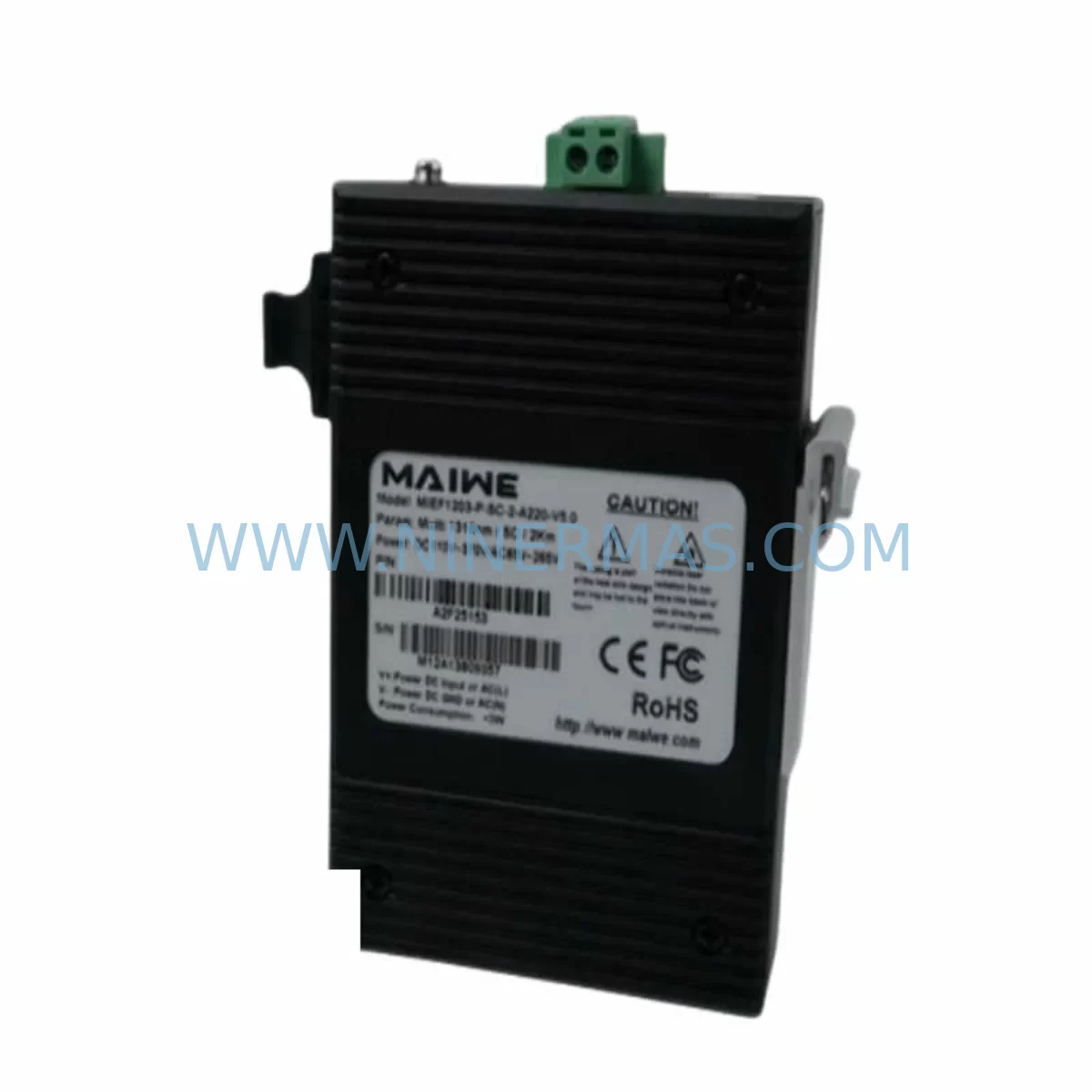

MAIWE MIEF1203-P-SC-2-A220-V5.0 Safety-Reliable Serial Gateway

MAIWE MIEF1203-P-SC-2-A220-V5.0 Safety-Reliable Serial Gateway for Critical Control Sites

The MAIWE MIEF1203-P-SC-2-A220-V5.0 is a dual-port industrial serial communication module engineered for deployment in safety-critical control environments where signal integrity, communication continuity, and operational reliability are non-negotiable. Designed to operate on AC 220V power input with hardware/firmware version V5.0, this module serves as a robust serial-to-network gateway within the MIEF Series platform — a product line purpose-built for demanding industrial automation architectures.

In continuous production facilities, control system interruptions caused by communication failures can trigger cascading shutdowns, safety interlock activations, and costly unplanned downtime. The MIEF1203-P-SC-2-A220-V5.0 addresses these risks directly by providing stable, low-latency serial data transmission across two independent RS-232/RS-485 channels, maintaining protocol integrity even under high electromagnetic interference (EMI), voltage fluctuation, and harsh ambient conditions including dust ingress, humidity, and mechanical vibration.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the MIEF1203-P-SC-2-A220-V5.0 functions as the serial communication backbone, bridging legacy field devices — such as Modbus RTU sensors, intelligent motor drives, and remote I/O units — to the supervisory control layer. Its dual-port architecture allows simultaneous connection of two independent serial segments, eliminating single-point communication failure risk in critical interlock loops.

To build a complete, safety-hardened control cabinet around this module, integrators typically pair it with a MAIWE MIEF1200 series managed Ethernet switch for upstream network connectivity, ensuring that serial data converted by the MIEF1203 reaches the DCS or SCADA host without packet loss. On the power supply side, a MAIWE or equivalent 24VDC DIN-rail power supply module with active PFC and overvoltage protection is recommended to stabilize the cabinet’s DC bus, while the MIEF1203 itself handles the AC 220V input independently.

For safety interlock circuits, the module is commonly deployed alongside MAIWE MIEF series digital I/O expansion modules that monitor emergency stop (E-stop) signals, door interlock switches, and pressure/temperature safety relays. When a safety relay — such as a Pilz PNOZ or equivalent dual-channel safety relay module — detects a fault condition, the MIEF1203 ensures that the fault status is immediately communicated upstream via its serial channel, enabling the SCADA system to log the event and initiate a controlled shutdown sequence rather than an abrupt trip.

In high-EMI environments such as variable frequency drive (VFD) cabinets or arc furnace control rooms, the MIEF1203’s optically isolated serial ports prevent ground loop currents from corrupting Modbus RTU frames. This isolation is critical when the module shares a cabinet with ABB ACS880 or Siemens SINAMICS series VFDs, which generate significant conducted and radiated EMI during motor switching transients. Supplementing the installation with ferrite core EMI filters on serial cable entries and a shielded DIN-rail cable duct further reduces susceptibility to signal drift and communication timeouts.

For redundant communication architectures in SIL-rated safety systems, the MIEF1203-P-SC-2-A220-V5.0 can be deployed in a primary/standby configuration alongside a second MIEF1203 unit, with a MAIWE MIEF series communication redundancy manager or a watchdog relay module performing automatic switchover in the event of a primary channel fault. This approach is particularly valuable in continuous process plants where even a 30-second communication outage can trigger a safety instrumented system (SIS) shutdown.

Surge protection at the cabinet entry point — using a Phoenix Contact or DEHN DIN-rail surge protective device (SPD) rated for the AC 220V supply — protects the MIEF1203’s internal power circuitry from lightning-induced transients and switching surges on the plant power distribution network. Combined with a UPS module providing 15–30 minutes of ride-through capacity, this configuration ensures that the serial communication gateway remains operational during brief grid disturbances, preventing false safety trips caused by power interruptions rather than actual process faults.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and cracking units, the MIEF1203-P-SC-2-A220-V5.0 connects Modbus RTU-based pressure transmitters, flow controllers, and flame detectors to the plant DCS. Its optically isolated ports prevent ground potential differences — common in large petrochemical facilities with extensive grounding networks — from introducing noise into safety-critical measurement loops. The module’s extended temperature tolerance ensures reliable operation in hot utility areas adjacent to heat exchangers and fired heaters.

Electric Power Generation & Substation Automation: In thermal power plant auxiliary control systems and 110kV/220kV substation automation panels, the MIEF1203 provides serial communication between legacy protection relays (using IEC 60870-5-101 or Modbus RTU) and modern substation automation systems. Its surge suppression capability is essential in high-voltage environments where induced transients on control cables can reach several kilovolts during switching operations.

Mining & Mineral Processing: Underground mining control systems and surface mineral processing plants operate in environments with extreme dust loading, vibration from blasting and crushing equipment, and wide temperature swings. The MIEF1203’s industrial-grade construction and DIN-rail mounting make it suitable for deployment in explosion-proof control enclosures (with appropriate Ex-rated enclosures) serving conveyor drive controllers, pump station RTUs, and ventilation fan control panels.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on Modbus RTU communication between PLCs and field instruments including pH sensors, dissolved oxygen analyzers, and chemical dosing pump controllers. The MIEF1203 provides reliable serial gateway functionality in pump station control panels exposed to high humidity and chemical vapors, where communication failures could result in dosing errors with public health implications.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting control systems, the MIEF1203 operates in environments with intense electromagnetic fields generated by high-current bus bars and induction heating equipment. Its EMI-hardened design and optical isolation maintain communication integrity between the furnace control PLC and upstream production management systems, supporting real-time heat tracking and quality control data logging.

Port & Marine Terminal Automation: Ship-to-shore crane control systems and automated container terminal equipment controllers use serial communication for coordination between crane PLCs, anti-sway control systems, and terminal operating system (TOS) interfaces. The MIEF1203’s wide operating temperature range and vibration resistance make it suitable for crane electrical rooms exposed to sea air, temperature cycling, and mechanical shock from container handling operations.

Safety and Quality FAQ

Q1: What warranty coverage does the MAIWE MIEF1203-P-SC-2-A220-V5.0 carry?
Every unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. Warranty claims are processed with priority to minimize control system downtime at customer sites.

Q2: Is each unit tested before shipment?
Yes. All MIEF1203-P-SC-2-A220-V5.0 units undergo pre-shipment functional testing including power-on verification, serial port communication loopback tests on both channels, and visual inspection for physical integrity. Units that fail any test criterion are quarantined and not shipped. Test records are retained for traceability.

Q3: Is the MIEF1203-P-SC-2-A220-V5.0 compatible with third-party PLCs and SCADA systems?
Yes. The module supports standard Modbus RTU and Modbus ASCII protocols on its serial ports, making it compatible with PLCs from Siemens, Schneider Electric, Rockwell Automation, Mitsubishi, and other major manufacturers, as well as SCADA platforms including Wonderware, iFIX, and WinCC. For protocol-specific compatibility questions, contact our technical team before ordering.

Q4: Can long-term spare parts supply be guaranteed for critical site maintenance planning?
NINERMAS maintains dedicated stock of MAIWE MIEF Series modules to support spare parts programs for critical infrastructure operators. We recommend that sites with continuous production requirements maintain at least one cold-standby unit per installed MIEF1203. Our team can assist with multi-unit procurement planning and lead time commitments for scheduled maintenance windows.
